High Reliability SL40T65FL IGBT Manufacturer
SL40T65FL IGBT, featuring 650V VCE, 80A IC, 375W PD, with a temperature range of -40 to 175°C. Ideal for high-power, high-efficiency switching applications.
● High Input Impedance
● Maximum junction temperature 175°C
● High Speed Switching & Low Power Loss
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description

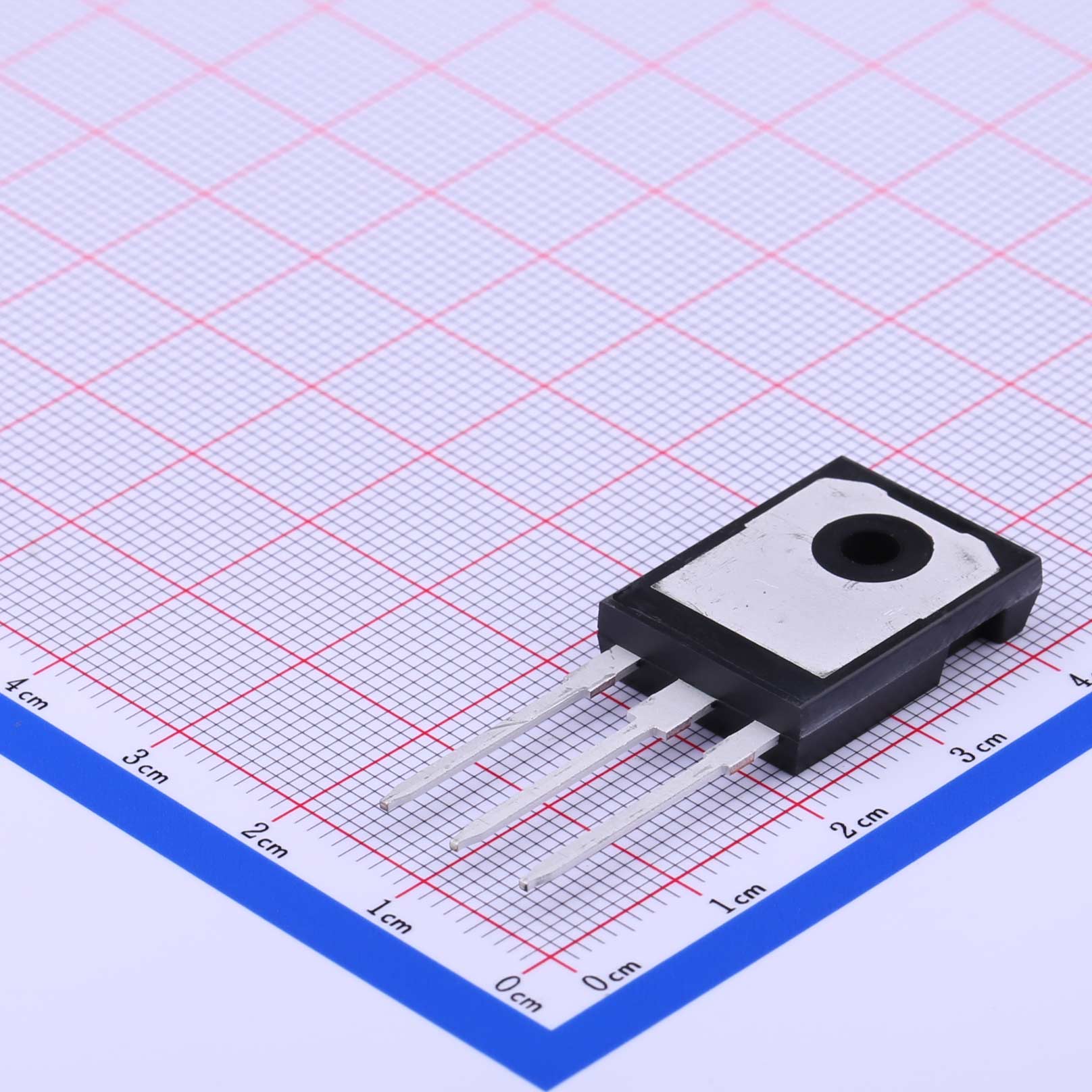

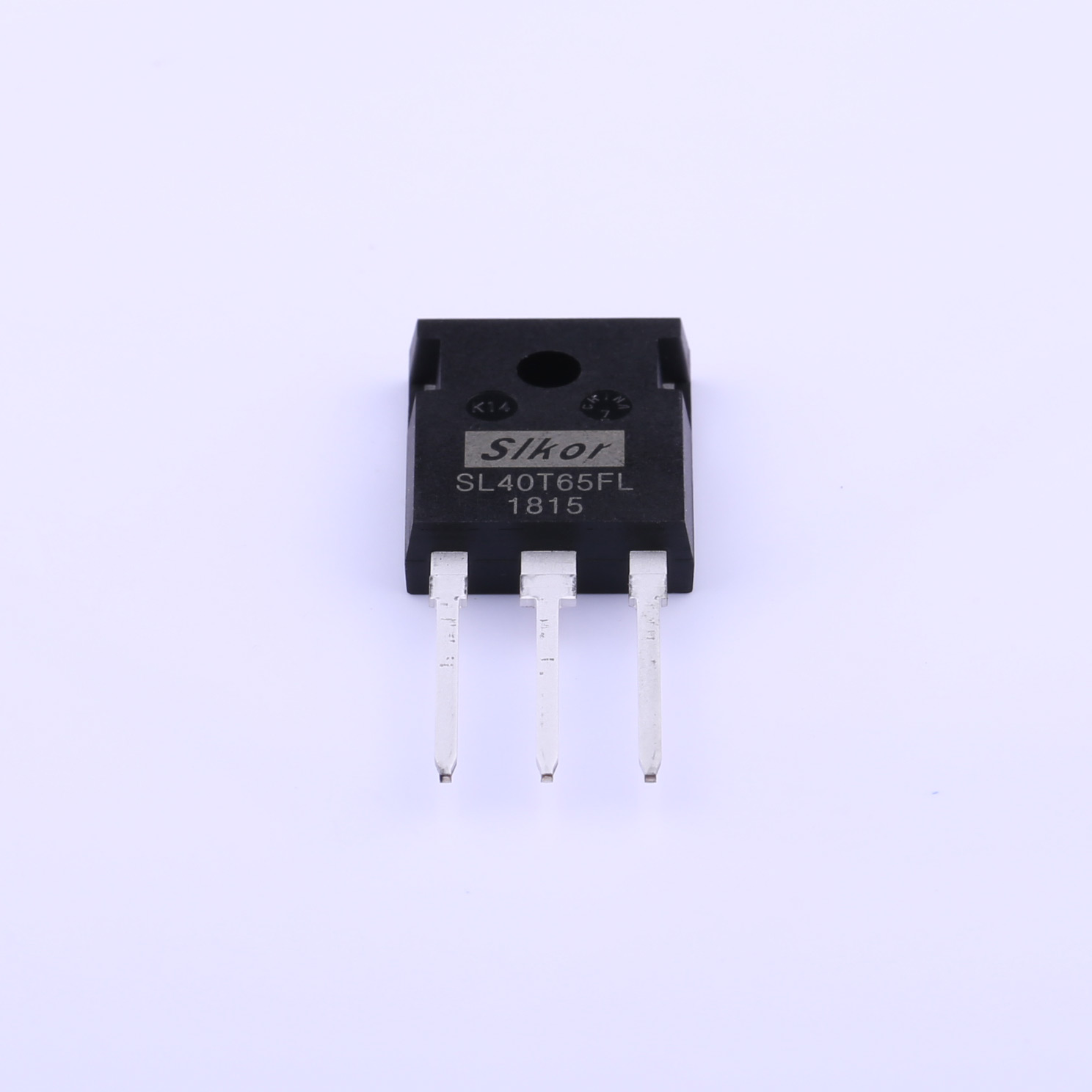

The SL40T65FL is a high-performance Insulated Gate Bipolar Transistor (IGBT) designed to deliver robust power handling capabilities in various industrial applications. With a voltage rating of 650V and a maximum collector current of 40A at a junction temperature of 100℃, this IGBT is engineered to provide efficient and reliable operation under demanding conditions. It is housed in a TO-247 package, ensuring ease of installation and thermal management.
Features
● High Speed Switching & Low Power Loss
● VCE(sat) = 1.95V @ IC = 40A
● Eoff = 0.35mJ @ TC = 25°C
● High Input Impedance
● trr = 80ns (typ.) @diF/dt = 1000A/ μs
● Maximum junction temperature 175°C
Applications
● PFC
● UPS
● PV Inverter
● Welder
● IH Cooker
