ESD Diode
TVS diode and ESD diode of these two circuit protection devices, the two work on the same principle, but in power, application occasions, packaging form, etc. are very different, specifically in: ESD diodes, the main function is to prevent static electricity, however, anti-static requirements of the junction capacitance value of the low value, generally in the 1 - 3.5PF between the best; and the junction capacitance value of TVS diodes is relatively high.ESD diodes, the main application of the ESD diodes are mainly used for board level protection; TVS diodes are used for primary and secondary protection.

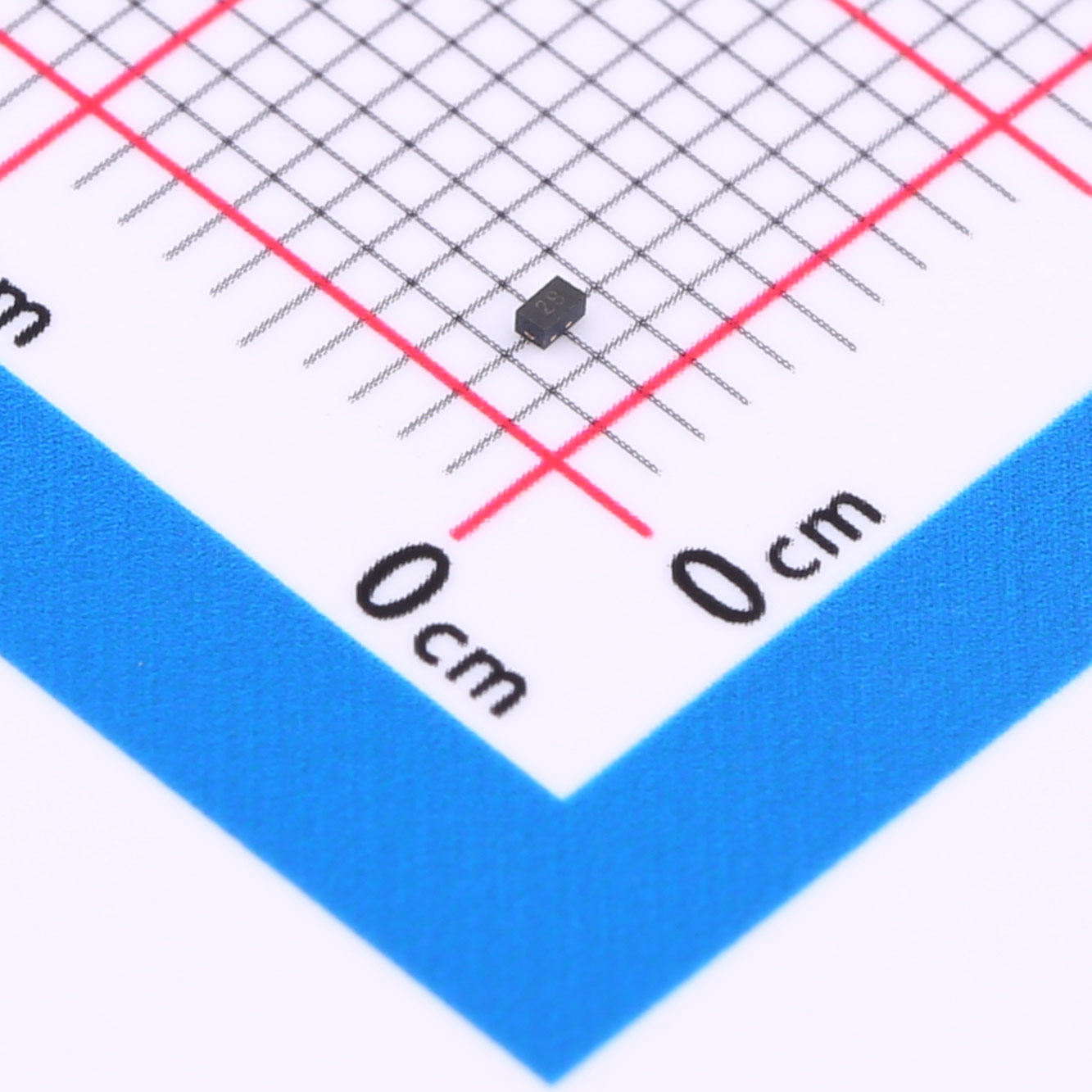

AU0511P1 ESD Protection Diode DFN1006 Professional Supplier
VRWM(V)：5V
VBR min(V)：5.6V
IR(uA)：1μA
VC(V)：9.5V
CJ(pF)：15
Package：DFN1006
AZ5325-01F ESD Protection Devices DFN1006 Professional Supplier
VRWM(V)：5V
VBR min(V)：6.0V
IR(uA)：0.1μA
VC(V)：11V
CJ(pF)：0.45pF
Package：DFN1006
AZC199-04 ESD Protection Devices SOD-523 Professional Supplier
VRWM(V)：5V
VBR min(V)：6V
IR(uA)：1μA
VC(V)：15V
CJ(pF)：0.4pF
Package：SOD-523

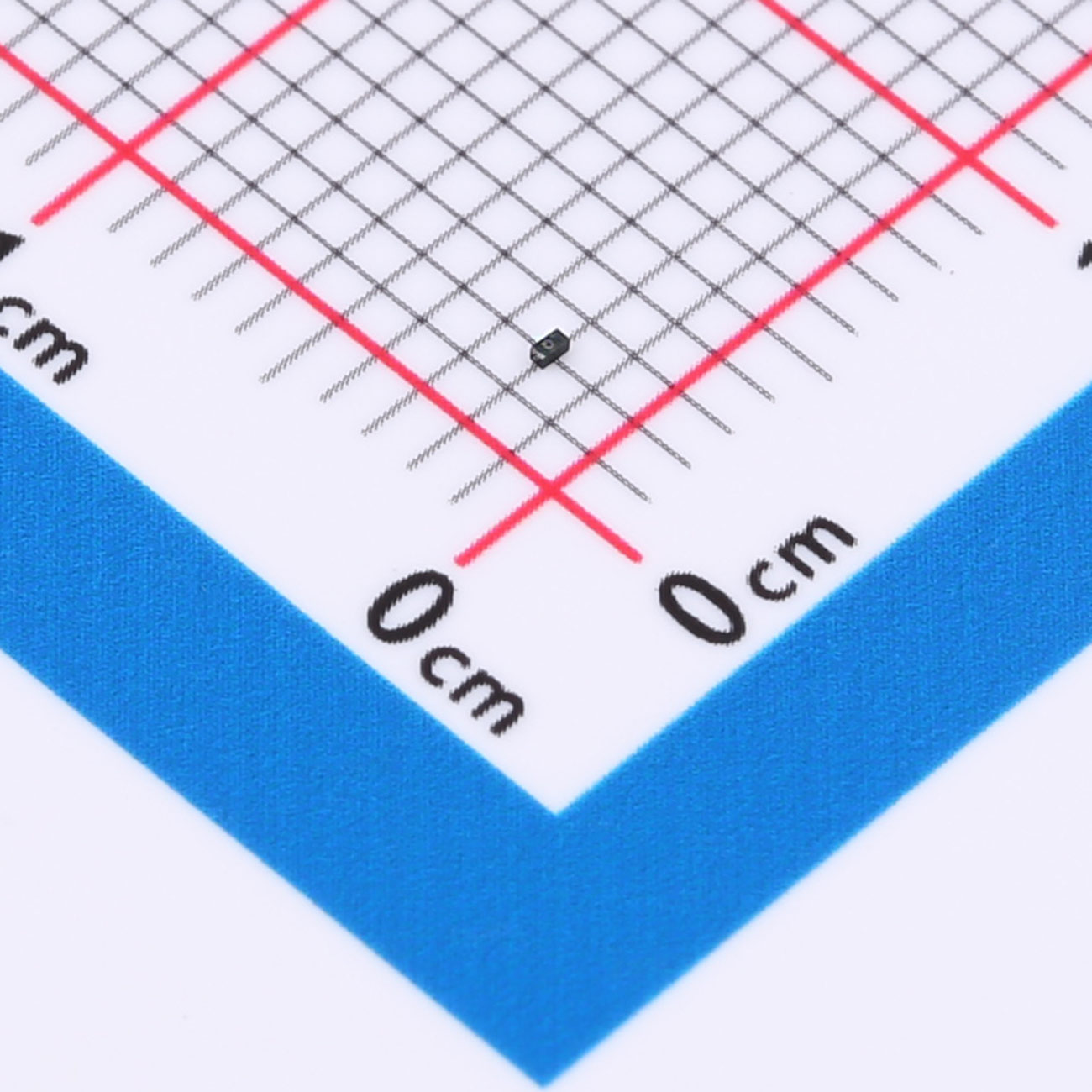

Alternative equivalent for NXP PESD3V3R1BSF | Slkor SLESD03D6BU ESD Protection Devices DFN0603
VRWM(V)：3.3V
VBR min(V)：4.2V
IR(uA)：100nA
VC(V)：12V
CJ(pF)：0.25pF
Package：DFN0603
Alternative equivalent for NXP PESD3V3T1BL | Slkor SLESD0301M ESD Protection Devices
VRWM(V)：5.0V
VBR min(V)：6.0V
IR(uA)：0.1μA
VC(V)：11V
CJ(pF)：0.35pF
Package：DFN1006

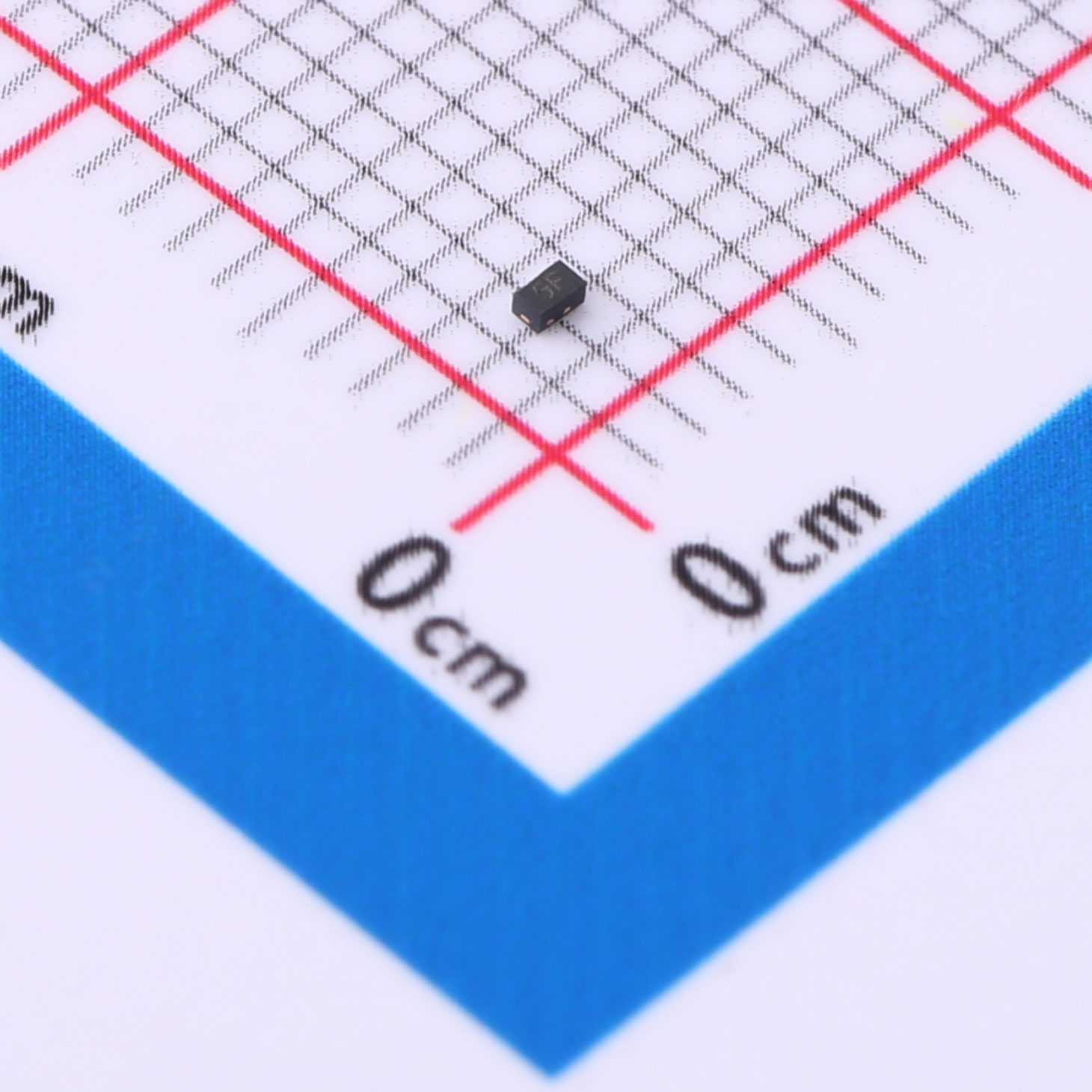

Alternative equivalent for NXP PESD5V0F1BL | Slkor SLESD0501BU ESD Protection Devices
VRWM(V)：5.0V
VBR min(V)：6.0V
IR(uA)：0.1μA
VC(V)：11V
CJ(pF)：0.35pF
Package：DFN1006
Alternative equivalent for NXP PESD5V0S1BL | Slkor SLESD0501CM ESD Protection Devices
VRWM(V)：5.0V
VBR min(V)：6.0V
IR(uA)：0.1μA
VC(V)：11V
CJ(pF)：0.35pF
Package：DFN1006
Alternative equivalent for Onsemi ESD5Z3.3T1G | Slkor SLESD5Z3V3 ESD Diode
VRWM(V)：3.3V
VBR min(V)：5V
IR(uA)：0.9μA
VC(V)：9.4V
CJ(pF)：105pF
Package：SOD-523

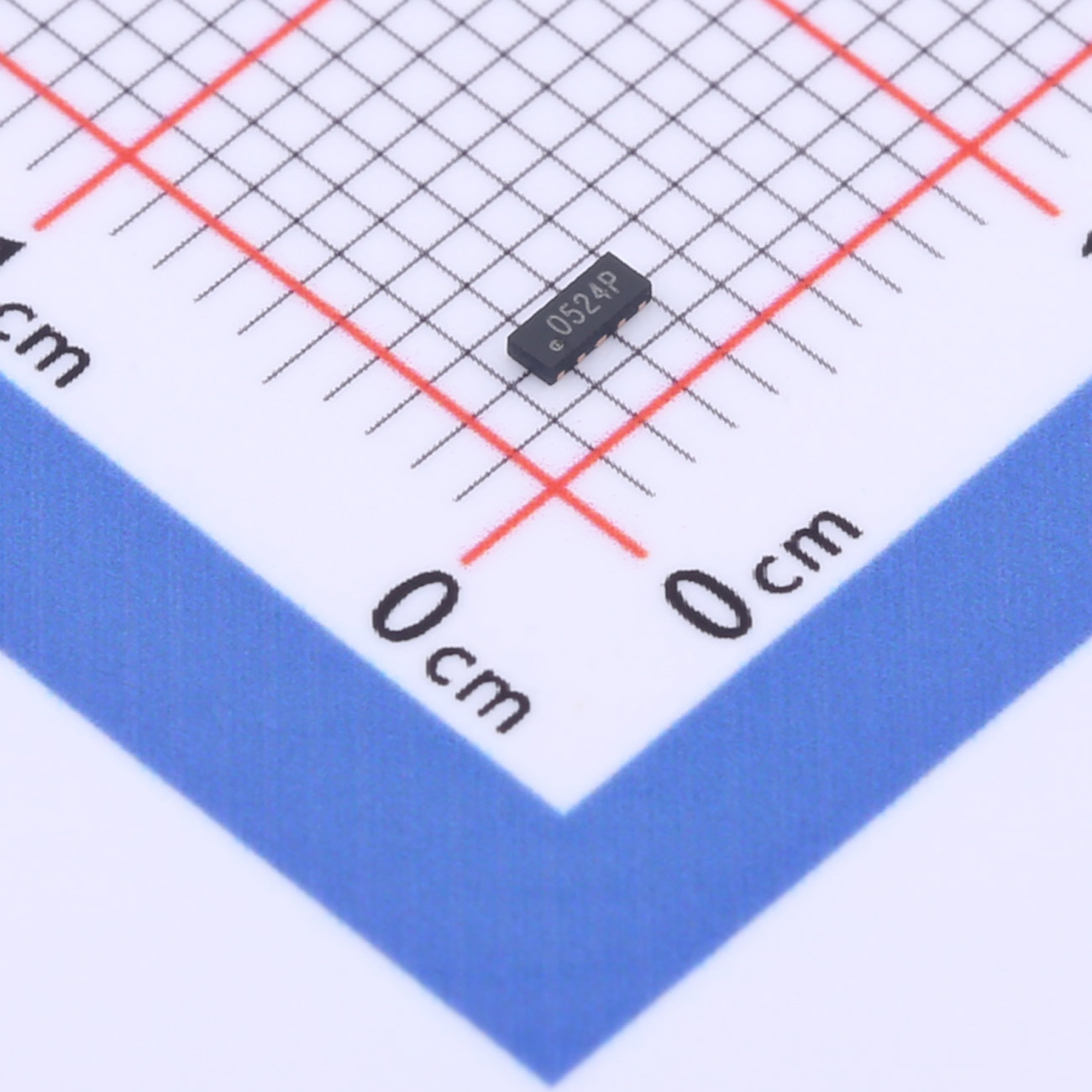

Alternative equivalent for Onsemi ESDR0524P | Slkor RCLAMP0524P ESD Diode
VRWM(V)：5V
VBR min(V)：6V
IR(uA)：1μA
VC(V)：8.5V
CJ(pF)：0.3pF
Package：DFN2510

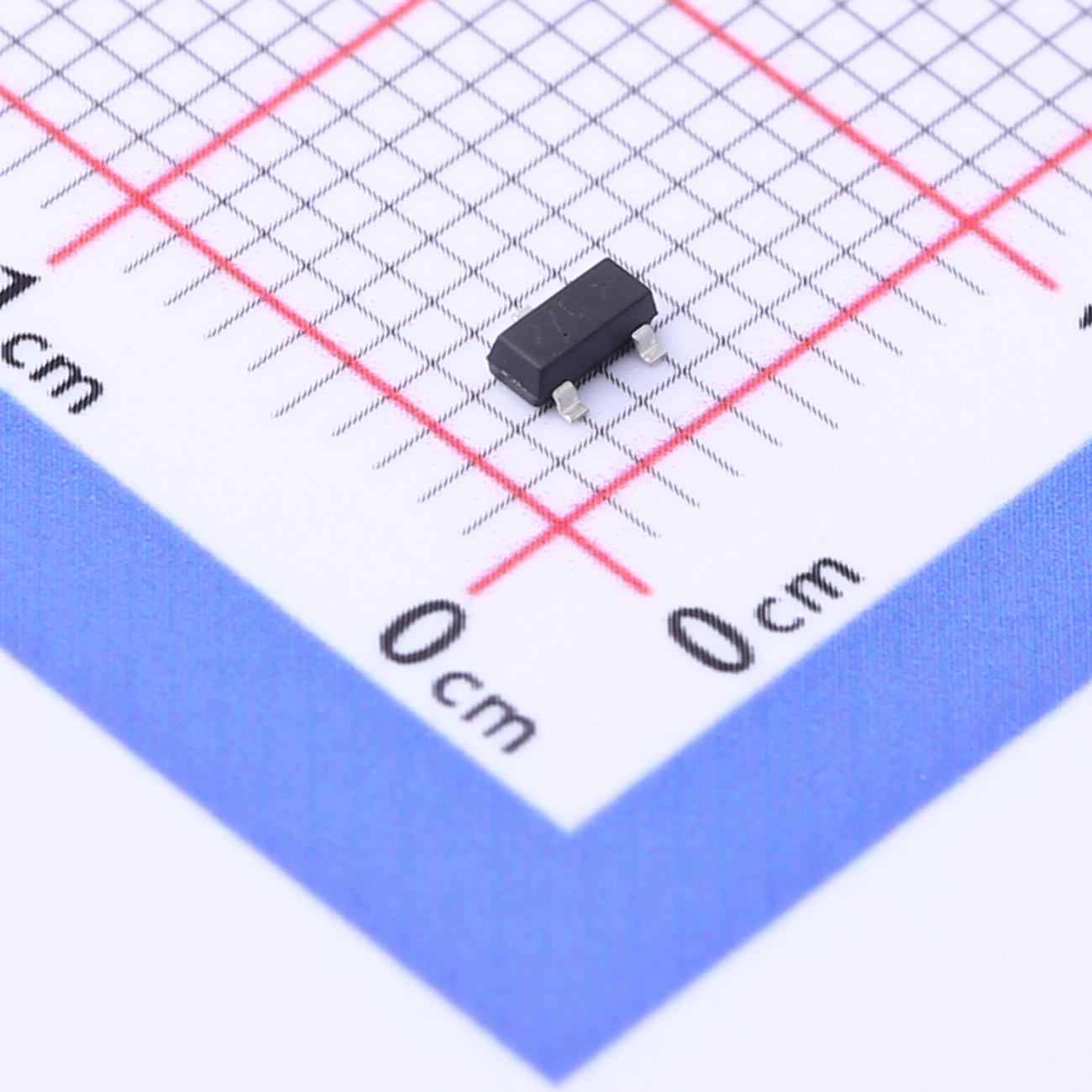

Alternative equivalent for Onsemi NUP2105LT1G | Slkor NUP2105LT1G ESD Diode
VRWM(V)：24V
VBR min(V)：26.2V
IR(uA)：1μA
VC(V)：36V
CJ(pF)：30pF
Package：SOT-23

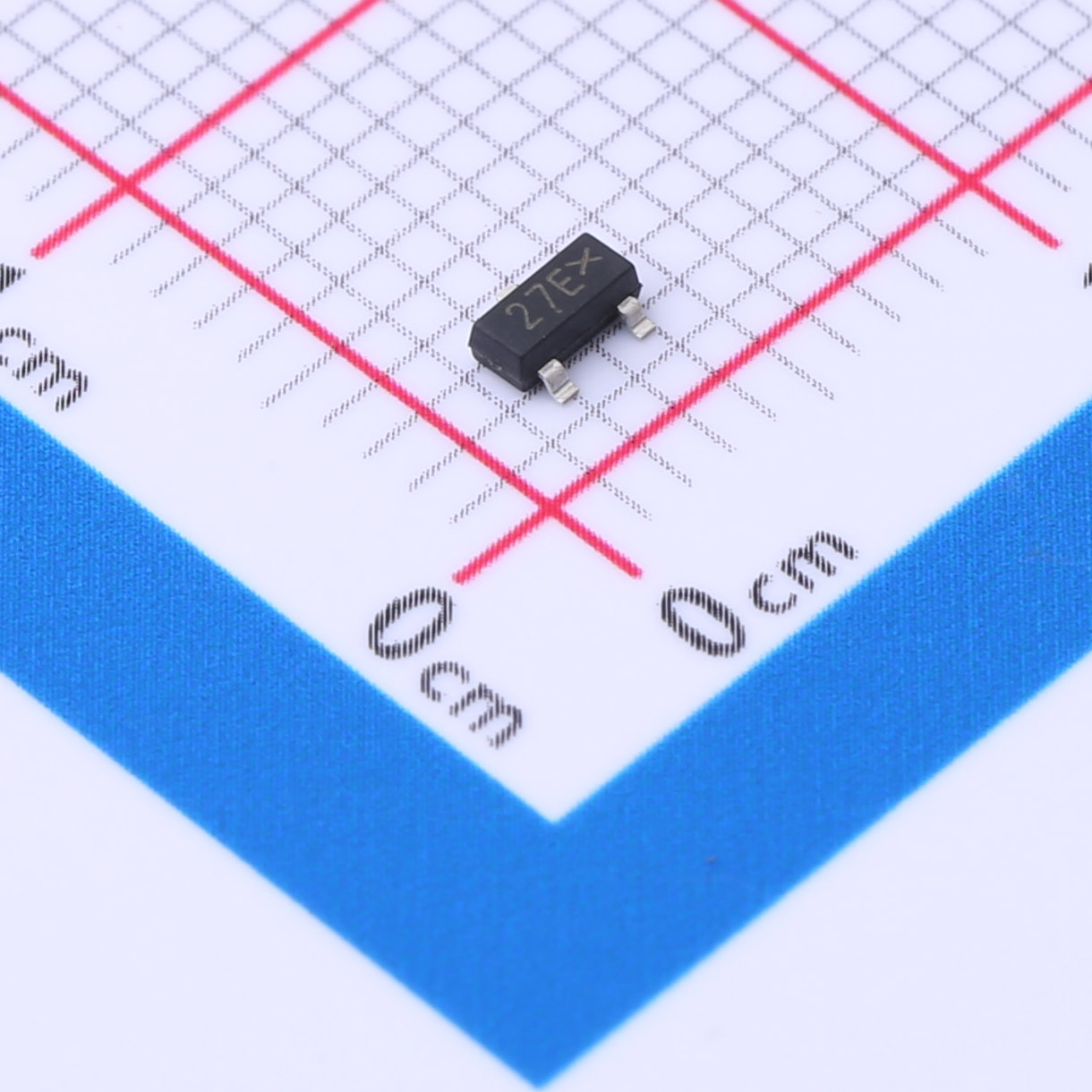

Alternative equivalent for Onsemi NUP2105LT1G | Slkor SLESD2105L ESD Protection Devices SOT-23
VRWM(V)：24V
VBR min(V)：26.2V
IR(uA)：15nA
VC(V)：36V
CJ(pF)：25pF
Package：SOT-23

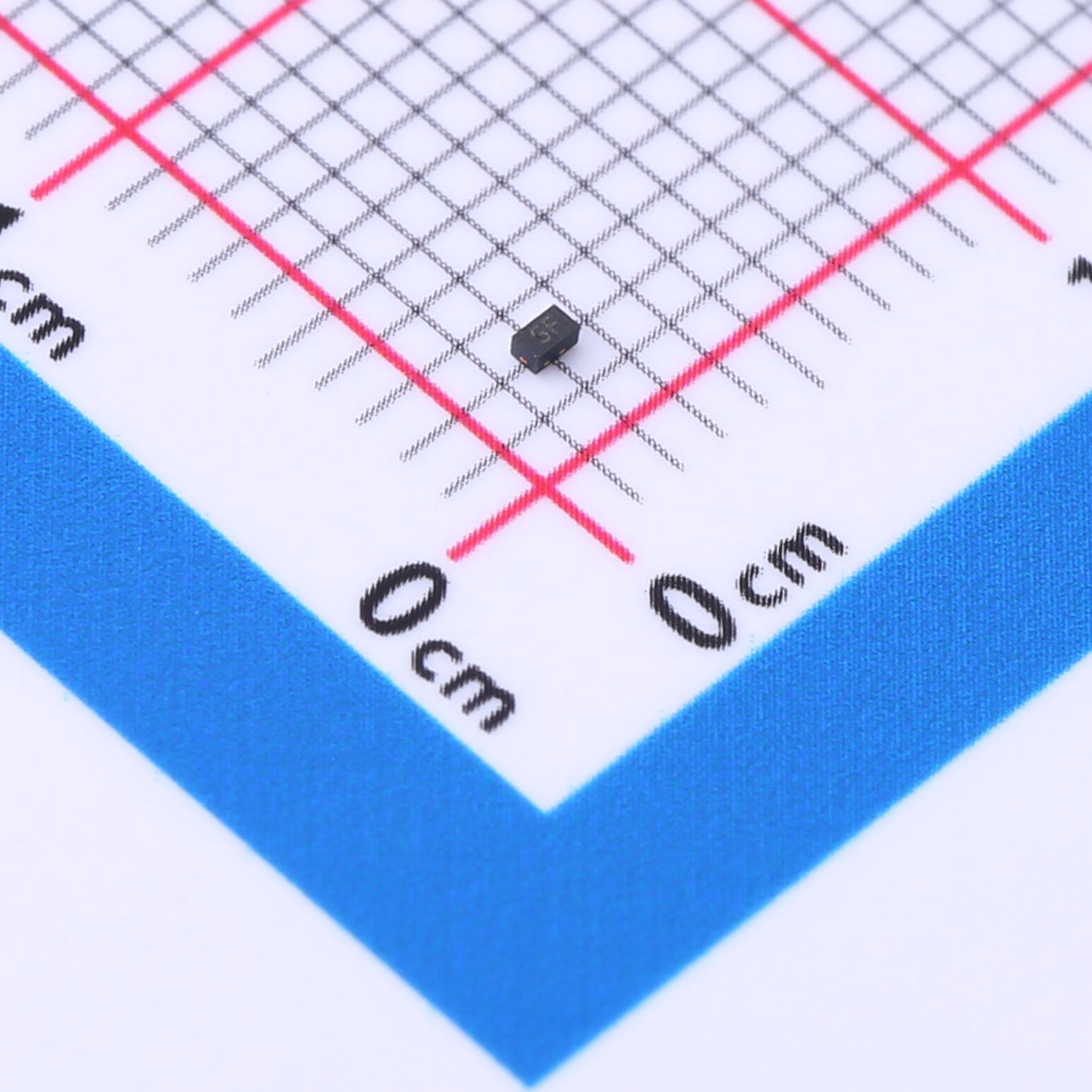

BV-FA05UCA ESD Protection Devices DFN1006 Professional Supplier
VRWM(V)：5V
VBR min(V)：6.0V
IR(uA)：0.1μA
VC(V)：11V
CJ(pF)：0.45pF
Package：DFN1006

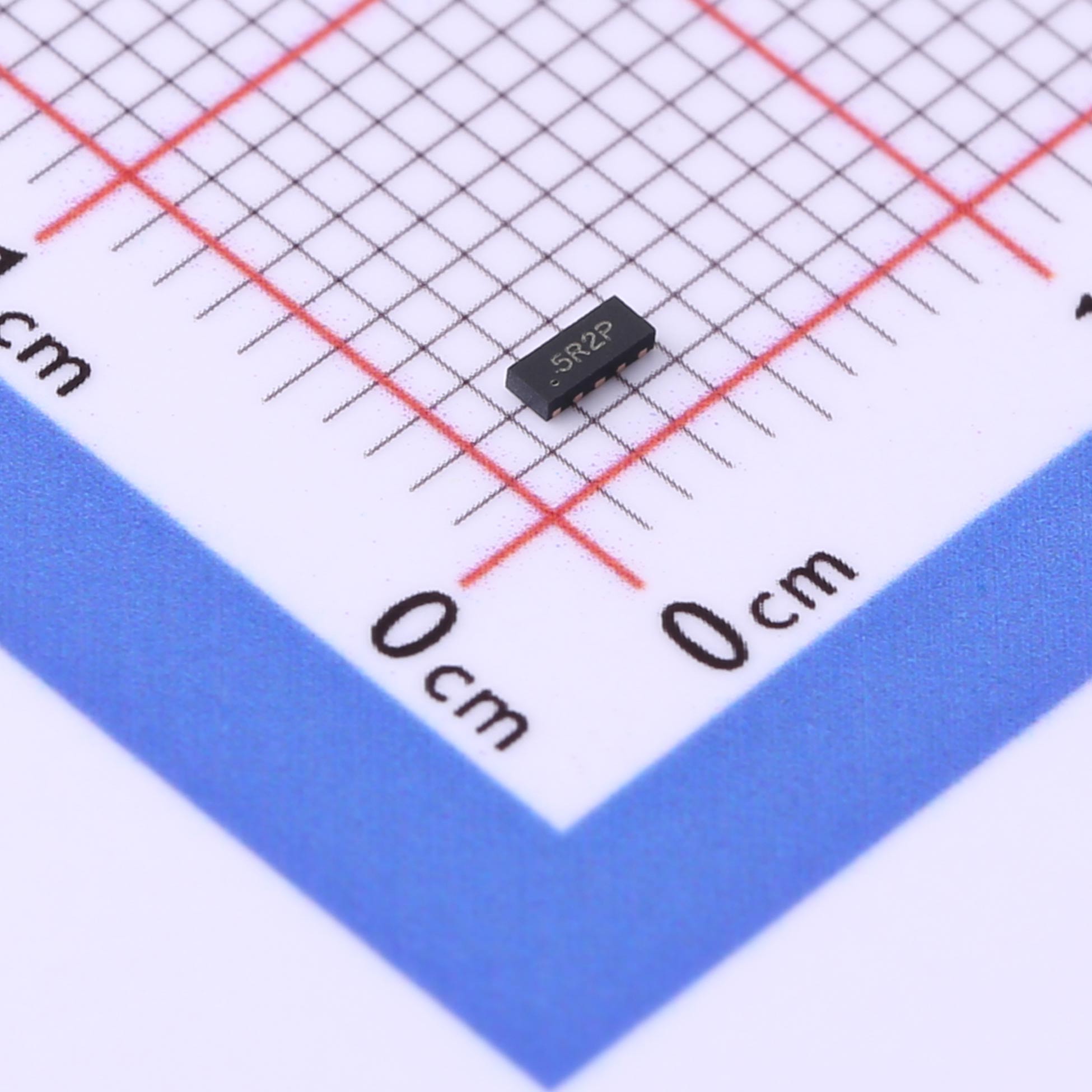

CESD2510LC5VU ESD Protection Devices DFN2510 Professional Supplier
VRWM(V)：5V
VBR min(V)：6V
IR(uA)：1μA
VC(V)：16V@5A
CJ(pF)：0.8pF
Package：DFN2510
CESD882UC5VB ESD Protection Devices DFN1006 Professional Supplier
VRWM(V)：5V
VBR min(V)：6.0V
IR(uA)：0.1μA
VC(V)：11V
CJ(pF)：0.45pF
Package：DFN1006

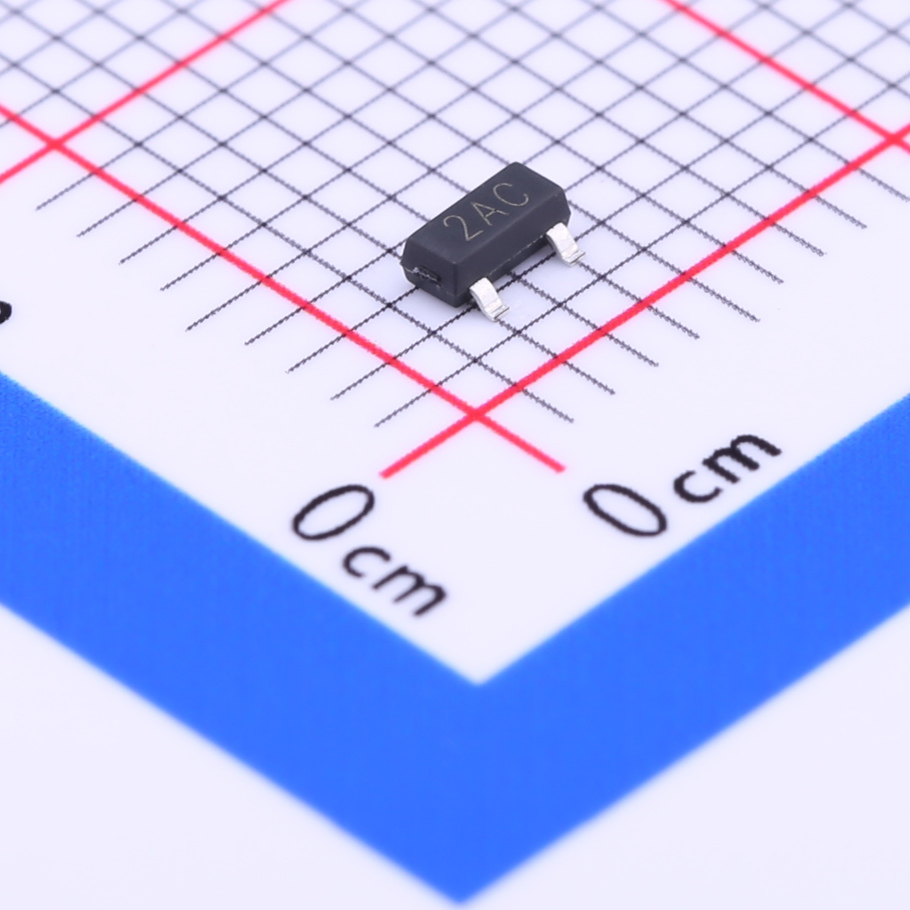

Cost-effective ESD protection diode SLSOT05C SOT-23
VRWM(V)：5V
VBR min(V)：6V
IR(uA)：1μA
VC(V)：7.4V
CJ(pF)：30pF
Package：SOT-23

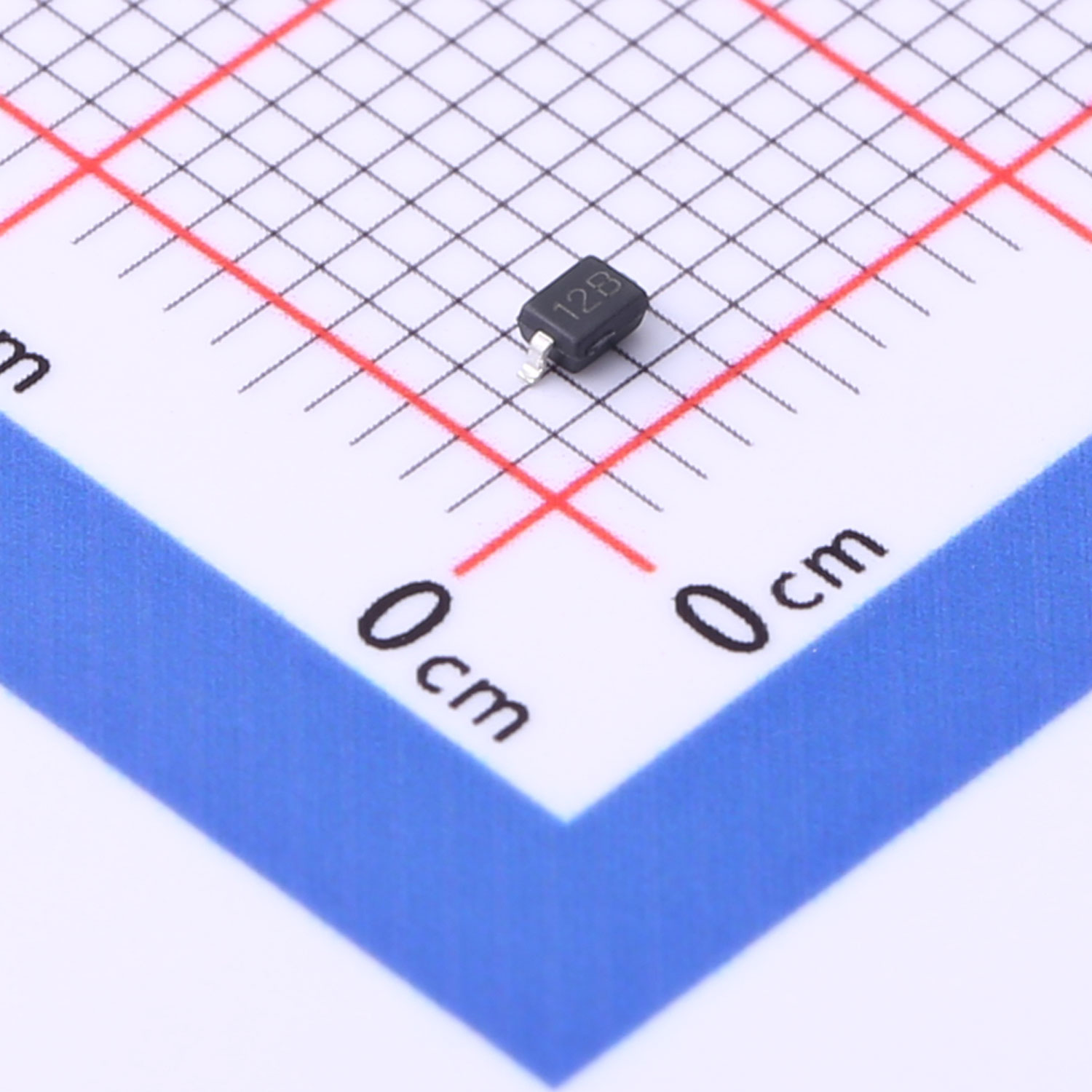

Cost-effective SD12C ESD Protection Diode Factory Direct
VRWM(V)：12V
VBR min(V)：13.3V
IR(uA)：1μA
VC(V)：32V
CJ(pF)：75pF
Package：SOD-323
Cost-effective SLESD5Z24 ESD Diode Manufacturer
VRWM(V)：24V
VBR min(V)：26V
IR(uA)：5μA
VC(V)：35V
CJ(pF)：50pF
Package：SOD-523

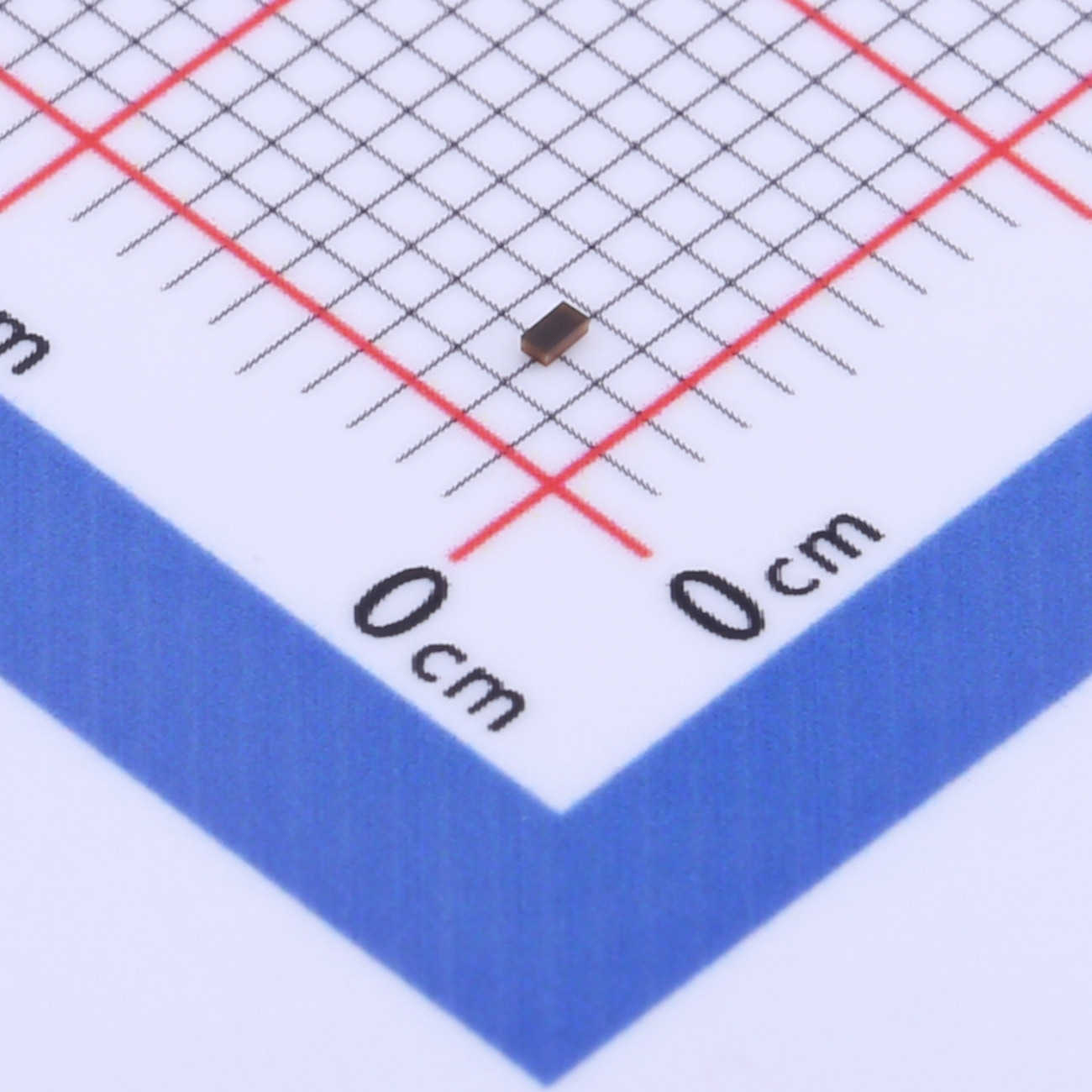

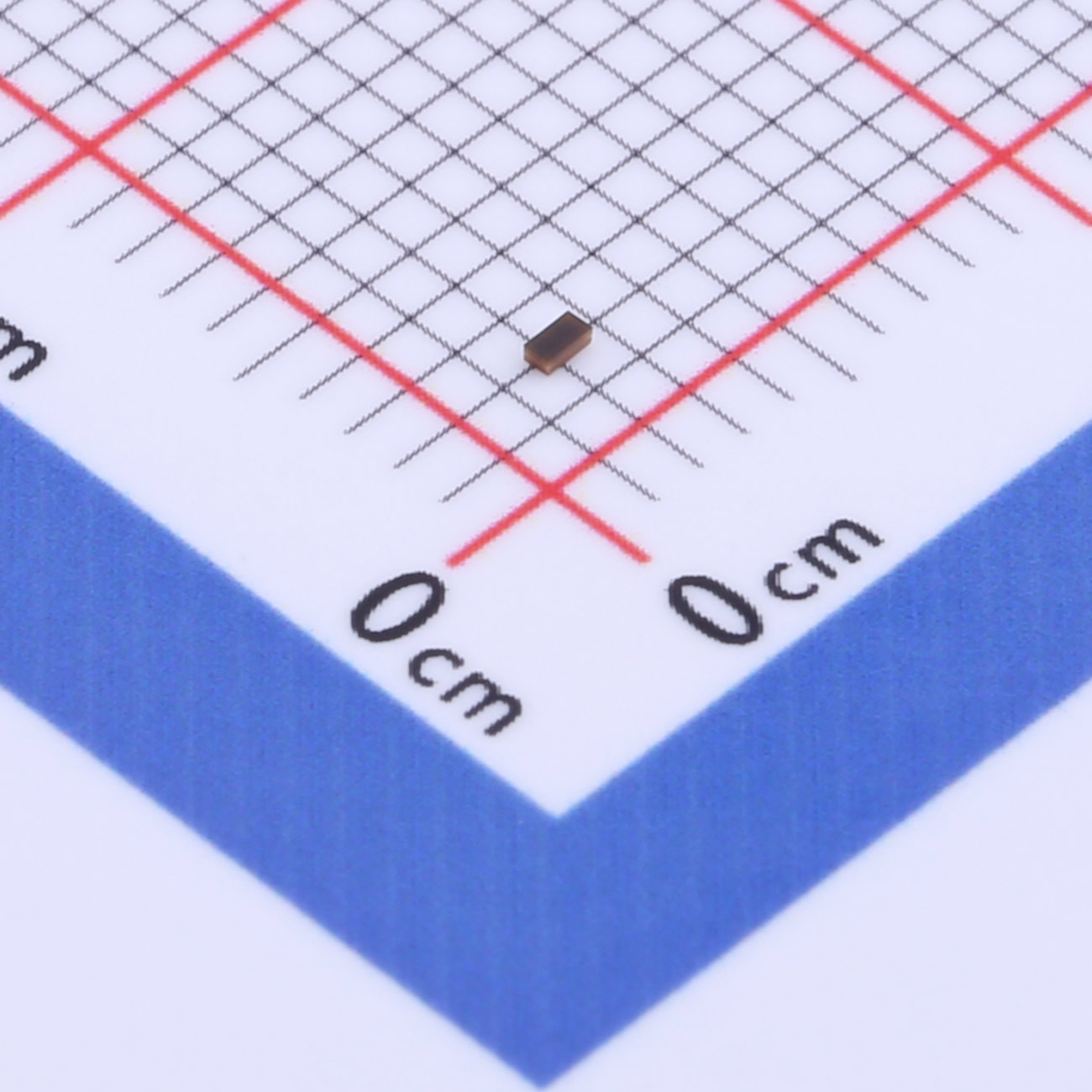

Cost-effective SLPESD0402M05 ESD Protection Devices 0402 Factory Direct
VRWM(V)：8KV
VBR min(V)：15KV
IR(uA)：10nA
VC(V)：40V
CJ(pF)：0.05pF
Package：0402

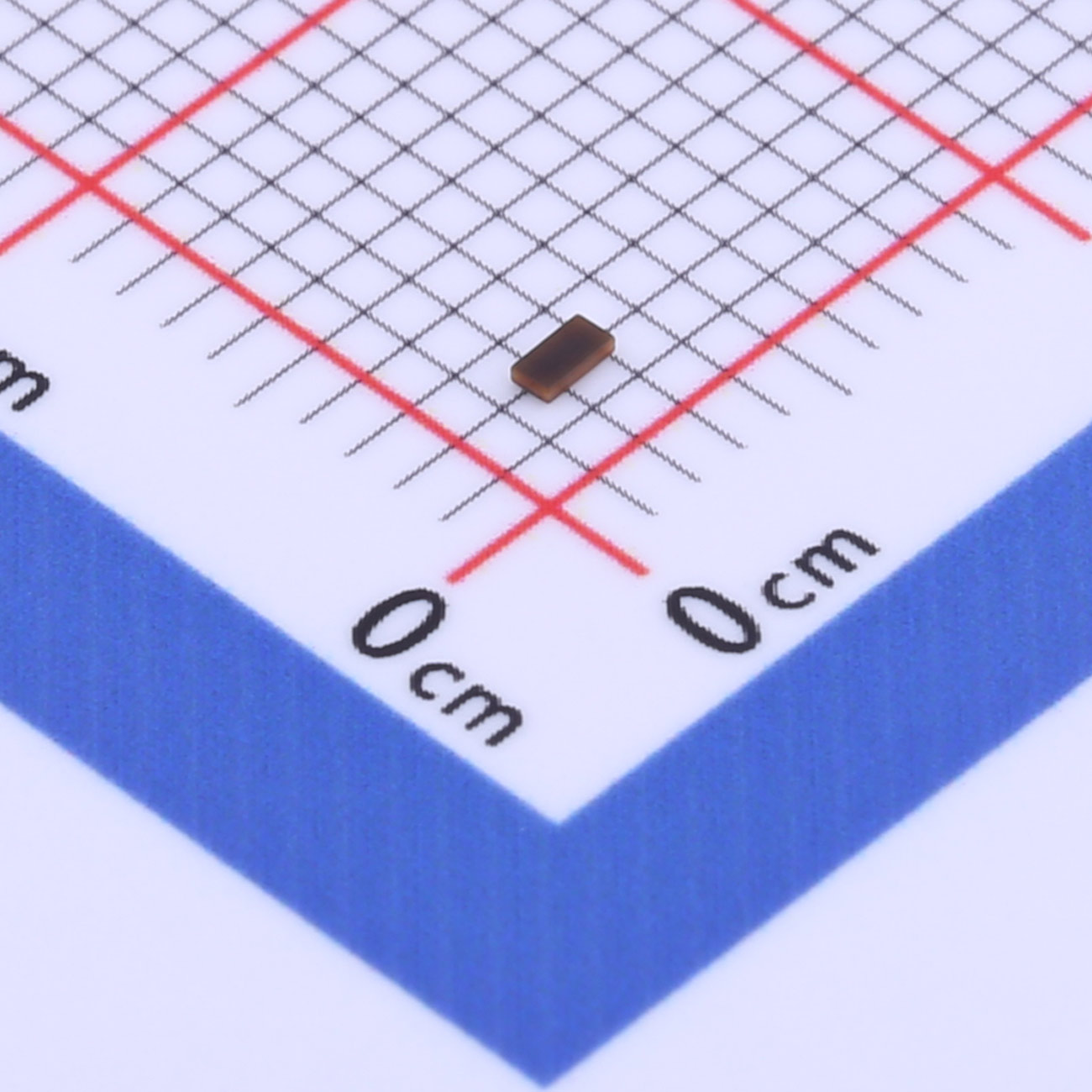

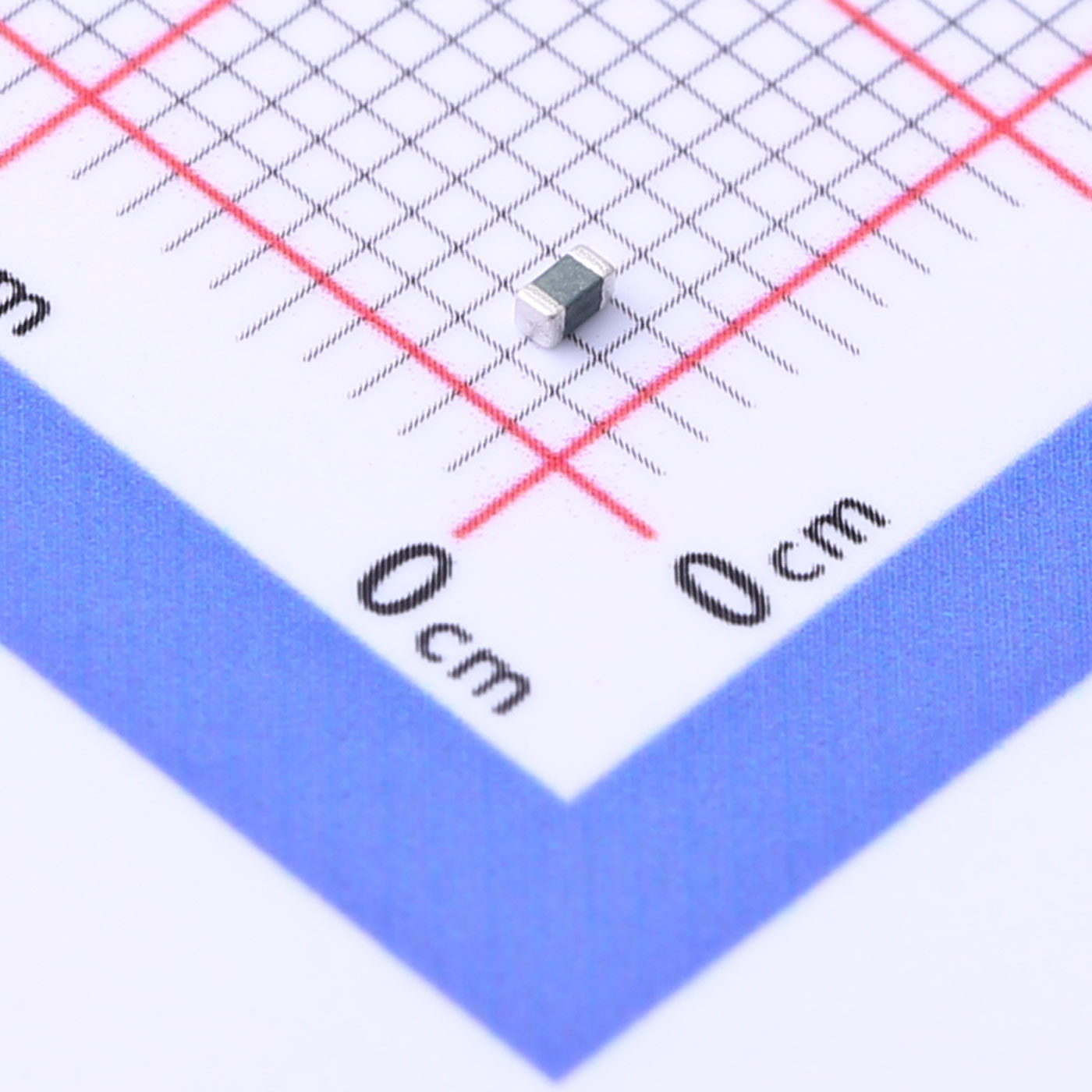

ESD Diode SLESDL0603-05
VRWM(V)：8KV
VBR min(V)：15KV
IR(uA)：500nA
VC(V)：65V
CJ(pF)：1.5pF
Package：0603

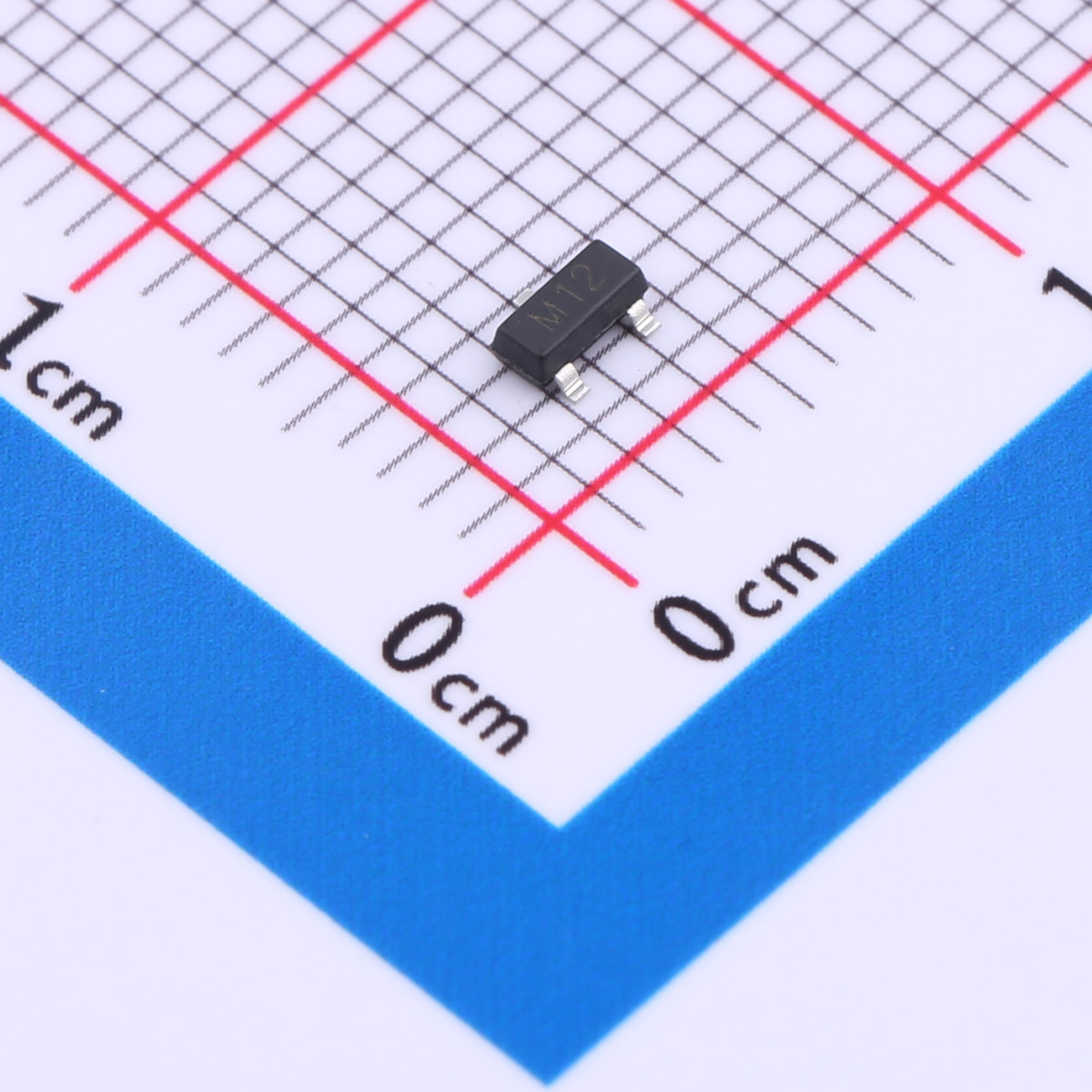

ESDA14V2L ESD Protection Diode SOT-23 Professional Supplier
VRWM(V)：12V
VBR min(V)：13.3V
IR(uA)：1μA
VC(V)：19V
CJ(pF)：130pF
Package：SOT-23
| 5V | 5.6V | 1μA | 9.5V | 15 | DFN1006 | |
| 5V | 6.0V | 0.1μA | 11V | 0.45pF | DFN1006 | |
| 5V | 6V | 1μA | 15V | 0.4pF | SOD-523 | |
| 3.3V | 4.2V | 100nA | 12V | 0.25pF | DFN0603 | |
| 5.0V | 6.0V | 0.1μA | 11V | 0.35pF | DFN1006 | |
| 5.0V | 6.0V | 0.1μA | 11V | 0.35pF | DFN1006 | |
| 5.0V | 6.0V | 0.1μA | 11V | 0.35pF | DFN1006 | |
| 3.3V | 5V | 0.9μA | 9.4V | 105pF | SOD-523 | |
| 5V | 6V | 1μA | 8.5V | 0.3pF | DFN2510 | |
| 24V | 26.2V | 1μA | 36V | 30pF | SOT-23 | |
| 24V | 26.2V | 15nA | 36V | 25pF | SOT-23 | |
| 5V | 6.0V | 0.1μA | 11V | 0.45pF | DFN1006 | |
| 5V | 6V | 1μA | 16V@5A | 0.8pF | DFN2510 | |
| 5V | 6.0V | 0.1μA | 11V | 0.45pF | DFN1006 | |
| 5V | 6V | 1μA | 7.4V | 30pF | SOT-23 | |
| 12V | 13.3V | 1μA | 32V | 75pF | SOD-323 | |
| 24V | 26V | 5μA | 35V | 50pF | SOD-523 | |
| 8KV | 15KV | 10nA | 40V | 0.05pF | 0402 | |
| 8KV | 15KV | 500nA | 65V | 1.5pF | 0603 | |
| 12V | 13.3V | 1μA | 19V | 130pF | SOT-23 |
