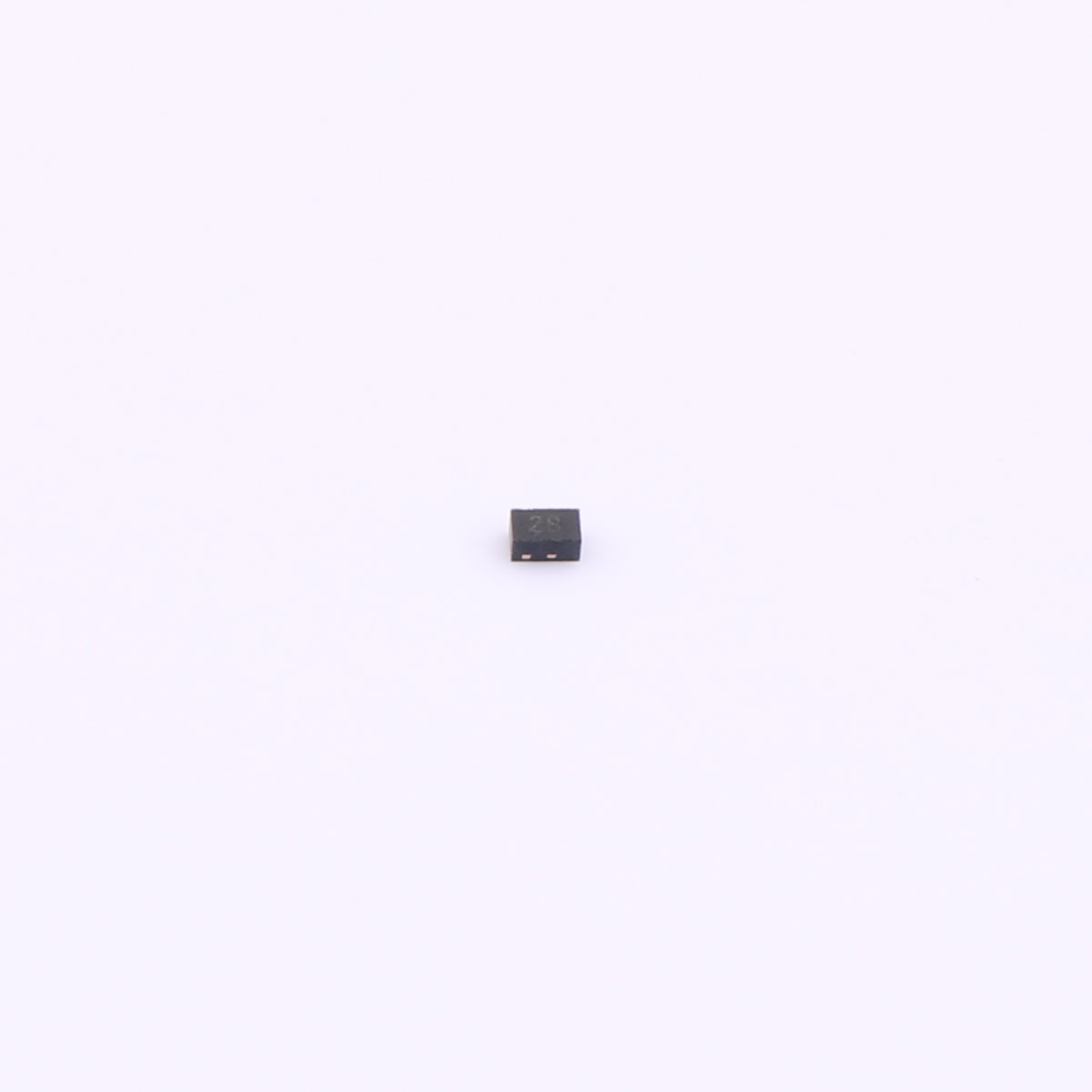

AU0511P1 ESD Protection Diode DFN1006 Professional Supplier
AU0511P1 is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for data,control or power line. With maximum capacitance of 15pF, AU0511P1 is designed to protect parasiticsensitive systems against over-voltage and overcurrent transient events. It complies with IEC 61000-4-2 (ESD ), Level 4 (±15 kV air , ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient -EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. AU0511P1 uses ultra-small DFN1006 . Each AU0511P11 device can protect one data line. It offers system designers flexibility to protect single data line where space is a premium concern.
VRWM (max):5V
VBR(min): 5.6V
IR(max): 1μA
VC(max): 9.5V
Cj(max):15pF
Package: DFN1006
Our advantages Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
AU0511P1 is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for data,control or power line. With maximum capacitance of 15pF, AU0511P1 is designed to protect parasiticsensitive systems against over-voltage and overcurrent transient events. It complies with IEC 61000-4-2 (ESD ), Level 4 (±15 kV air , ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient -EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. AU0511P1 uses ultra-small DFN1006 . Each AU0511P11 device can protect one data line. It offers system designers flexibility to protect single data line where space is a premium concern.
Features
● Transient protection for high-speed data lines
IEC 61000-4-2 (ESD) ±15kV (Air)
±8kV (Contact)
IEC 61000-4-4 (EFT) 40A (5/50 ns)
Cable Discharge Event (CDE)
● Package optimized for high-speed lines

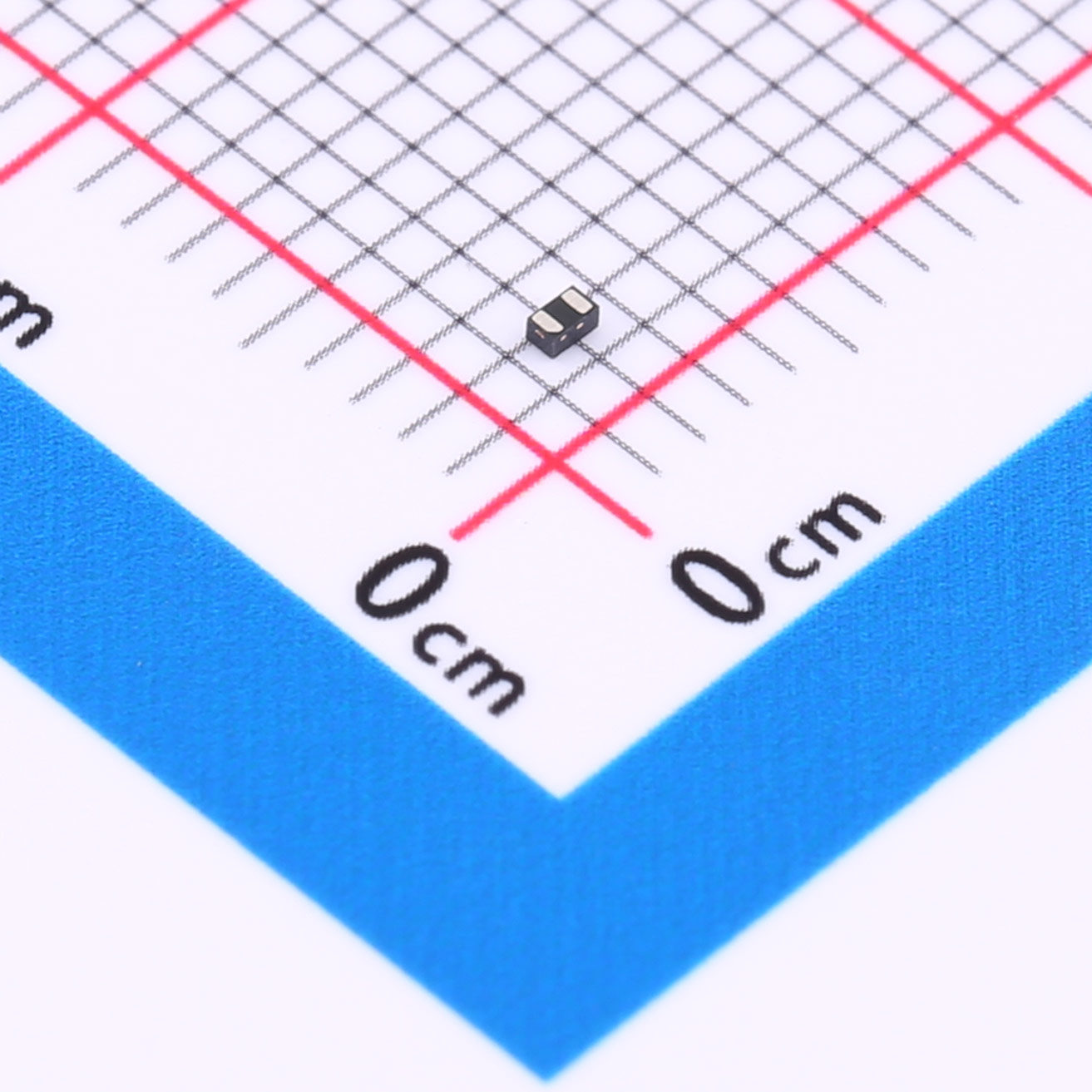

● Ultra-small package (1.0mm?0.6mm?0.4mm)
● Protects one data, control or power line
● Low capacitance
● Low leakage current
● Low clamping voltage
● Each I/O pin can withstand over 1000 ESD strikes for ±8kV contact discharge
Applications
● Portable Electronics
● Desktops, Servers and Notebooks
● Cellular Phones
● MP3 Ports
● Digital Ports
● Subscriber Identity Module (SIM) card
