Description
The GBLC03CI Series are ultra low capacitance transient voltage suppressor arrays, designed to  protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20μs waveshape. The GBLC03CI and Series meets IEC 61000-4-2  (ESD) and IEC 61000-4-4 (EFT) requirements. At  higher operating frequencies or faster edge rates,  insertion loss and signal integrity are a major  concern. This series offers a ultra low capacitance  and low leakage current in a miniature SOD-323  package.

Features
● IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
● IEC61000-4-4 (EFT) 40A (5/50ηs)
● IEC61000-4-5 (Lightning) 12A (8/20μs)
● Protects one I/O line (bidirectional)
● Low clamping voltage
● Working voltages : 3V, 5V, 8V, 12V, 15V, 24V
● Low leakage current
● Response Time is < 1 ns

Mechanical data

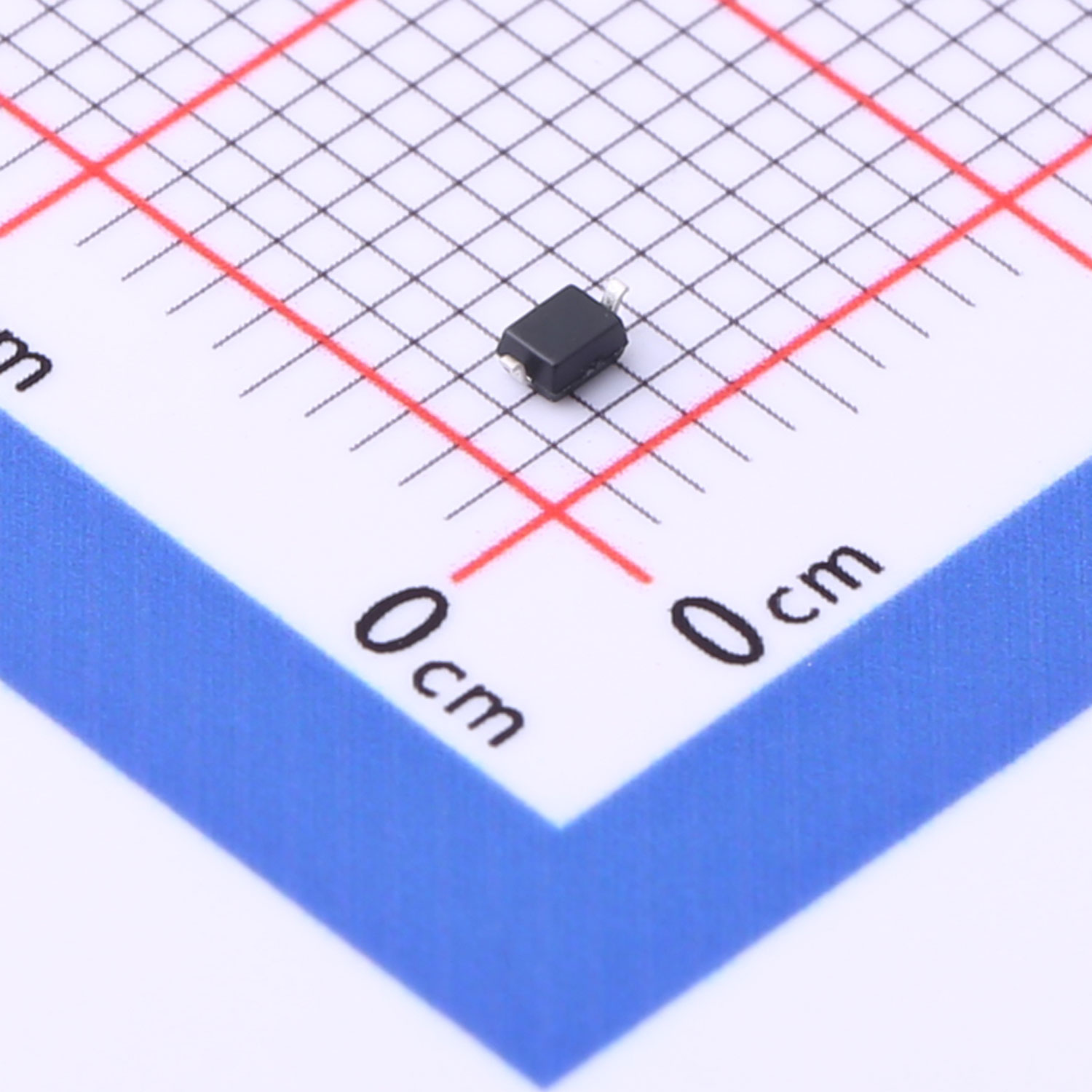

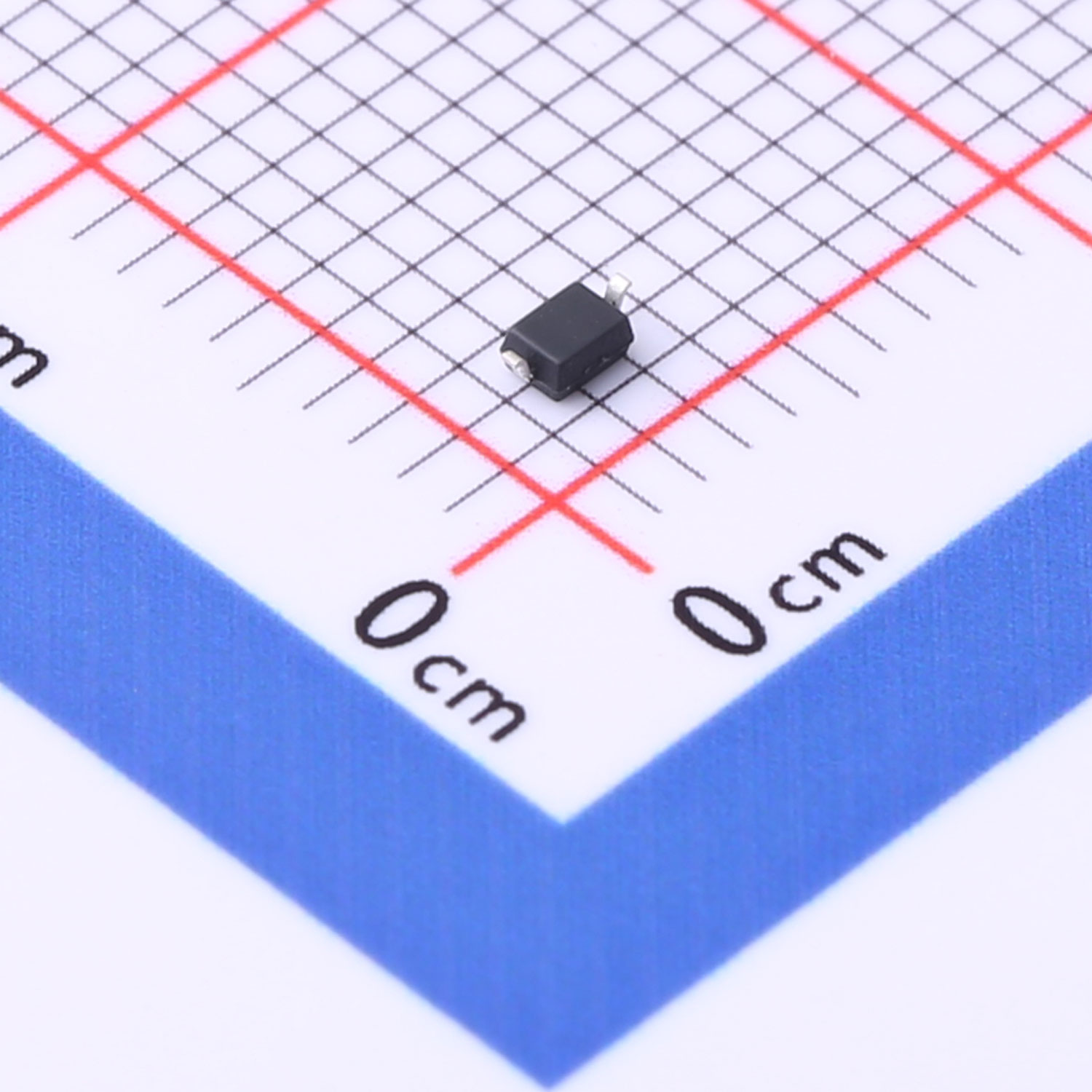

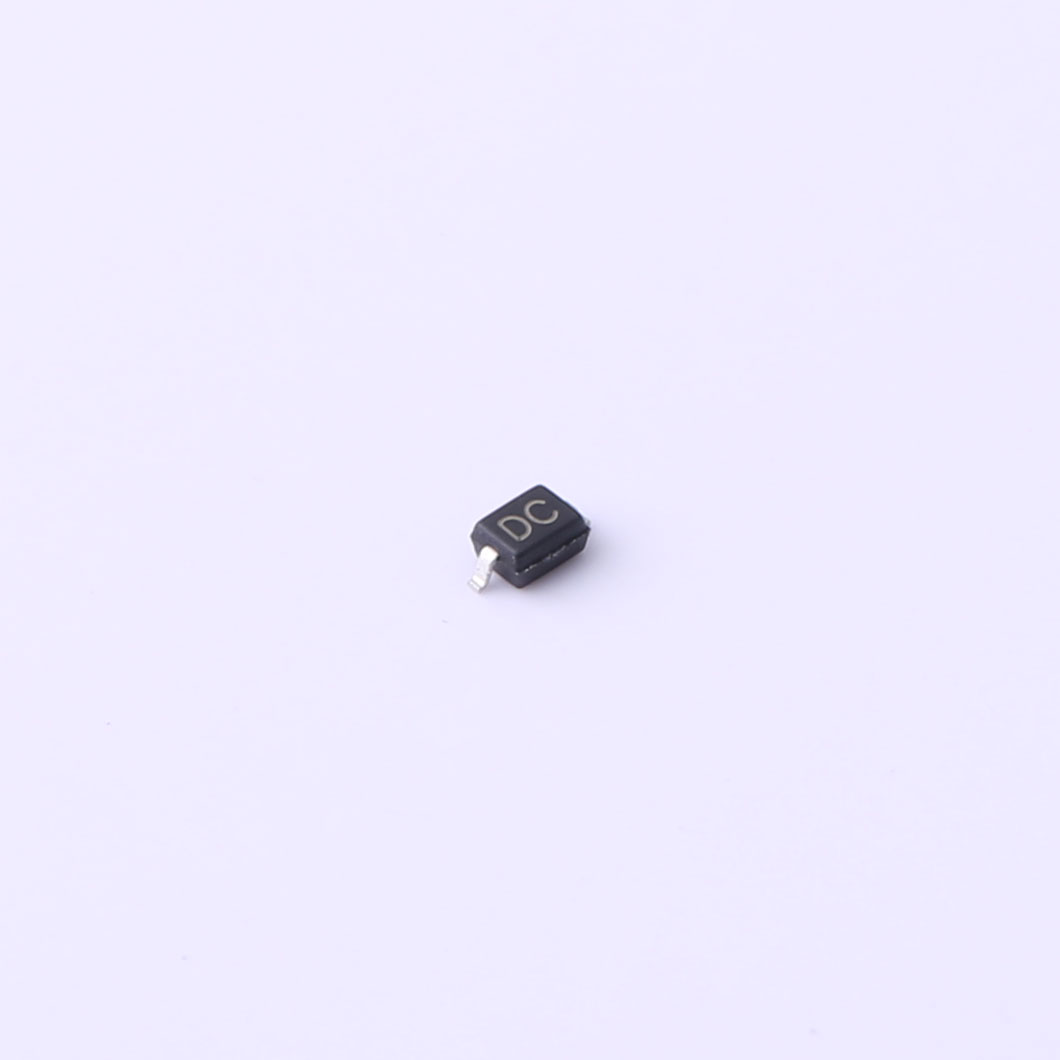

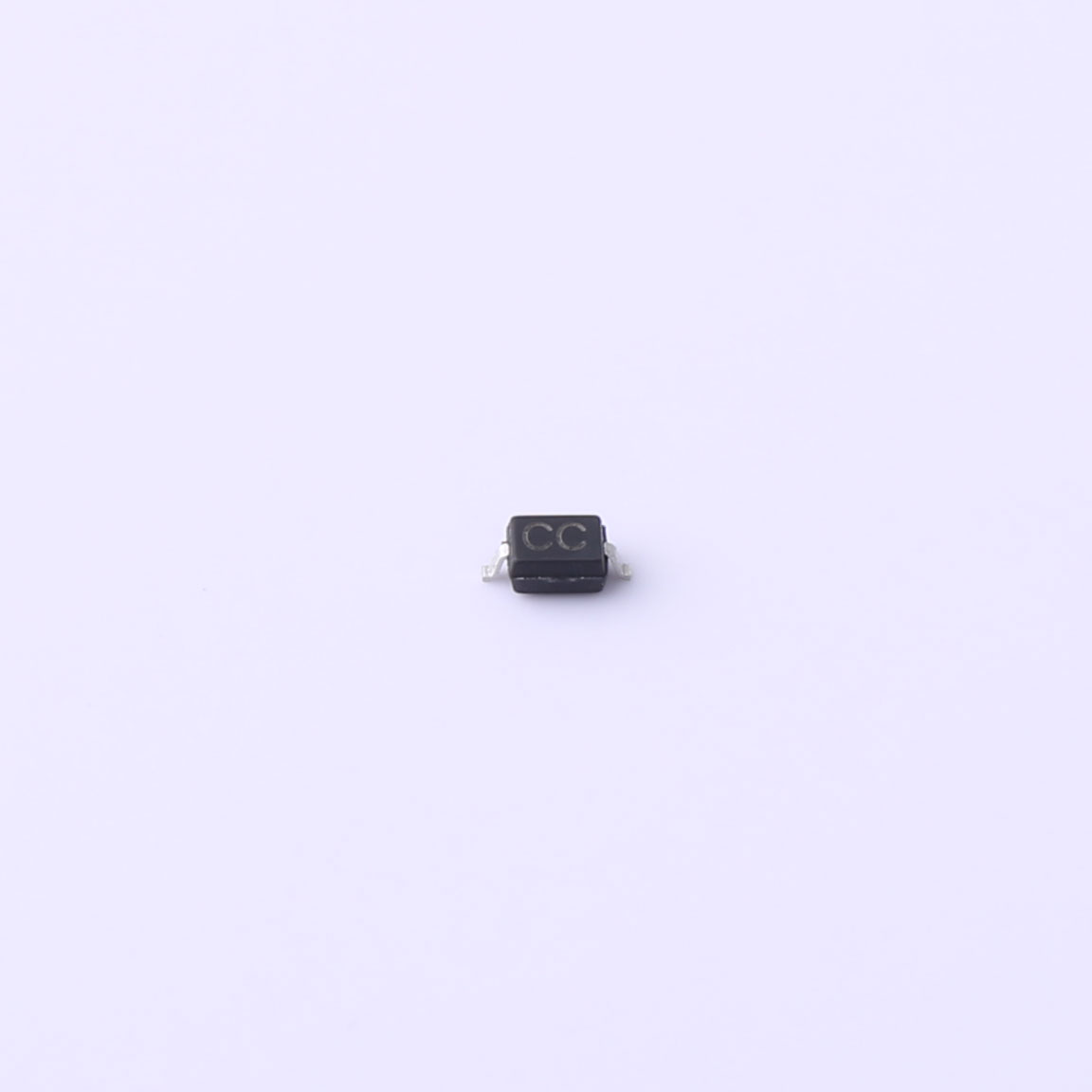

● SOD-323 package
● Flammability Rating: UL 94V-0
● Packaging: Tape and Reel
● High temperature soldering guaranted:260℃/10s
● Reel size: 7 inch APPLICATIONS
● Quantity per reel: 3,000pcs

Applications
● Cell Phone Handsets and Accessories
● Microprocessor based equipment
● Personal Digital Assistants (PDA’s)
● Notebooks, Desktops, and Servers
● Portable Instrumentation
● Peripherals
● USB Interface
