Description

The AZC199-04 has a low capacitance of 0.4pFmaximum and operates with virtually no insertion loss to 1GHz. This makes the device ideal for protection of high-speed data lines such as USB 2.0, Firewire, DVI, and gigabit Ethernet interfaces. The low capacitance array configuration allows the user to protect four high-speed data or transmission lines. The low inductance construction minimizes voltageovershoot during high current surges. They may be used to meet the ESD immunity requirements of IEC61000-4-2, Level 4 (±15kV air, ±8kV contact discharge). This device has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events),and lightning.

Features

● Protects four I/O lines and one Vcc line

● Low capacitance

● Working voltages : 5V

● Low leakage current

● Low capacitance for high-speed interfaces

● No insertion loss to 2.0GHz

● Response Time is < 1 ns

● Solid-state silicon avalanche technology

● RoHS compliant

Application

● Digital Visual Interface (DVI)

● USB 1.1/2.0/OTG

● IEEE 1394 Firewire Ports

● Notebooks & Handhelds

● Projection TV & Monitors

● Set-top box

● Flat Panel Displays

● PCI Express

Mechanical Data

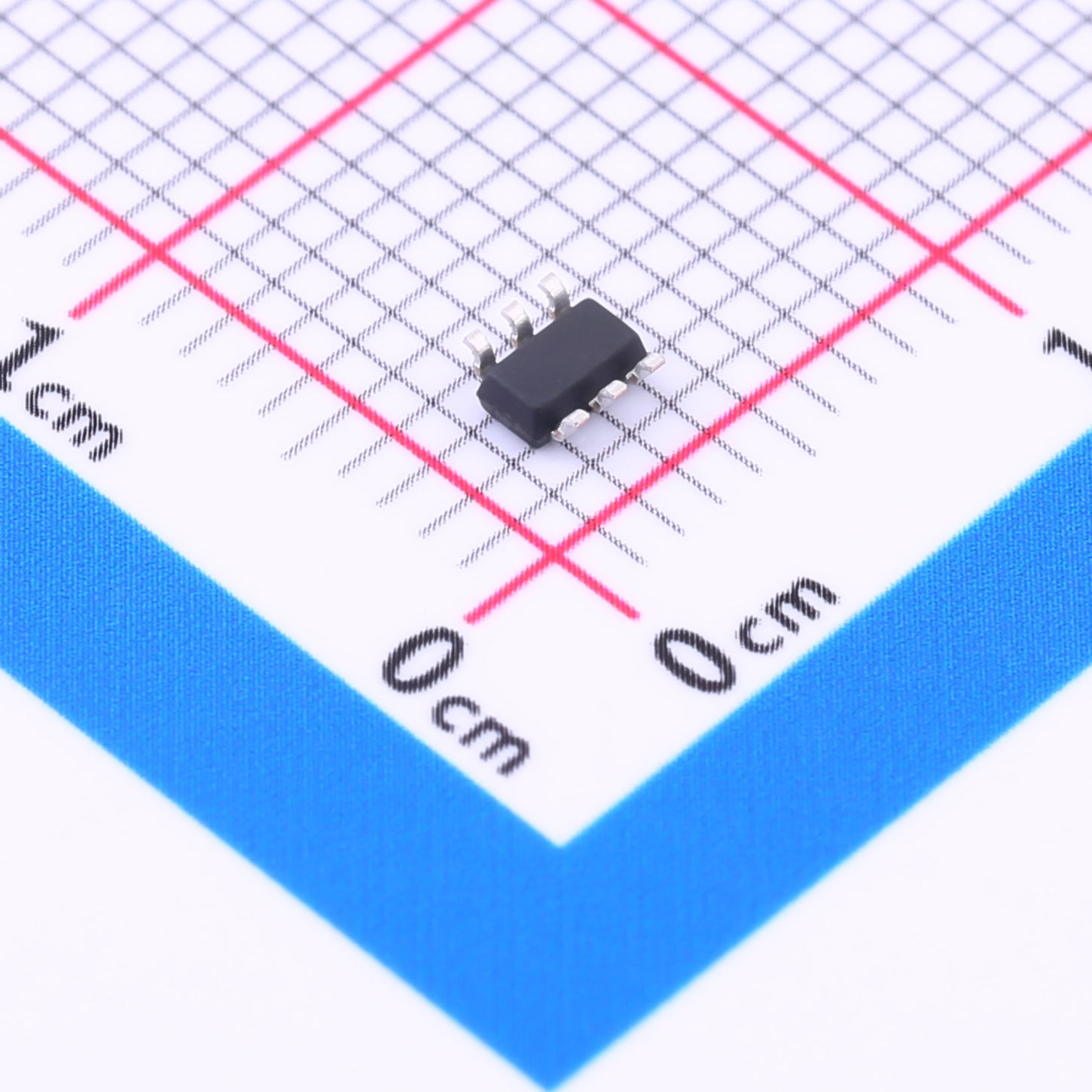

SOT-23-6L package

● Flammability Rating: UL 94V-0

● Terminal: Matte tin plated.

● Packaging: Tape and Reel

● High temperature soldering guaranted:260℃/10s

● Reel size: 7 inch
