CESD882UC5VB ESD Protection Devices DFN1006 Professional Supplier
6.0V|0.1μA|11V|0.45pF|DFN1006|5V|ESD Diode|ESD Diode|VRWM(V),VBR min(V),IR(uA),VC(V),CJ(pF),Package|ESD Diode|
The CESD882UC5VB is a high-performance ESD (Electrostatic Discharge) protection device designed to safeguard sensitive electronics in low-voltage applications. With a working voltage (VRWM) of 5V and a minimum breakdown voltage (VBR) of 9.5V, it effectively clamps transient voltages while ensuring the integrity of your circuits. The device features a low reverse leakage current of 0.1μA, which helps maintain system efficiency. Its exceptionally low clamping voltage (VC) of 1V provides superior protection against voltage spikes, while the junction capacitance (CJ) of 0.45pF ensures minimal impact on high-speed signal lines. Packaged in a compact DFN1006 form factor, this device is well-suited for modern, space-constrained designs.

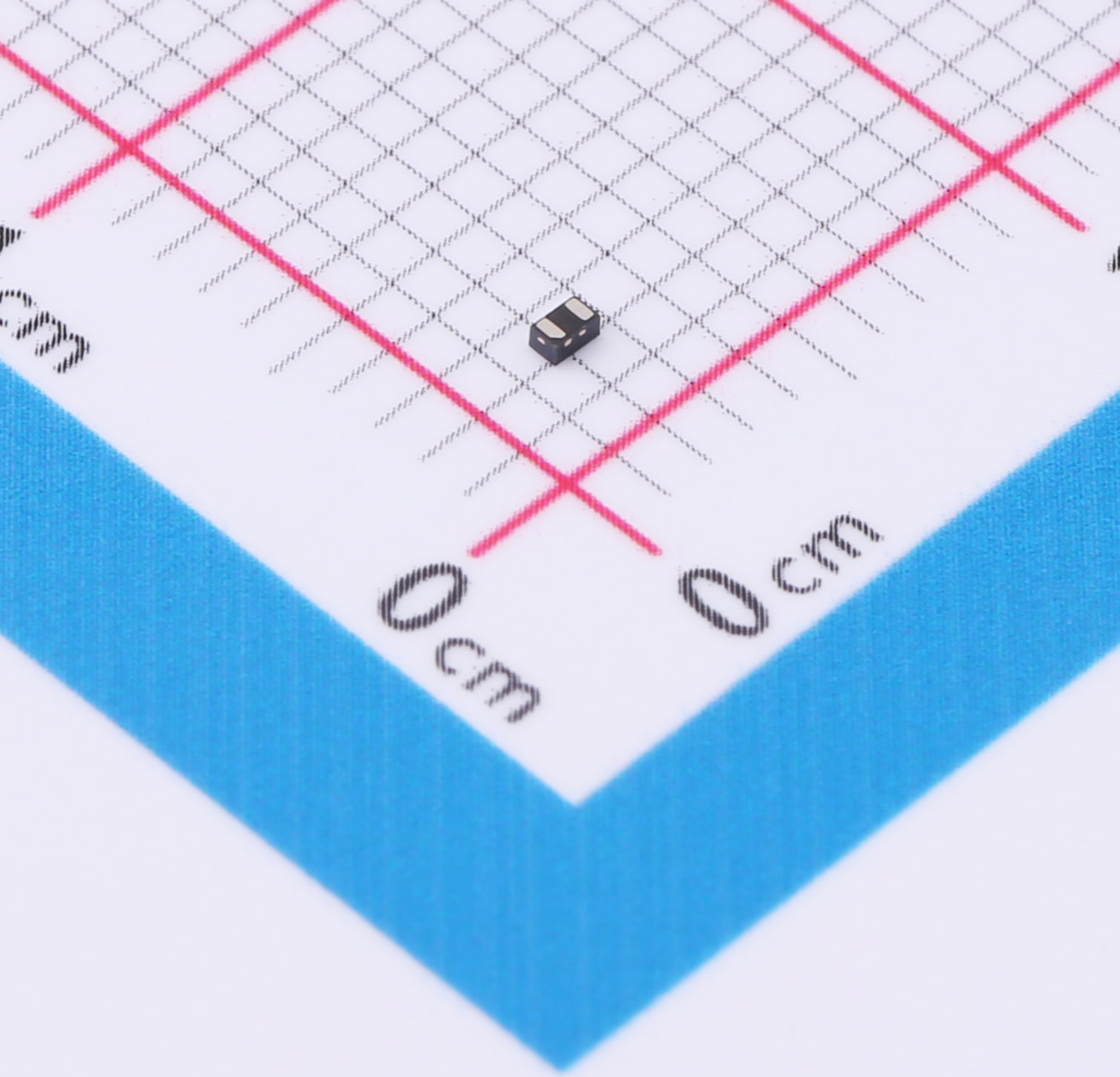

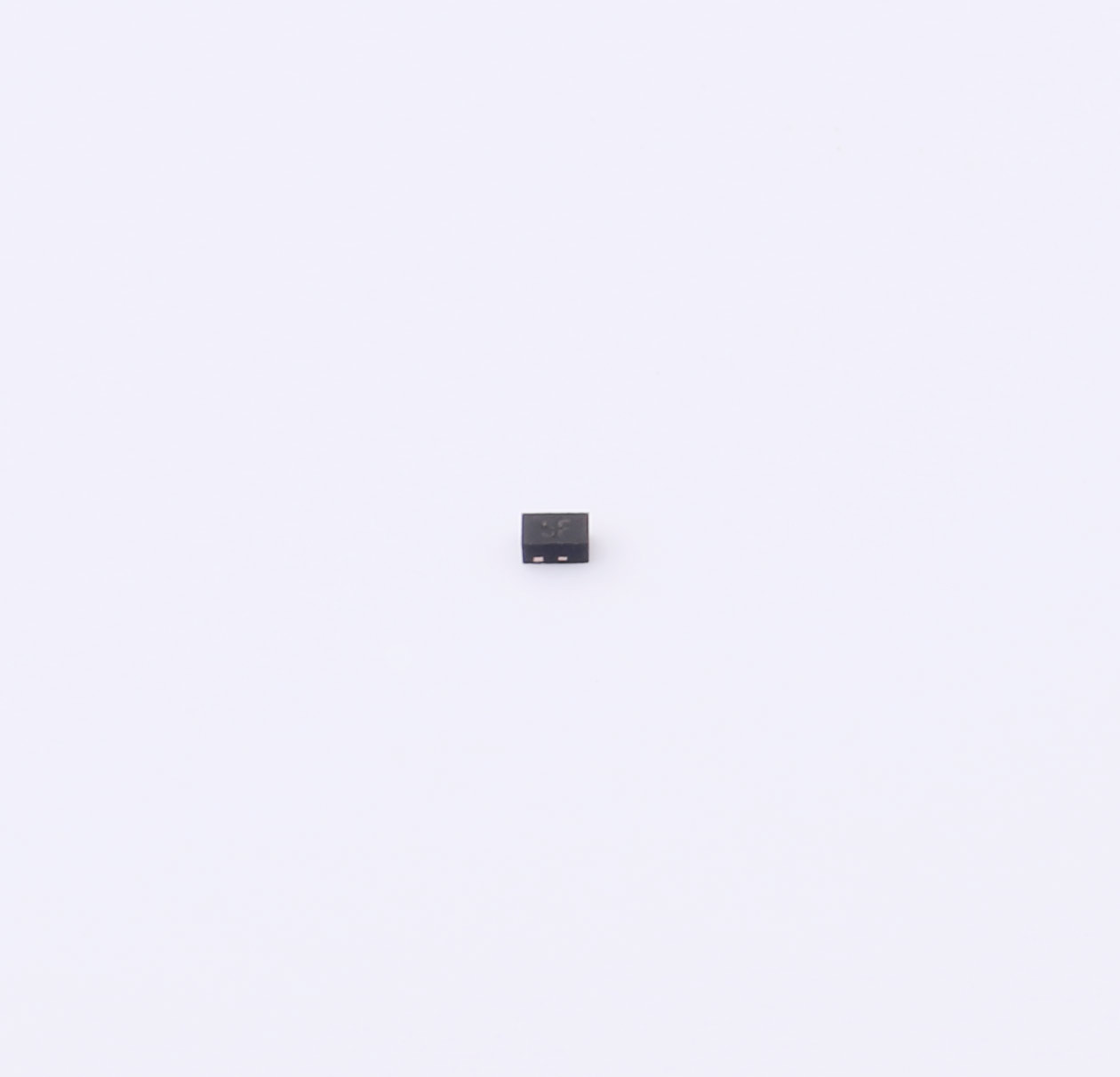

Bi-directional ESD Protection Diode in DFN1006 Package
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The CESD882UC5VB is a high-performance ESD (Electrostatic Discharge) protection device designed to safeguard sensitive electronics in low-voltage applications. With a working voltage (VRWM) of 5V and a minimum breakdown voltage (VBR) of 9.5V, it effectively clamps transient voltages while ensuring the integrity of your circuits. The device features a low reverse leakage current of 0.1μA, which helps maintain system efficiency. Its exceptionally low clamping voltage (VC) of 1V provides superior protection against voltage spikes, while the junction capacitance (CJ) of 0.45pF ensures minimal impact on high-speed signal lines. Packaged in a compact DFN1006 form factor, this device is well-suited for modern, space-constrained designs.
Features
● Ultra Low Capacitance: 0.35pF(typ.)
● Reverse Working Voltage: 5V
● IEC 61000-4-2 (ESD Air): ±20kV
IEC 61000-4-2 (ESD Contact): ±20kV
IEC 61000-4-5 (Lightning 8/20μs): 4.5A
Applications
● Smart Phone and Tablet PC
● TV and Set Top Box
● Wearable Devices
● PDA
Name
Title
Description

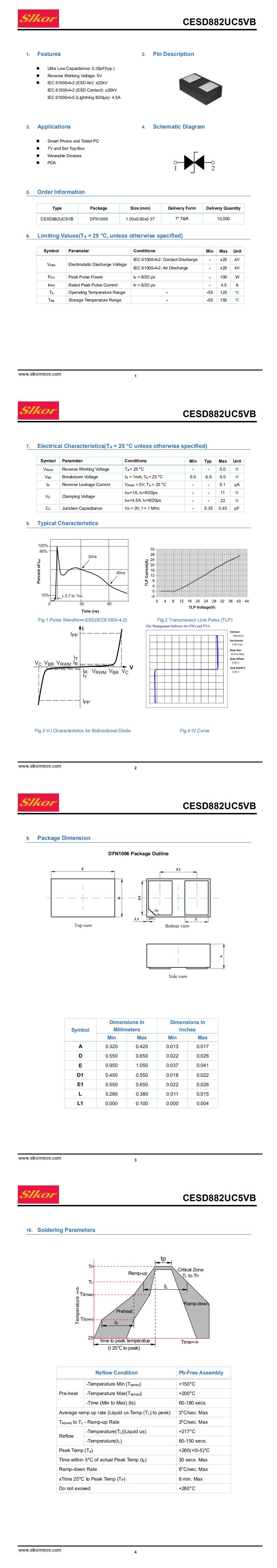

Datasheet
