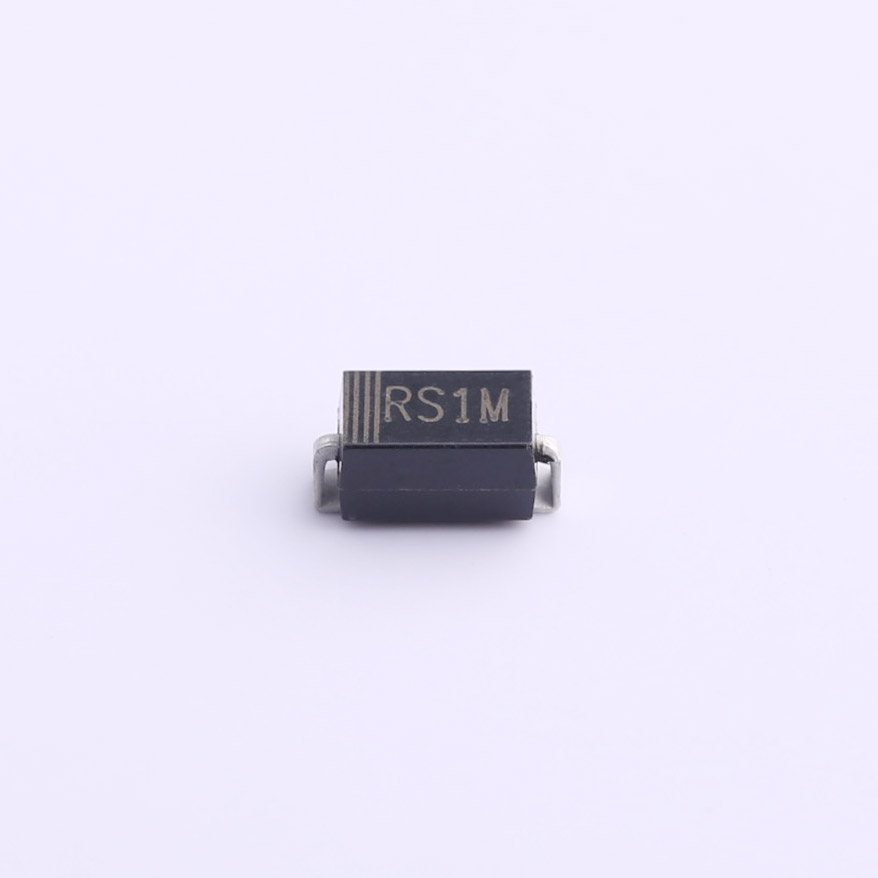

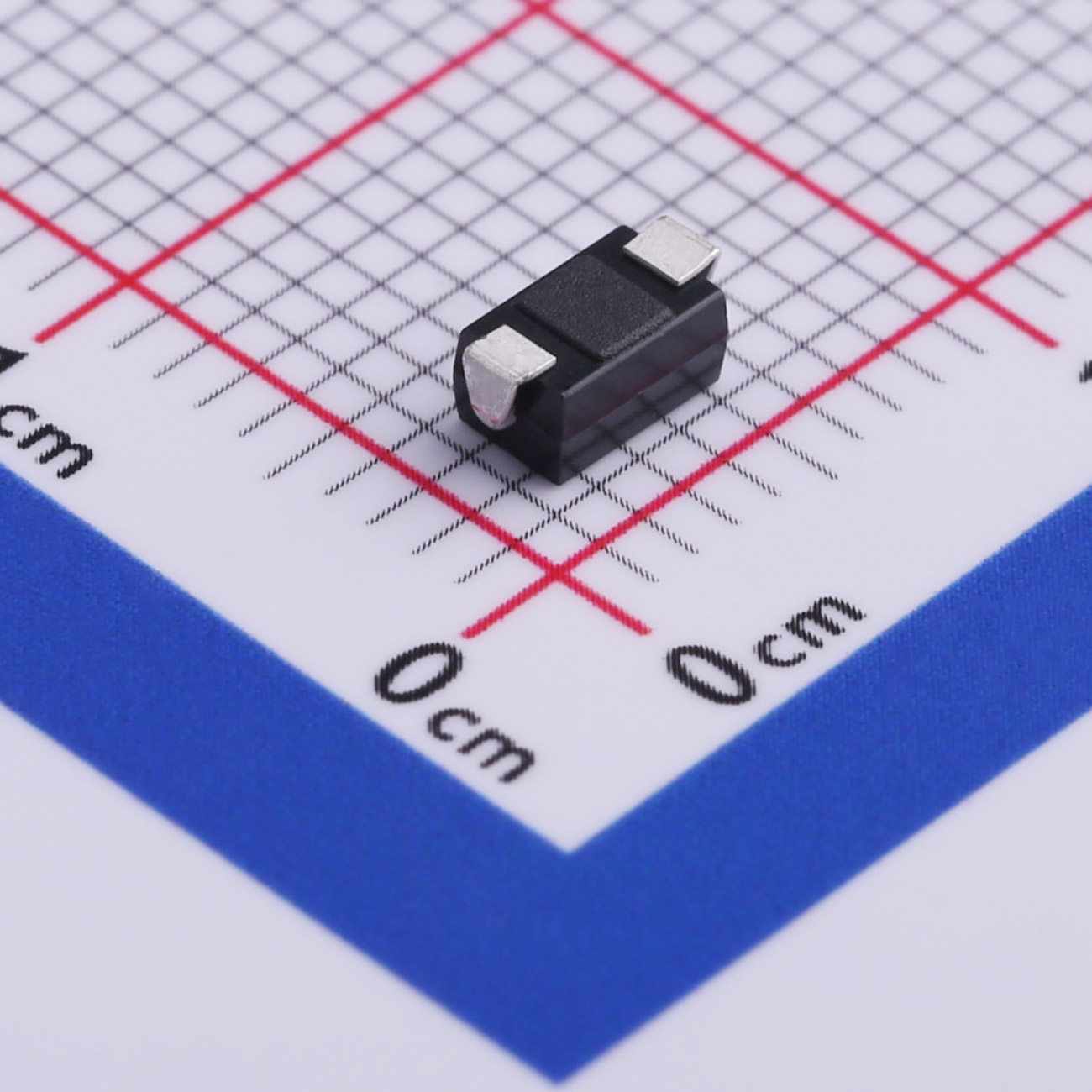

RS1M Surface Mount Switching Diode SMA Factory Direct
1A|1.3V|5μA|500ns|SMA|1000V|Switching Diode|Products|-,-,-,-,-,-|Product display|
The RS1M is a surface mount fast recovery rectifier designed to handle high voltage and current while providing efficient rectification with minimal recovery time. Encapsulated in the SMA package, this rectifier offers robust performance in a compact form factor, suitable for various power supply and rectification applications.
Surface Mount Fast Switching Rectifier
Our adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt forproduction outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The RS1M is a surface mount fast recovery rectifier designed to handle high voltage and current while providing efficient rectification with minimal recovery time. Encapsulated in the SMA package, this rectifier offers robust performance in a compact form factor, suitable for various power supply and rectification applications.
Features
● Low profile surface mounted package.
● Fast recovery time for high efficiency.
● Glass passivated junction.
● Plastic package has underwriters laboratory.
● flammability classification 94 V-O.
● High temperature soldering:250 C/10 seconds at temminals.
● RoHS compliant.
Quick reference data
| Symbol | Parameter | Conditions | Max | Unit |
| IR | reverse current | VR = 25 V; Tamb = 25 °C | 5 | μA |
| VF | reverse voltage | IF(AV)=1.0A | 1.3 | V |
| trr | reverse recovery time | Tamb = 25 °C, IF=0.5A, IR=1.0A, Im=0.25A | 500 | ns |
Name
Title
Description

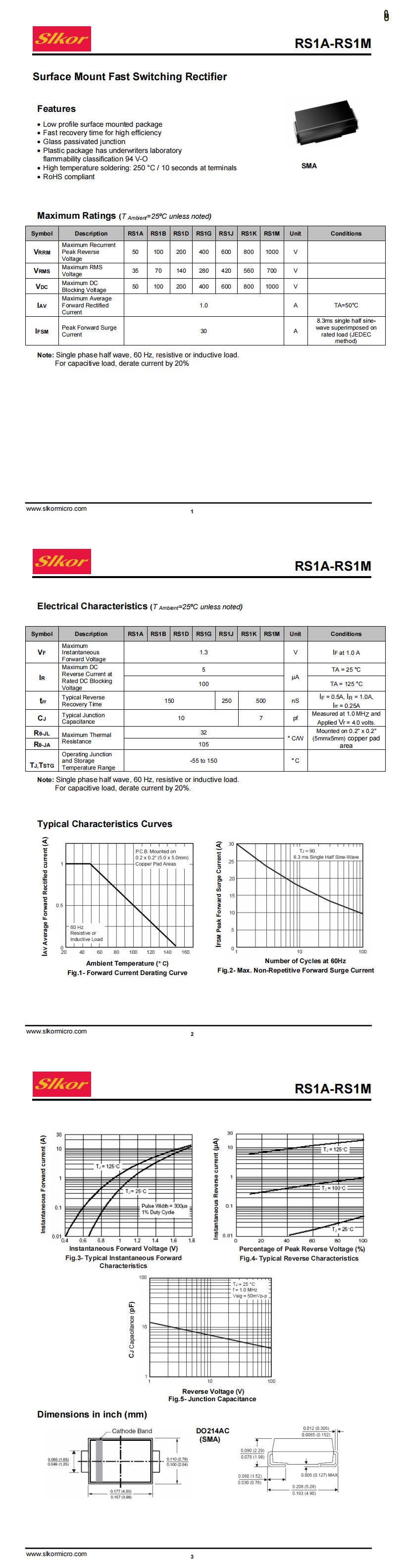

Datasheet
