1A Low DREPOUT VOLTAGE REGULATOR

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description

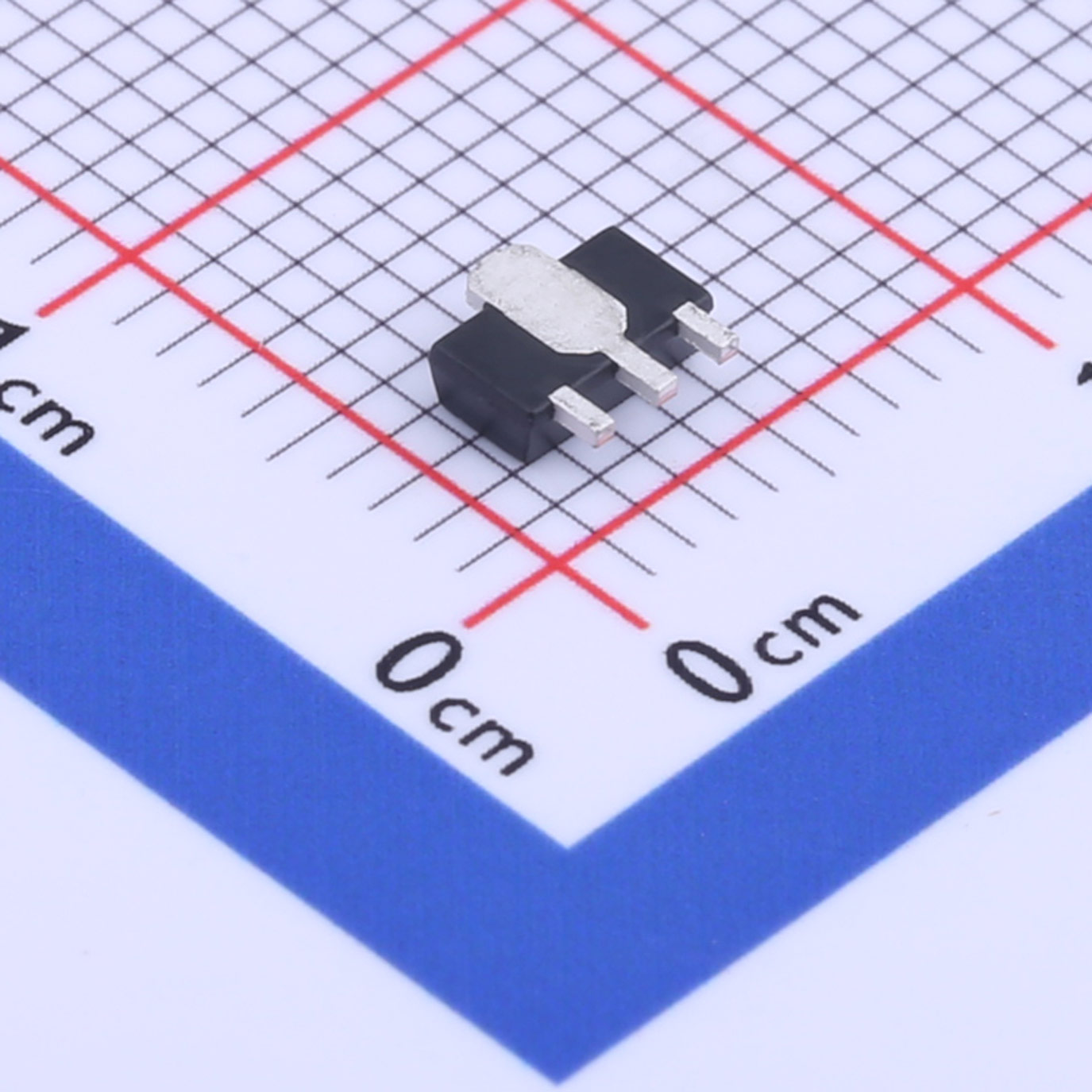

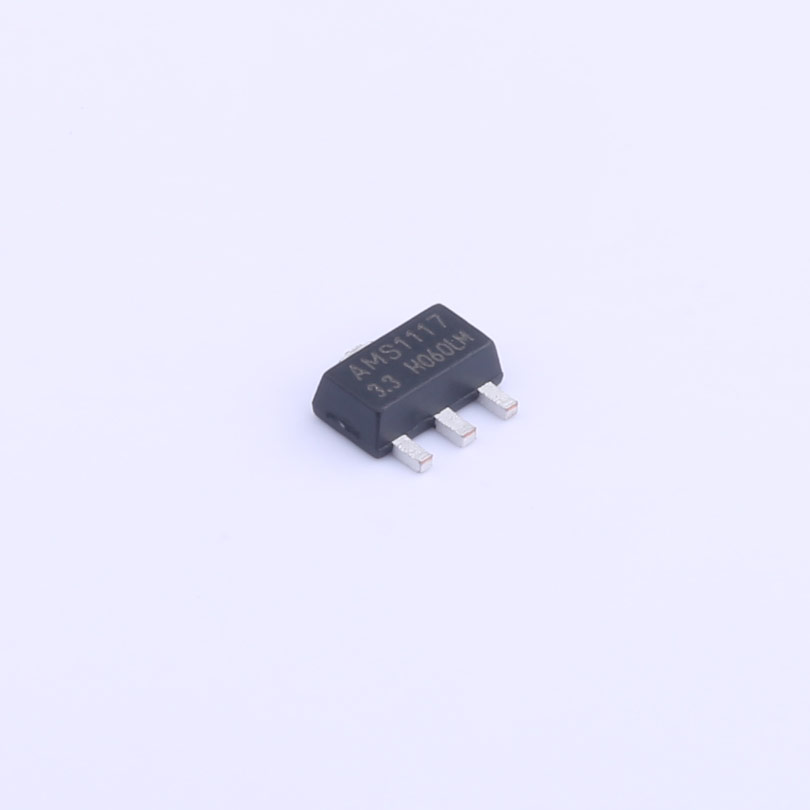

The AMS1117 is a series of low dropout voltageregulators which can provide up to 1A of outputcurrent. The AMS1117 is available in six fixedvoltage, 1.2, 1.5, 1.8, 2.5, 3.3 and 5.0V. Additionallyit is also available in adjustable version. On chipprecision trimming adjusts the reference/ outputvoltage to within ± 2%. On-chip thermal limiting provides protection against any combination ofoverload and ambient temperatures that would create excessive junction temperatures. The AMS1117 series is available in SOT-223, TO252, SOT89 packages. A minimum of 10uF tantalum capacitor is required at the output to improve the transient response and stability.

Features

● Low dropout Voltage.

● Load regulation: 0.5% Max.

● Optimized for Low Voltage

● On-chip thermal limiting.

● Maximum Input Voltage : 30V

● Adjustable Output Voltage or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V,5V

● Standard SOT-223,TO-252 ,SOT89 Packages

Applications

● Post Regulator for switching DC/DC

● Converter

● High Efficiency Linear Regulator

● Battery Chargers

● PC Add on Card

● Motherboard clock supplies

● LCD Monitor r

● Set-top Box
