Description

The SL8052A is a rail-to-rail dual channels operational amplifier with wide supply range from 4.5V to 16V. It provides 0.5V beyond the supply rails of common mode input range and capability of rail-to-rail output swing as well. This enables the amplifier to offer maximum dynamic range at any supply voltage among many applications. A 8MHz gain bandwidth product allows SL8052Ato perform more stable than other devices in Internet applications.

With features of 20V/μs high slew rate and 200ns of fast settling time, as well as 30mA (sink and source) of high output driving capability, the SL8052A is ideal for the requirements of flat panel Thin Film Transistor Liquid Crystal Displays (TFT-LCD) panel grayscale reference buffers application. Due to insensitive to power supply variation, SL8052A offers flexibility of use in multitude of applications such as battery power, portable devices and anywhere low power consumption is concerned. With standard operational amplifier pin assignment, the SL8052A is offered in a space saving 8-Pin MSOP package and specified over the -40°C to +85°C temperature range.

Features

●Wide supply voltage range 4.5V ~ 16V

●Input range 500mV beyond the rails

●Unity-gain stable

●Rail-to-rail output swing

●High slew rate 20V/μs

●GBWP 8MHz

●12 MHz -3dB Bandwidth

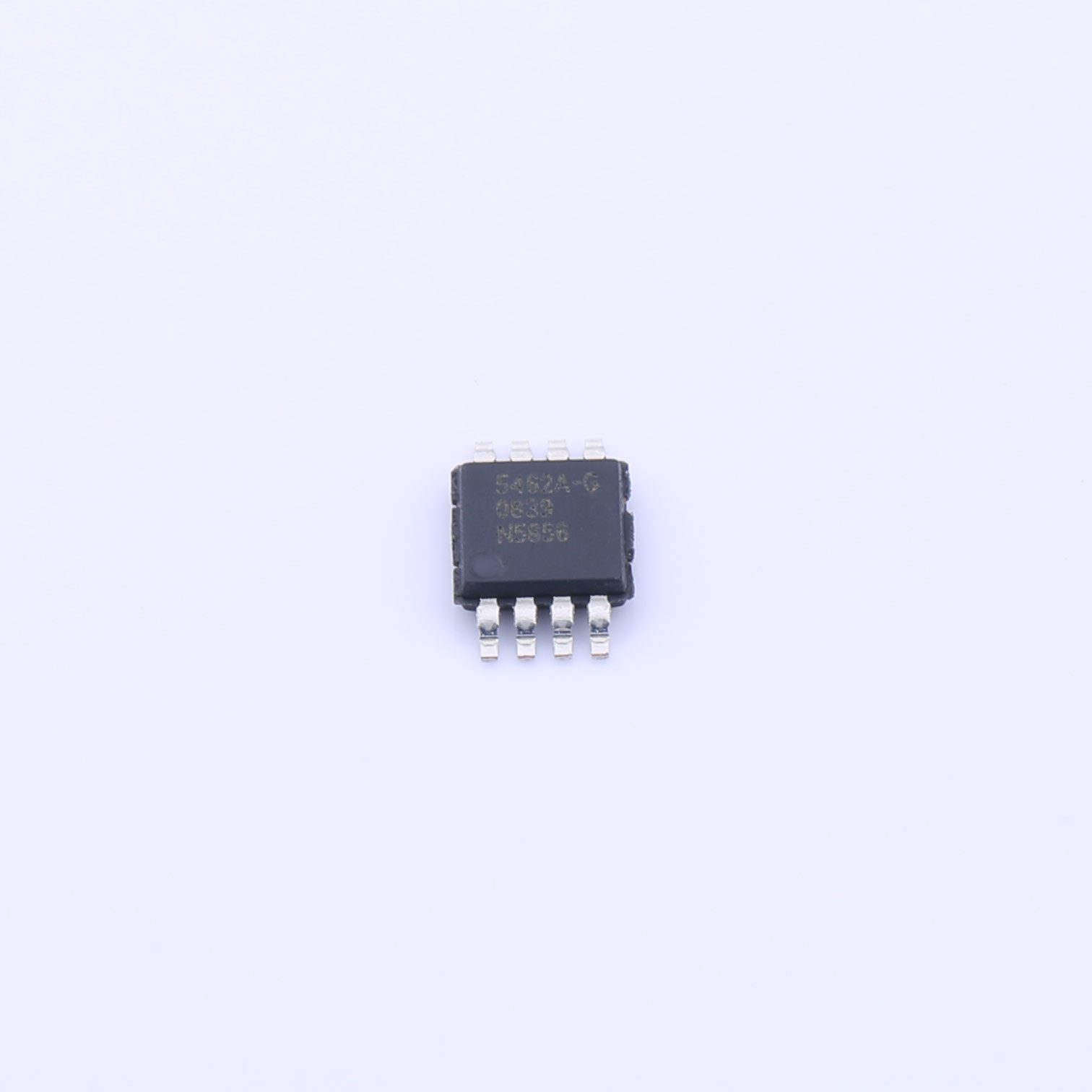

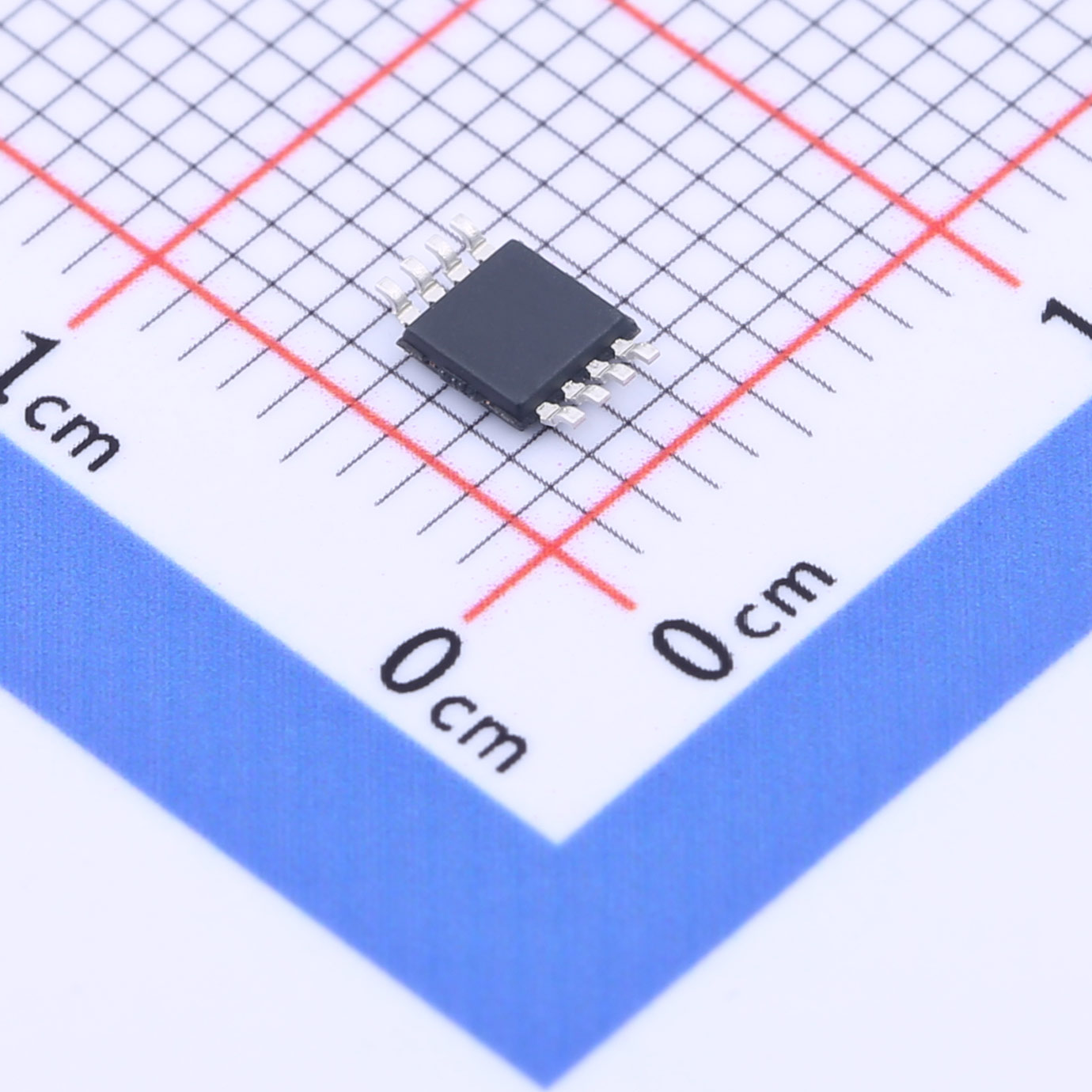

●Ultra-small Package MSOP-8

Applications

●TFT-LCD Reference Driver

●Touch-Screen Display

●Wireless LANs

●Personal Communication Devices

●Direct Access Arrangement

●Personal Digital Assistant (PDA)

●Active Filter

●Sampling ADC Amplifier

●ADC/DAC Buffer

●Electronic Notebook

●Office Automation

●Portable Electronics
