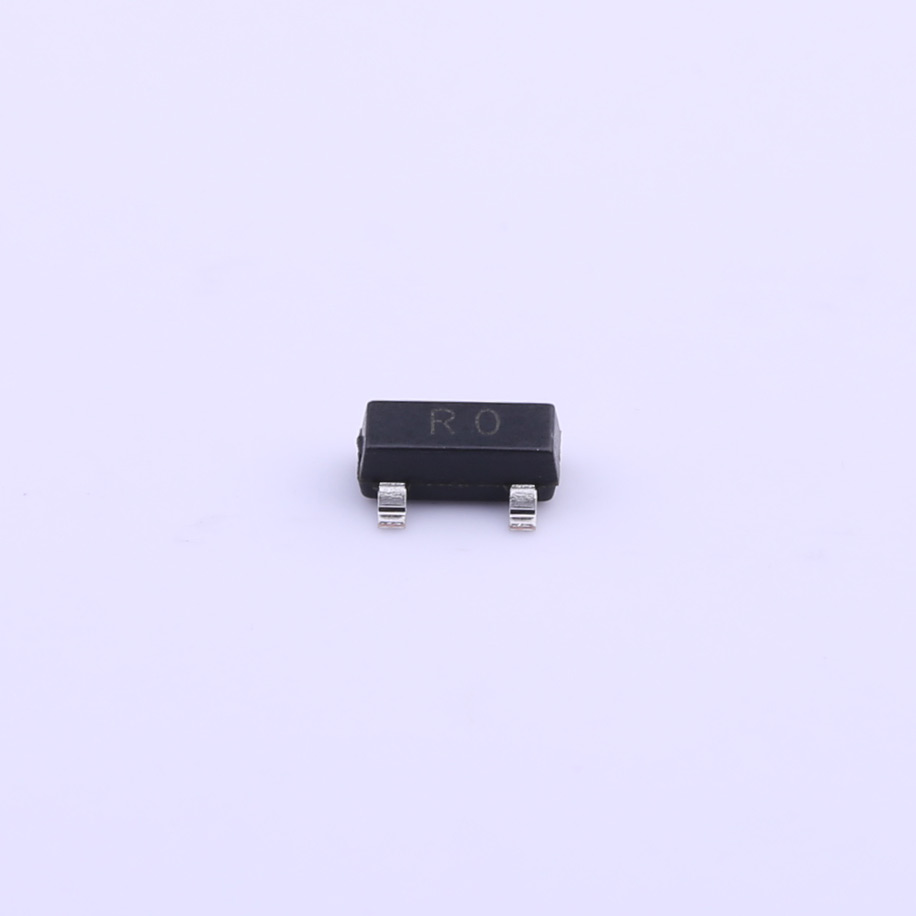

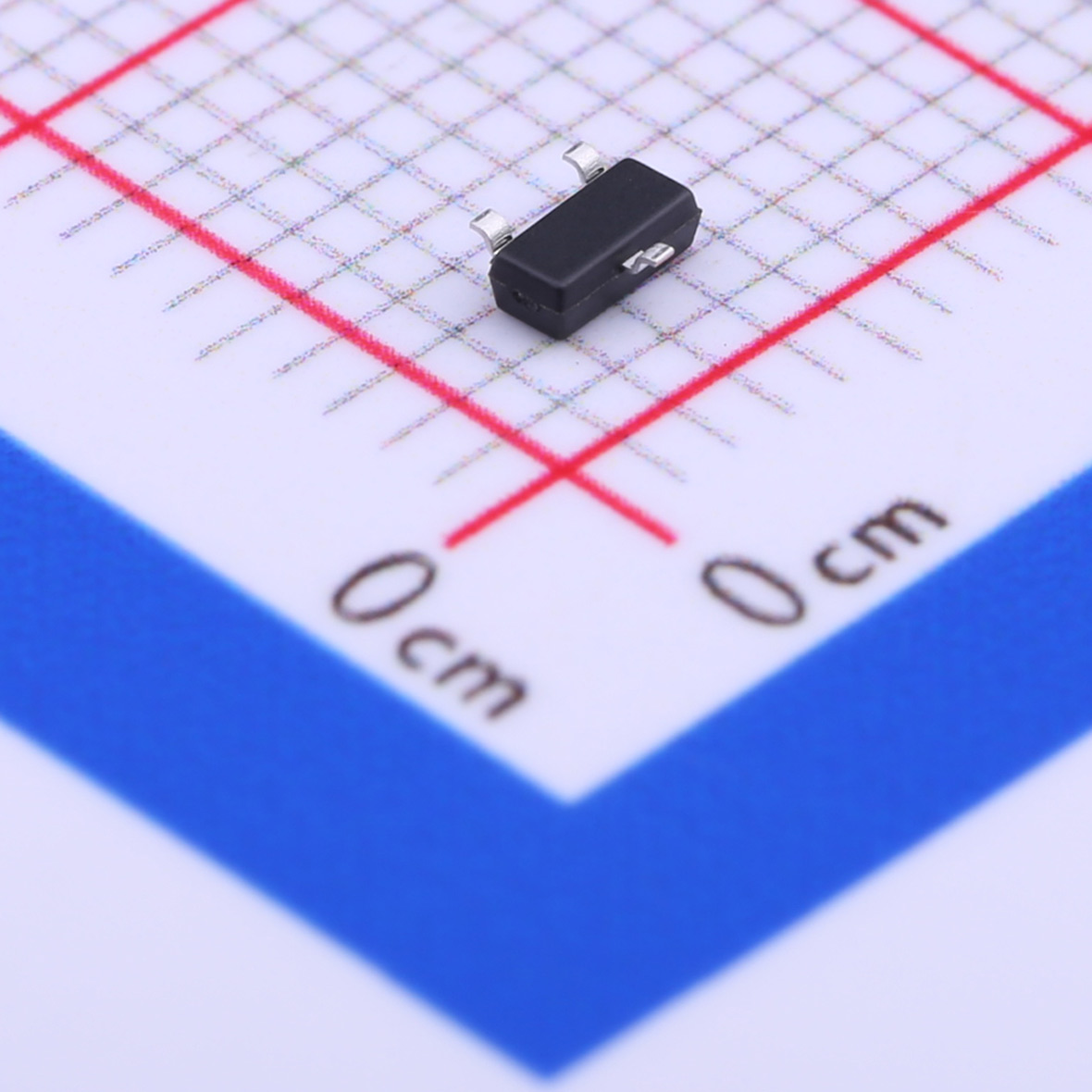

Cost-effective SL3400 N-Channel Power MOSFET SOT-23 Manufacturer
The N-Channel MOSFET has a Vds rating of 30V and a maximum current (Id) of 5.8A. It features an RDS(on) of 41mΩ at 10V Vgs and 5.8A Id, with a threshold voltage (Vgs(th)) of 1.4V at 250μA. The MOSFET has a power dissipation (Pd) of 1.4W.
● High power and current handing capability
● Lead free product is acquired
● Surface mount package
General Features
● VDS =30V,lD =5.8A
RDS(ON)<59mΩ @VGS=2.5V
RDS(ON)<45mΩ @VGS=4.5V
RDS(ON)<41mΩ @VGS=10V
● High power and current handing capability
● Lead free product is acquired
● Surface mount package
● PWM applications
● Load switch
● Power management
