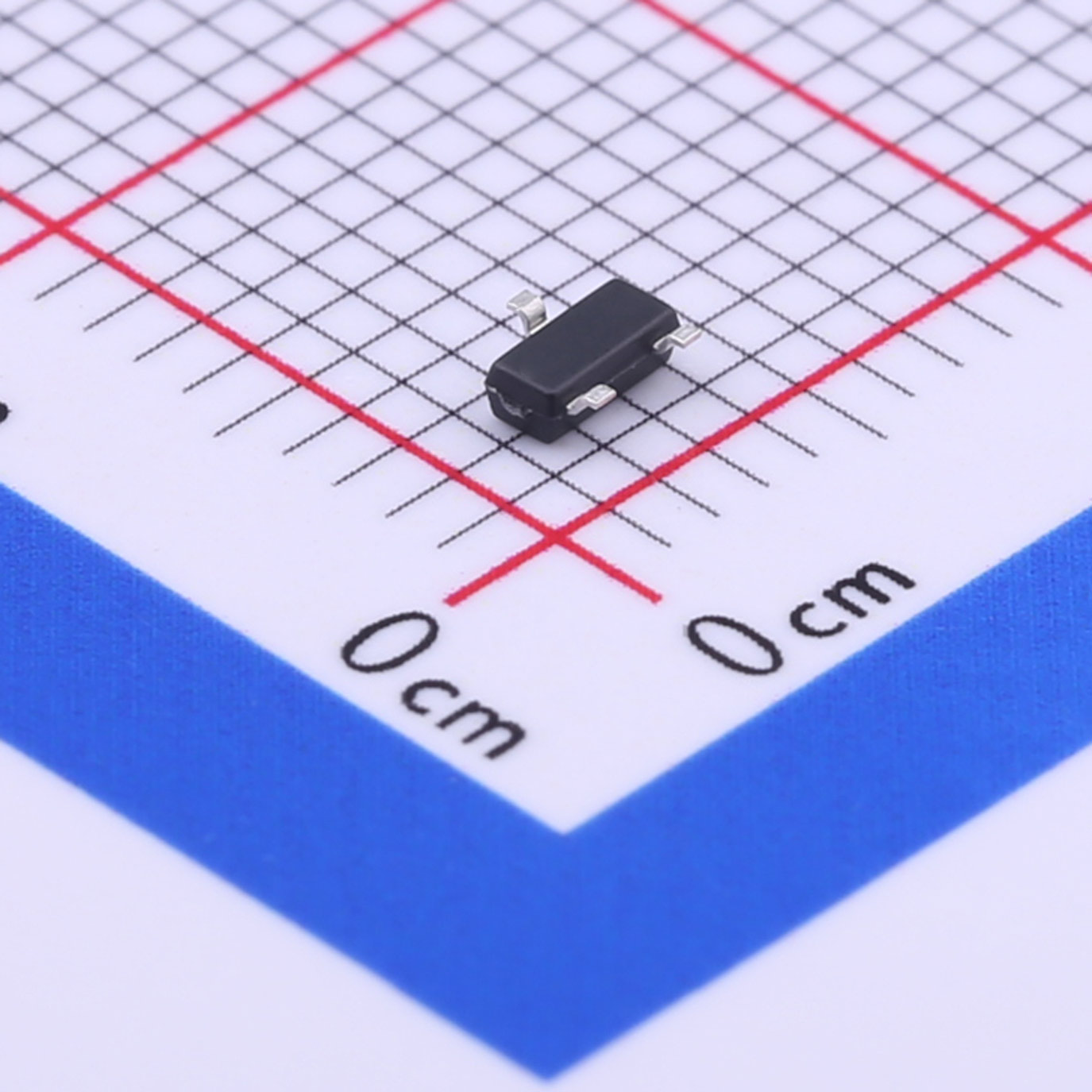

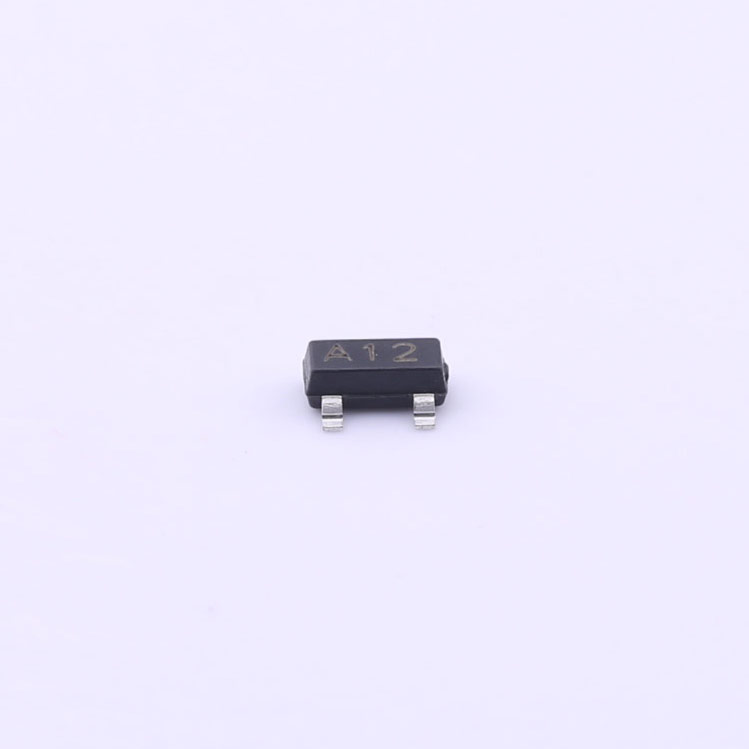

Cost-effective SL2312 N-Channel Enhancement MOSFET SOT-23 Manufacturer
The SL2312 is an N-Channel Enhancement MOSFET in an SOT-23 package. It features a Vdss of 20V, Id of 5A, and Pd of 1.25W. The on-state resistance (RDS(on)) is 25mΩ at Vgs of 4.5V and Id of 5A.
Type:N-Channel
Vdss:20V
Id:5A
Pd:1.25W
RDS(on)@Vgs,Id:25mΩ@4.5V,5A
Vgs(th)@Id:1.2V@250μA
General Features
● VDS=20V.Id=5A
RDS(ON)<35mΩ @VGS=2.5V
RDS(ON)<25mΩ @VGS=4.5V
● High power and current handing capability
● Lead free product is acquired
● Surface mount package
Application
● Battery protection
● Load switch
● Power management
