Description

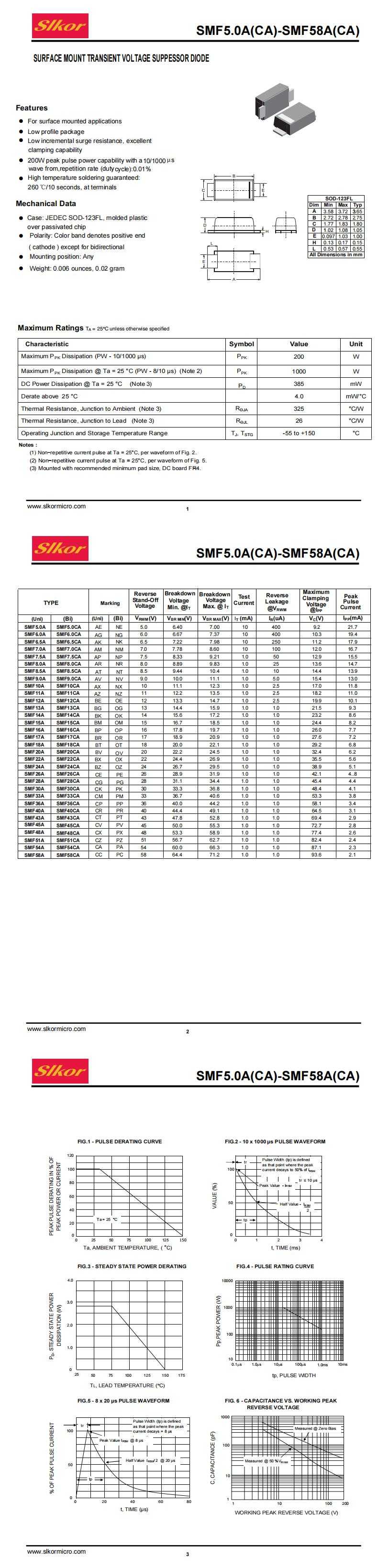

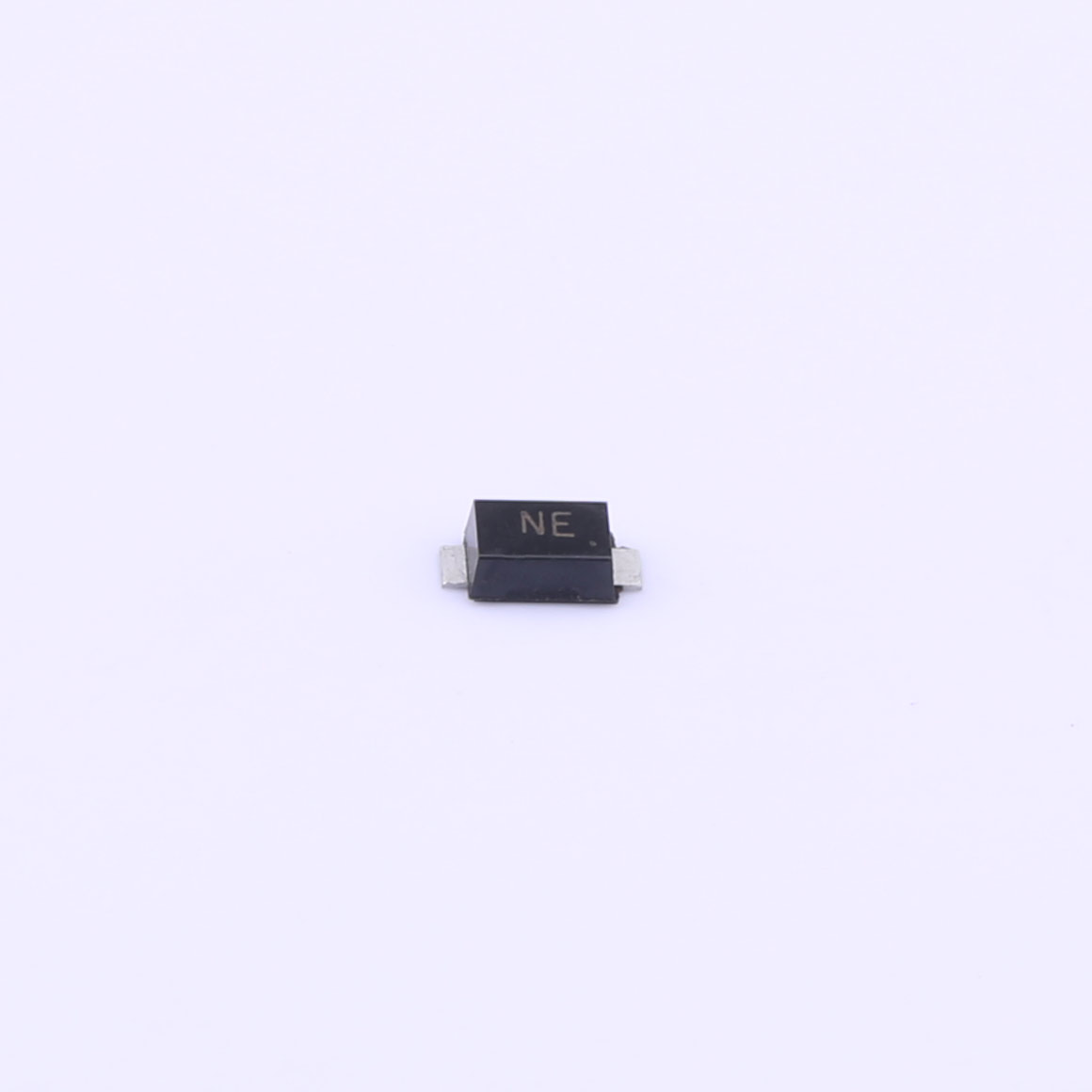

The Polar Bidirectional TVS Diode is an advanced electronic component designed to protect sensitive circuits from transient voltage spikes and surges in both directions. With a V_RWM (Working Peak Reverse Voltage) of 5V, this diode is optimized for bidirectional transient voltage suppression applications. It features a V_BR (Breakdown Voltage) range from 6.4V (minimum) to 7V (maximum), ensuring robust clamping of voltages that exceed these thresholds in either polarity. The diode maintains a low I_r (Reverse Leakage Current) of 400μA, minimizing standby power consumption. It can handle high peak pulse currents (I_pp) of up to 21.7A for 10/1000μs pulses, and offers a low V_C (Clamping Voltage) of 9.2V. Additionally, it has a P_pp (Peak Pulse Power) rating of 200W for 10/1000μs pulses, effectively dissipating transient power to safeguard connected electronics.

Features

● For surface mounted applications

● Low profile package

● Low incremental surge resistance, excellent clamping capability

● 200W peak pulse power capability with a10/1000 ms wave from,repetition rate (dutycycle):0.01%

● High temperature soldering guaranteed: 260 ℃/10 seconds, at terminals

Mechanical Data

● Case: JEDEC SOD-123FL, molded plastic over passivated chip

● Polarity: Color band denotes positive end ( cathode ) except for bidirectional

● Mounting position: Any

● Weight: 0.006 ounces, 0.02 gram

Applications

● Telecommunications

● Consumer Electronics

● Automotive Electronics

● Industrial Controls

● Power Supplies
