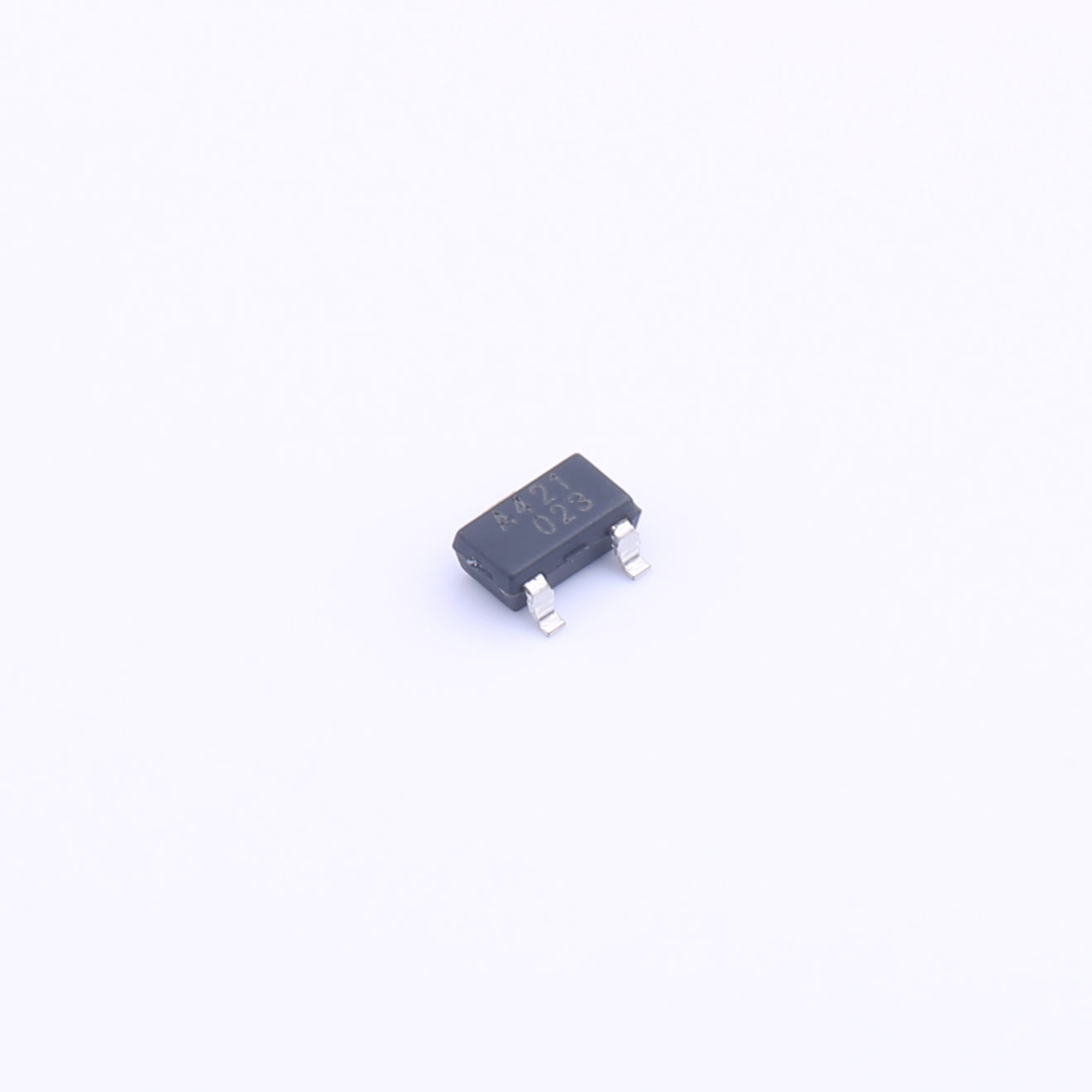

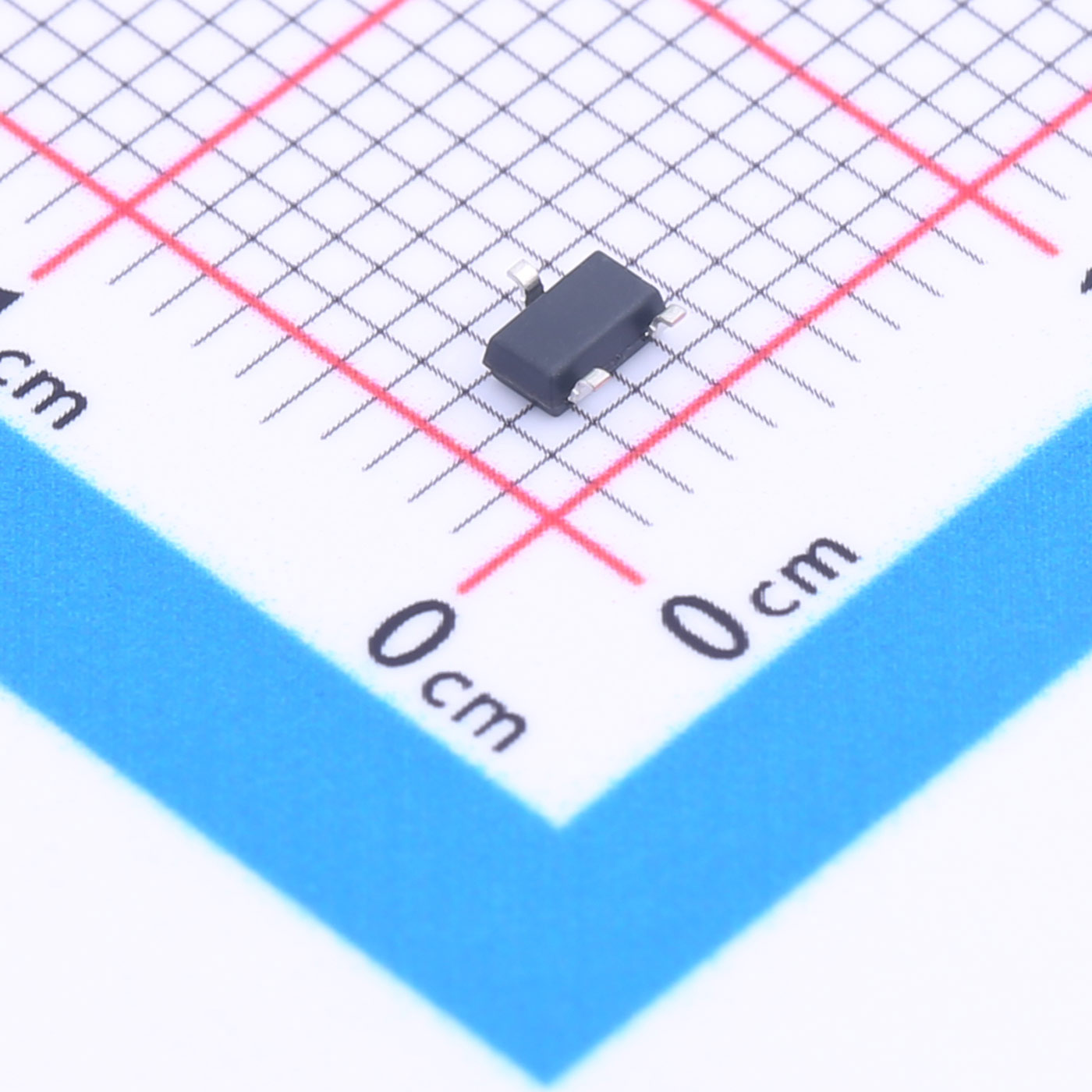

High Reliability SLSS341R-3 Hall Effect Sensor SOT-23
40V|6mA|-|SOT-23|Omnipolar|Products|-,-,-,-,-,-|Product display|
SLSS341R unipolar Hall effect switch, designed with Bipolar technology, is south sensitive unipolar Hall Effective switch and includes on-chip Hall element voltage generator, a voltage regulator for operation with supply voltages of 3.8 to 40V, reverse voltage protection, temperature compensation circuitry, small-signal amplifier, Schmitt trigger and an open-collector output.The sensor is designed to respond to South poles. While the magnetic flux density(B) is larger than operate point Bop, the output will be turned on with low output level. Then the output is held until the magnetic flux (B) is lower than release point Brp. The output will be turned off with high output level. SLSS341R offers a variety of packages, including TO-92, SOT-23. All packages are RoHS compliant.
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Introduction
SLSS341R unipolar Hall effect switch, designed with Bipolar technology, is south sensitive unipolar Hall Effective switch and includes on-chip Hall element voltage generator, a voltage regulator for operation with supply voltages of 3.8 to 40V, reverse voltage protection, temperature compensation circuitry, small-signal amplifier, Schmitt trigger and an open-collector output.The sensor is designed to respond to South poles. While the magnetic flux density(B) is larger than operate point Bop, the output will be turned on with low output level. Then the output is held until the magnetic flux (B) is lower than release point Brp. The output will be turned off with high output level. SLSS341R offers a variety of packages, including TO-92, SOT-23. All packages are RoHS compliant.
Features
●Miniature construction
●High sensitivity of 60/40 Gauss (typ.)
●Wide voltage range of 3.8 Vdc to 40 Vdc
●Temperature range of -40 °C to 125 °C
●Highest ESD performance up to ±4 kV
●Open Collector Output
Applications
●BLDC Motor Commutation
●Flow sensor
●Position sensor
●Speed sensor
●Proximity sensor
Name
Title
Description

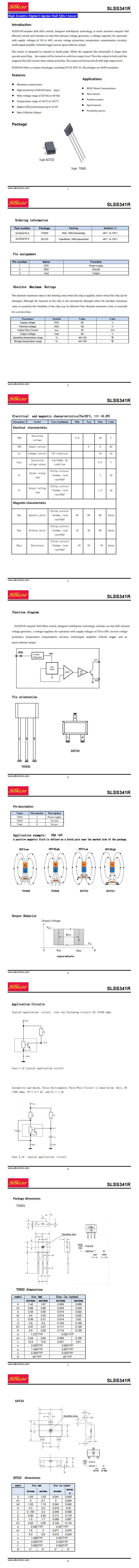

Datasheet
