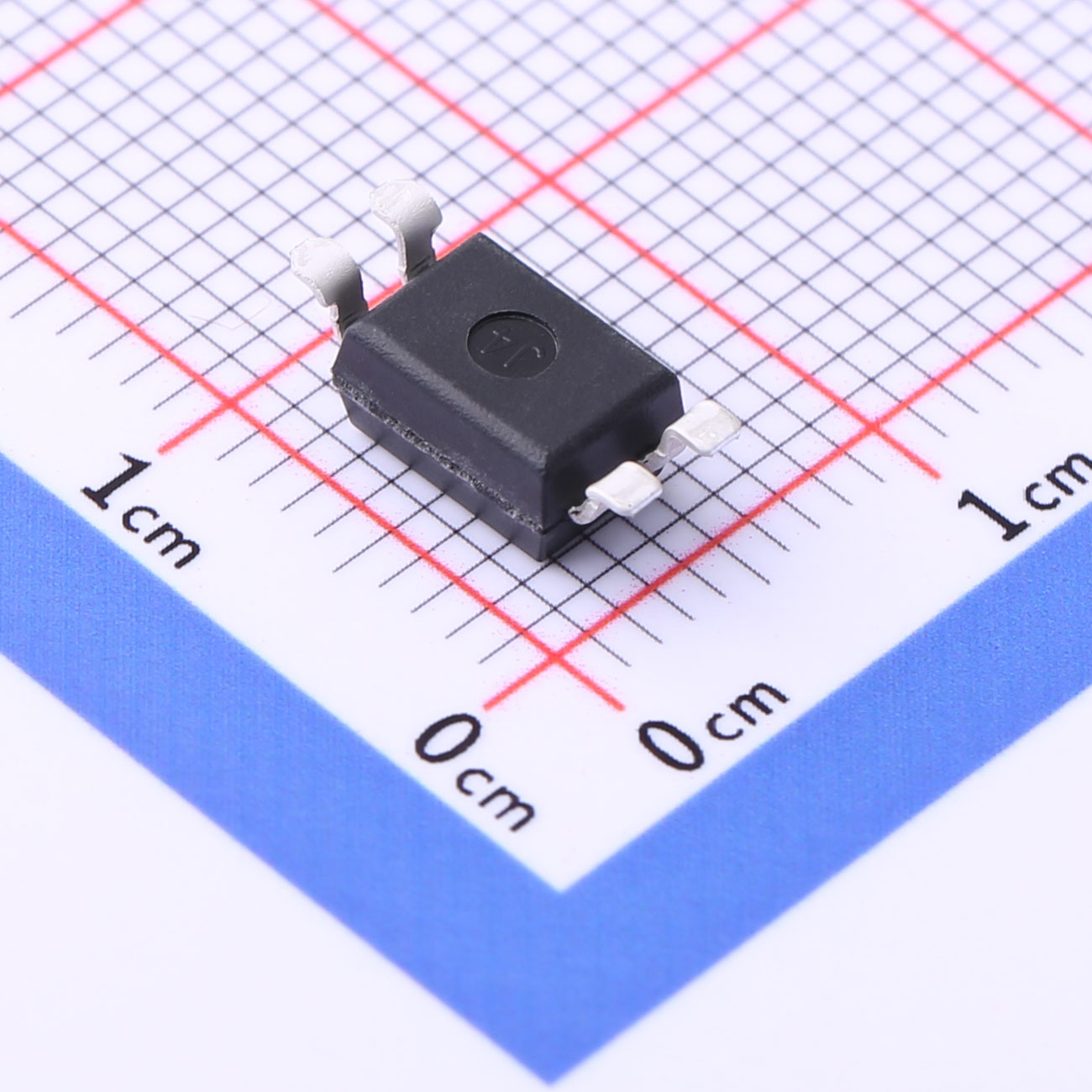

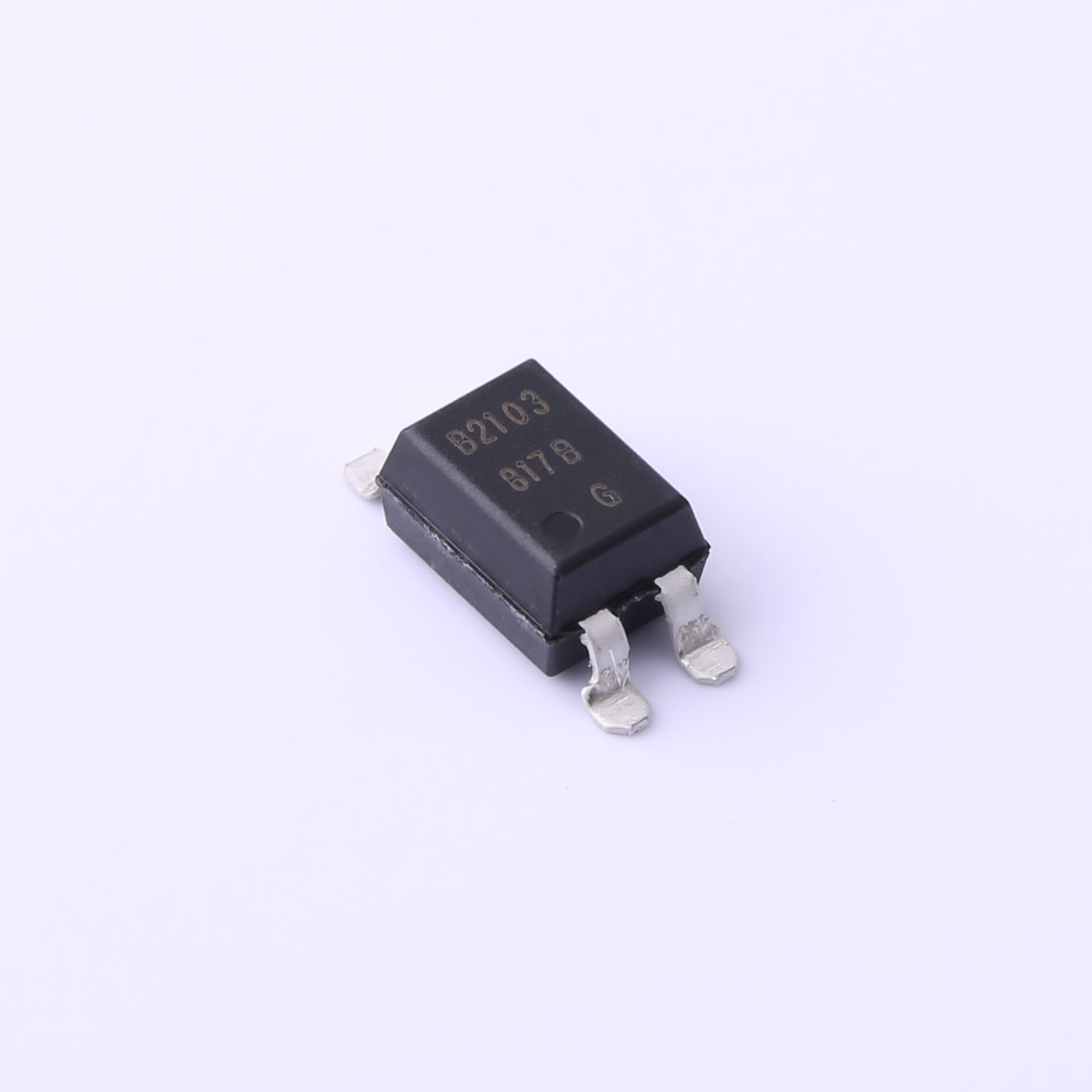

High Reliability PC817B Optocoupler SMD-4
50mA|6V|50mA|SMD-4|35V|Optocoupler|Products|-,-,-,-,-,-|Product display|
PC817X is a photoelectric coupler product composed by a luminous diode and a phototransistor, with the input-output isolation voltage of 5000Vrms and the typical value of the response time tr of 4μs. The minimum CTR is 80% at 2mA input current. SOP4 package is adopted for the product.
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Overview
PC817X is a photoelectric coupler product composed by a luminous diode and a phototransistor,with the input-output isolation voltage of 5000Vrms and the typical value of the response time tr of 4μs. The minimum CTR is 80% at 2mA input current. SOP4 package is adopted for the product.
Characteristics
●Current conversion ratio CTR(in condition of IF=5mA,VCE=5V,CTR:MIN.50%)
●High input-output isolation voltage(Viso=5000 Vrms)
●Collector- emitter breakdown voltage BVCEO≥80v
●UL certification(dual-protection,No.E236324)
●VDE certification(No.40007240)
Applications
●Power supply feedback circuits
●System devices and measurement instruments
●Registers, copying machines and vending machines
●Household appliances, such as fans and water heaters
Name
Title
Description

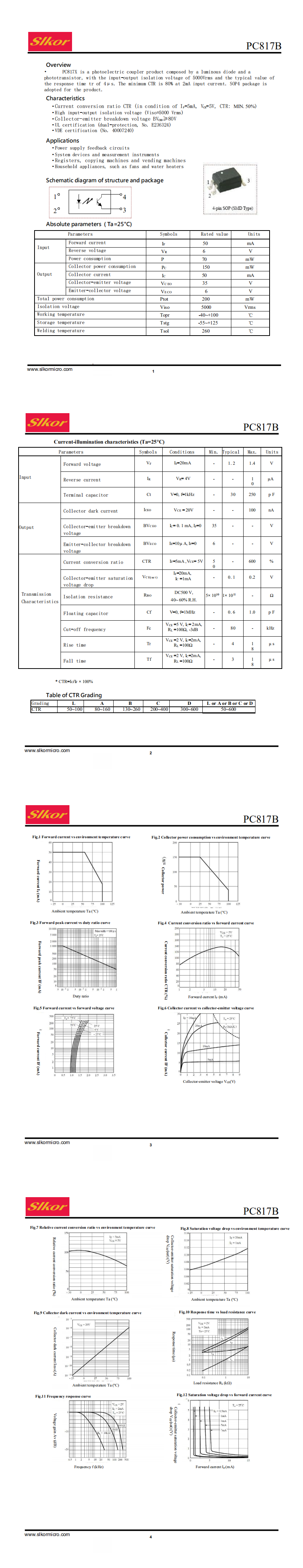

Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
