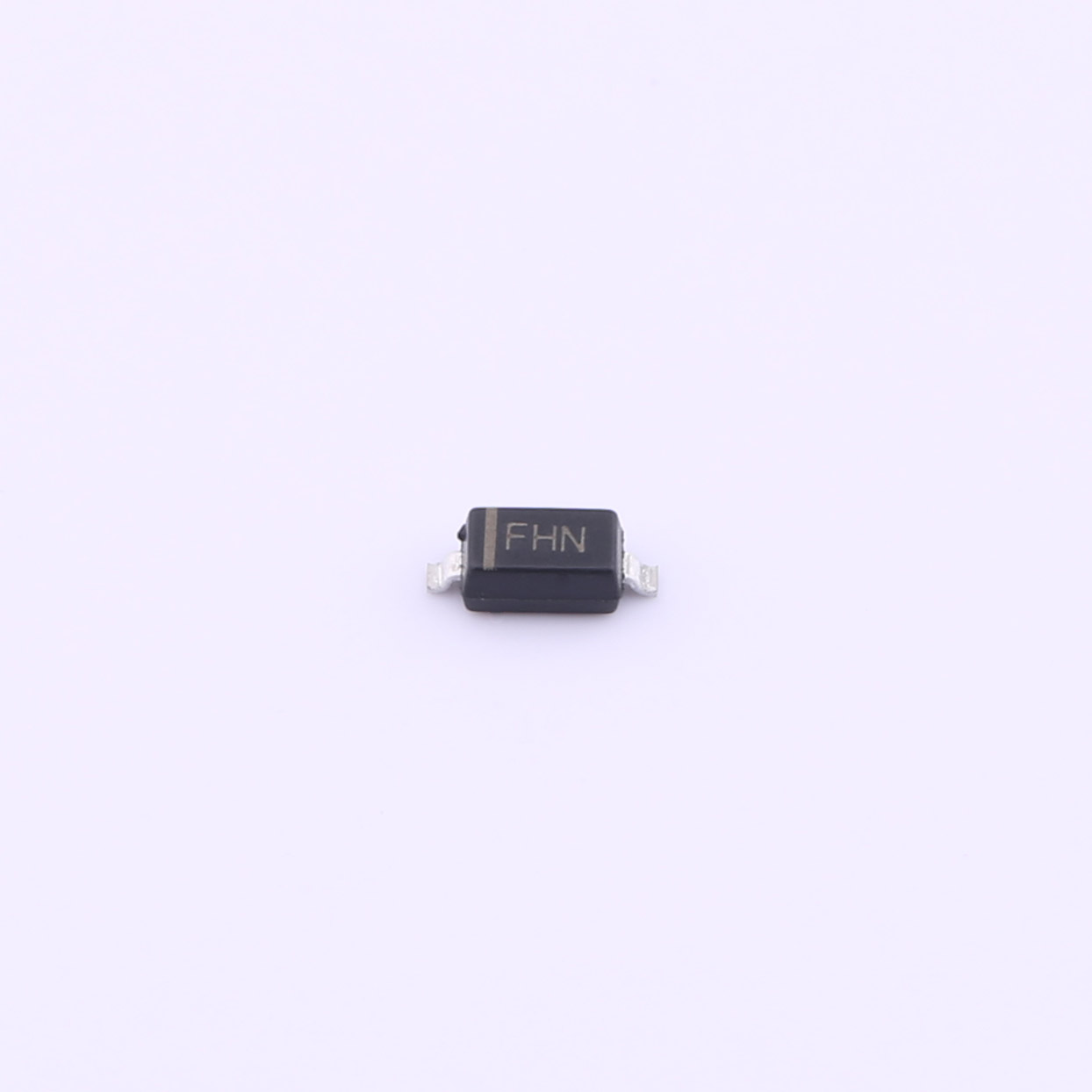

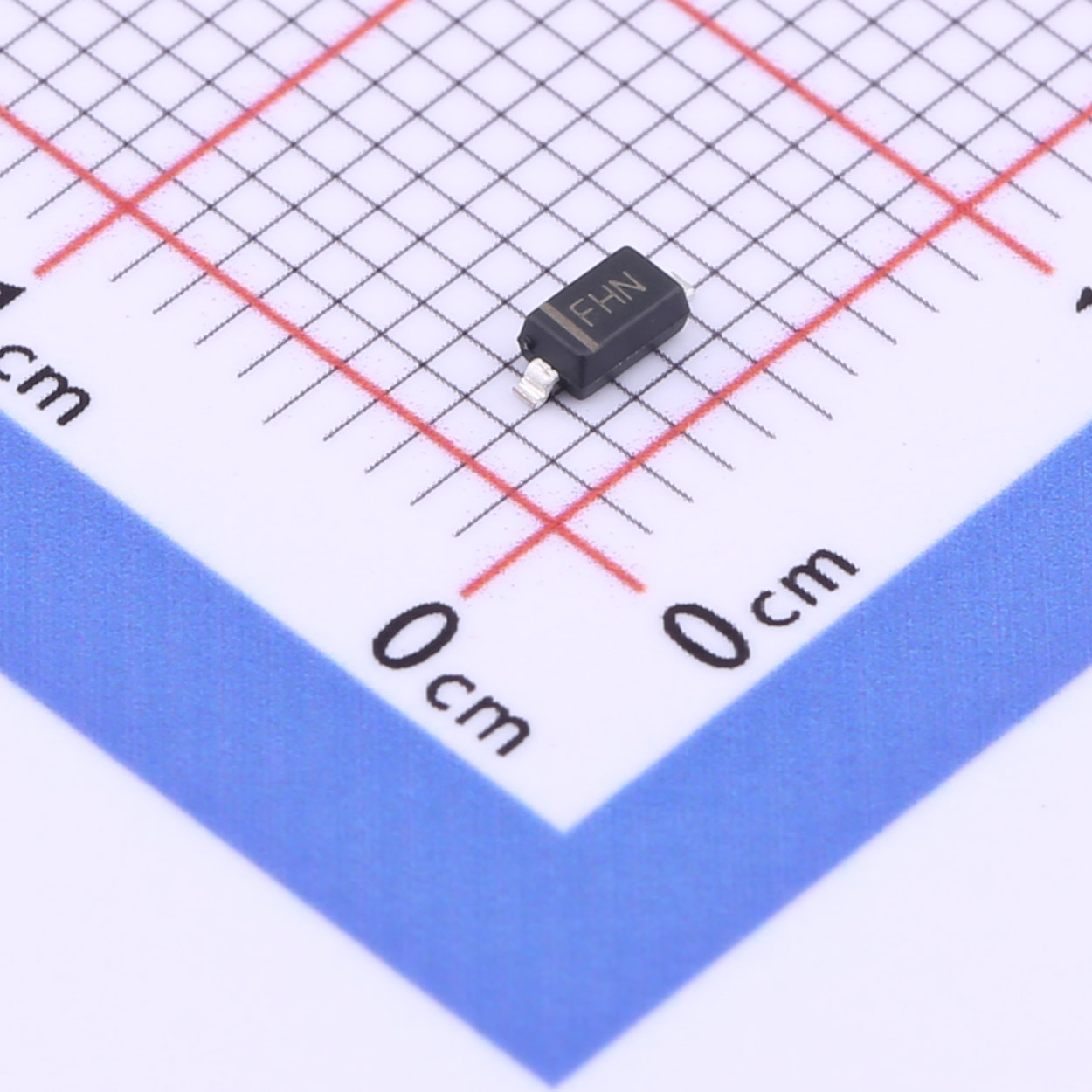

SOD-123 Zener Diode MM1W6V2 Professional Supplier
The MM1W6V2 Zener diode, packaged in the compact SOD-123 format, provides reliable voltage regulation with a nominal Zener voltage of 6.2V at a test current of 41mA. It ensures stable voltage performance with a breakdown voltage range of 5.86V to 6.51V. This diode features a low dynamic impedance of 2? at 41mA and a minimal reverse leakage current of 10μA at 3V. With a power dissipation capability of up to 1000mW, it supports robust performance in various applications.
PD: 1000mW
VZ(Nom) @ IZT: 6.2V @ 41mA
VZ(Min) @ IZT: 5.86V @ 41mA
VZ(Max.) @ IZT: 6.51V @ 41mA
ZZT @ IZT: 2Ω @ 41mA
IR @VR: 10µA @ 3V
Package: SOD-123
Silicon Planar Zener Diodes
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The MM1W6V2 Zener diode, packaged in the compact SOD-123 format, provides reliable voltage regulation with a nominal Zener voltage of 6.2V at a test current of 41mA. It ensures stable voltage performance with a breakdown voltage range of 5.86V to 6.51V. This diode features a low dynamic impedance of 2? at 41mA and a minimal reverse leakage current of 10μA at 3V. With a power dissipation capability of up to 1000mW, it supports robust performance in various applications.
Features
● Total power dissipation: Max. 1 W.
● Wide zener reverse voltage range 3.3V to 330V.
● Small plastic package suitable for surface mounted design.
Applications
● Consumer electronics
● Automotive electronics
● Other industrial circuits
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
