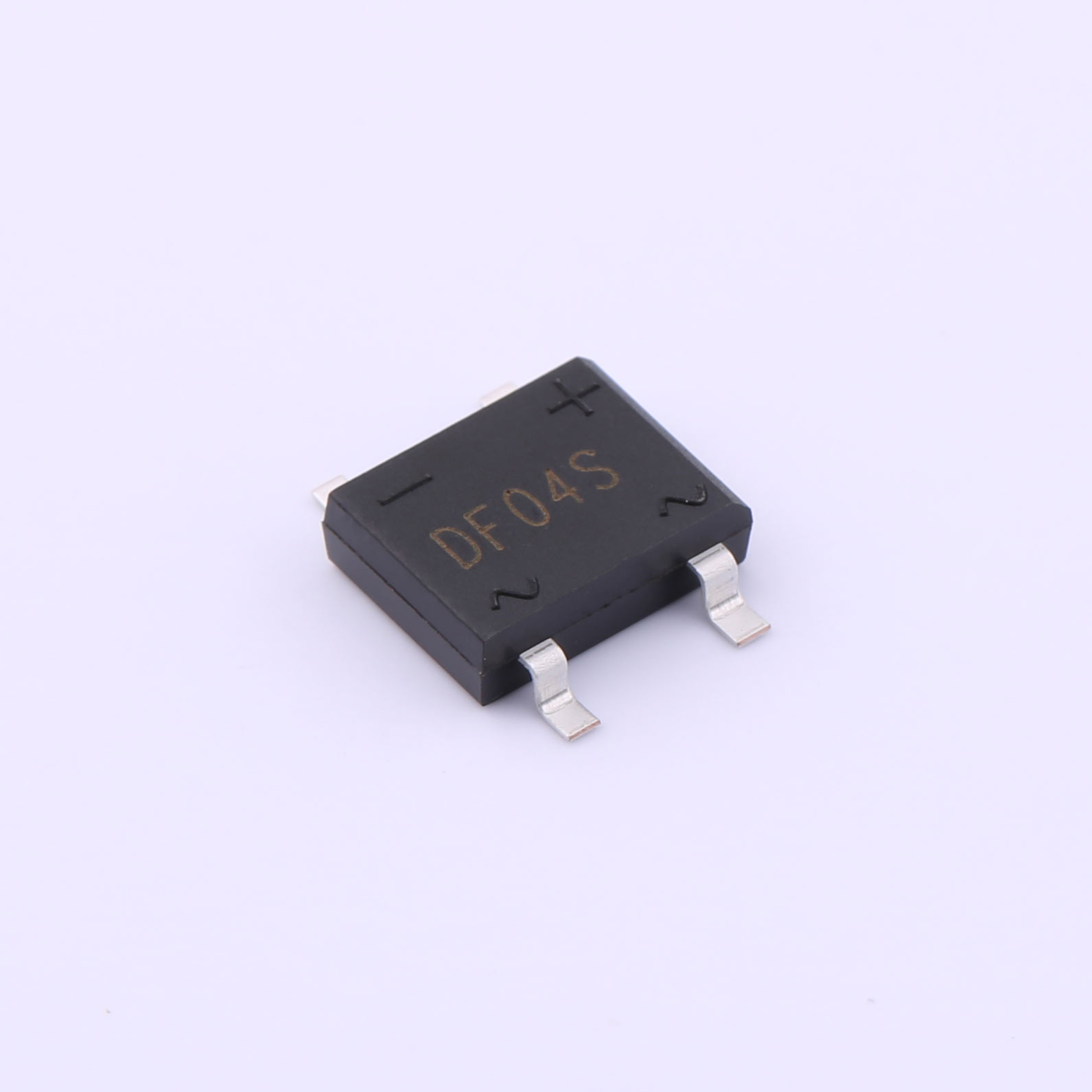

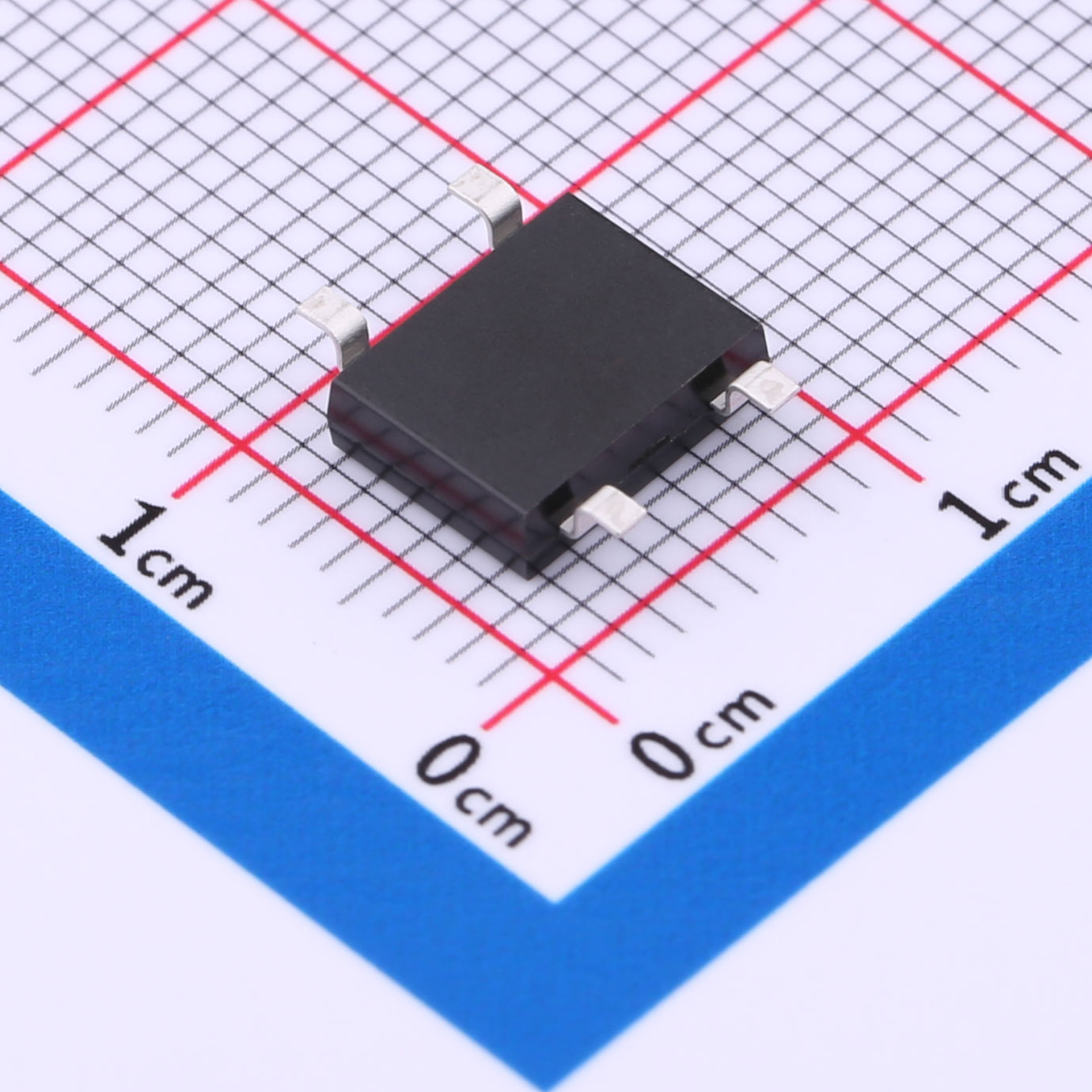

Cost-effective DF04S Bridge Rectifier Diode DF-S Manufacturer

1A|1.1V|30A|DF-S|400V|Rectifier Bridge|VRRM(V),IAV(A),VF（V）,IFSM（A）,Package|Rectifier Bridge|

1.0A Single-Phase Glass Passivated Bridge Rectifiers

Download Datasheet Online Consultation

1.0A Single-Phase Glass Passivated Bridge Rectifiers

Rectifier Reverse Voltage 50 to 1000V

Features

l The plastic material used carries Underwriters Laboratory flammability recognition 94V-0

l Surge overload ratings to 30 amperes

l Ideal for printed circuit board application

l High temperature soldering guaranteed 260 C /5 seconds at 5 lbs (2.3kg) tension

Mechanical Data

l Case: Molded plastic

l Terminals: Plated leads solderable per MIL-STD-202,Method 208

l Polarity: Marked on body

l Mounting Position: Any

l Weight:0.33 grams (approx)


Name
Title
Description
DF005S.pdf
-
Datasheet
Support

Support



If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.

Longevity



The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
