Cost-effective MC34063A DC-DC Voltage Regulator SOP-8 Manufacturer
-|1.5A|180KHz|SOP-8|36V|DC-DC Regulator|VIN(V),VOUT(V),IOUT(mA),fo(kHz),Package|DC-DC Regulator|
1.5AStep-Down/Step-Up/Inverting DC-DC Converter
1.5AStep-Down/Step-Up/Inverting DC-DC Converter
Description
l The MC34063A is a monolithic switching regulatorcontrol circuit which contains the primary functions required for DC-DC converters. This device consistsof internal temperature compensated reference, voltage comparator, controlled duty cycle oscillator with activecurrent limit circuit, driver and high current outputswitch.
l The MC34063A is specifically designed as a general DC-DC converter to be used in Step-Down, Step-Upand Voltage-Inverting applications with a minimumnumber of external components.

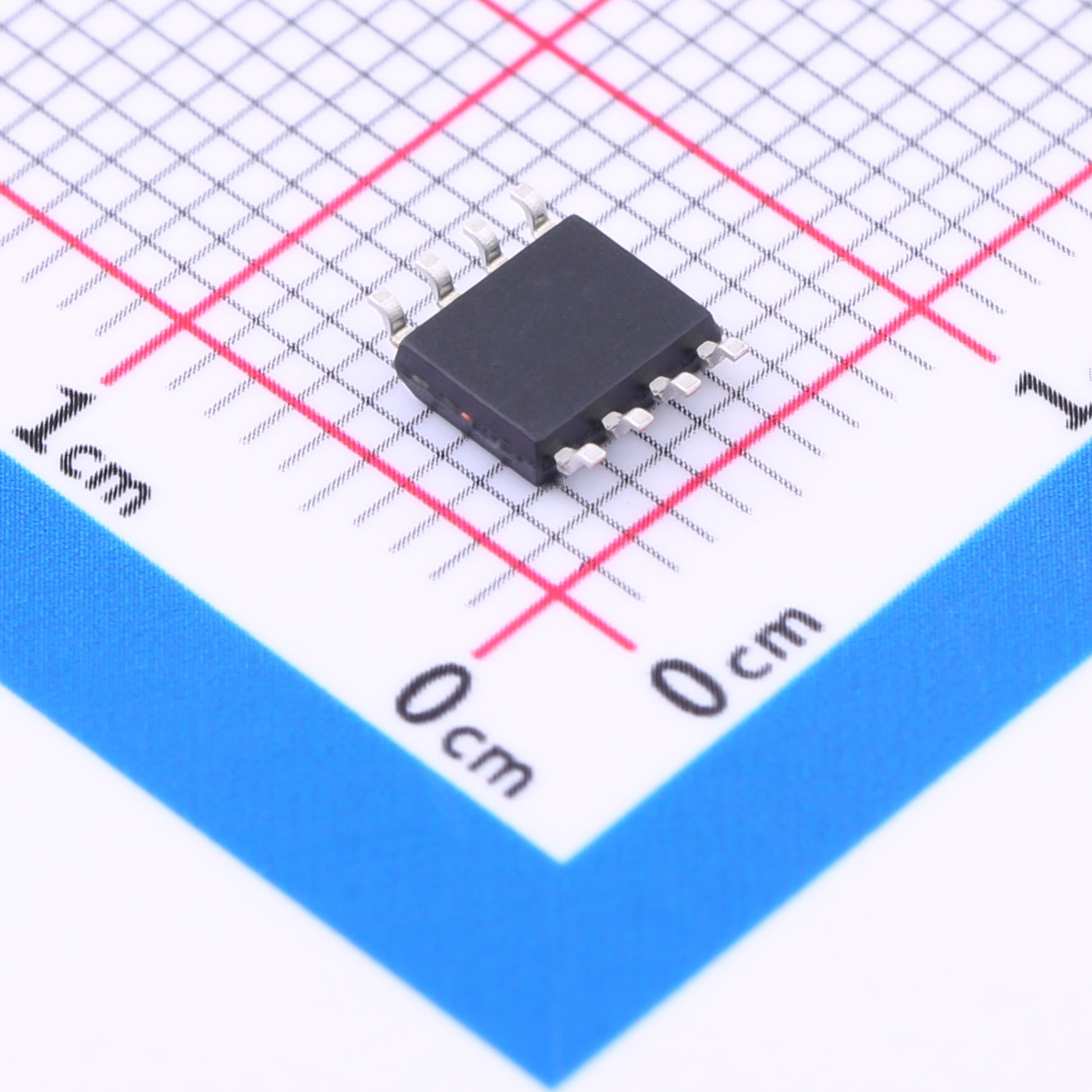

l The MC34063A is available in package :SOP-8
Features
l Operation fom 3.0V to 36V Input
l Low Standby Current
l Current Limiting
l Output Switch Current to 1.5A
l Output Voltage Adjustable
l Operation Frequency up to 180kHz
l Precision 2% Reference
Application
l Battery Chargers
l ADSL Modems
l Hubs
l Negative Voltage Power Supplies
