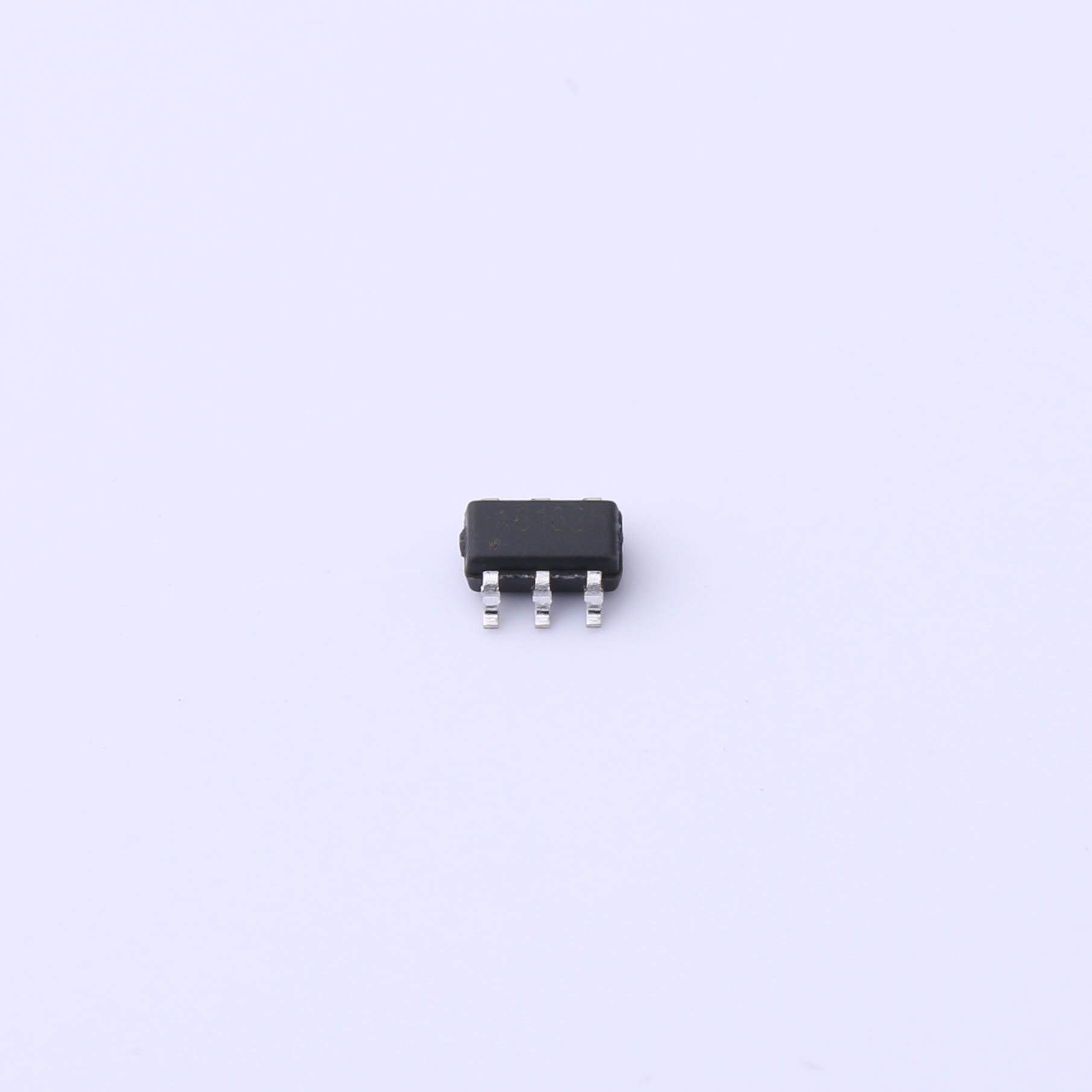

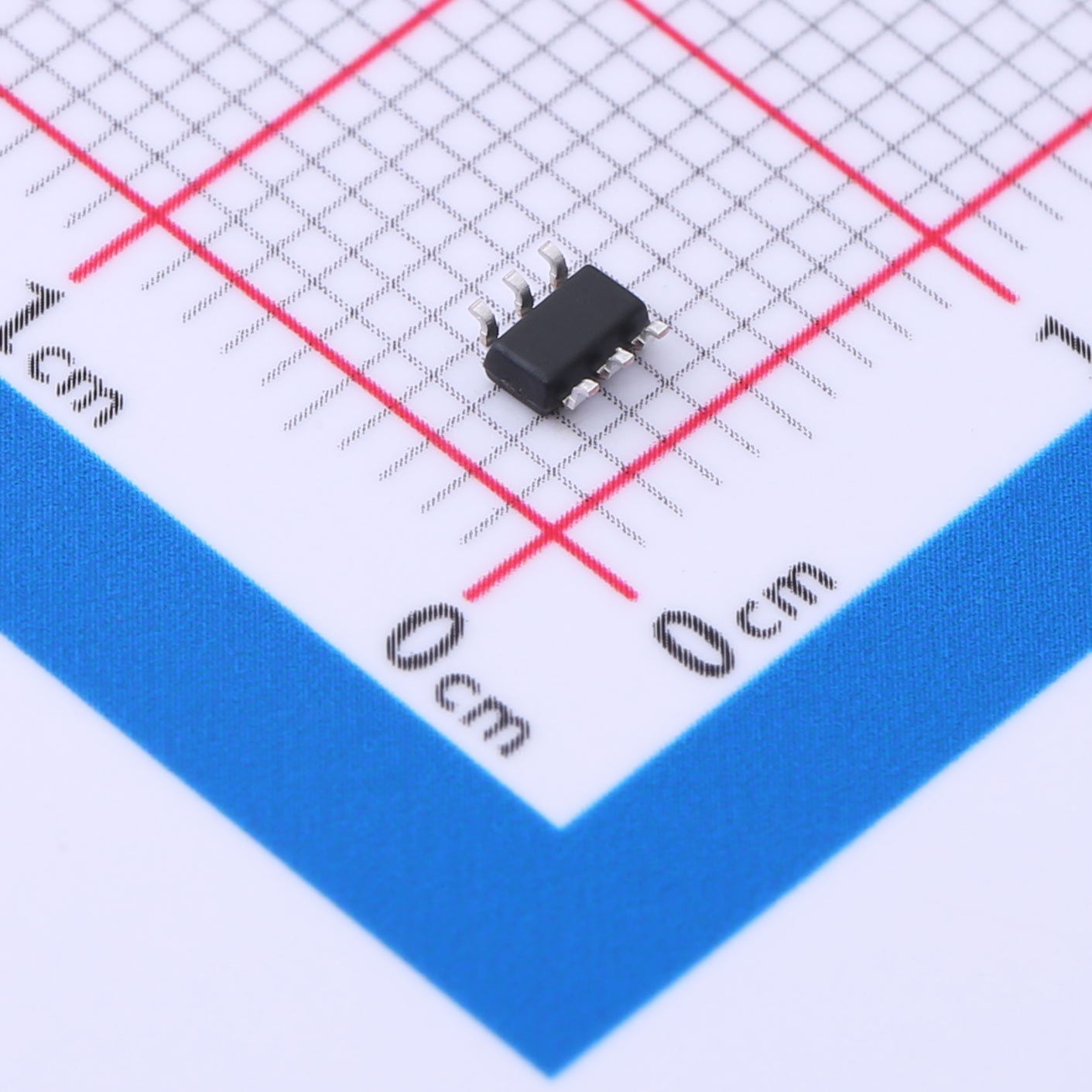

Cost-effective SY8120B DC-DC Voltage Regulator SOT-23-6 Manufacturer
-|2A|600KHz|SOT-23-6|18V|DC-DC Regulator|VIN(V),VOUT(V),IOUT(mA),fo(kHz),Package|DC-DC Regulator|
The SY8120B are high efficiency 600KHz synchronous step-down DC-DC converters capable of delivering 2.0A output currents, respectively. SY8120B operate over a wide input voltage range from 4V to 18V and integrate main switch and synchronous switch with very low RDS(ON) To minimize the conduction loss.Low output voltage ripple and small external inductor and capacitor sizes are achieved with 600KHz switching frequency.
2A, 18V, 600KHz Synchronous Step-Down Converter
Description
l The SY8120B are high efficiency 600KHz synchronous step-down DC-DC converters capable of delivering 2.0A output currents, respectively. SY8120B operate over a wide input voltage range from 4V to 18V and integrate main switch and synchronous switch with very low RDS(ON) To minimize the conduction loss.
l Low output voltage ripple and small external inductor and capacitor sizes are achieved with 600KHz switching frequency.
Features
l low Rds(on) for internal switches (top/bottom) Up to 95% Efficiency
l 600KHz Fixed Switching Frequency
l 4-18V input voltage range
l Internal softstart limits the inrush current
l SOT23-6 Packages
l 2% 0.6V reference
Application
l Dsl Modem
l Portable TV/DVD /DVB/MID/ATSC
l DPF/MP5
l Handheld Computers and PDAs
l Access Point Router
l LVD-TV/LCD-M
Name
Title
Description

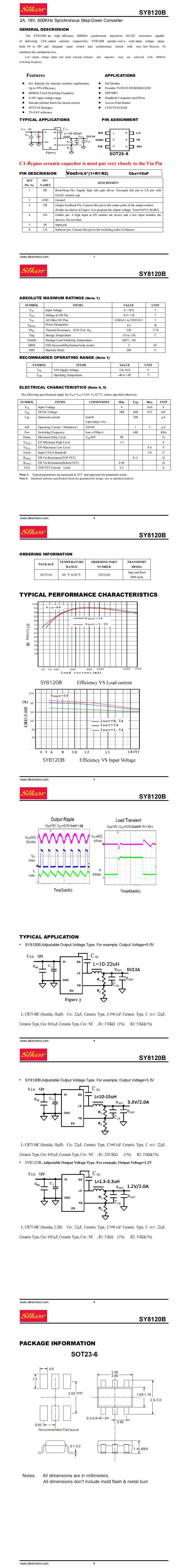

Datasheet
