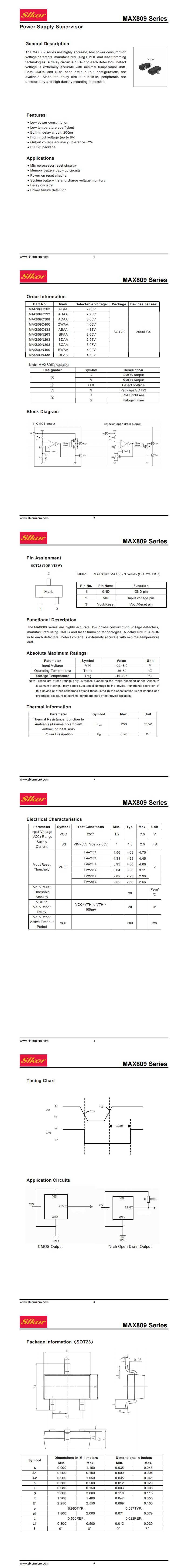

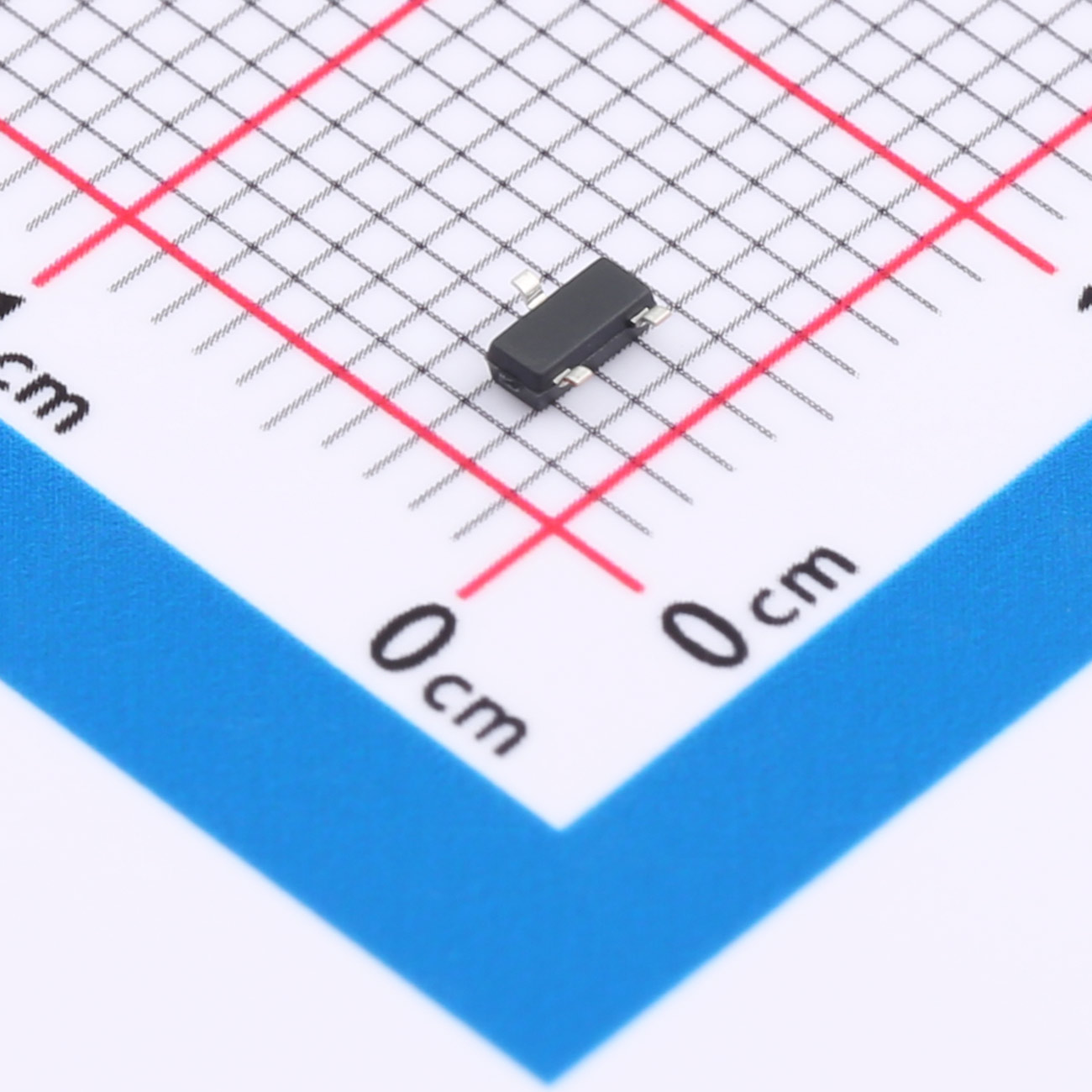

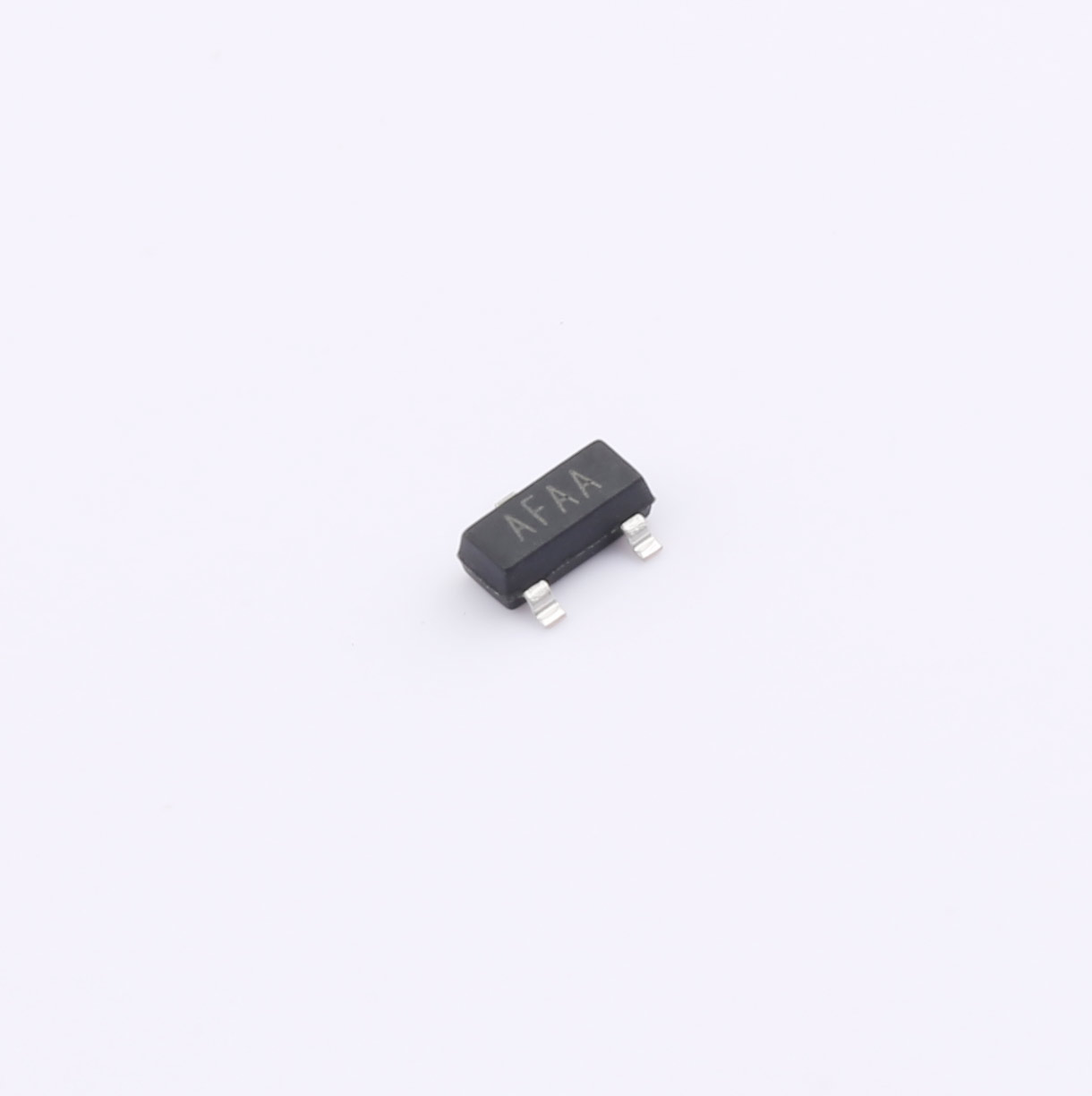

MAX809C263NR Power supply monitoring and reset chip SOT-23 Factory Direct
2.5μA|-|SOT-23|7.5V|PMIC|VS(V) ,IS(uA),IO(A),Package|PMIC|
The MAX809 series are highly accurate, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies. A delay circuit is built-in to each detectors. Detect voltage is extremely accurate with minimal temperature drift. Both CMOS and N-ch open drain output configurations are available. Since the delay circuit is built-in, peripherals are unnecessary and high density mounting is possible.
Power Supply Supervisor
Description
l The MAX809 series are highly accurate, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies. A delay circuit is built-in to each detectors. Detect voltage is extremely accurate with minimal temperature drift. Both CMOS and N-ch open drain output configurations are available. Since the delay circuit is built-in, peripherals are unnecessary and high density mounting is possible.
Features
l Low power consumption
l Low temperature coefficient
l Built-in delay circuit: 200ms
l High input voltage (up to 8V)
l Output voltage accuracy: tolerance ±2%
l SOT23 package
Applications
l Microprocessor reset circuitry
l Memory battery back-up circuits
l Power on reset circuits
l System battery life and charge voltage monitors
l Delay circuitry
l Power failure detection
