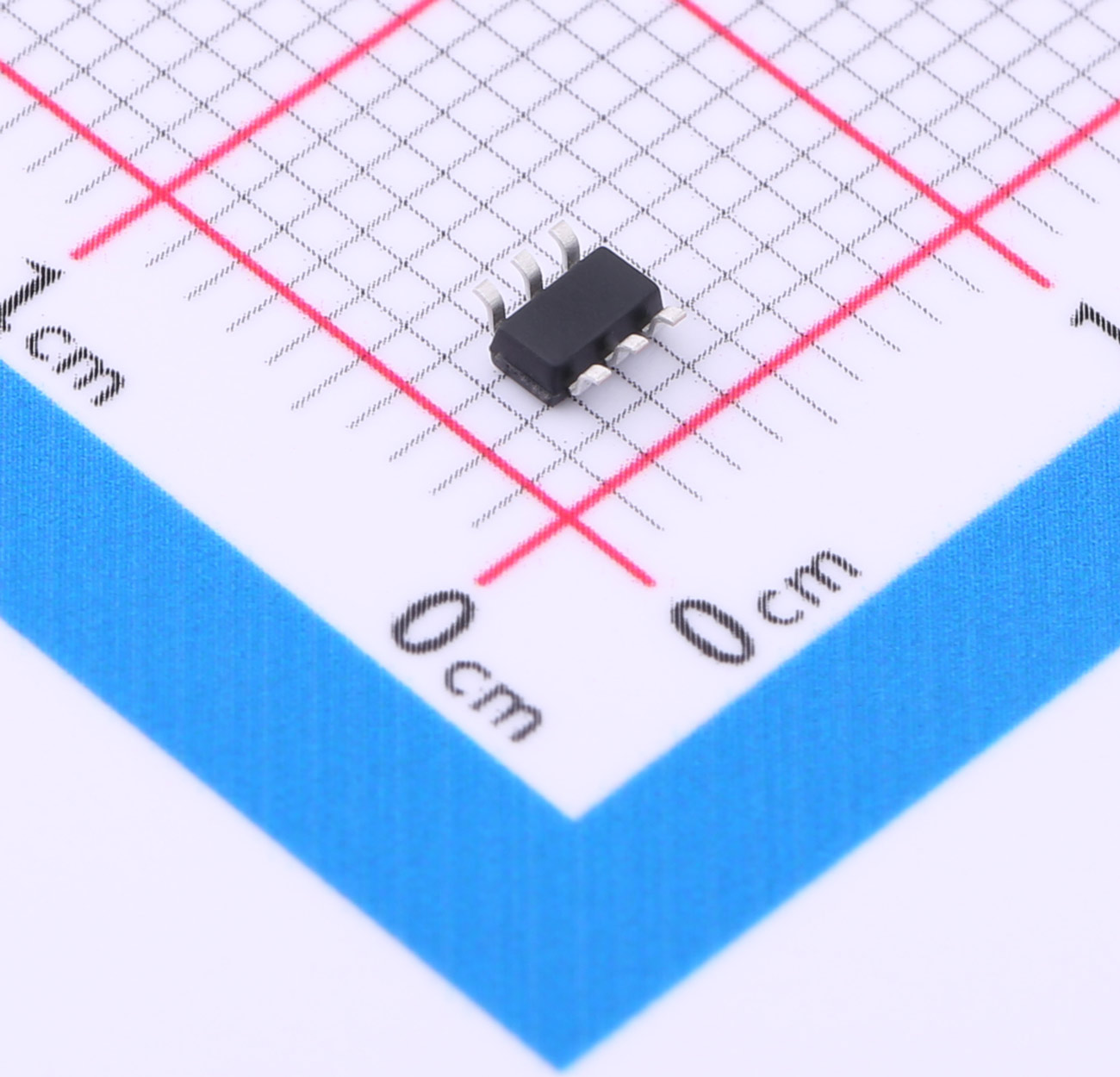

Cost-effective SL435 Protective Circuit for Lithium Batteries SOT-23-6 Manufacturer
4.45V|2.5V|3μA|SOT-23-6|3.9V|Battery Management|VDD(V) ,VOC(V),VOD(V),IDD(uA) ,Package|Battery Management|
The SL435 battery protection IC is designed to protect lithium-ion/polymer battery from damage or degrading the lifetime due to overcharge, overdischarge, and/or overcurrent for one-cell lithium-ion/polymer battery powered systems, such as cellular phones. The ultra-small package and less required external components make it ideal to integrate the SL435 into the limited space of battery pack. The accurate ±25mV overcharging detection voltage ensures safe and full utilization charging. The very low standby current drains little current from the cell while in storage.
Battery Protection IC
Description
l The SL435 battery protection IC is designed to protect lithium-ion/polymer battery from damage or degrading the lifetime due to overcharge, overdischarge, and/or overcurrent for one-cell lithium-ion/polymer battery powered systems, such as cellular phones. The ultra-small package and less required external components make it ideal to integrate the SL435 into the limited space of battery pack. The accurate ±25mV overcharging detection voltage ensures safe and full utilization charging. The very low standby current drains little current from the cell while in storage.
Features
l Reduction in Board Size due to Miniature Package SOT-23-6.
l Ultra-Low Quiescent Current at 3μA (Vcc=3.9V).
l Two Detection Levels for Overcurrent
l Protection.
l Auto recovery
l 0v charging
l Precision Overcharge Protection Voltage 4.425V ± 25mV for the SL435
l Load Detection Function during Overcharge Mode.
l Delay times are generated by internal circuits. No external capacitors required.
Applications
l Protection IC for One-Cell Lithium-Ion / Lithium-Polymer Battery Pack：
built-in cell of mobile phone
digital product cell
camera cell
portable power
l Reflow soldering internal actual temperature < 250 degrees,time in high temperature < 7 s.
Ordering Information
SL435
l Package type: SOT-23-6
l Temperature range: -40°C~+85℃
l Overcharge protection: 4.4-4.425V,4.425-4.45V
Name
Title
Description

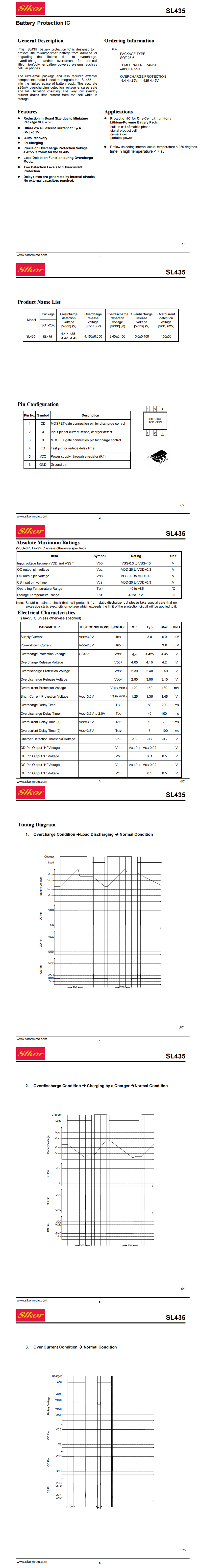

Datasheet
