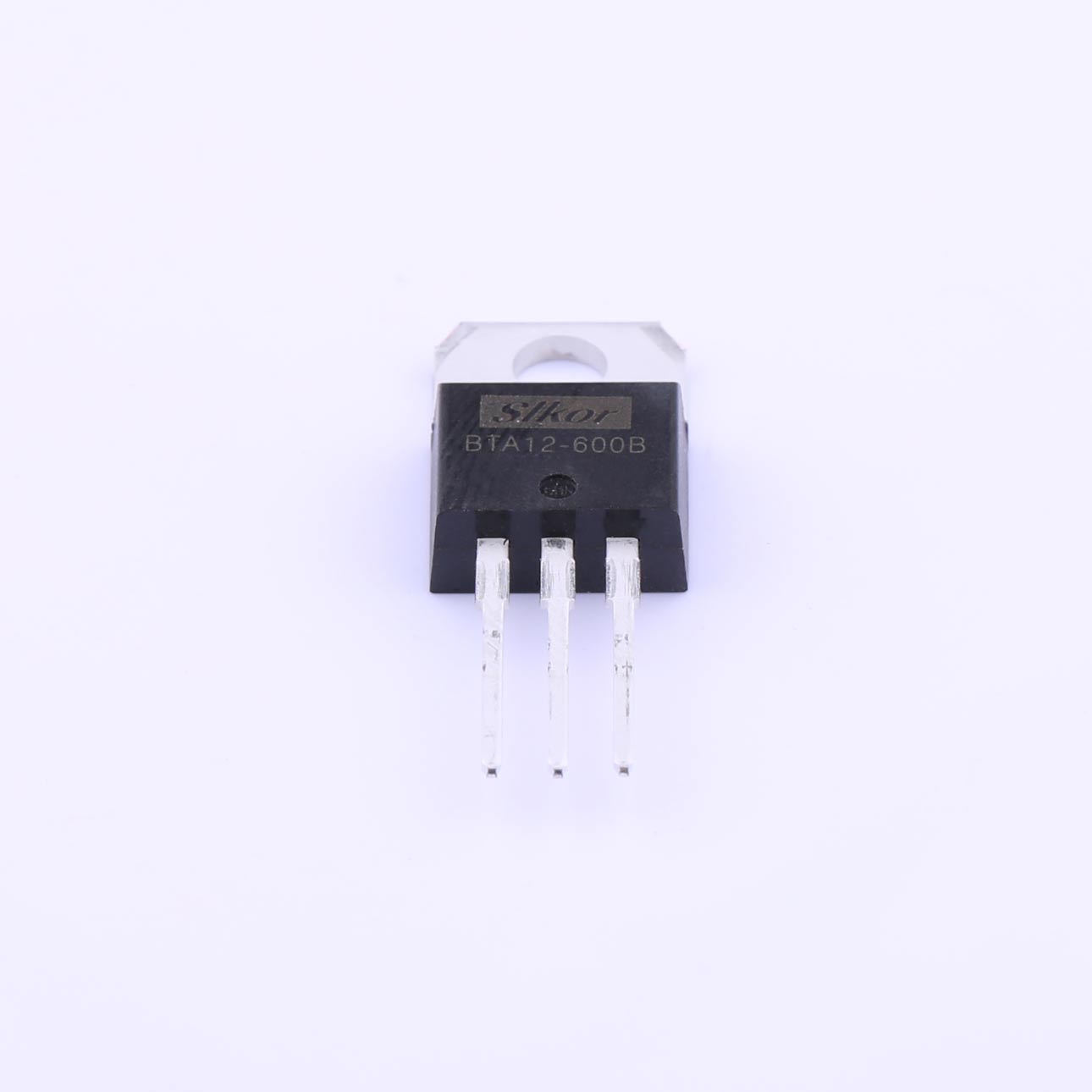

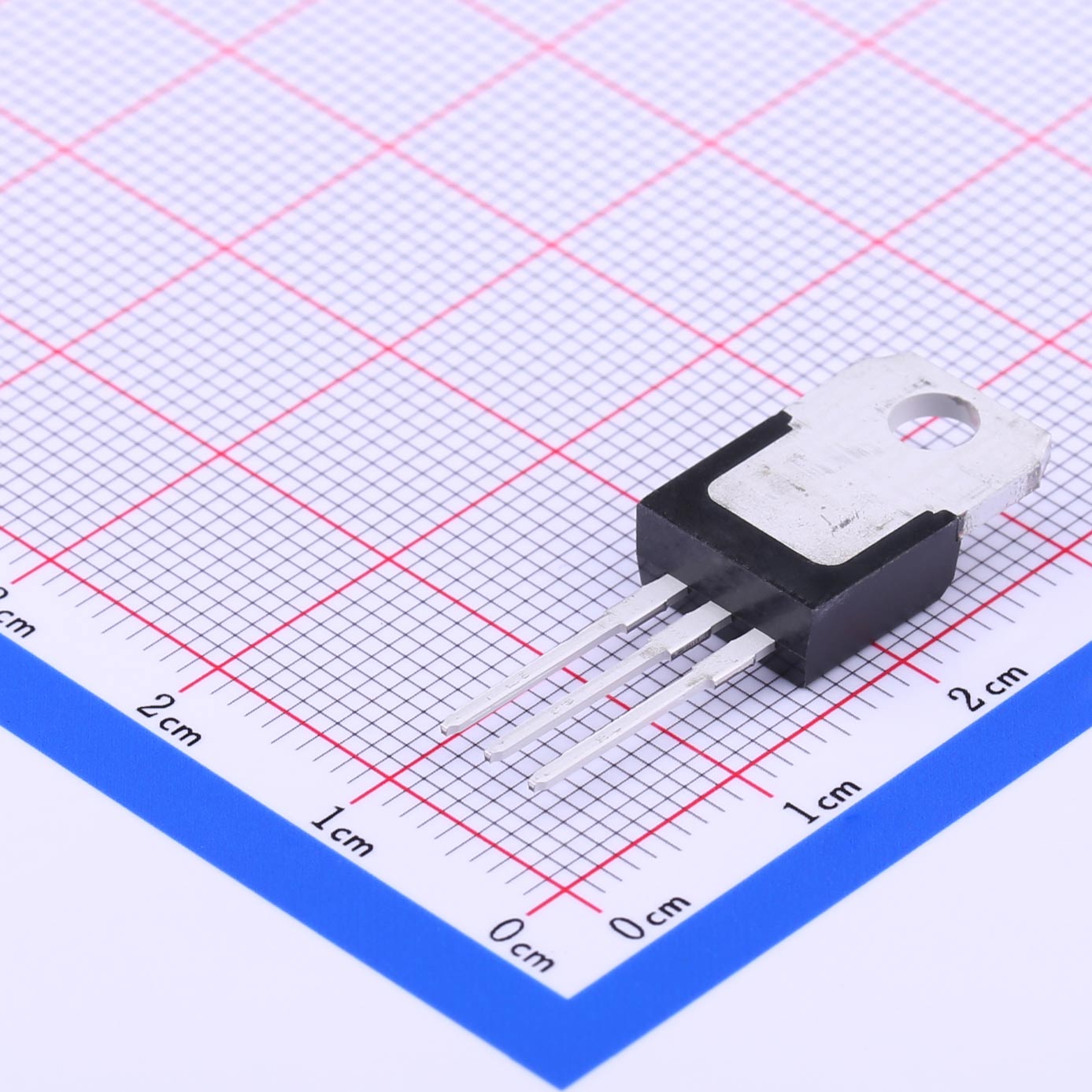

Alternative equivalent for ST BTA12-600BWRG | Slkor BTA12-600B TRIACS
TRIAC BTA12-600B in TO-220F package, featuring 600V VDRM, 12A IT(RMS), 2A Max IGM, 10V VGM, suitable for reliable AC power control applications.
● Blocking voltage to 600 V
● On-state RMS current to 12 A
● Repetitive Peak Off-State Voltage 600V
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Slkor alternative equivalents to STMicroelectronics.
| STMicroelectronics | Slkor Replacements | ||
| Part Number | Part Number | Product Category | Package |
| BTA06-800BWRG | BTA06-800B | SCR | TO-220 |
| BTA08-800BWRG | BTA08-800B | SCR | TO-220 |
| BTA12-600BWRG | BTA12-600B | SCR | TO-220 |
| BTA16-800BWRG | BTA16-800B | SCR | TO-220 |
| BTA24-800BWRG | BTA24-800B | SCR | TO-220 |
| BTA26-800BWRG | BTA26-800B | SCR | TO-3P |
| BTA41-800BRG | BTA41-800B | SCR | TO-3P |
| BTA41-1200BRG | BTA41-1200B | SCR | TO-3P |
| ZMM5V1 | ZMM5V1 | Zener Diode | LL-34 |
| TIP122 | TIP122 | Darlington Array | TO-220 |
| TIP127 | TIP127 | Darlington Array | TO-220 |
| ULN2001D1013TR | ULN2001D | Darlington Array | SOP-16 |
| L4949 | SL4949 | Linear Regulator | SOP-8 |
| LM317T-DGZ | LM317 | Linear Regulator | TO-220 |
| LMV321ILT | LMV321 | Op-amp | SOT-23-5 |
| M24C02-WMN6TP | SL24C02D | EEPROM | SOP-8 |
| MMBTA42 | MMBTA42 | Transistor | SOT-23 |
| MMBT4401 | MMBT4401 | Transistor | SOT-23 |
| MMBT5551 | MMBT5551 | Transistor | SOT-23 |
| MMBT5401 | MMBT5401 | Transistor | SOT-23 |
| MMBT3904 | MMBT3904 | Transistor | SOT-23 |
| MMBT3906 | MMBT3906 | Transistor | SOT-23 |
| MMBT2222A | MMBT2222A | Transistor | SOT-23 |
| D44H11 | SL44H11 | Transistor | TO-220-3L |
Description
Glass passivated triacs in a plastic envelope,intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications include motor control,industrial and domestic lighting,heating and static switching.
Features
● Blocking voltage to 600 V
● On-state RMS current to 12 A
● Repetitive Peak Off-State Voltage 600V
● R.M.S On-State Current IT(RMS)=12A
● High Commutation dv/dt
● Isolation Voltage Viso 1500V AC
Applications
● Motor control
● Industrial and domestic lighting
● Heating
● Static switching
Quick reference data
| Symbol | Parameter | Conditions | Max | Unit |
| VDRM | Repetitive peak off-state voltages | 600 | V | |
| IT (RMS) | RMS on-state current (full sine wave) | Tc=79℃ | 12 | A |
| ITSM | Surge On-State Current | One Cycle 50Hz/60Hz Peak Non-Repettive | 119/130 | A |
