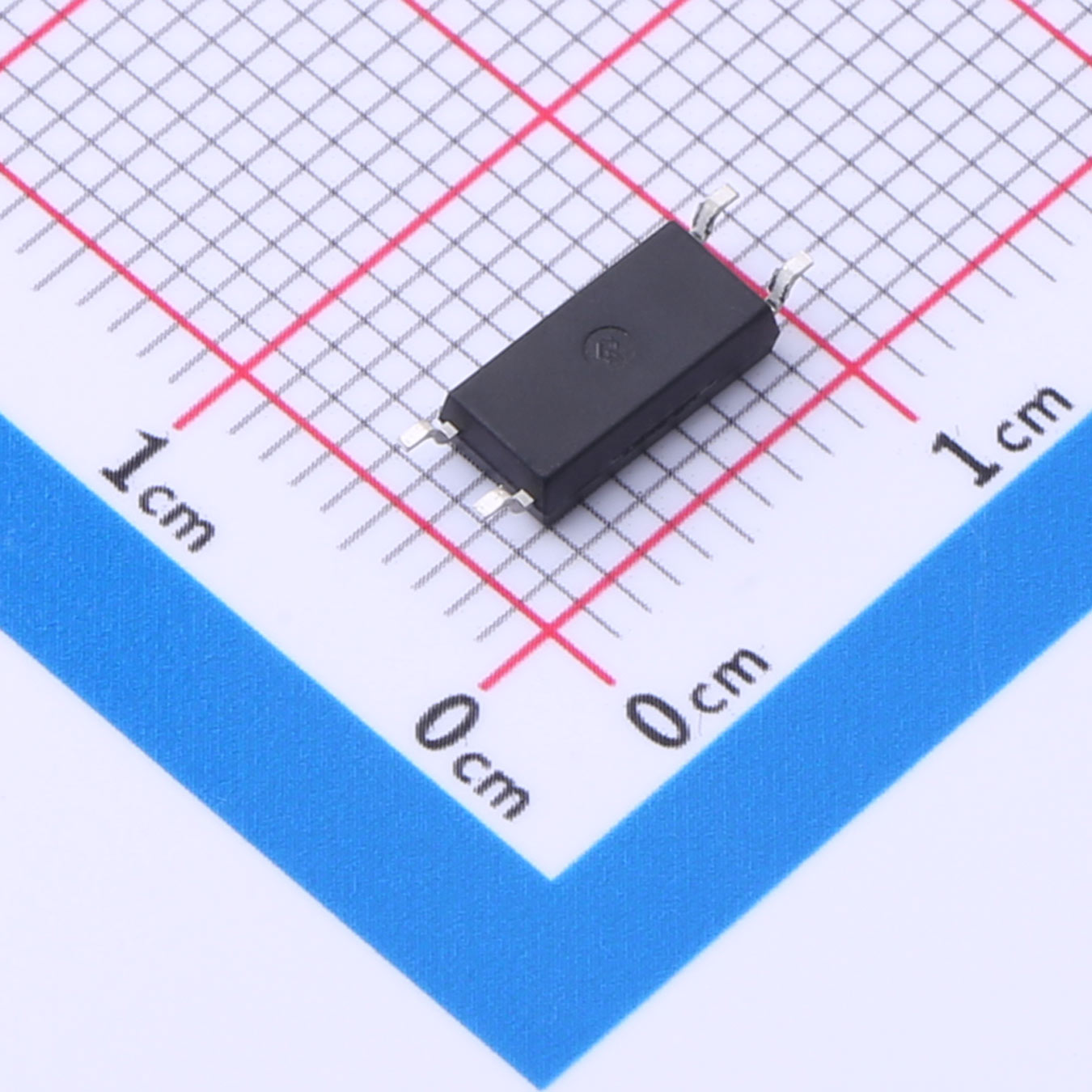

High Reliability SL-1008 Optocoupler SMD-4
50mA|6V|60mA|SMD-4|80V|Optocoupler|Optocoupler|VCEO(V),IC(A),VR(V),IF(A),Package|Optocoupler|
The SL-10XX series devices contain an infrared emitting diode, photo transistor detector. They are halogen and Sb2O3 free. They are packaged in a 4-pin SOP.
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SL-10XX series devices contain an infrared emitting diode, photo transistor detector. They are halogen and Sb2O3 free. They are packaged in a 4-pin SOP.
Features
● Current conversion ratio (CTR : MIN. 50% at IF = 5mA, VCE = 5V, Ta=25 ℃)
● Insulation voltage：(VISO=5,000Vrms)
● High collector emitter voltage ( VCEO = 70V )
● Temperature range：-55 ℃ to 110 ℃
● Long creepage distance：> 8mm ,Lead-free, RoHS compliant
● CQC approved( No. 15801-CQC001041-201800042 )
● VDE approved(No.40029733)
Applications
● Programmable Controller
● System devices, measuring instruments
● Telecommunication equipment
● Household appliances, such as fans and heaters
● Signal transmission between circuits of different potentials and impedance
