Description

SL1613 is a low-power Hall switch sensor designed for space-constrained systems and battery-sensitive systems. The chip can provide a variety of magnetic field thresholds, switching operating frequencies and packaging forms to adapt to various applications. When the applied S-pole magnetic induction intensity exceeds the operating point BOP, the chip outputs a low level and maintains a low level. Until the S-pole magnetic induction intensity is lower than the release point BRP, the chip outputs a high level. The chip has built-in temperature compensation circuits and clock logic circuits to ensure the chip's stable operating point and switching frequency. The chip can provide a single S-pole magnetic response with extremely low current consumption. SL1613 can operate in a supply voltage range of 1.6V to 5.5V and uses a standard SOT-23 package

Features

Low power consumption

5Hz version：1.6uA@ 1.8V

20Hz version：3.3uA@ 1.8V

● Wide operating voltage range：1.6V~5.5V

● selectable magnetic field threshold（Bop）

   33Gs Low Threshold

   46Gs High Threshold

● Single S-pole magnetic field detection

● CMOS Push-pull output

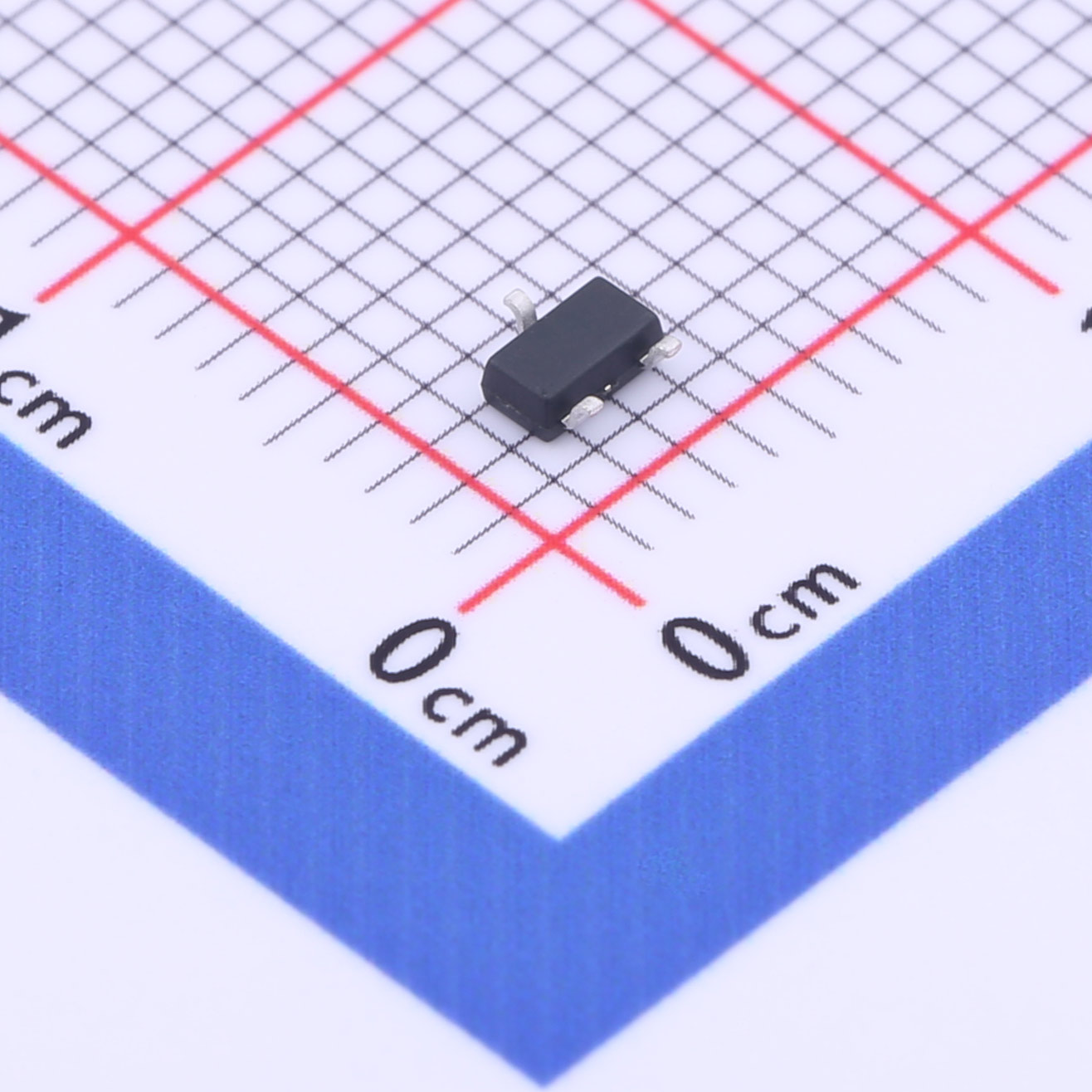

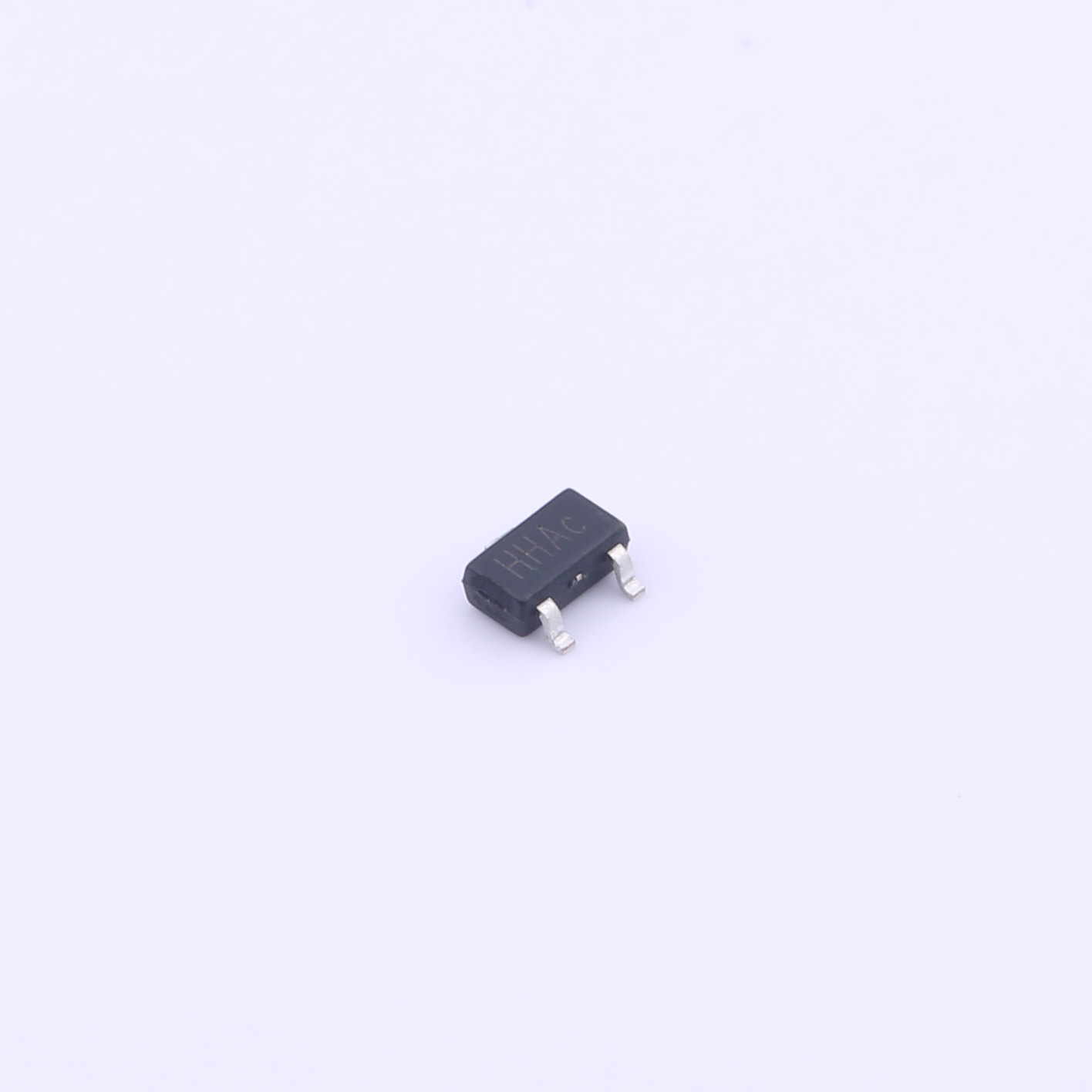

● Package：SOT-23

● Operating temperature range：-40℃~85℃

● Excellent ESD performance：HBM 8KV

● RoHS compliant

Applications

● Laptop and Tablet Switch Detection

● TWS earphones, mobile phones

● Electronic lock, valve position detection

● Water meter, gas meter, flow meter

● Non-contact detection
