Description:

SL7888 is a 8-bit ADC (Analog-to-Digital Converter) chip, which has the basic characteristics of high resolution, high speed, low power consumption, small size and uni polarity. The product is divided into two versions:

The SL7888 version is powered by a single power supply of 4 V-5.25 V, and the sampling rate can reach up to 800 KSPS. The SL7888E version is powered by a single power supply of 3.3 V-4.8 V, and the sampling rate can reach up to 1250 KSPS. Both versions are packaged in a 6-pin SOT-23 package with an operating temperature range of -40 to 85. SL7888 is a pin-to-pin replacement for ADS7888 with less than 1/2 of the average dynamic power consumption, significantly extending the battery operating time.

Features

● SL7888 maximum sampling rate: 800 KSPS

● SL7888E maximum sampling rate: 1250 KSPS

   4 V—5.25 V single power supply(SL7888)

   3.3 V—4.8 V Single power supply(SL7888E)

● 8-bit resolution

● Up to 20MHz serial interface(SL7888E)

● Low power（typical value）

   4.90mW（5V ，800 KSPS）

   2.80mW（4V ，800 KSPS）

● Maximum error ±0.5LSB INL，±0.5LSB DNL

● Power saving mode

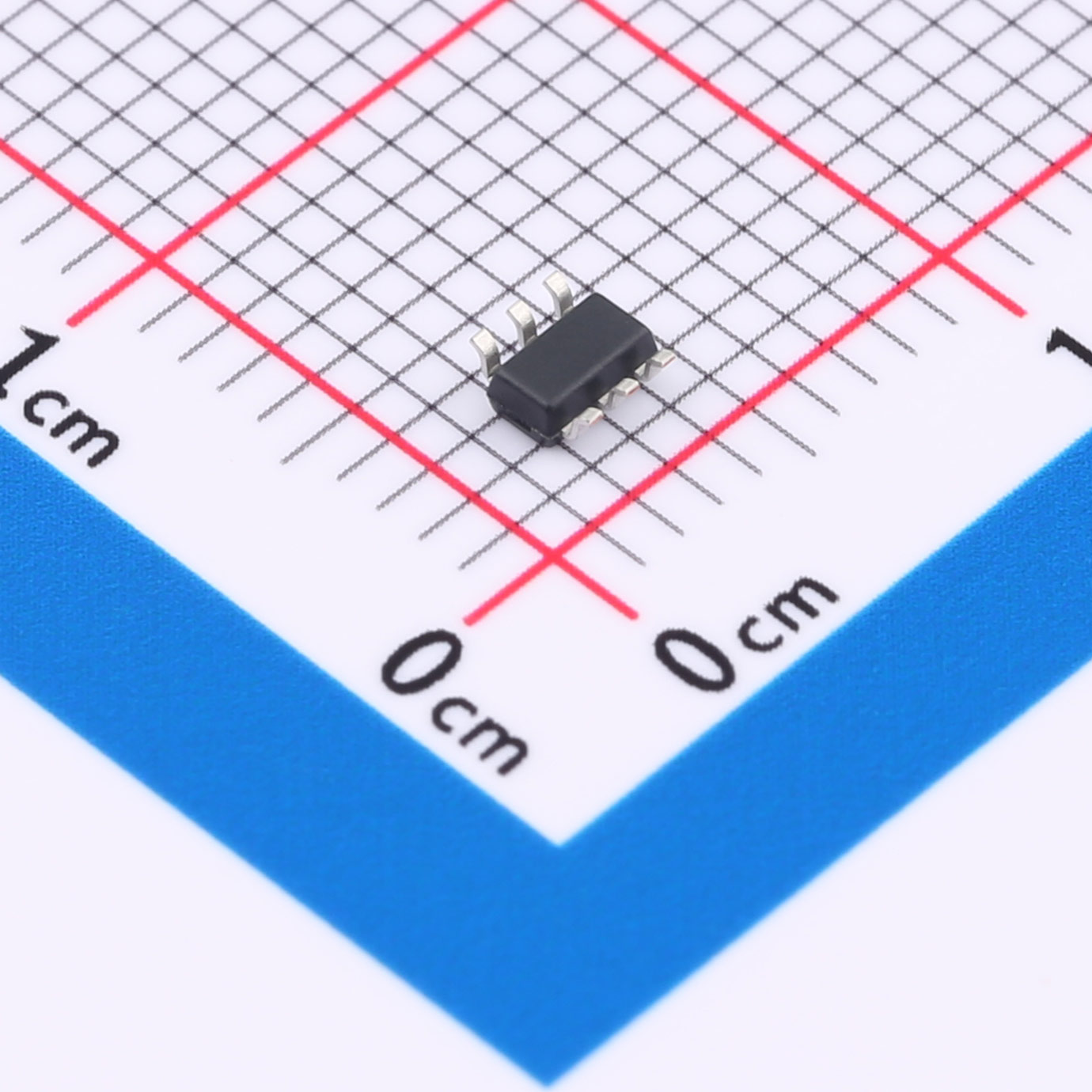

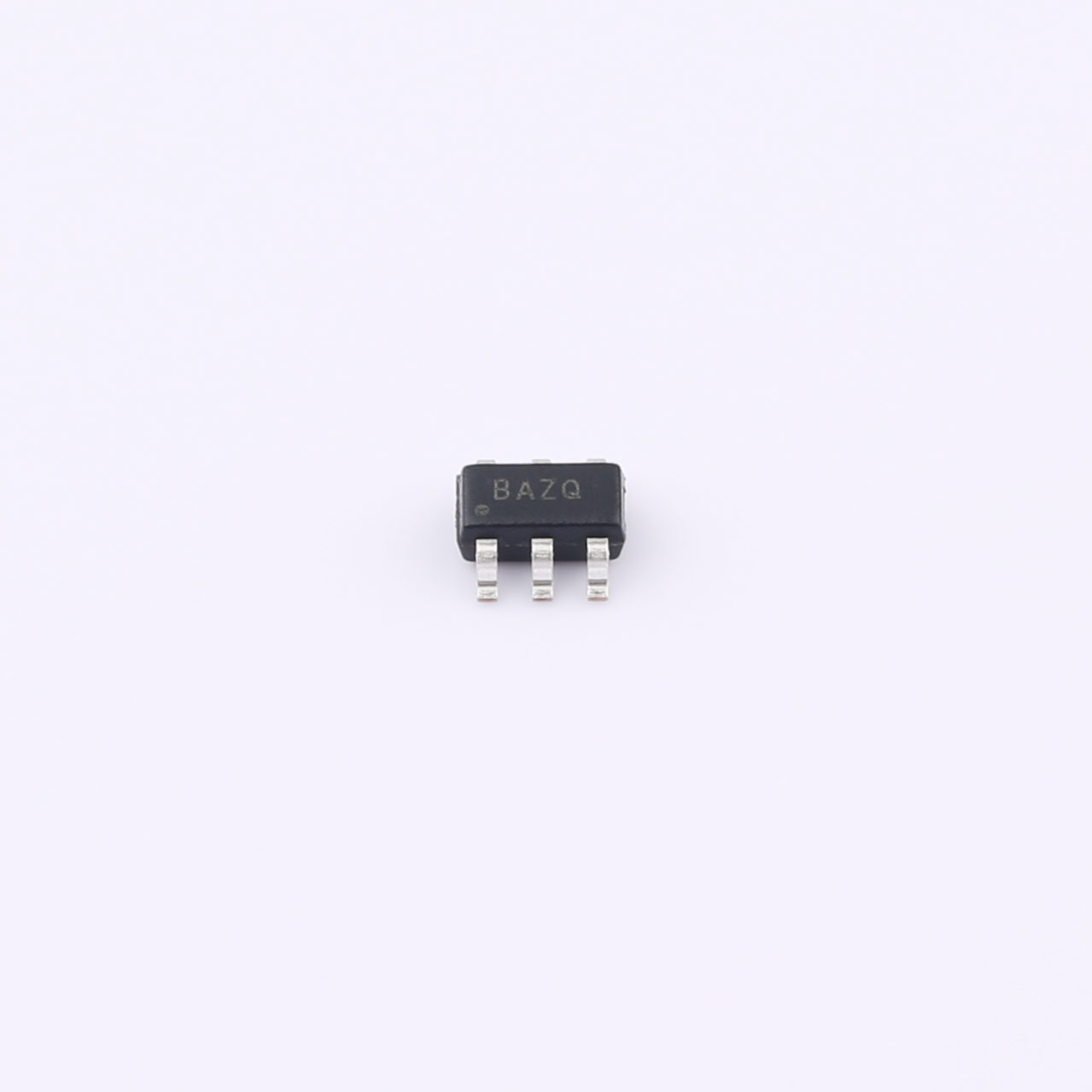

● 6 pin SOT-23 package

Applications:

● Baseband converters in wireless communications

● Motor current and bus voltage sensors in digital drives

● Optical networks (DWDM, MEMS-based switches)

● Optical sensors

● Battery powered system

● Medical devices

● High-speed data acquisition system

● High-speed closed-loop system
