Description:

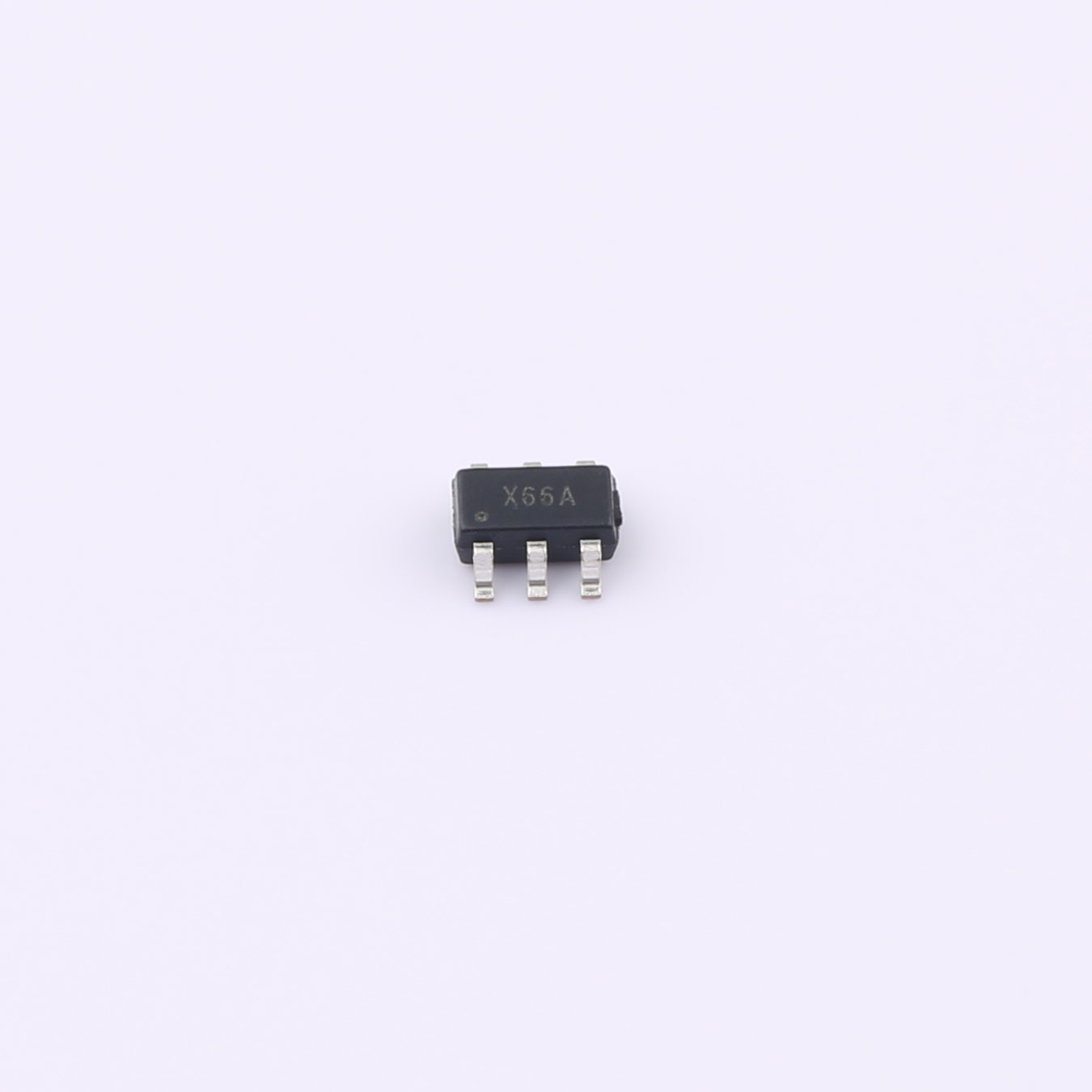

SL7866 is a 12-bit ADC (Analog-to-Digital Converter) chip, which has the basic characteristics of ultra-low power consumption, small size, unipolarity, and single-ended input. SL7866 is designed with advanced process and technology and has a wide voltage operating range:

When powered by a single 1.5V-3.0V power supply, the sampling rate can reach up to 200KSPS (compatible with similar chips); when powered by a single 3.0V-4.5V power supply, the sampling rate can reach up to 1MSPS. The SL7866 uses a 6-pin SOT-23 package and has an operating temperature range of -40 to 85. The SL7866 is a pin-to-pin replacement for the ADS7866 and consumes less than one-third  of the dynamic power, significantly extending battery life.

Features

● Maximum sampling rate: 200 KSPS (1.5V-3V)

● Maximum sampling rate: 1250 KSPS

● Ultra-low power consumption (typical)

   0.13mW (1.8V, 200 KSPS)

   0.62mW (3.3V, 200 KSPS)

● Maximum error ±1.5LSB INL, ±1.5LSB DNL

● 0-VDD unipolar single channel input

● SPI compatible serial interface

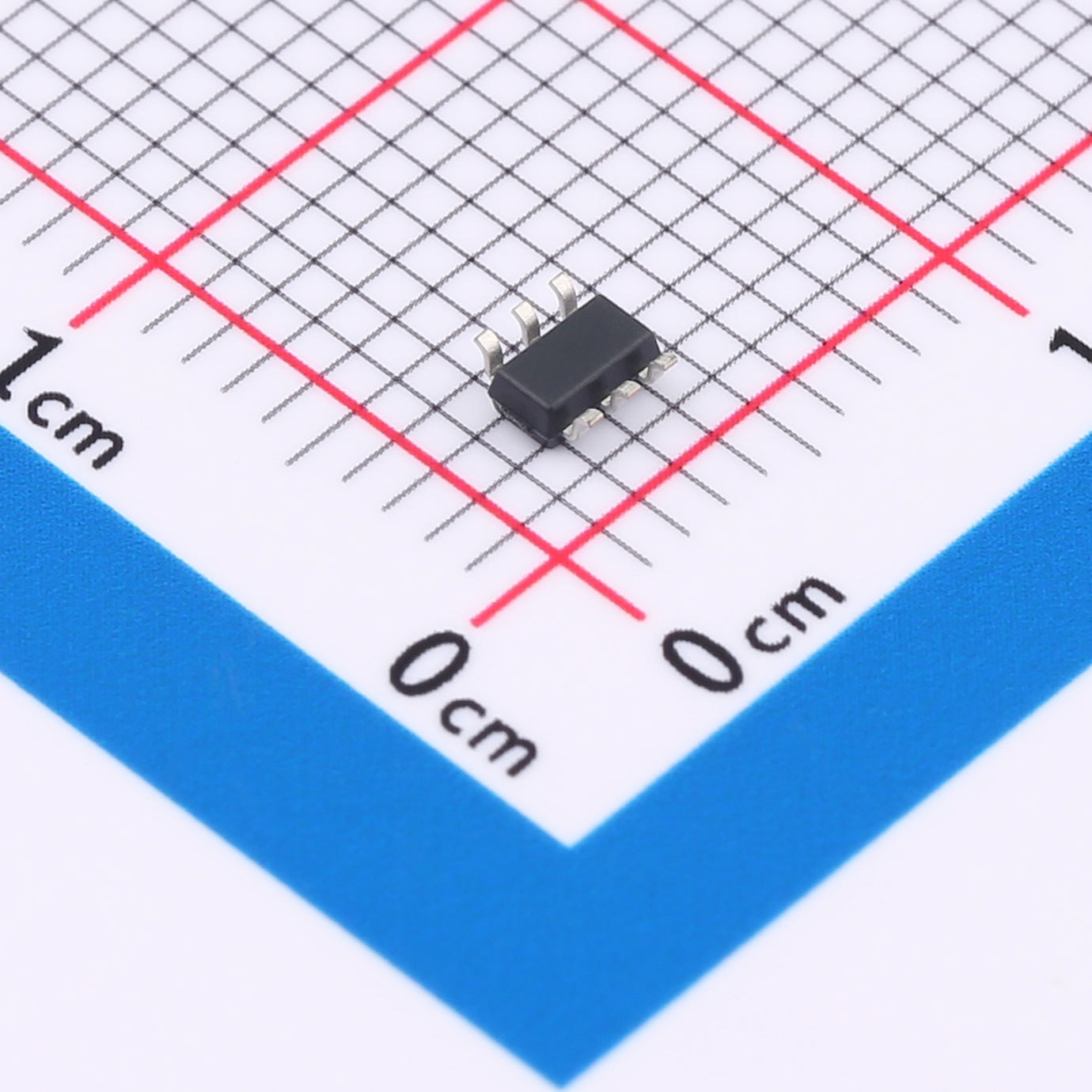

● 6-pin SOT-23 package

Applications:

● Battery-powered systems

● Portable communication equipment

● Medical electronic equipment

● Portable data acquisition equipment

● Internet of Things data acquisition equipment

● Automatic measuring instruments
