Description:

The SL2365 is a 12-bit ADC (Analog-to-Digital Converter) chip. Because these devices automatically power down after the conversion is complete, the supply current drops as the sampling rate decreases.The SL2365 converts signals over an input range of 0V to VDD. with the basic features of ultra-low power consumption, small size, unipolar, and single-ended input. The product is available in two versions:

The SL2365 version is powered by a single 4V-5.25V supply and has a sampling rate of up to 800KSPS.The SL2365E version is powered by a single 3.3V-4.8V supply and has a sampling rate of up to 1000KSPS. Both versions are available in a 6-pin SOT-23 package with an operating temperature range of -40°C to 85°C. The  SL2365E version is available in a single 3.3V-4.8V power supply with sample rates up to 1000KSPS.The SL2365 is a pin-to-pin replacement for the LTC2365 and consumes less than 1/3 of the dynamic power, significantly extending battery life.

Features

●4 V - 5.25 V single supply (SL2365)

  3.3 V - 4.8 V single supply (SL2365E)

●Ultra-low power consumption (typical)

  3.40mW (4V, 800 KSPS)

  5.95mW (5V, 800 KSPS)

●SL2365 Maximum Sample Rate: 800 KSPS

  SL2365E Maximum Sample Rate: 1000 KSPS

●Tolerance ±0.5LSB INL, ±0.5LSB DNL

●0-VDD Unipolar single channel input

●SPI/MICROWIRE? compatible serial interface

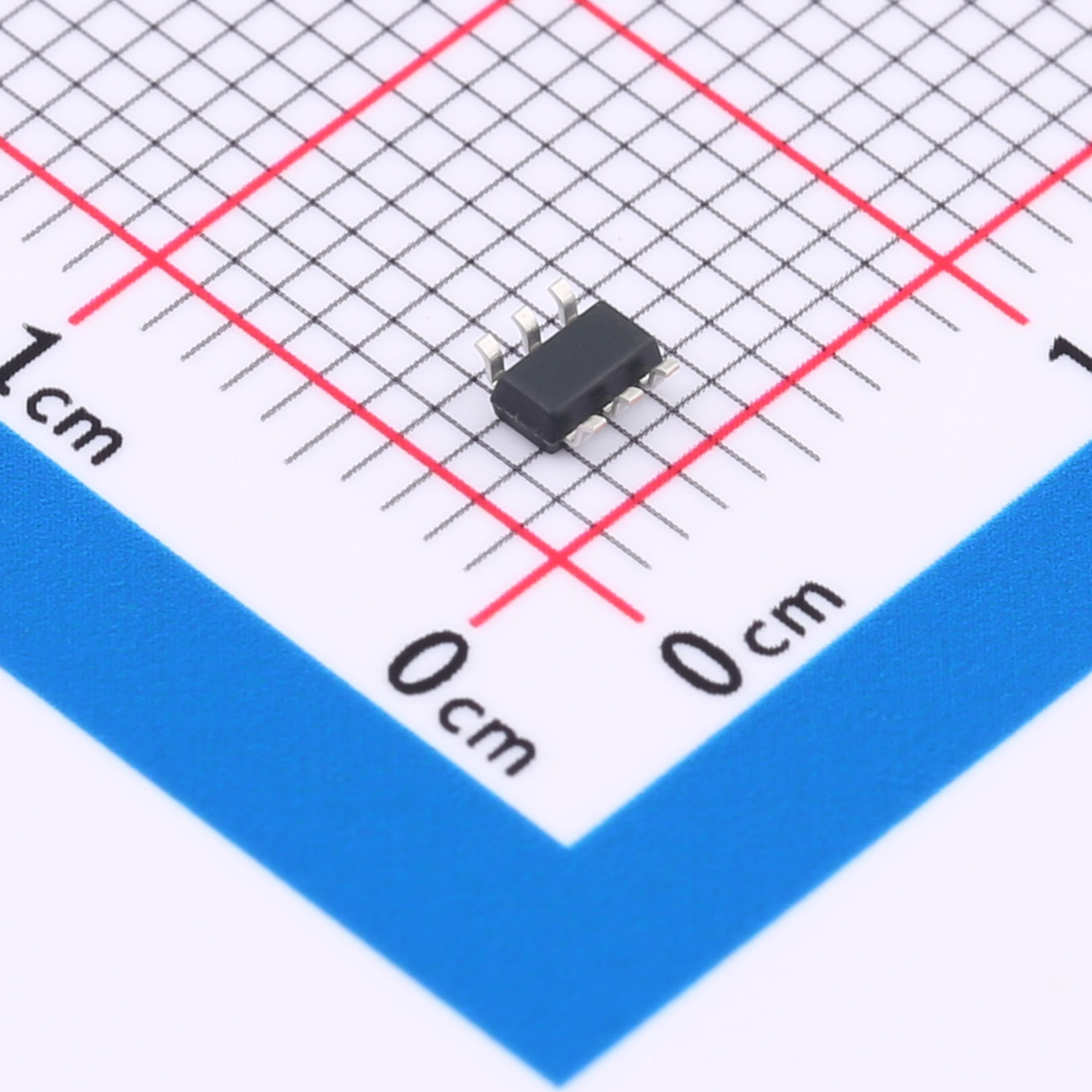

●6-pin SOT-23 package

●Operating temperature range from -40°C to 85°C

Applications:

●Communication system
●Data acquisition systems
●Handheld Portable Devices
●Uninterruptible Power Supply Equipment
●Battery powered systems
●In-vehicle electronics
