Description:

The SL11661/SL11663/SL11665 series are analog-to-digital converters (ADC) with basic features including 8/10/12-bit resolution, ultra-low  power consumption, small size, unipolar, and single-ended input. They offer convenient power/serial clock speed management. The conversion rate is determined by the serial clock, and conversion time can be reduced by increasing the serial clock speed. With the ability to automatically shut down, the automatic power-down after conversion helps reduce average power consumption. This series is available in two versions:

The SL11661/63/65 versions are powered by a single 3.3 V to 5.25 V supply and offer sample rates up to 500 KSPS.The SL11661 A/63A/65A versions are powered by a single 3.0 V-4.5 V supply with sample rates up to 1 MSPS.The SL 11661/SL11663/SL11665 series are all available in a 6-pin SOT-23 package with an operating temperature range of -40°C to 85°C.The SL11661/SL11663/SL11665 are pin-to-pin replacements for the MAX11661/MAX11663/MAX11665 and consume less than 1/2 the dynamic power, significantly extending battery life.

Features

●3.0V-4.5V single power supply (SL11661A/63A/65A)
  3.3V-5.25V single supply (SL11661/63/65)
●Maximum sampling rate 1 MSPS (SL11661A/63A/65A)
●Maximum sampling rate 500 KSPS (SL11661/63/65)
●Automatic shutdown
●Ultra-low power consumption (12bit typical)
  1.6mW (3.3 V, 500KSPS)
  2.4mW (4 V, 500KSPS)
●Tolerance ±0.5LSB INL, ±0.5LSB DNL
●0-VDD unipolar single channel input
●SPI/QSPI/MICROWIRE? Compatible Serial Interface

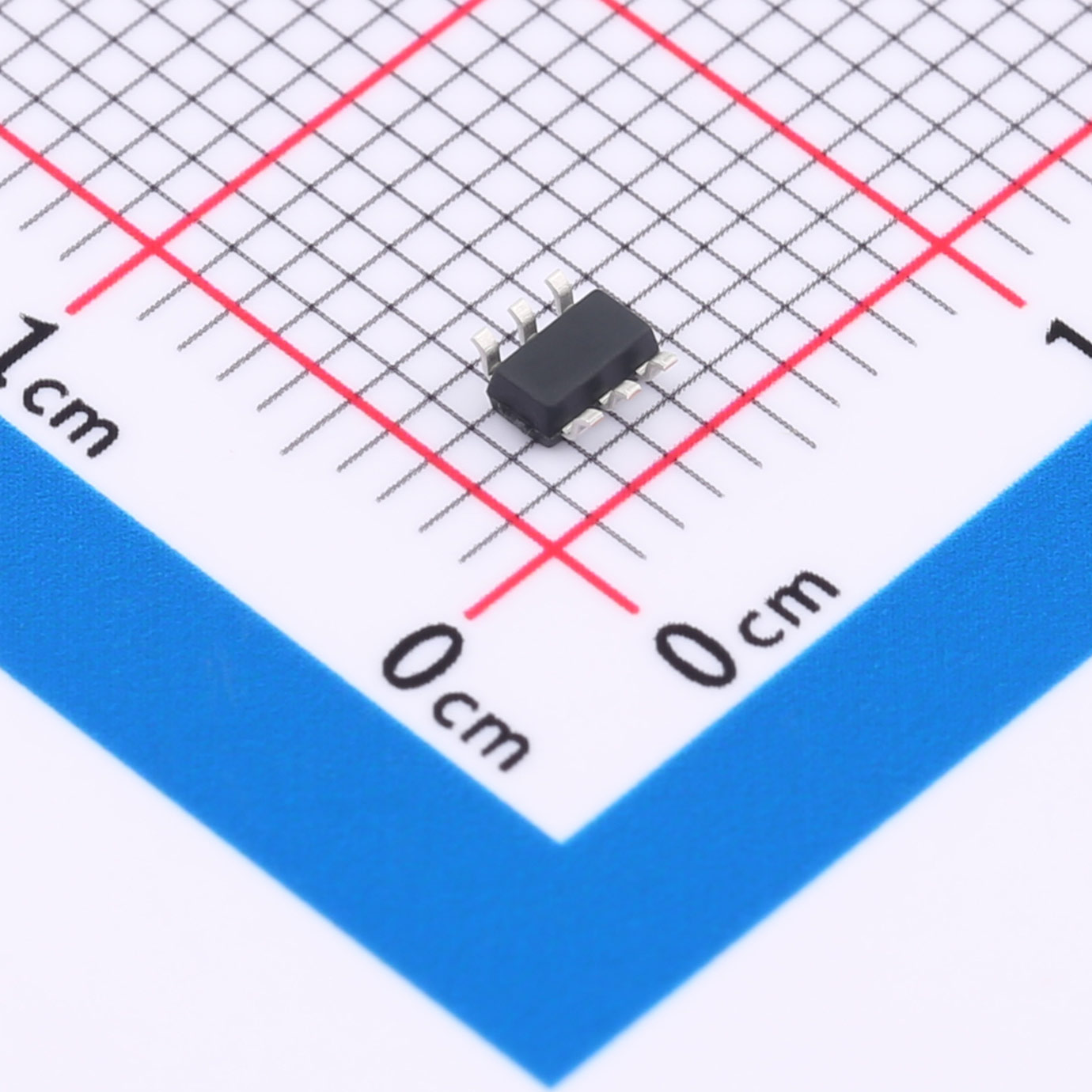

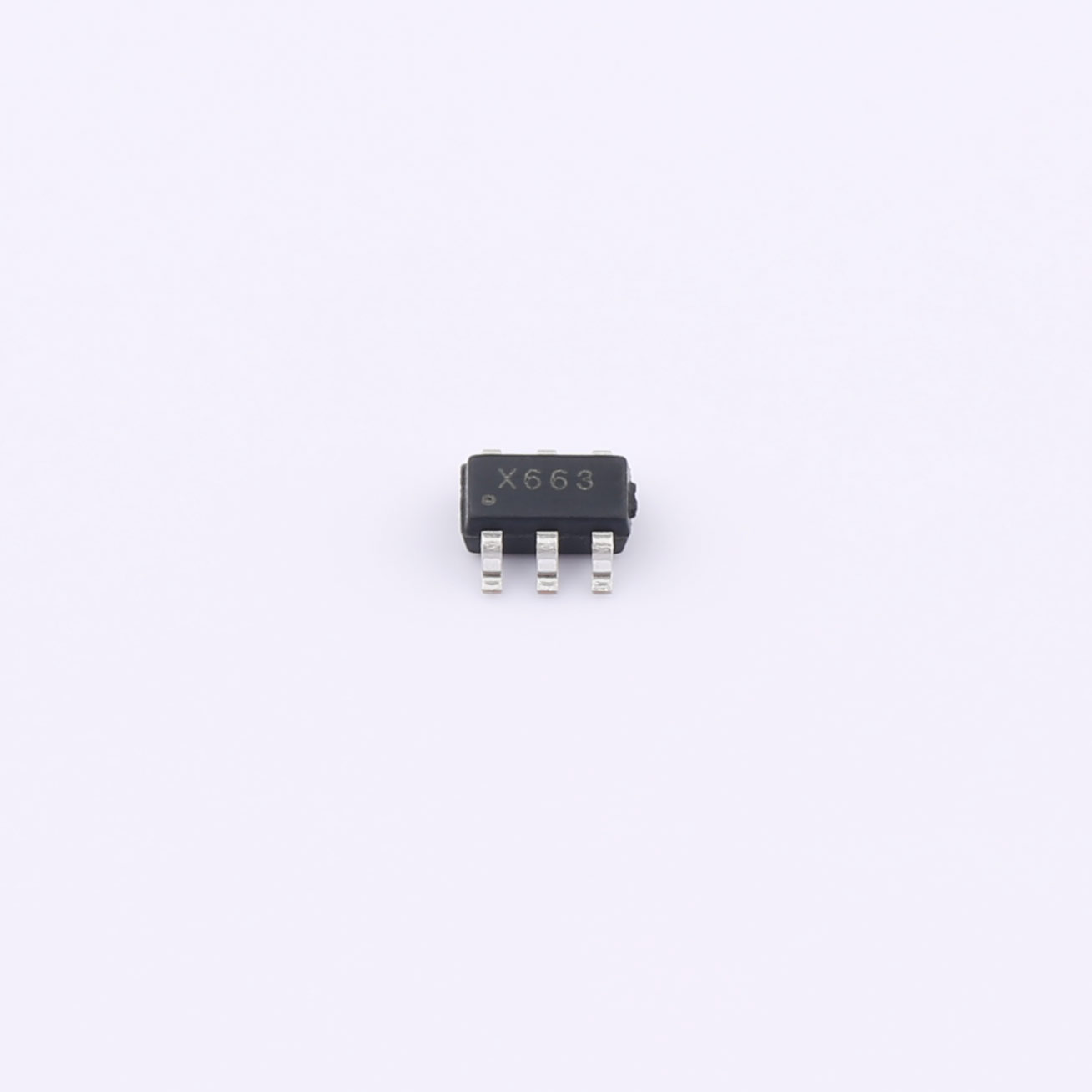

●6-pin SOT-23 package
●Operating temperature range from -40°C to 85°C

Applications:

●Communication system
●Data acquisition systems
●Handheld Portable Devices
●Uninterruptible Power Supply Equipment
●Battery powered systems
●In-vehicle electronics
