Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description:

●No pipeline cycle delay.
●Ultra-low power consumption. Up to 250KSPS, 12bit at 5V, 250KSPS typical power consumption of 2.8mW.

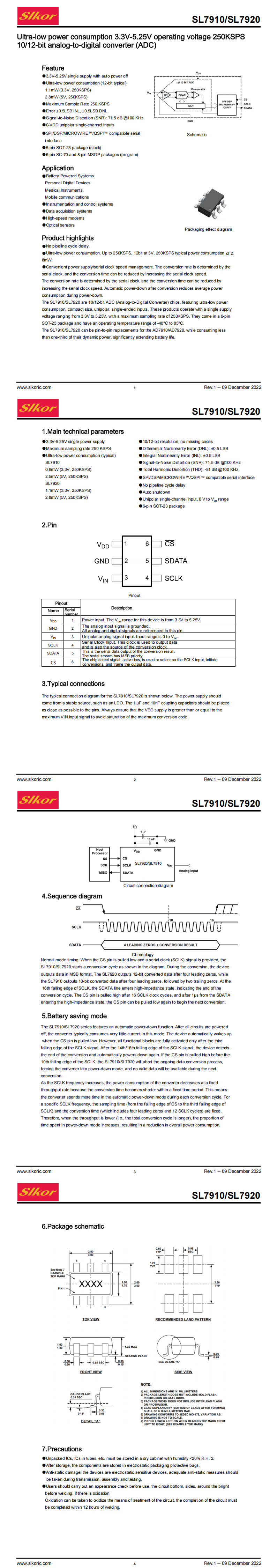

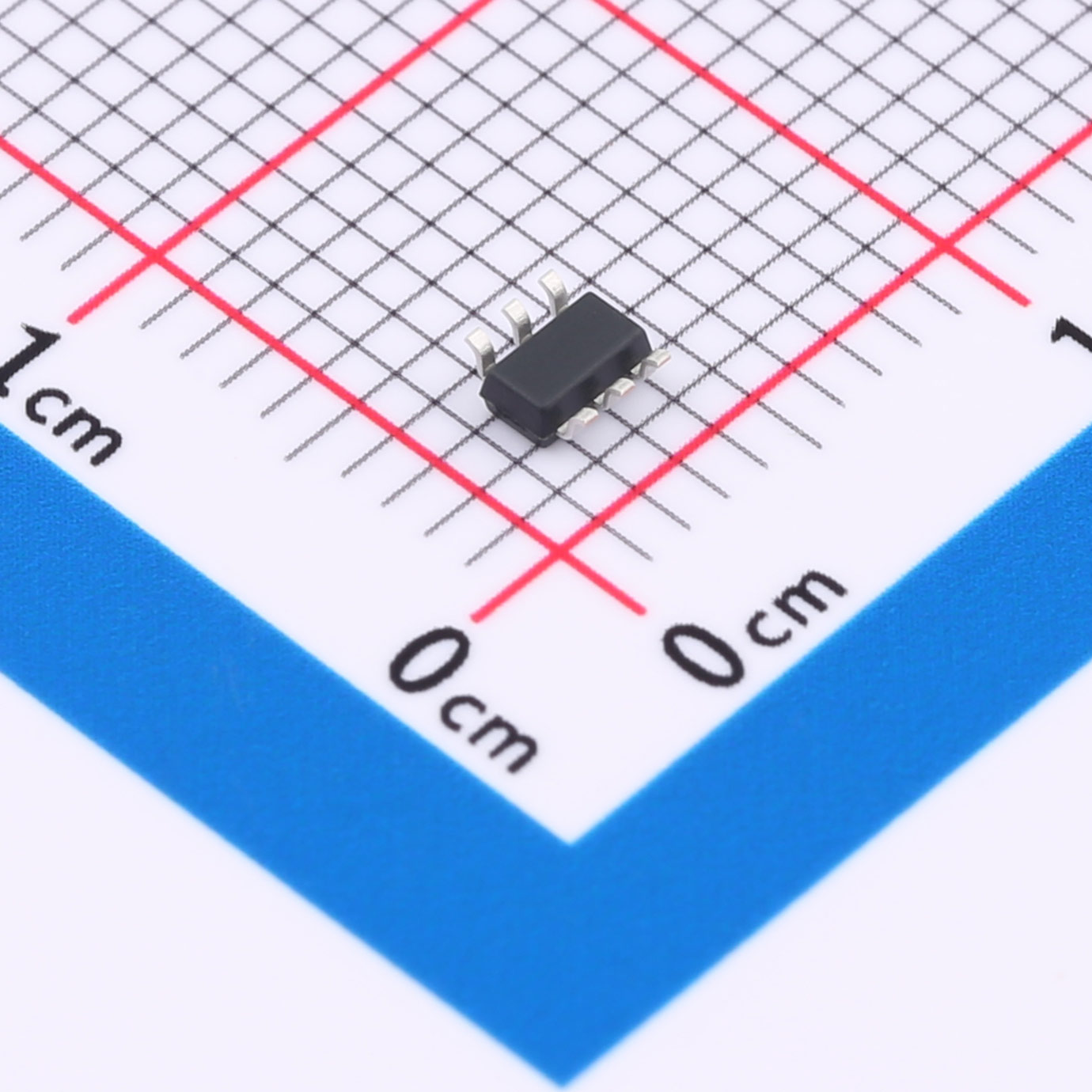

●Convenient power supply/serial clock speed management. The conversion rate is determined by the  serial clock, and the conversion time can be reduced by increasing the serial clock speed. The conversion rate is determined by the serial clock, and the conversion time can be reduced by  increasing the serial clock speed. Automatic power-down after conversion reduces average power  consumption during power-down. The SL7910/SL7920 are 10/12-bit ADC (Analog-to-Digital Converter) chips, featuring ultra-low power  consumption, compact size, unipolar, single-ended inputs. These products operate with a single supply voltage ranging from 3.3V to 5.25V, with a maximum sampling rate of 250KSPS. They come in a 6-pin  SOT-23 package and have an operating temperature range of -40°C to 85°C. The SL7910/SL7920 can be pin-to-pin replacements for the AD7910/AD7920, while consuming less  than one-third of their dynamic power, significantly extending battery life.

Features

●3.0V-4.5V single power supply (SL11661A/63A/65A)
  3.3V-5.25V single supply (SL11661/63/65)
●Maximum sampling rate 1 MSPS (SL11661A/63A/65A)
●Maximum sampling rate 500 KSPS (SL11661/63/65)
●Automatic shutdown
●Ultra-low power consumption (12bit typical)
  1.6mW (3.3 V, 500KSPS)
  2.4mW (4 V, 500KSPS)
●Tolerance ±0.5LSB INL, ±0.5LSB DNL
●0-VDD unipolar single channel input
●SPI/QSPI/MICROWIRE? Compatible Serial Interface

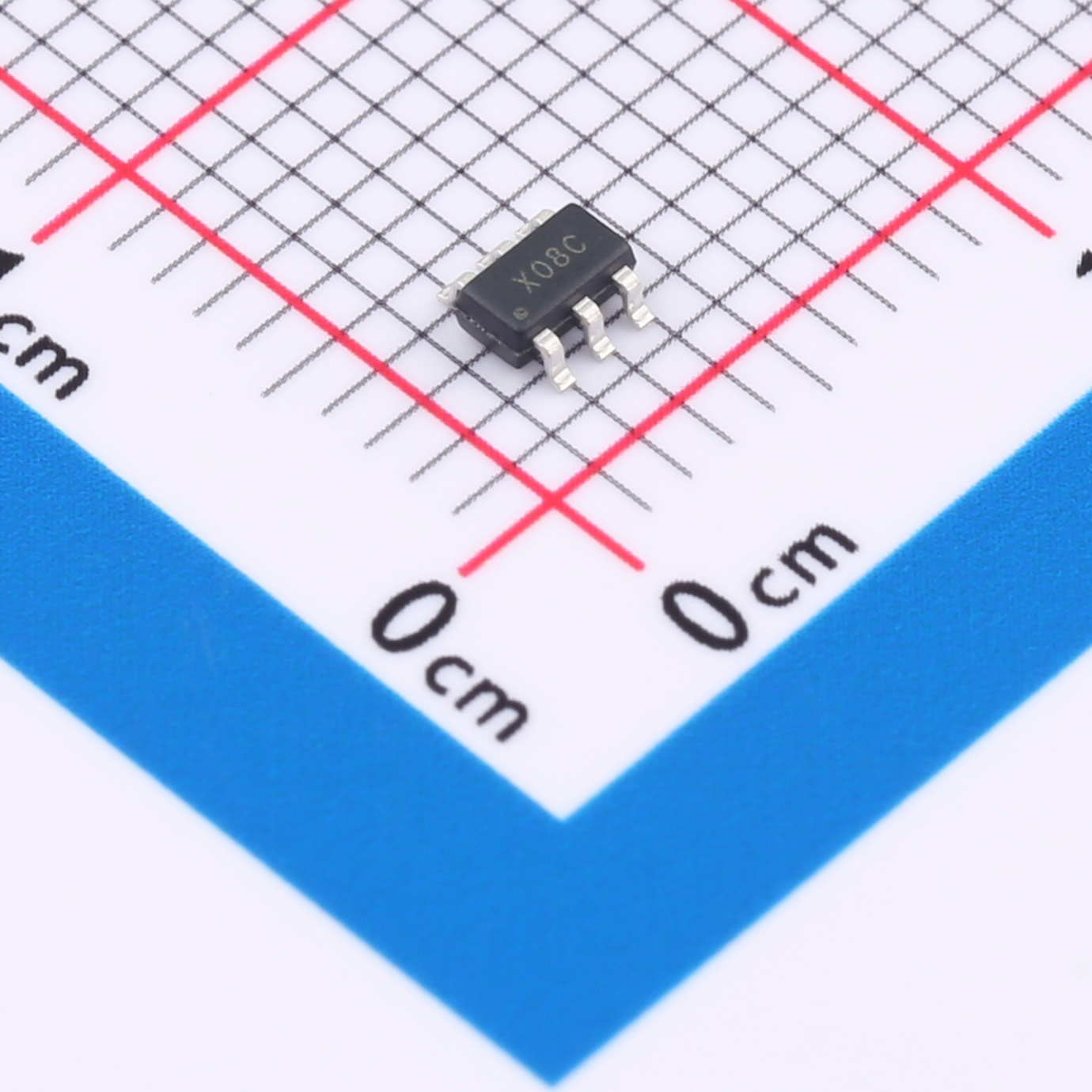

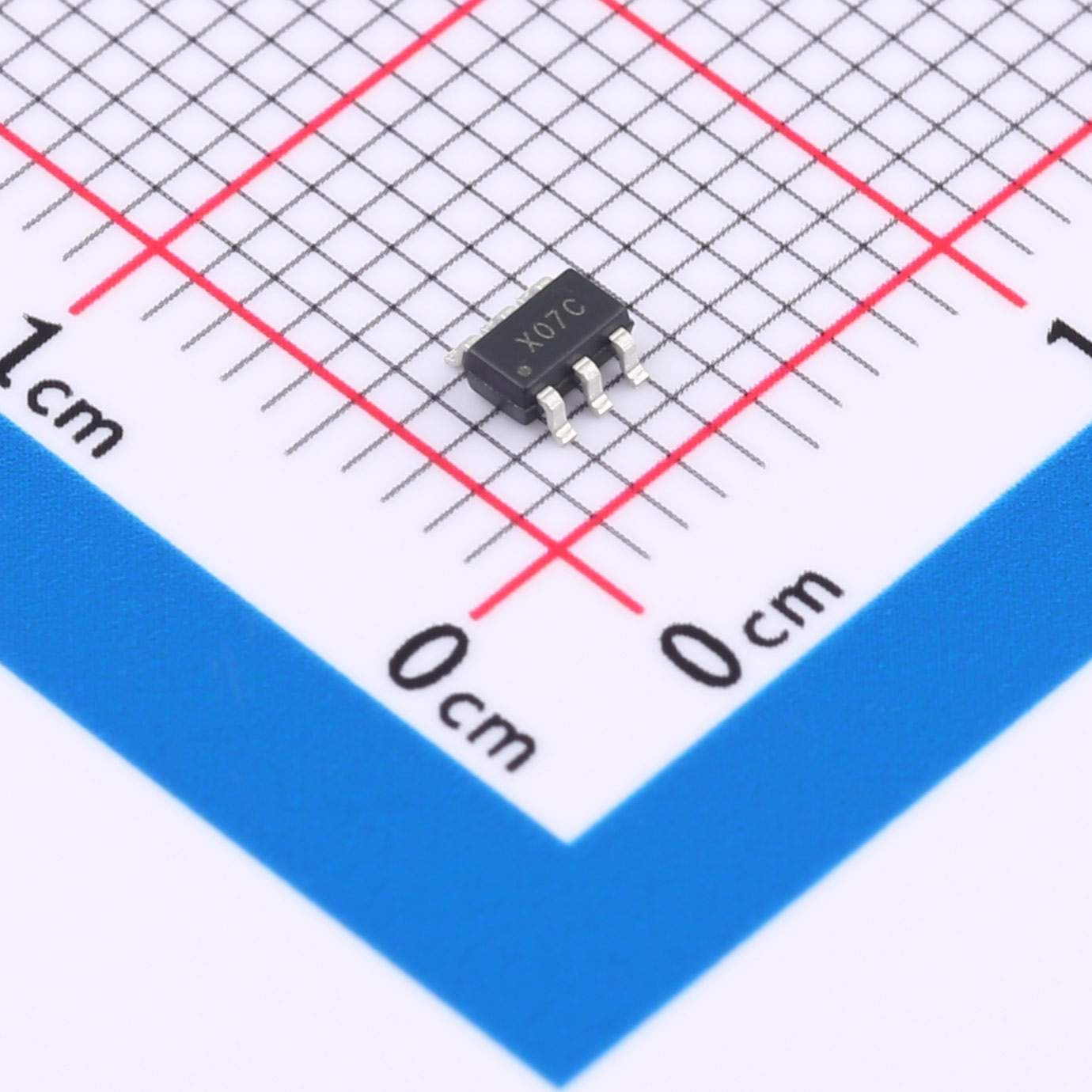

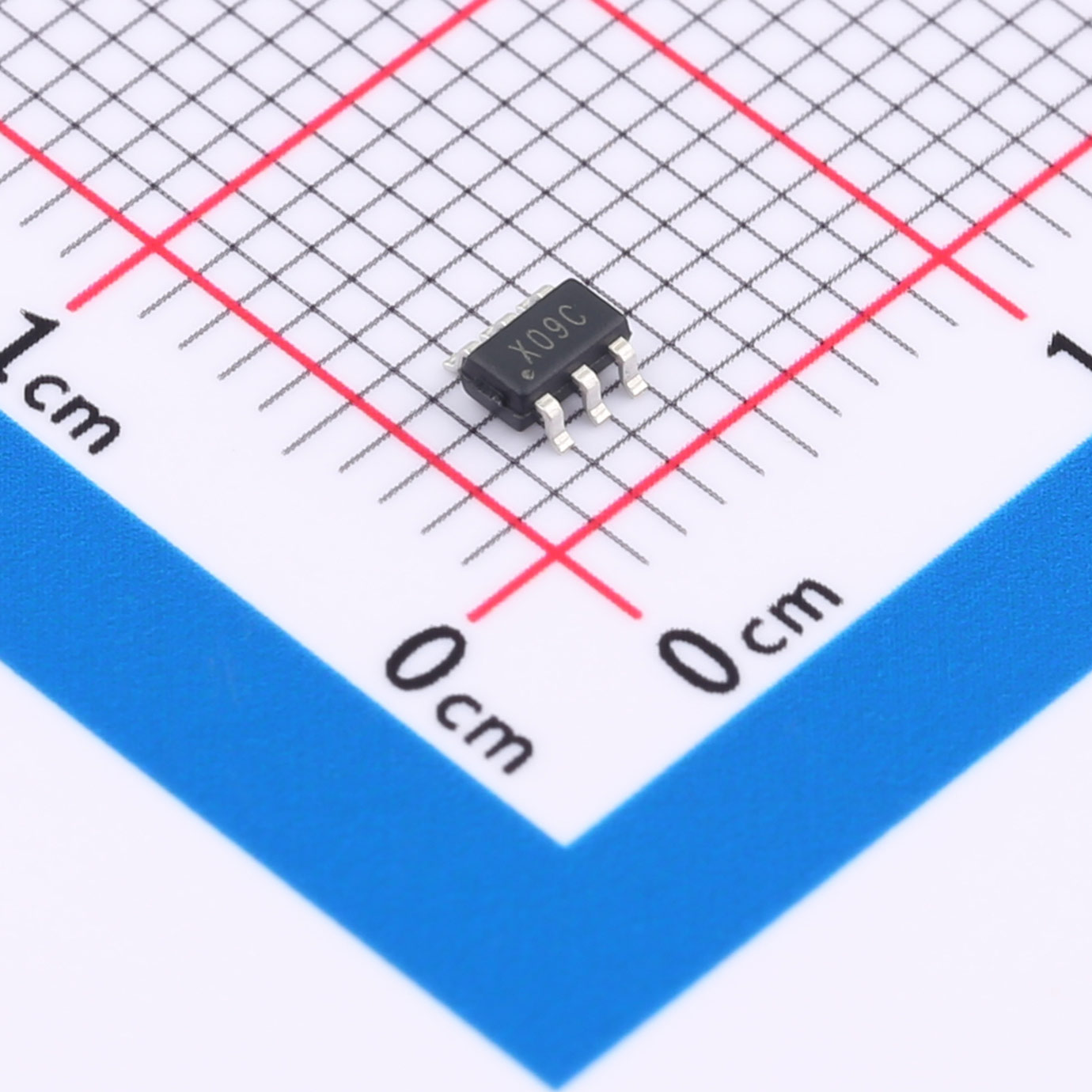

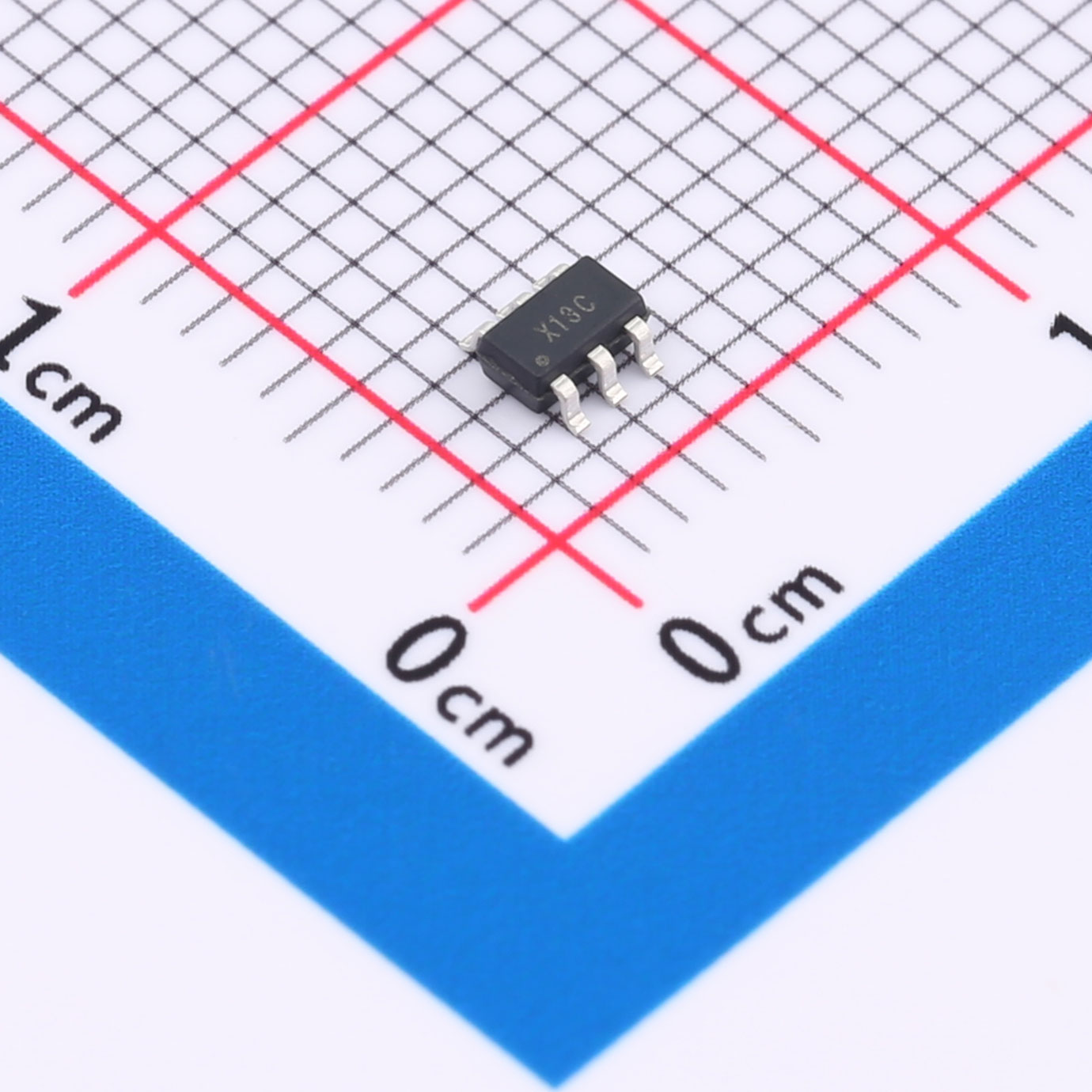

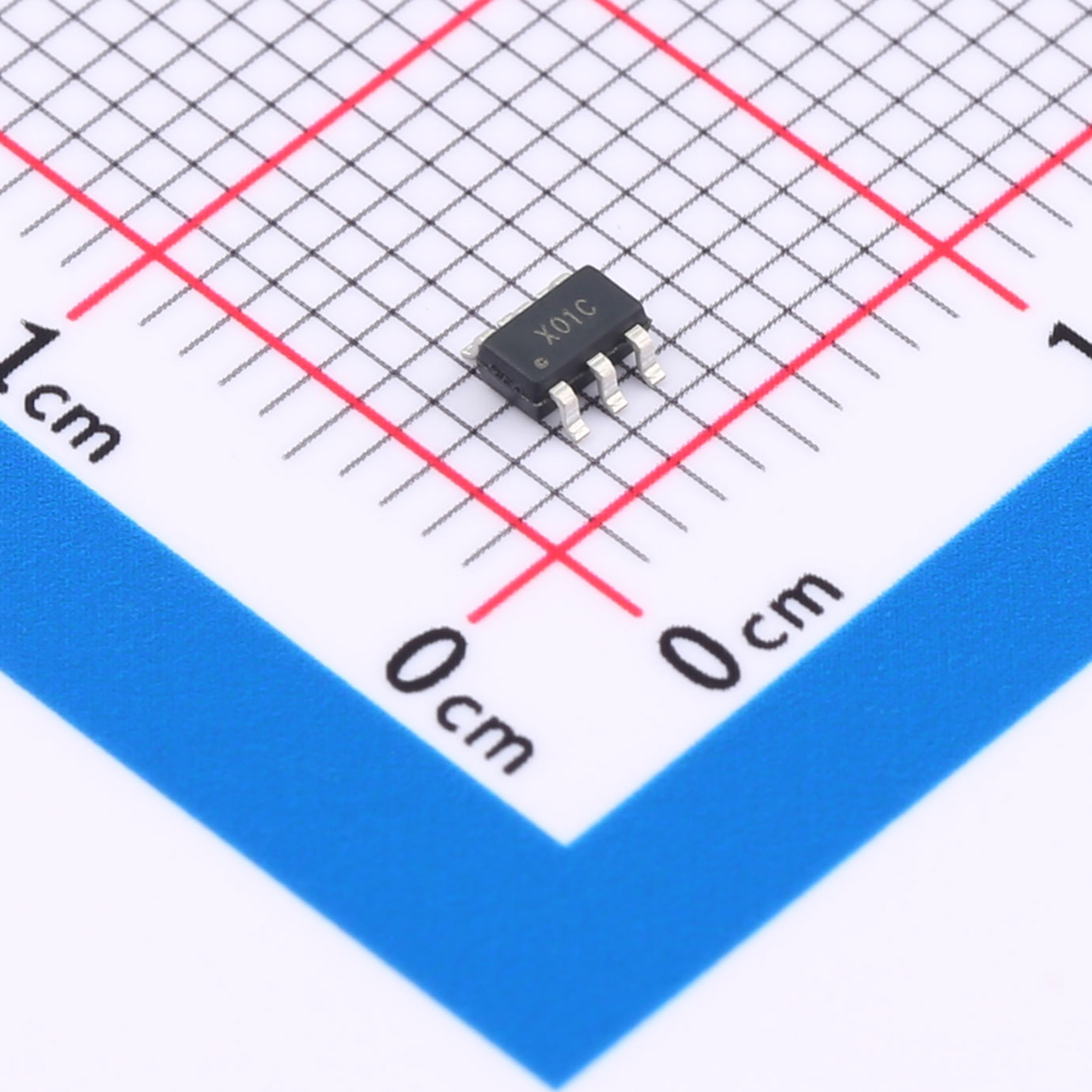

●6-pin SOT-23 package
●Operating temperature range from -40°C to 85°C

Applications:

●Communication system
●Data acquisition systems
●Handheld Portable Devices
●Uninterruptible Power Supply Equipment
●Battery powered systems
●In-vehicle electronics
