Description:

● No pipeline cycle delay.

● Ultra-low power consumption. Up to 250KSPS.12bit at 5V.250KSPS typical power consumption of 2.8mW.

● Convenient power supply/serial clock speed management.The conversion rate is determined by the serial clock,and the conversion time can be reduced by increasing the serial clock speed.

● The conversion rate is determined by the serial clock, and the conversion time can be reduced by increasing the serial clock speed. ● Automatic power-down after conversion reduces average power consumption during power-down.

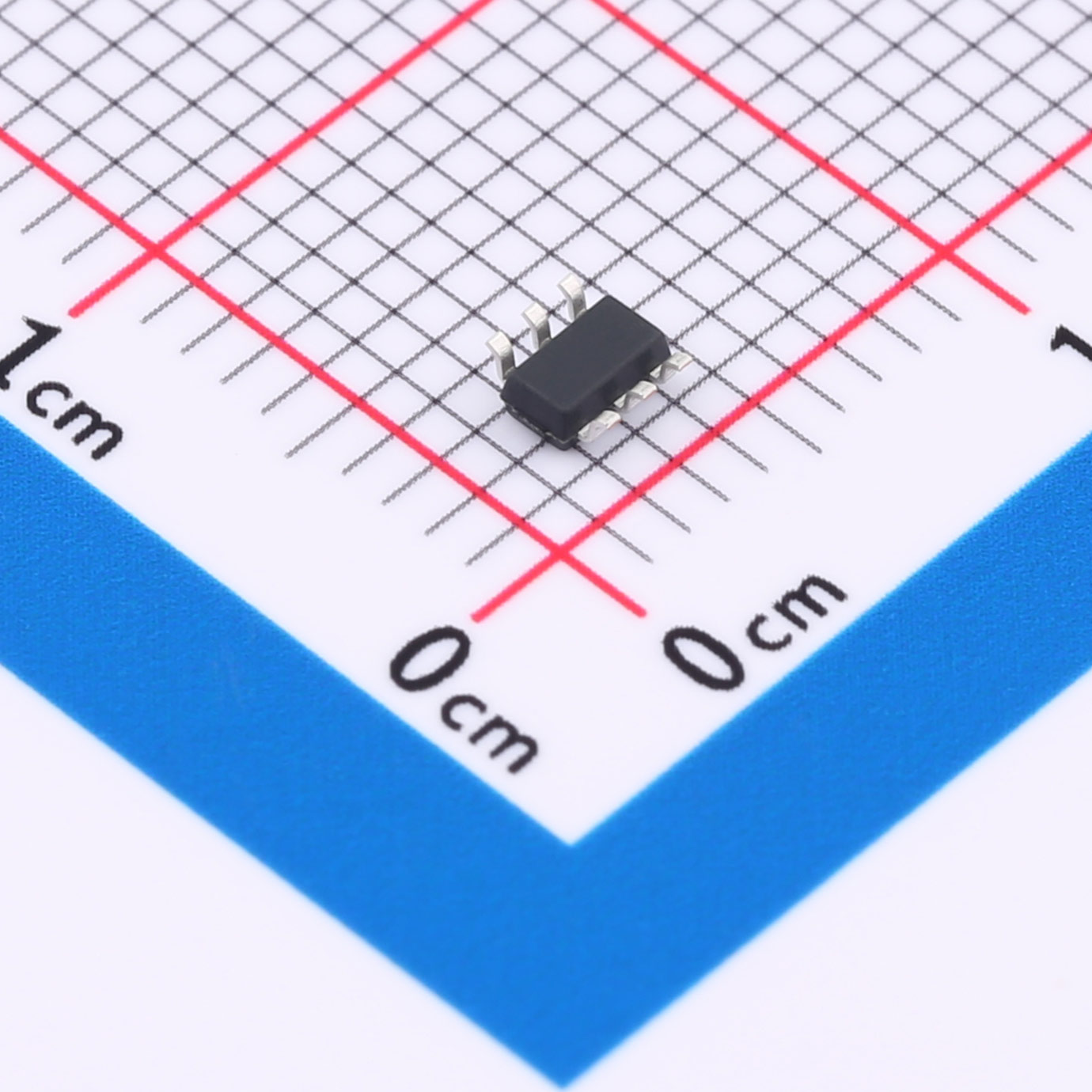

● The SL7910/SL7920 are 10/12-bit ADC (Analog-to-Digital Converter)chips, featuring ultra-low power consumption, compact size, unipolar, single-ended inputs. These products operate with a single supply voltage ranging from 3.3V to 5.25V, with a maximum sampling rate of 250KSPS.They come in a 6-pin SOT-23 package and have an operating temperature range of -40°C to 85°C.

● The SL7910/SL7920 can be pin-to-pin replacements for the AD7910/AD7920.while consuming less than one-third of their dynamic power, significantly extending battery life.

Features

● 3.0V-4.5V single power supply (SL11661A/63A/65A)
   3.3V-5.25V single supply (SL11661/63/65)
● Maximum sampling rate 1 MSPS (SL11661A/63A/65A)
● Maximum sampling rate 500 KSPS (SL11661/63/65)
● Automatic shutdown
● Ultra-low power consumption (12bit typical)
    1.6mW (3.3 V, 500KSPS)
    2.4mW (4 V, 500KSPS)
● Tolerance ±0.5LSB INL, ±0.5LSB DNL

Applications:

● Communication system
● Data acquisition systems
● Handheld Portable Devices
● Uninterruptible Power Supply Equipment
● Battery powered systems
● In-vehicle electronics
