Description:

● The SL 24C02/04/08/16/32/64 series are electrically erasable PROM, featuring organizational structures of 256/512/1024/2048/4096/8192 × 8-bit, respectively, and utilize a two-wire serial interface (I2C). They support voltages as low as 1.8V, with standby current and operating current of 1μA and 1mA, respectively.
● The SL 24C02/04/08/16/32/64 series feature page write capability, with each page consisting of 8/16/16/16/32/32 bytes, respectively. They are available in three package types: 8-pin PDIP, 8-pin SOP, and 5-pin SOT-23-5.

Features:

● Wide operating voltage range of 1.8V to 5.5V. l

● Featuring low-voltage technology

  typical operating current of 1mA.

  typical standby current of 1μA. l

● Memory organization

  SL24C02, 256 x 8 (2K bits)

  SL24C04, 512 x 8 (4K bits)

  SL24C08, 1024 x 8 (8K bits)

  SL24C16, 2048 x 8 (16K bits)

  SL24C32, 4096 x 8 (32K bits)

  SL24C64, 8192 x 8 (64K bits)

● 2-wire serial interface, fully compatible with I2C bus

● I2C clock frequency: 1 MHz (at 5V), 400 kHz (at 1.8V, 2.5V, 2.7V)

● Schmitt trigger input noise suppression

● Hardware data write protection

● Internal write cycle (up to 5 ms)

● Byte write operation

● Page write: 8-byte page (SL24C02), 16-byte page (SL24C04/08/16), 32-byte page (SL24C32/64)

● Byte, random, and sequential read capabilities

● Automatic address increment

● ESD protection > 2.5 kV

● High reliability

  erase/write cycles: 1 million times

  data retention: 100 years

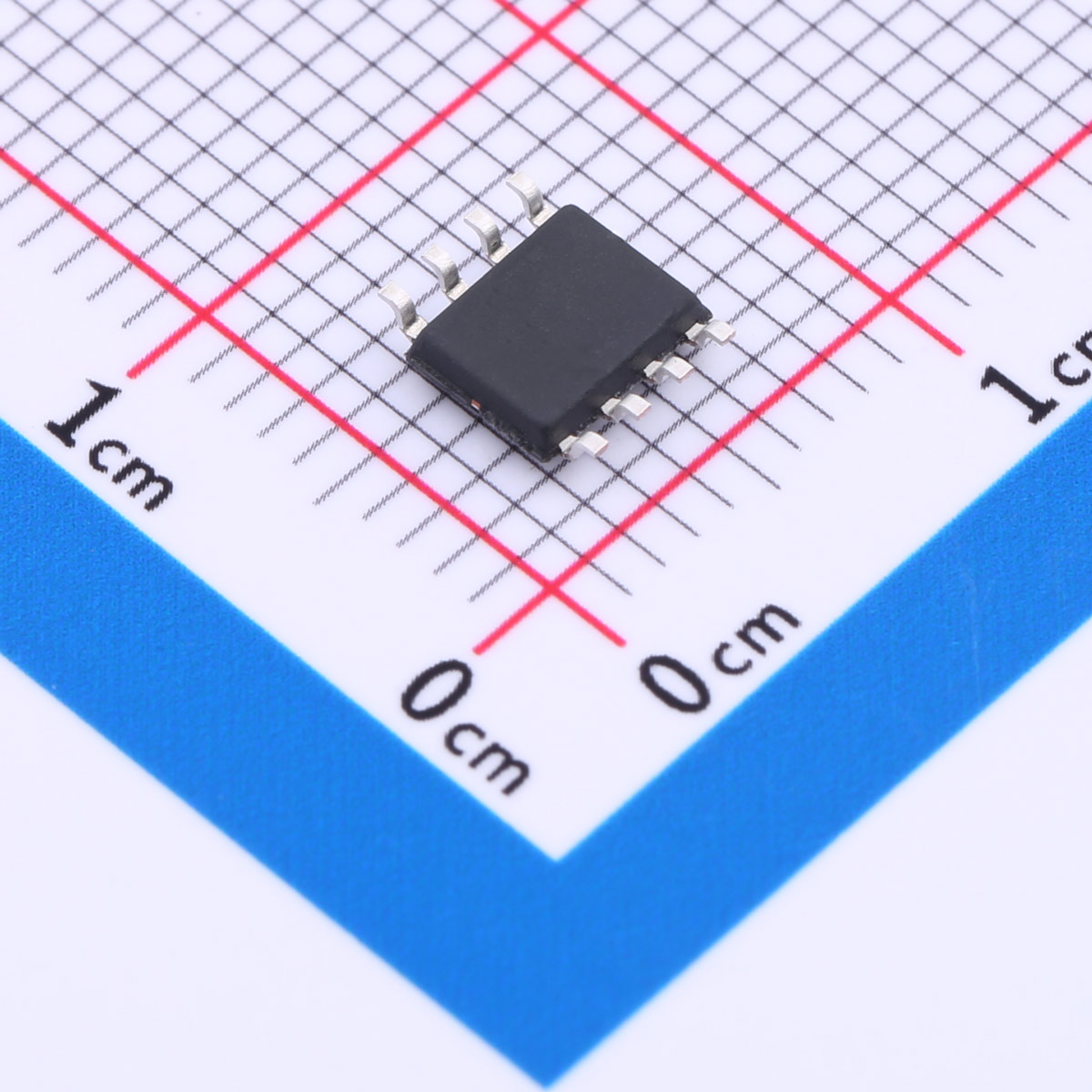

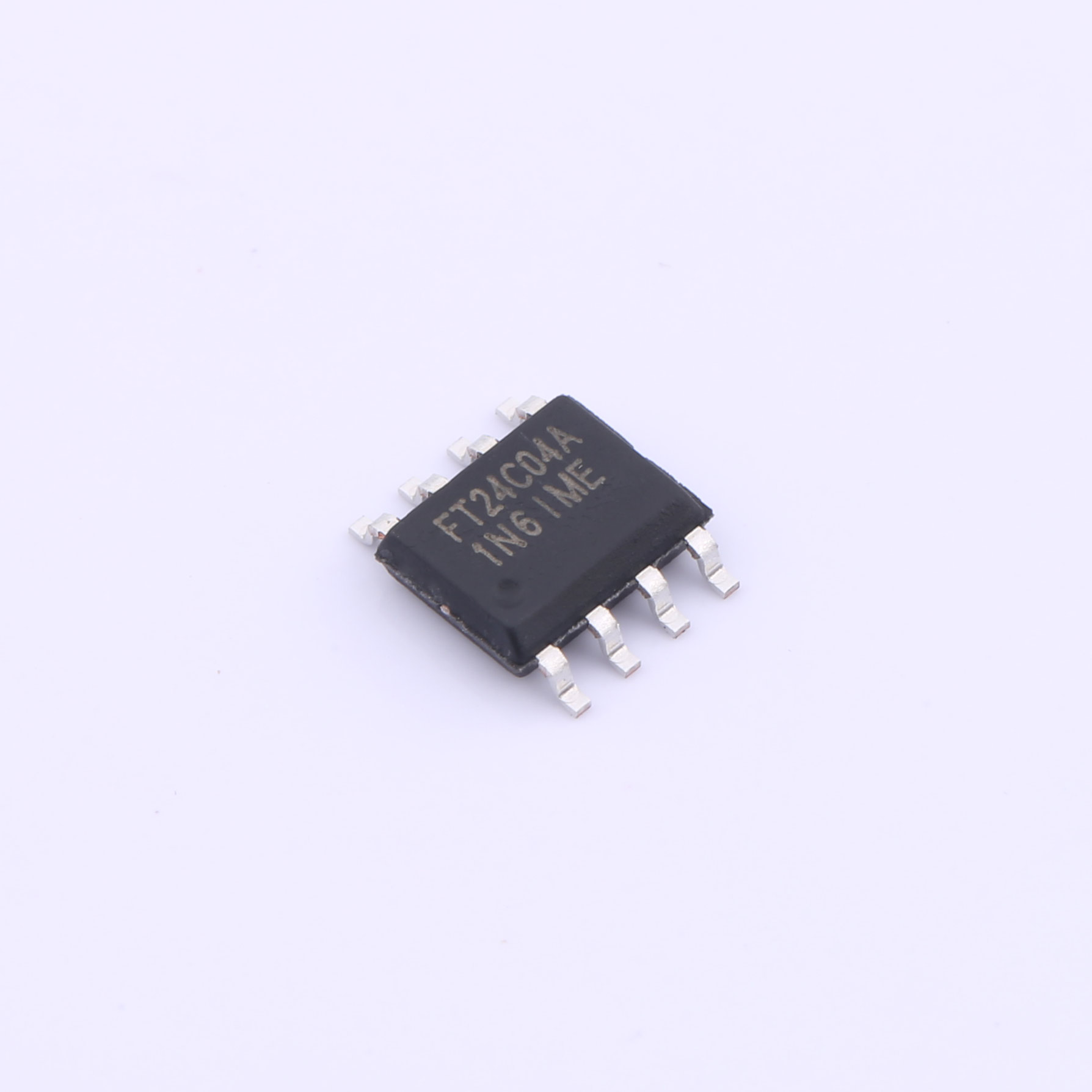

● 8-pin dip and 8-pin sop packages

● Lead-free process, RoHS compliant

Applications:

● Smart instruments and meters

● Laptop computers

● Industrial control

● Automotive electronics

● Household appliances

● Communication equipment
