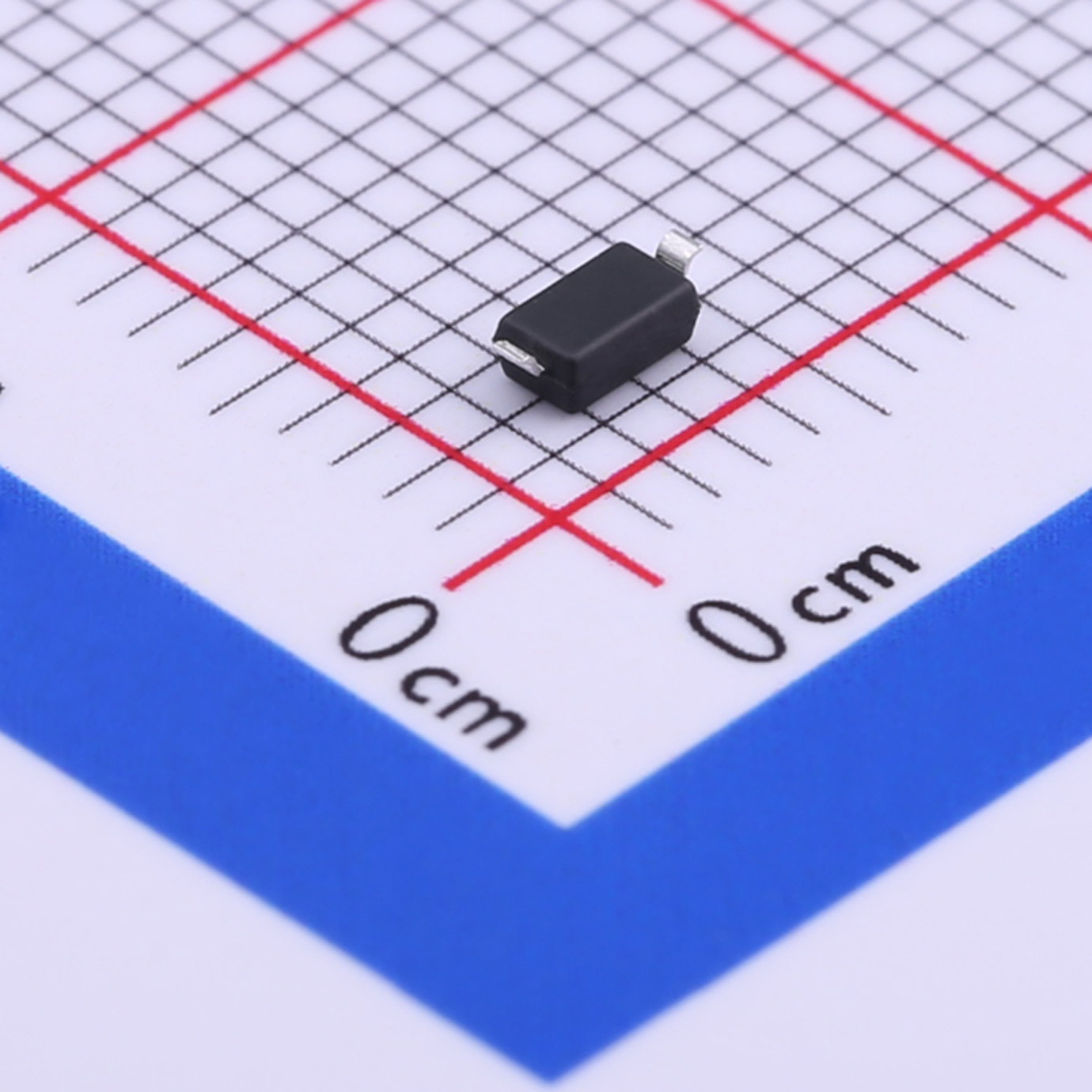

1N4148W Fast Switching Diode SOD-123 Factory Direct
150mA|1V|25nA|4ns|SOD-123|75V|Switching Diode|Products|-,-,-,-,-,-|Product display|
The 1N4148W is a high-speed switching diode designed for applications requiring fast switching times and low leakage currents. Encapsulated in the SOD-123 package, this diode offers robust performance in a compact form factor suitable for a wide range of electronic circuits.
Surface Mount Fast Switching Diode
Our adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The 1N4148W is a high-speed switching diode designed for applications requiring fast switching times and low leakage currents. Encapsulated in the SOD-123 package, this diode offers robust performance in a compact form factor suitable for a wide range of electronic circuits.
Features
● High Conductance.
● Fast Switching Speed.
● Surface Mount Package Ideally Suited for Automatic insertion.
● For General Purpose Switching Application.
● Plastic Material-UL Recognition Flammabilty.
Classification 94V-O.
Mechanical Data
● Case: SOD-123, Molded Plastic.
● Terminals: Plated Leads Solderable per MIL-STD-202.Method 208.
● Polarity: Cathode Band.
Applications
● High-Speed Switching: Used in circuits where fast switching speeds are critical, such as in RF applications, digital logic circuits, and pulse generators.
● Rectification: Efficiently converts AC signals to DC, commonly used in power supplies and signal demodulation.
● Protection Diode: Safeguards sensitive components against voltage spikes and surges in circuits like power adapters, USB ports, and automotive electronics.
Name
Title
Description

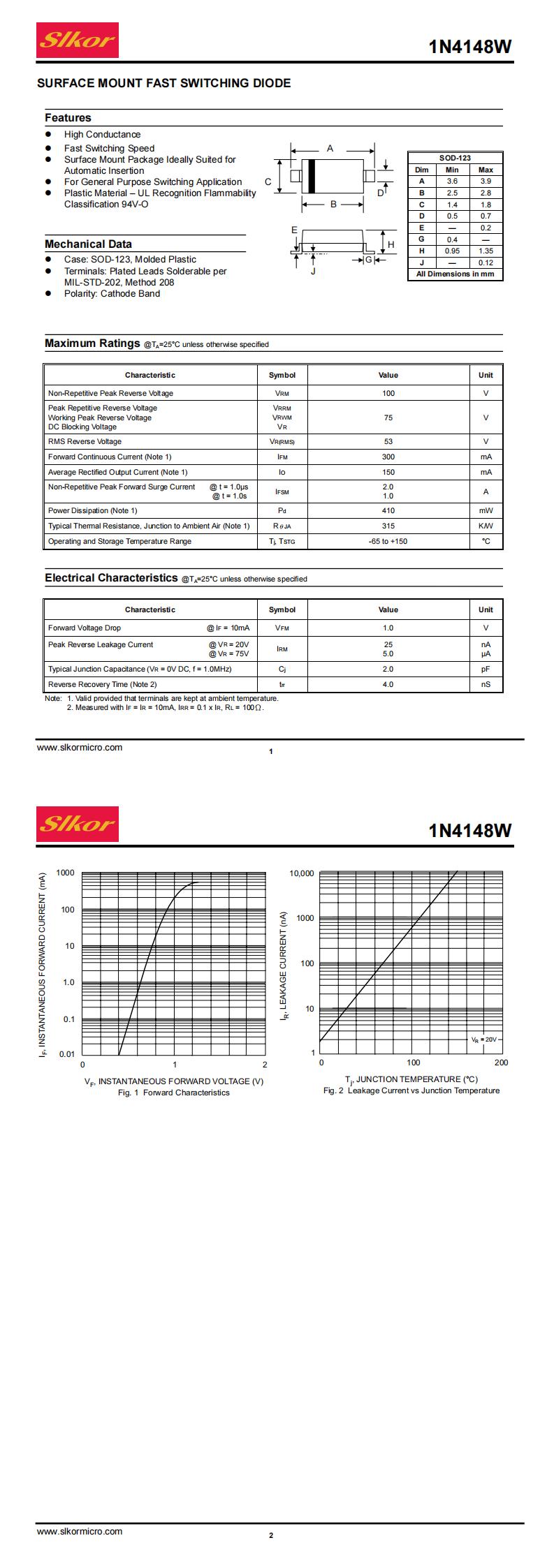

Datasheet
