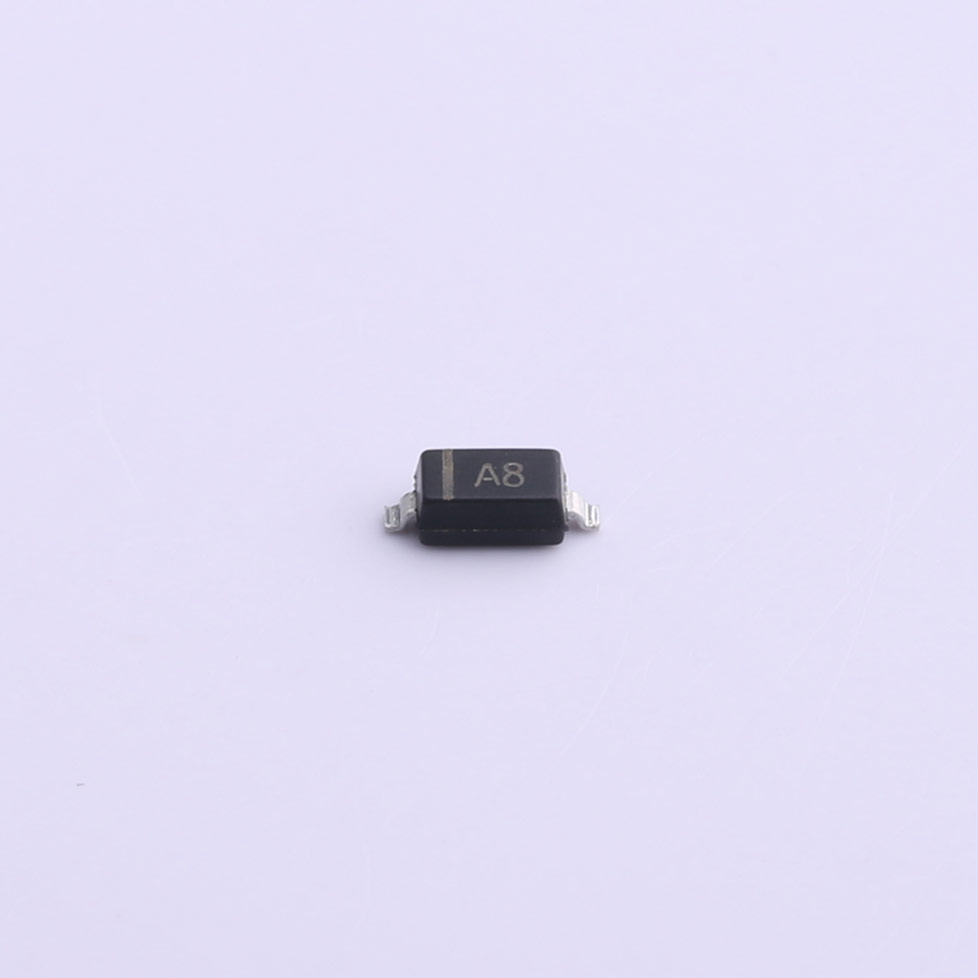

BAV19W Surface Mount Switching Diode SOD-123 Factory Direct
200mA|1V|0.1μA|50ns|SOD-123|120V|Switching Diode|Products|-,-,-,-,-,-|Product display|
The BAV19W is a surface mount switching diode engineered for high-speed switching and efficient rectification in compact electronic circuits. Housed in the SOD-123 package, this diode combines small form factor with robust performance, making it an excellent choice for applications where space-saving and reliability are critical.
Surface mount switching diode
Our adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The BAV19W is a surface mount switching diode engineered for high-speed switching and efficient rectification in compact electronic circuits. Housed in the SOD-123 package, this diode combines small form factor with robust performance, making it an excellent choice for applications where space-saving and reliability are critical.
Features
● Fast Switching Speed.
● Surface Mount Package Ideally Suited For Automatic insertion.
● For General Purpose Switching Applications.
Applications
● Surface mount fast switching diode.
Quick reference data
| Symbol | Parameter | Conditions | Max | Unit |
| IR | reverse current | VR = 200 V; Tamb = 25 °C | 0.1 | μA |
| VRM | reverse voltage | 250 | V | |
| trr | reverse recovery time | Tamb = 25 °C | 50 | ns |
Name
Title
Description

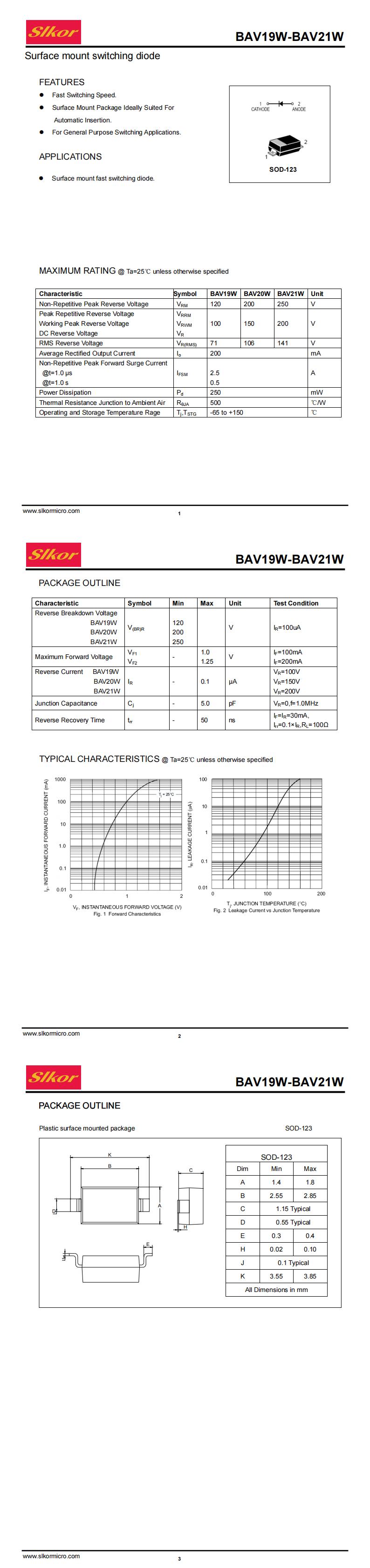

Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
