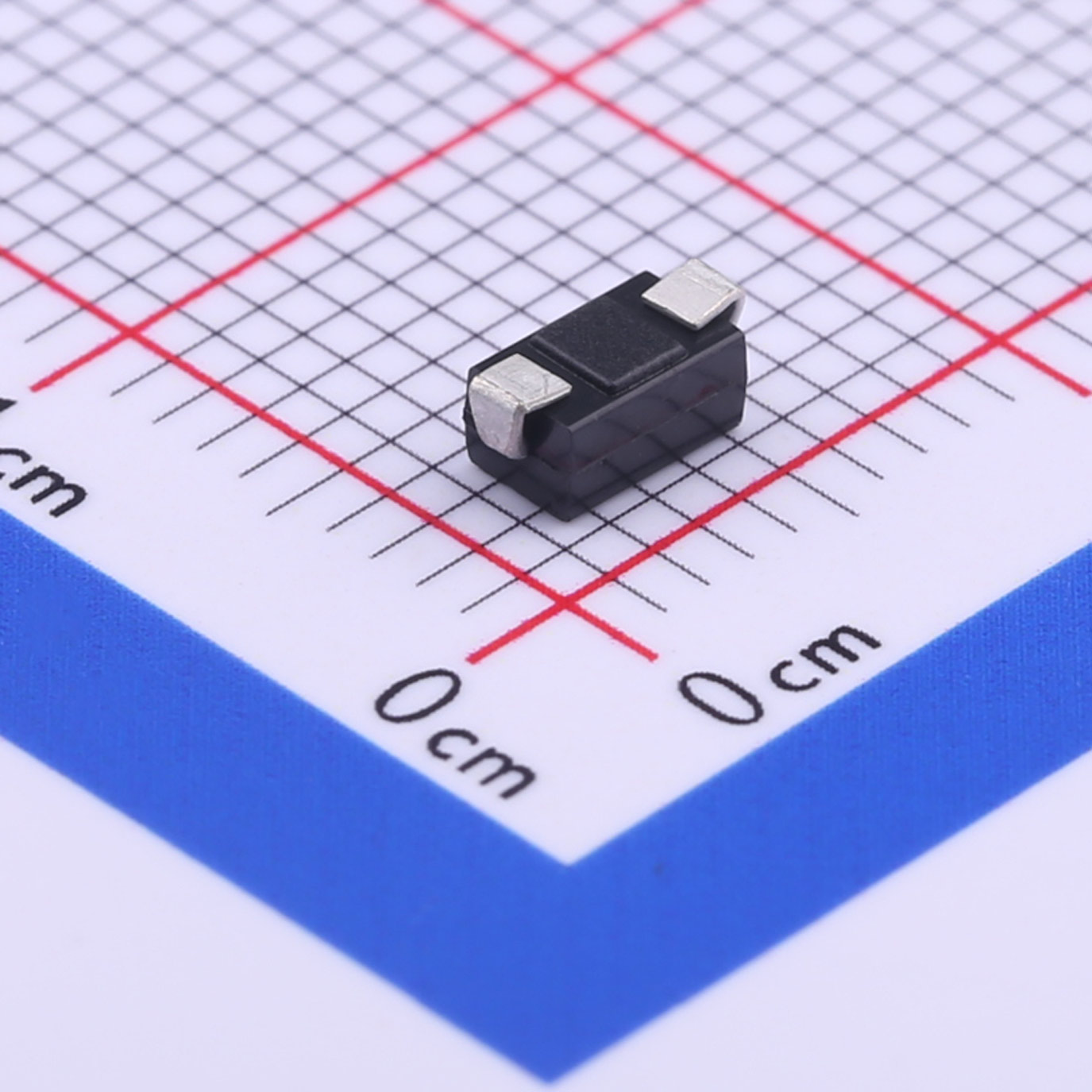

High Reliability M7 1.1V 1A Surface Mount General Rectifier Factory Direct
1A|1.1V|5μA|SMA|SMA(DO-214AC)|1000V|Universal Diode|Products|-,-,-,-,-,-|Product display|
The M7 diode is a high-performance surface-mount general rectifier, known for its efficiency and reliability in various electronic applications. Featuring a forward voltage of 1.1V and a maximum reverse voltage of 1000V, it is designed to handle a wide range of voltage and current requirements.
SURFACE MOUNT GENERAL RECTIFIER
Our adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The M7 diode is a high-performance surface-mount general rectifier, known for its efficiency and reliability in various electronic applications. Featuring a forward voltage of 1.1V and a maximum reverse voltage of 1000V, it is designed to handle a wide range of voltage and current requirements.
Features
● Low coat construction.
● Low forward voltage drop.
● Low reverse leakage.
● High forward surge current capability.
● High temperature soldering guaranteed: 260C/10 secods/.375" (9.5mm) lead length at 5 Ibs (2.3kg) tension.
Applications
● Power Supplies: Used for rectification and voltage regulation in various power supply circuits.
● Battery Chargers: Ensures efficient charging by rectifying AC to DC with minimal voltage drop.
● Lighting: Supports LED drivers and other lighting applications where efficiency and reliability are critical.
● Consumer Electronics: Integrated into devices such as TVs, computers, and appliances for power management and protection.
● Industrial Equipment: Used in industrial control systems and automation for reliable operation under varying conditions.
Mechanical Data
● Case: Transfer molded plastic.
● Epoxy: UL94V-O rate flame retardant.
● Polarity: Color band denotes cathode end.
● Lead: Plated axial lead,solderable per MIL-STD-202E method 208C.
● Mounting position: Any.
Maximum Ratings And Electrical Characteristics
● Ratings at 25 C ambient temperature unless otherwise specified.
● Single Phase,.half wave,.60Hz,.resistive or inductive load.
● For capacitive load derate current by 20%.
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
