Surface Mount General Purpose Silicon Rectiflers

Our adventage

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description

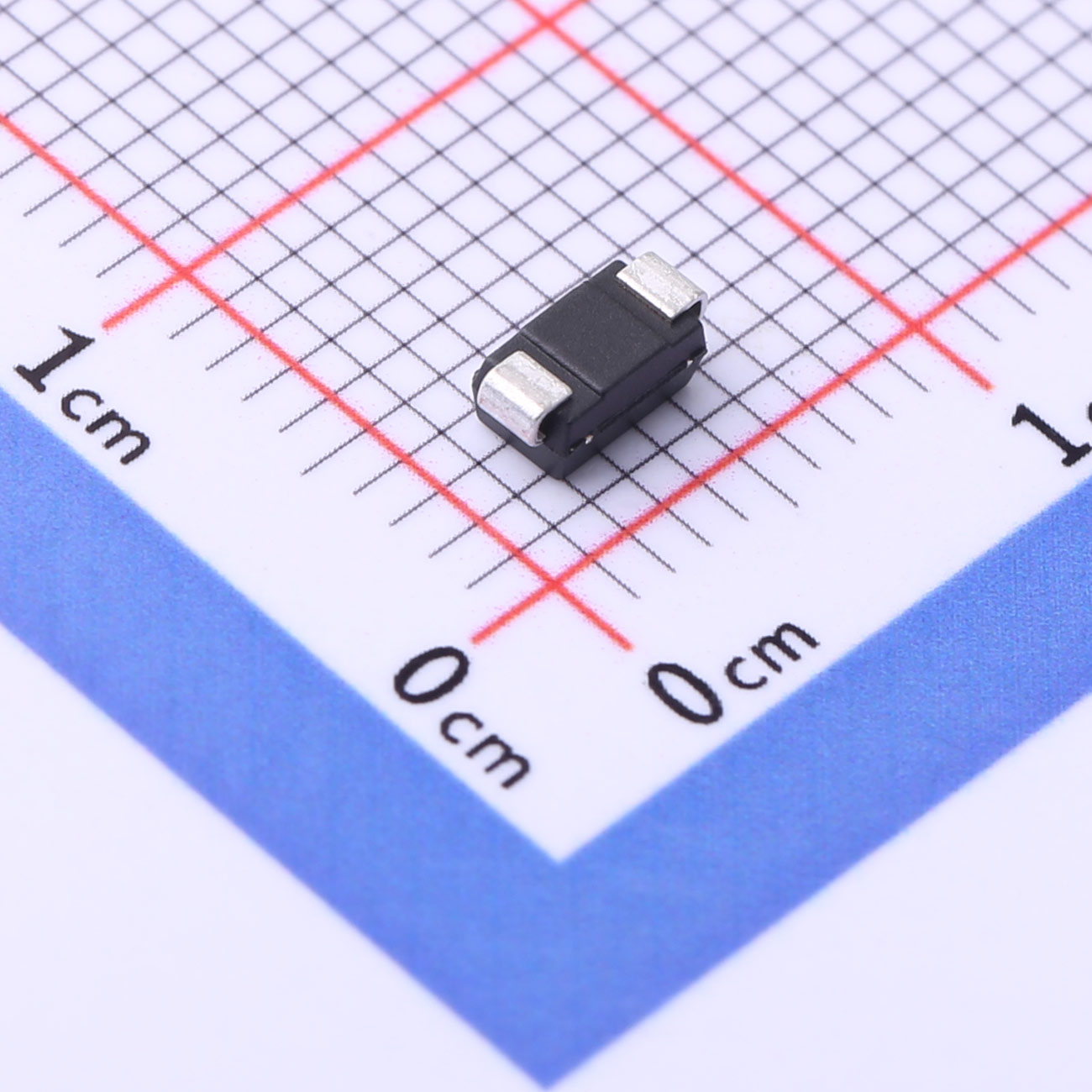

The M20A is a versatile general-purpose rectifier diode engineered for reliable performance across a wide range of electronic applications. With a maximum reverse voltage (Vr) rating of 2000V and a forward current (Io) handling capability of 1A, this diode efficiently converts alternating current (AC) to direct current (DC) while minimizing power loss. It features a low forward voltage drop (Vf) of 1.1V and a low reverse leakage current (Ir) of only 5μA, ensuring efficient energy conversion and stable operation in various circuit configurations.

Features
● For surface mounted applications
● Low profile package
● Glass Passivated Chip Juntion
● Easy to pick and place
● Lead free in comply with EU RoHS 2011/65/EU directives

Applications

● Power Supplies: Converts AC voltage to DC voltage efficiently in power adapters, chargers, and industrial power supplies.

● Rectification: Provides smooth rectification in welding equipment, power inverters, and battery chargers.

● Voltage Regulation: Ensures stable voltage output in voltage regulator circuits and high-voltage power systems.

● Lighting: Used in ballast circuits for fluorescent lamps and LED drivers to maintain consistent current flow.
