High Reliability SS8050 NPN BJT Transistor Manufacturer
1.5A|0.3W|0.5V|100MHz|SOT-23|25V|Triode|Products|-,-,-,-,-,-|Product display|
The SS8050 is a versatile NPN Bipolar Junction Transistor (BJT) designed for general-purpose switching and amplification applications. Encapsulated in the popular SOT-23 package, this transistor offers a compact form factor while delivering reliable performance across a range of electronic circuits.
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The SS8050 is a versatile NPN Bipolar Junction Transistor (BJT) designed for general-purpose switching and amplification applications. Encapsulated in the popular SOT-23 package, this transistor offers a compact form factor while delivering reliable performance across a range of electronic circuits.
Features:
● Current Handling: Capable of handling up to 1.5A of collector current (Ic), making it suitable for medium-current switching tasks.
● Power Dissipation: Power dissipation (Pd) rating of 0.3W ensures efficient operation under typical load conditions.
● Low Saturation Voltage: VCE(sat) of 0.5V at 1A collector current and 10mA base current, ensuring minimal power loss during switching.
● Moderate Frequency Response: Transition frequency (fT) of 100MHz allows for reliable high-frequency operation in various signal processing applications.
● Compact Package: Housed in an SOT-23 package, providing compact size and ease of mounting on PCBs.
● Wide Operating Temperature Range: Capable of operating in environments ranging from -55°C to +150°C, suitable for industrial and automotive applications.
Applications:
The SS8050 transistor finds application in a wide range of electronic circuits, including:
● Signal Amplification: Suitable for use in audio amplifiers, signal conditioning circuits, and other small-signal amplification tasks.
● Voltage Regulation: Integrated into voltage regulator modules and DC-DC converters for efficient power management.
● Lighting Control: Used in LED driver circuits and other lighting control applications due to its switching capabilities.
● Automotive Electronics: Employed in automotive control systems and sensor interfaces where reliability and robustness are critical.
Name
Title
Description

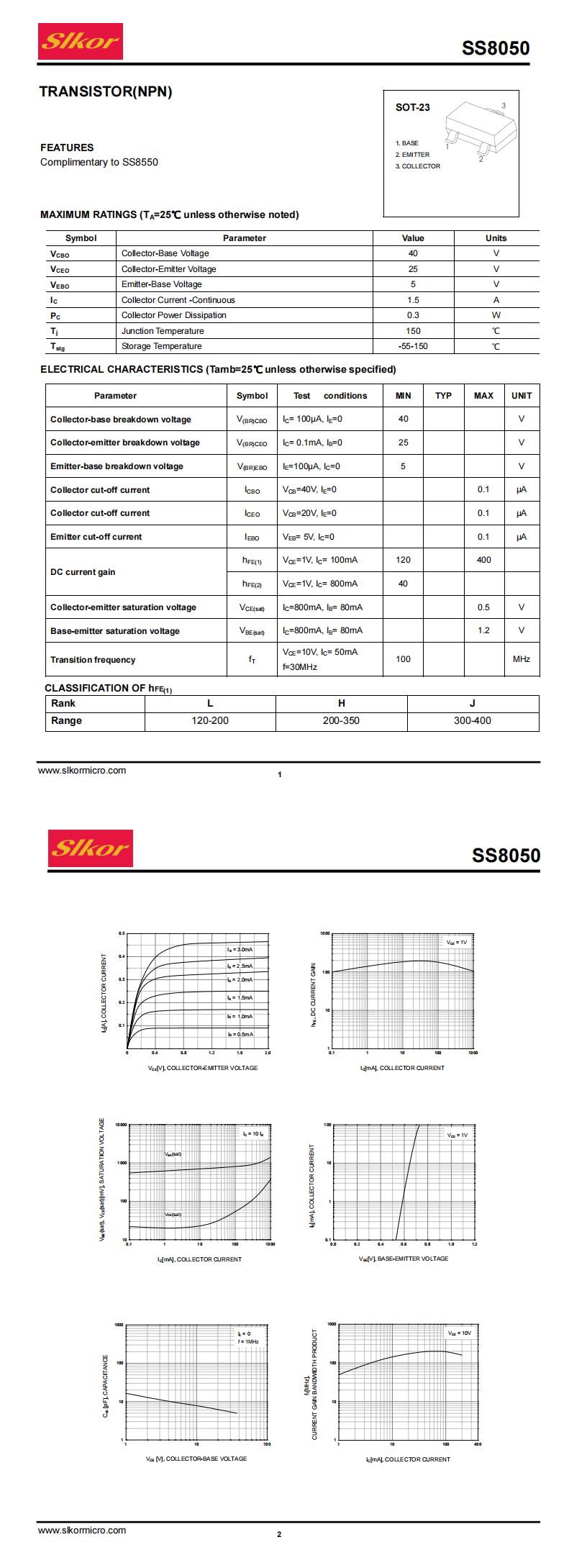

Datasheet
