Home Product Categories Diodes & Transistors Diodes Zener Diode
High Reliability ZMM16 Silicon Planar Zener Diodes LL-34 Manufacturer

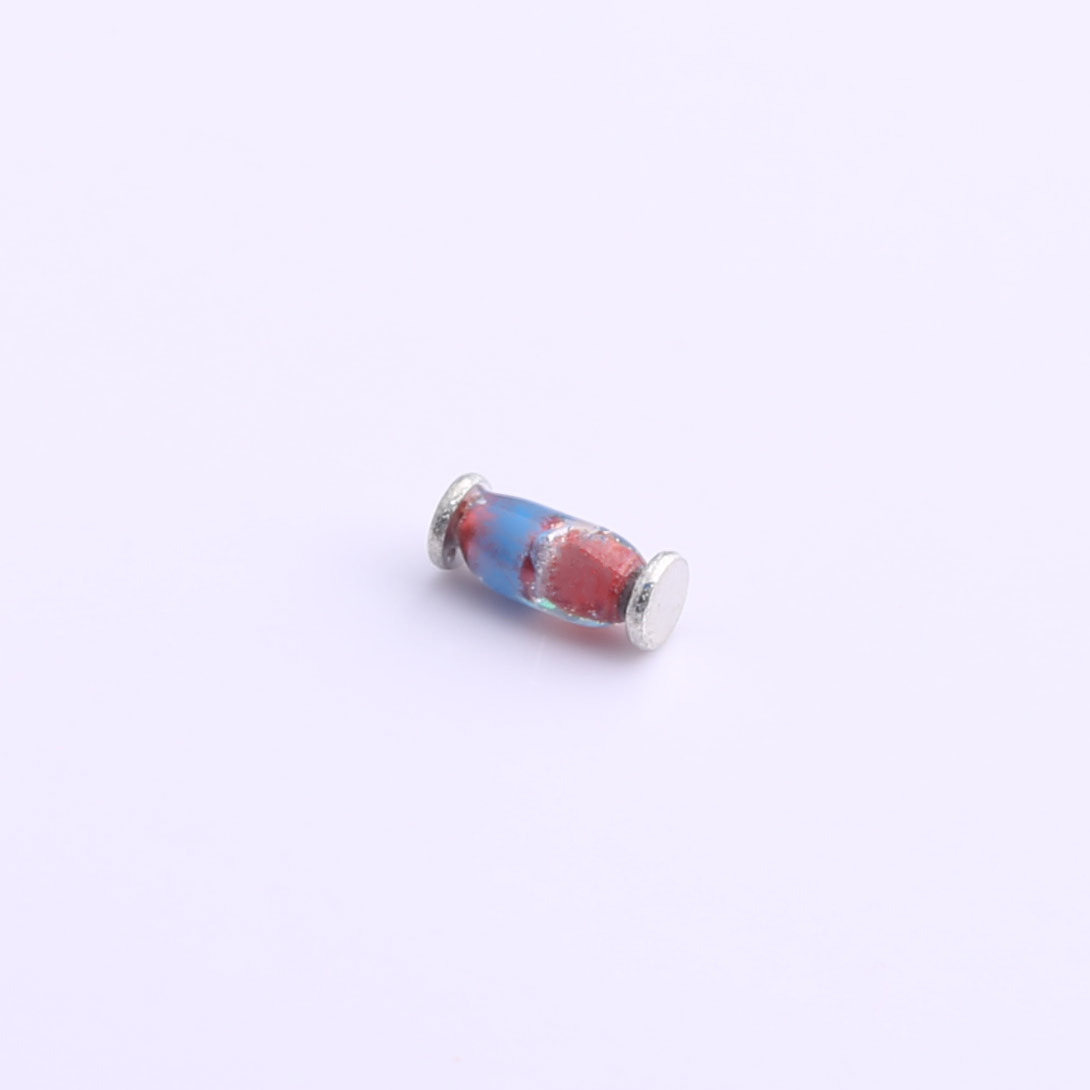

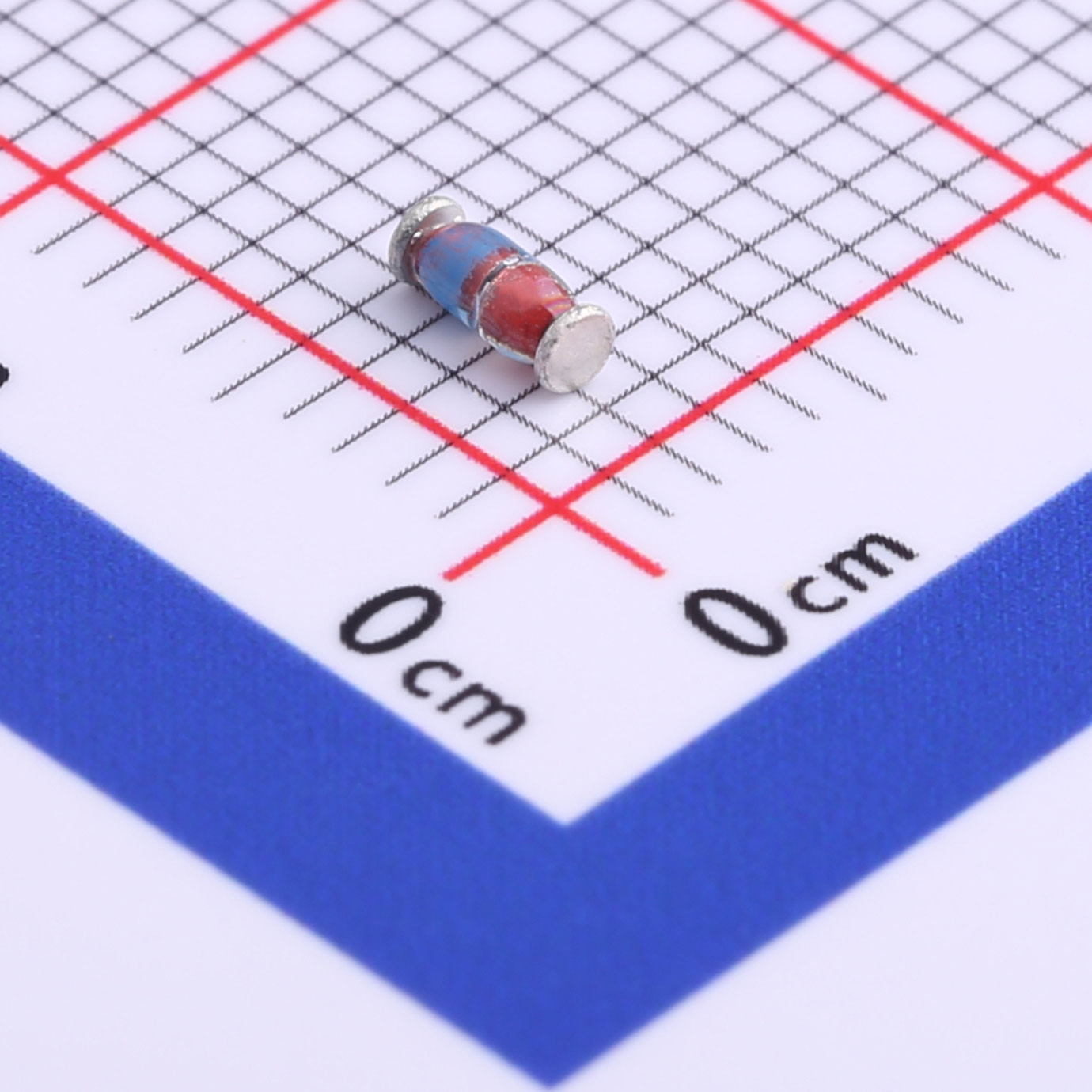

ZMM16 Silicon Planar Zener Diodes LL-34

VZTyp-

Precision-

PD:500mW

Ir:100nA@12V

Download Datasheet Online Consultation

SILICON PLANAR ZENER DIODES
In MiniMELF case especially for automatic insertion. The  Zener voltages are graded according to the international E 24 standard. Smaller voltage tolerances and higher Zener  voltages are upon request.

Absolute Maximum Ratings (Ta= 25°C)


SymbolValueUnit
PowerDissipationPtot5001)mW
JunctionTemperatureTj175℃
StorageTemperatureRangeTS-55to+175℃
1)Valid provided that electrodes are kept at ambient tem-perature
