High Reliability ZMM18 Silicon Planar Zener Diodes LL-34 Manufacturer

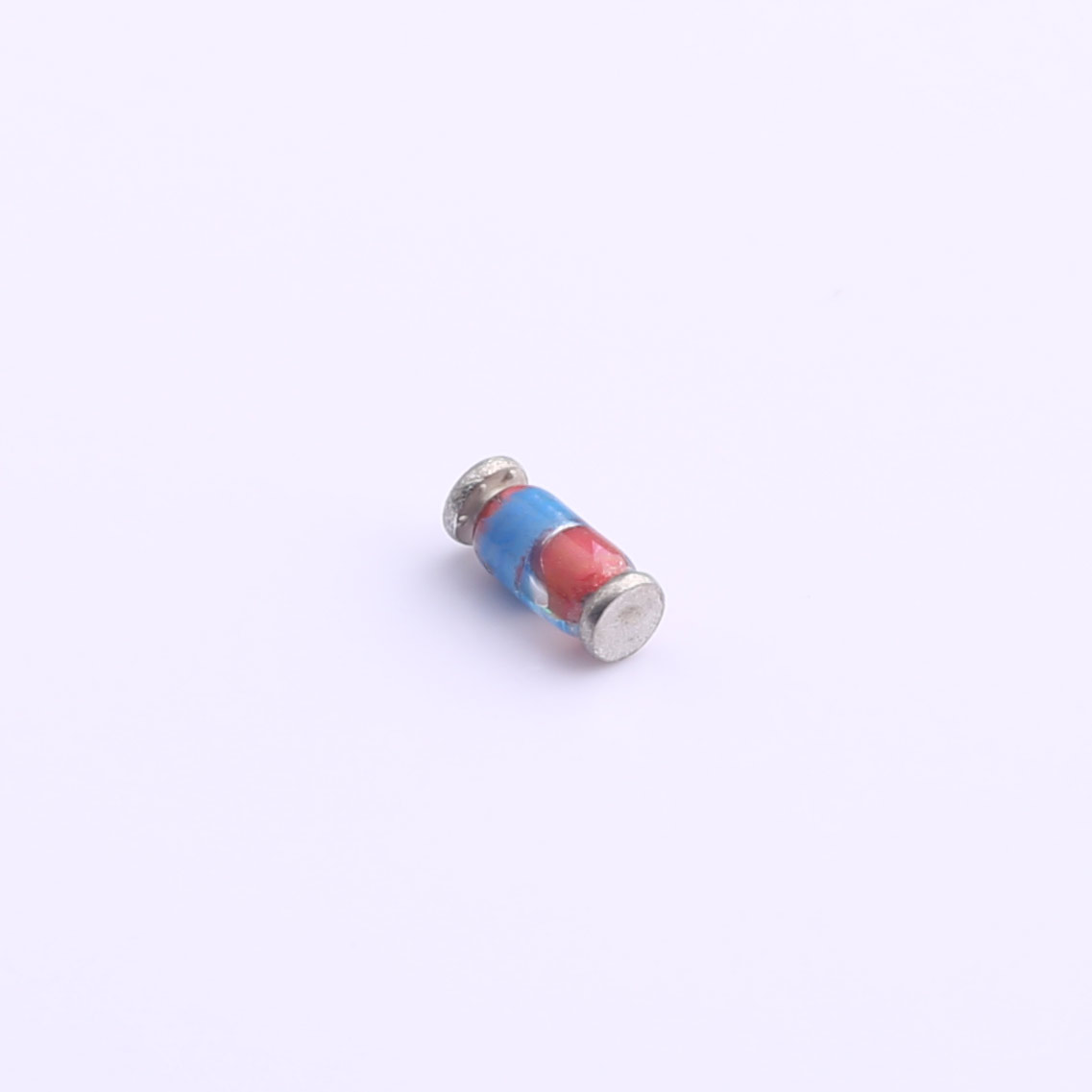

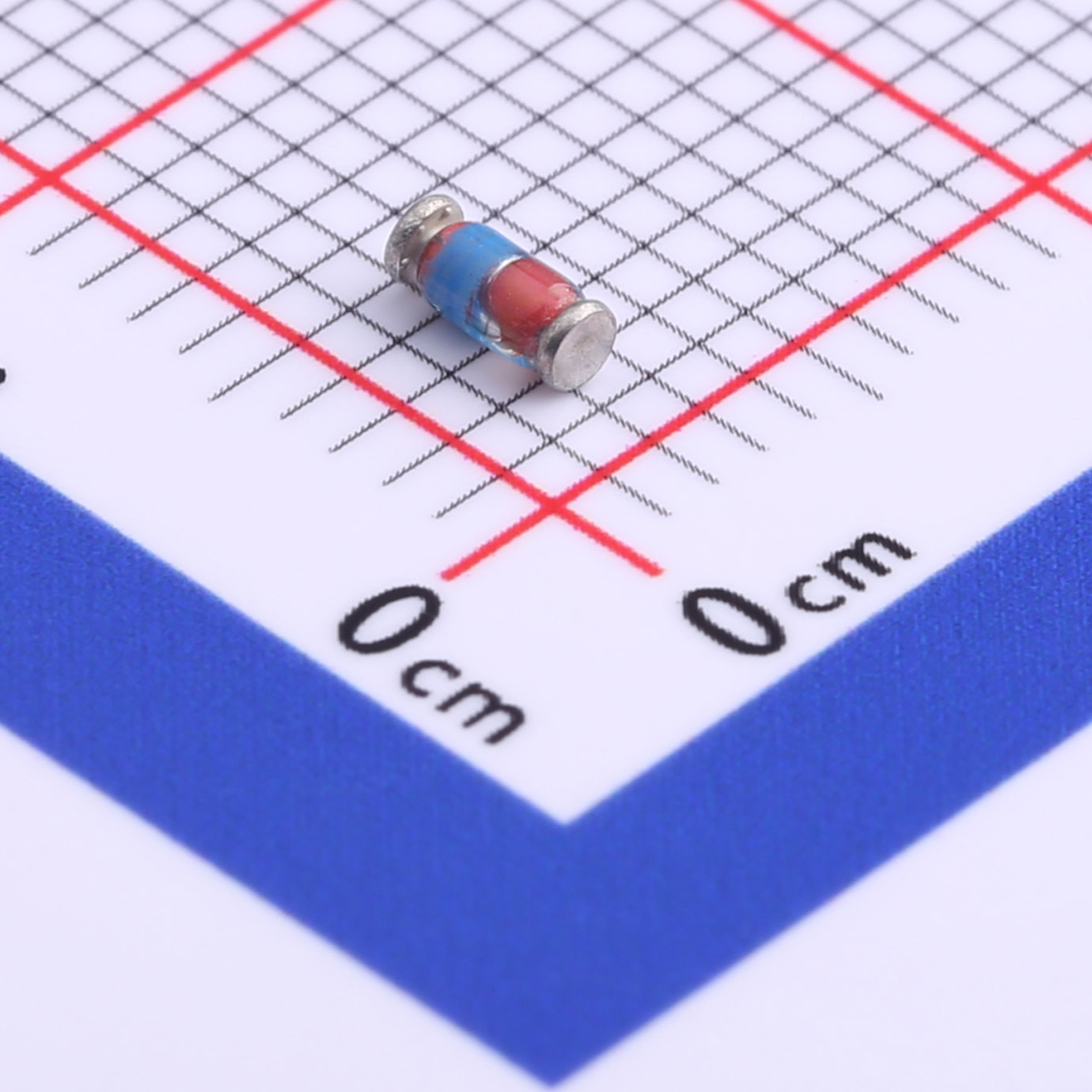

ZMM18 Silicon Planar Zener Diodes LL-34

VZTyp-

Precision-

PD:500mW

Ir:100nA@13V

Download Datasheet Online Consultation

SILICON PLANAR ZENER DIODES
In MiniMELF case especially for automatic insertion. The  Zener voltages are graded according to the international E 24 standard. Smaller voltage tolerances and higher Zener  voltages are upon request.

Absolute Maximum Ratings (Ta= 25°C)


SymbolValueUnit
PowerDissipationPtot5001)mW
JunctionTemperatureTj175℃
StorageTemperatureRangeTS-55to+175℃
1)Valid provided that electrodes are kept at ambient tem-perature

Name
Title
Description
ZMM18_2020-07-21.PDF
-
Datasheet
