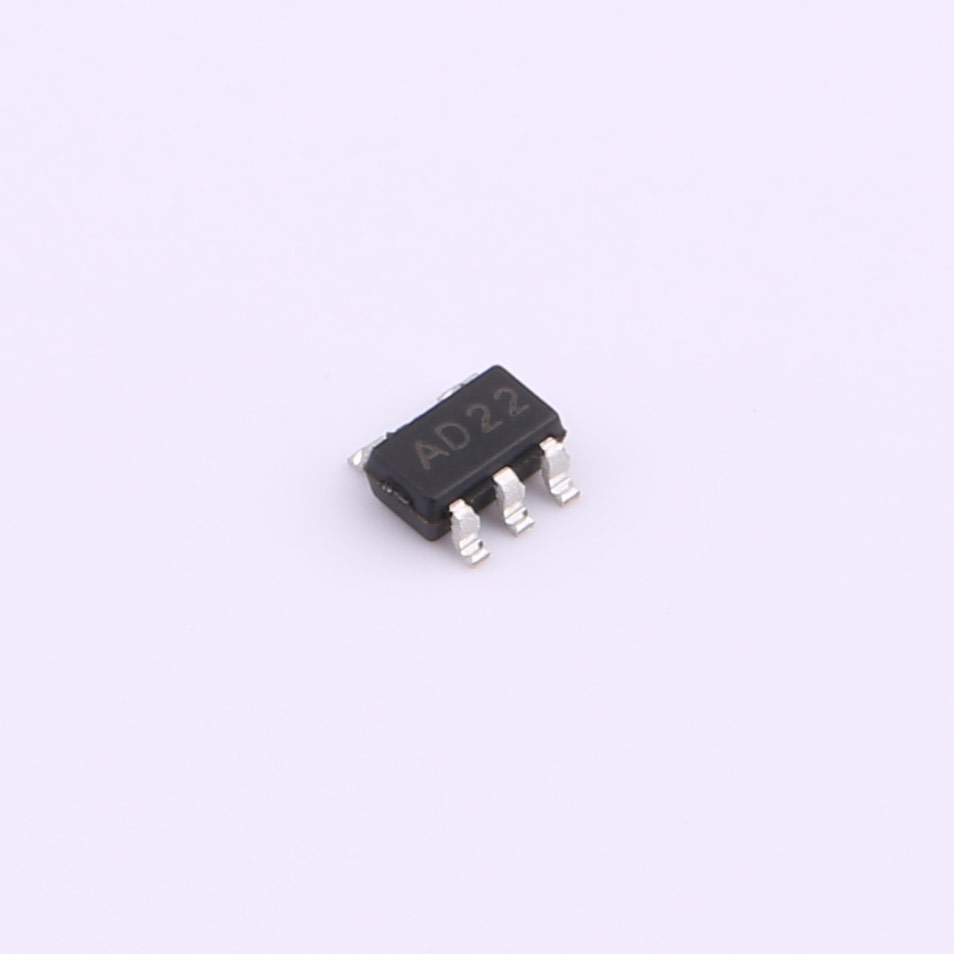

Cost-effective 74LVC1G07DBVR IC BUFF/DRVR W/OD OUT SOT-23-5 Reliable Factory
4uA|-|-|SOT-23-5|5.5V|RS-232 Transceiver|RS-232 Transceiver|
The 74LVC1G07 provides the non-inverting buffer. The output of this device is an open drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Single Buffer/Driver With Open-Drain Output
Description
l The 74LVC1G07 provides the non-inverting buffer. The output of this device is an open drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Features
l Wide supply voltage range from 1.65V to 5.5V
l 5V tolerant inputs for interfacing with 5V logic -
l 24mA output drive (VCC=3.0V)
l CMOS low power consumption
l Latch-up performance exceeds 250mA
l Direct interface with TTL levels
l Input accepts voltages up to 5V
l Specified from -40℃to +105℃
l Packaging information: DBVRSOT-23-5/
DCKR SOT-353
