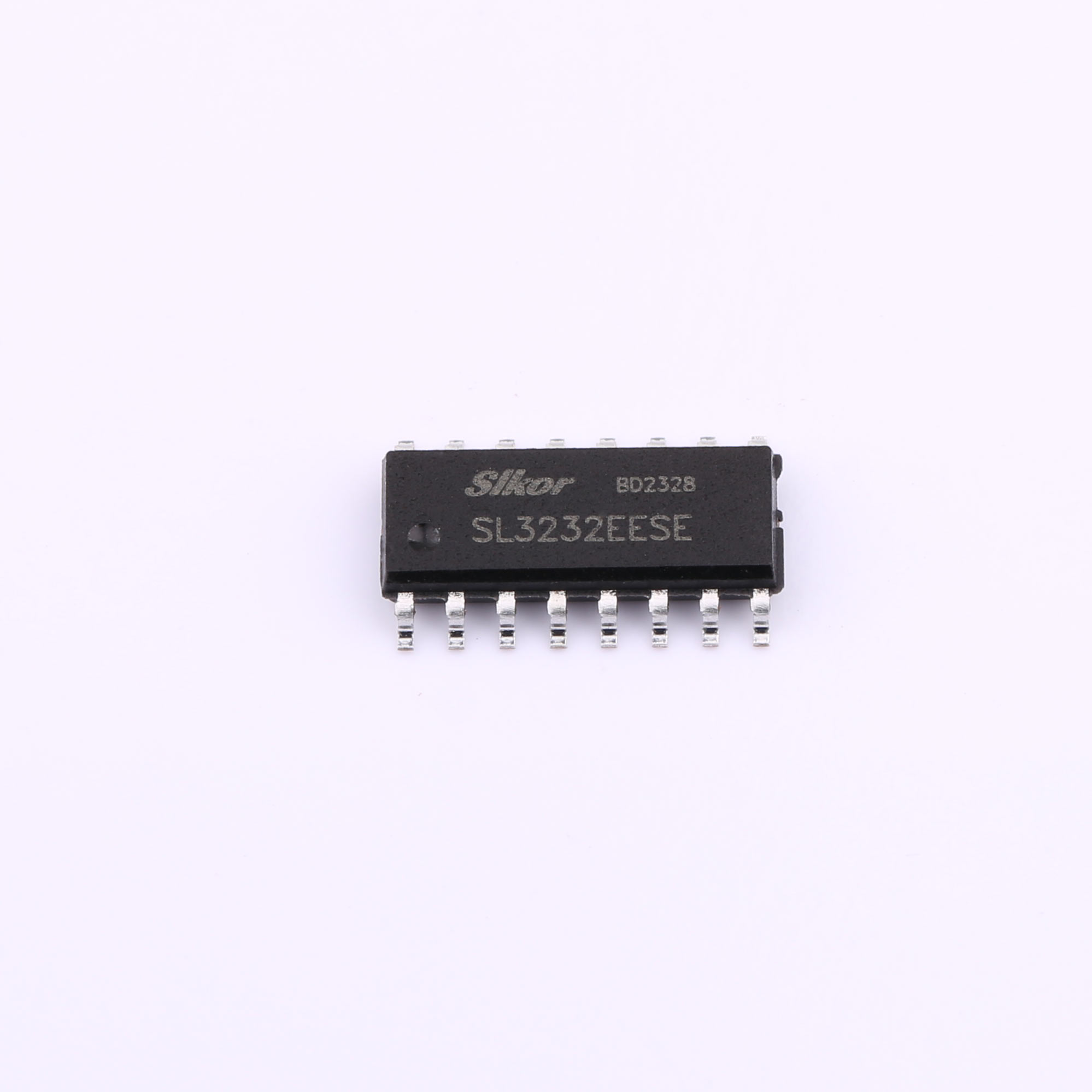

Cost-effective SL3232EESE RS232 Transceiver SOP-16 Reliable Factory
2mA|30V/μs|-|SOP-16|5.5V|RS-232 Transceiver|RS-232 Transceiver|
SL 3232E is a 3.0V to 5.5V power-supply, dual-channel, high ESD-protected, low-power RS-232 transceiver that fully meets the requirements of the TIA/EIA-232 standard.SL 3232E includes two drives and two receivers, with enhanced ESD protection function, reaching the protection capacity of HBM above 15kV and 8kV IEC-4100-4-2 contact discharge. When powered, the charge pump only needs four 0.1μF external capacitors to achieve a rate of 96kbps error-free data transmission. Each driver and receiver can be used independently.
High ESD-Protected, Single Power Supply Dual-Channel, RS232 Transceiver
Description
l SL 3232E is a 3.0V to 5.5V power-supply, dual-channel, high ESD-protected, low-power RS-232 transceiver that fully meets the requirements of the TIA/EIA-232 standard.
l SL 3232E includes two drives and two receivers, with enhanced ESD protection function, reaching the protection capacity of HBM above 15kV and 8kV IEC-4100-4-2 contact discharge. When powered, the charge pump only needs four 0.1μF external capacitors to achieve a rate of 96kbps error-free data transmission. Each driver and receiver can be used independently.
Features
l Supply voltages from 3.0V to 5.5V
l Dual-channel
l 96kbps data rates
l 15kV HBM ESD-Protected
l 8kV IEC-4100-4-2 Contact Discharge
Name
Title
Description
Datasheet
