Description

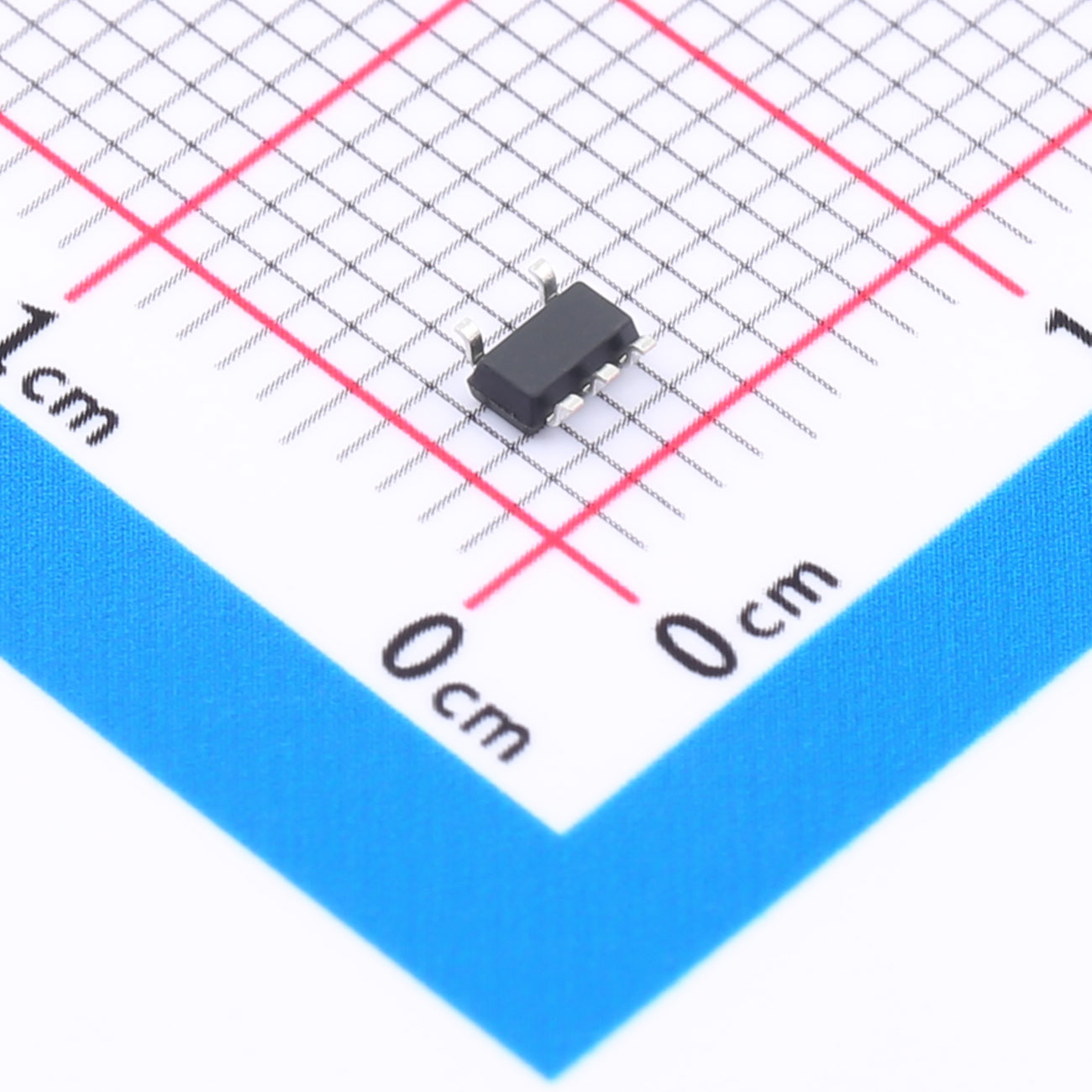

● The SL9650 Series is a low dropout, positive linear regulator with very low  quiescent current. It can supply 600mA output current with a input range from 1.7V to 7V, which makes it suitable for all kinds of applications.
● SL9650 Series use advanced CMOS technology to achieve very low dropout  voltage (300mV @600mA). Fast structural design achieves 75dB PSRR at 1kHz while still maintaining a small 50uA quiescent current.
● Trimming technique is used to guarantee output voltage accuracy within ±2% (Fixed Output); ±1%(Adjustable Output).SL9650 Series provides full fault protection  including current limit, short circuit protection and thermal shutdown protection.

Features

● Fixed Output Voltages：

● 0.7V,1.0V,1.2V,1.5V,1.8V,2.5V,2.8V,3.0V,3.3V,3.6V,Other output can be customized

● Adjustable Output from 0.6V to (VIN-Vdrop)

● Maximum Output Current:600mA

● Input Voltage Range:1.7V~7V

● Low Quiescent Current:50uA(Typ.)

● Very low dropout voltage：

● 300mV@600mA(Vout=3.3V)

● Highly Accurate:±2%(Fixed Output)

● ±1%(Adjustable Output)

● 0.02%/V Line Regulation

● Auto discharge function

● 75dB PSRR @ 1KHz

● -40°C~125°C Wide Operating Temperature

● 2000V HBM ESD

● 150 °C Thermal Protection

Applications
● Battery powered portable devices
● Smart phone, tablet
● Hi resolution camera sensor power
● Wireless modules
● RF,PLL,VCO clock power
