OUR ADVANTAGE

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

DESCRIPTION

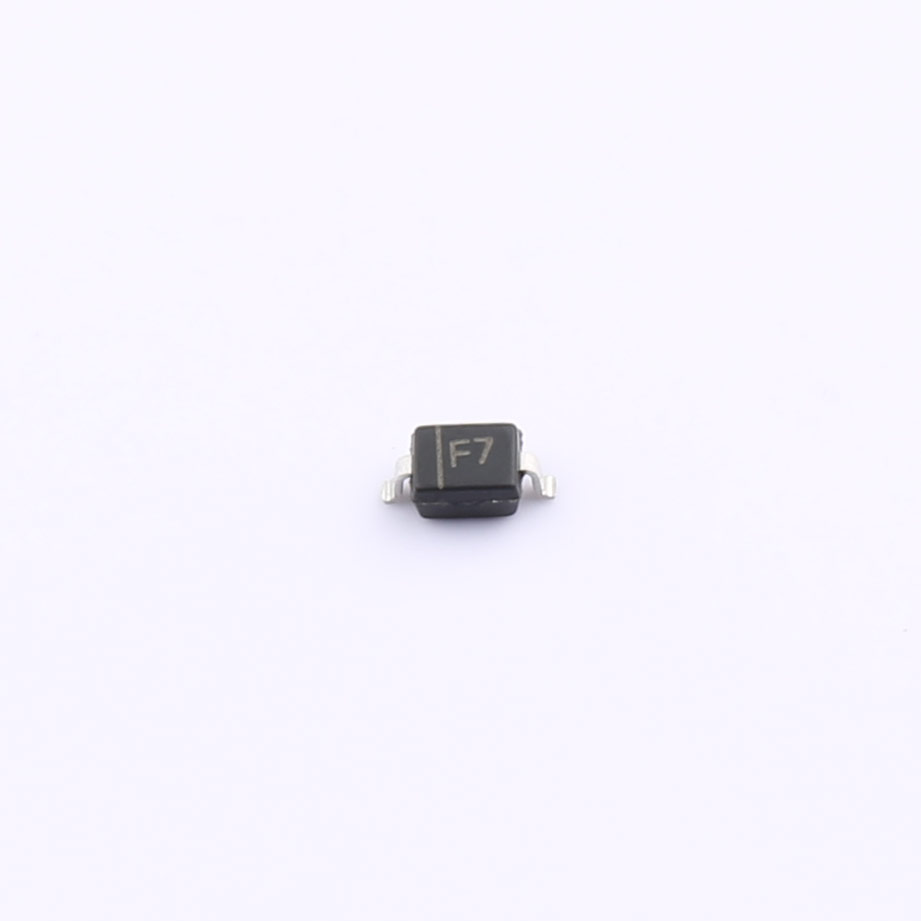

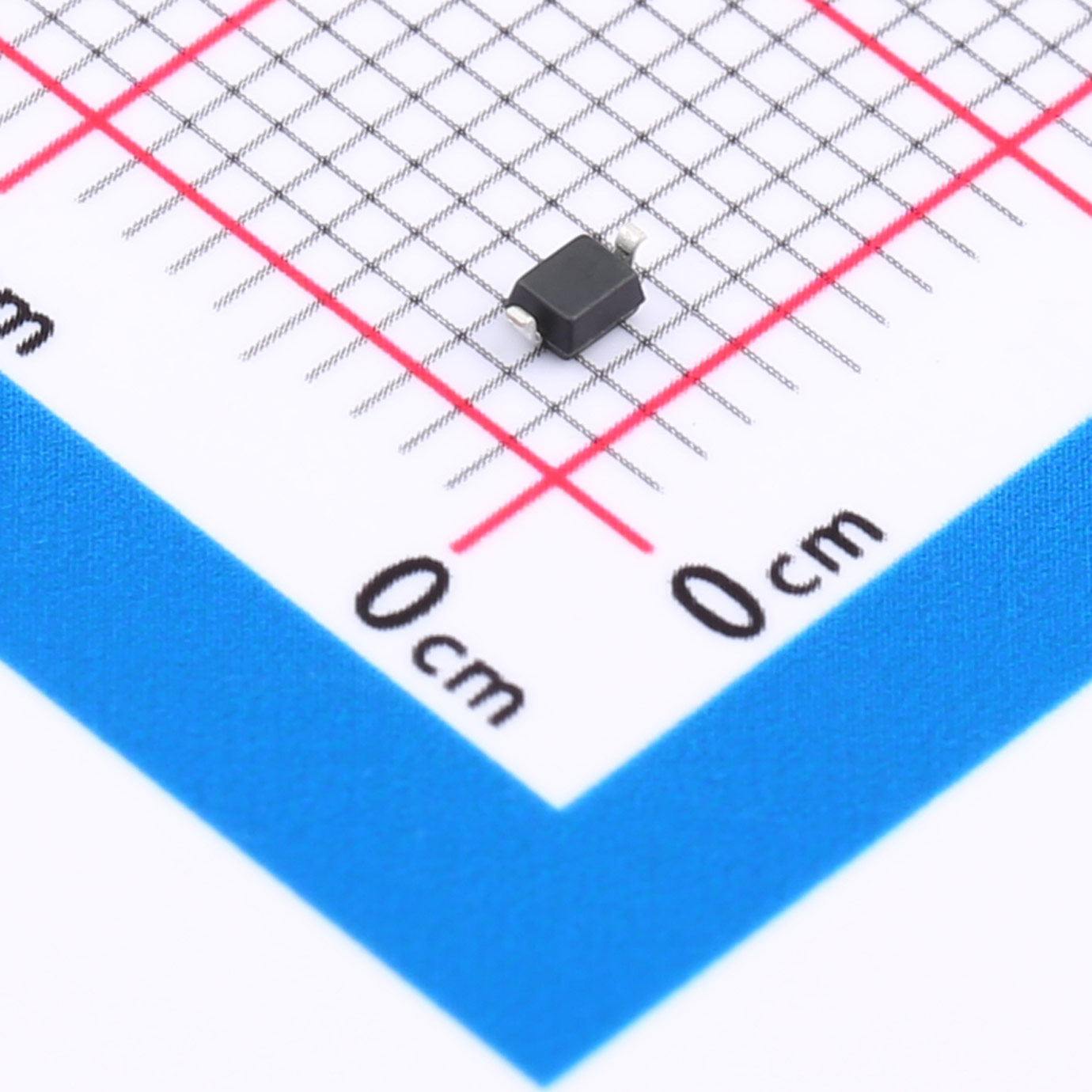

The FR107WS Fast Recovery Rectifier Diode SOD-323 is engineered to deliver superior efficiency and reliability in electronic circuits. Designed with a maximum reverse voltage rating of 50V and a forward current capability of 1A, this diode is ideal for various low-voltage and high-speed applications. With its low forward voltage drop of just 1.3V and minimal reverse leakage current of 5μA, it ensures optimal performance and power savings in demanding environments.

FEATURES
● Low profile package

● Ideal for automated placement

● Glass passivated chip junctions

● Low forward voltage drop

● Low leakage current

● High forward surge capability

● High temperature soldering：260℃/10 seconds at terminals

● Component in accordance toRoHS 2011/65/EU and WEEE 2002/96/EC

APPLICATIONS

● Power Supply Circuits: Enhances efficiency by reducing power loss and improving voltage regulation.

● Switching Power Supplies: Ensures fast switching and minimal energy loss in power conversion processes.

● Rectification in Low-Voltage Circuits: Provides reliable rectification with low forward voltage drop and minimal leakage.

● Signal Demodulation: Suitable for high-speed signal processing due to its quick reverse recovery time.

● Protection Circuits: Offers effective protection for sensitive components by clamping voltage spikes and preventing reverse current flow.
