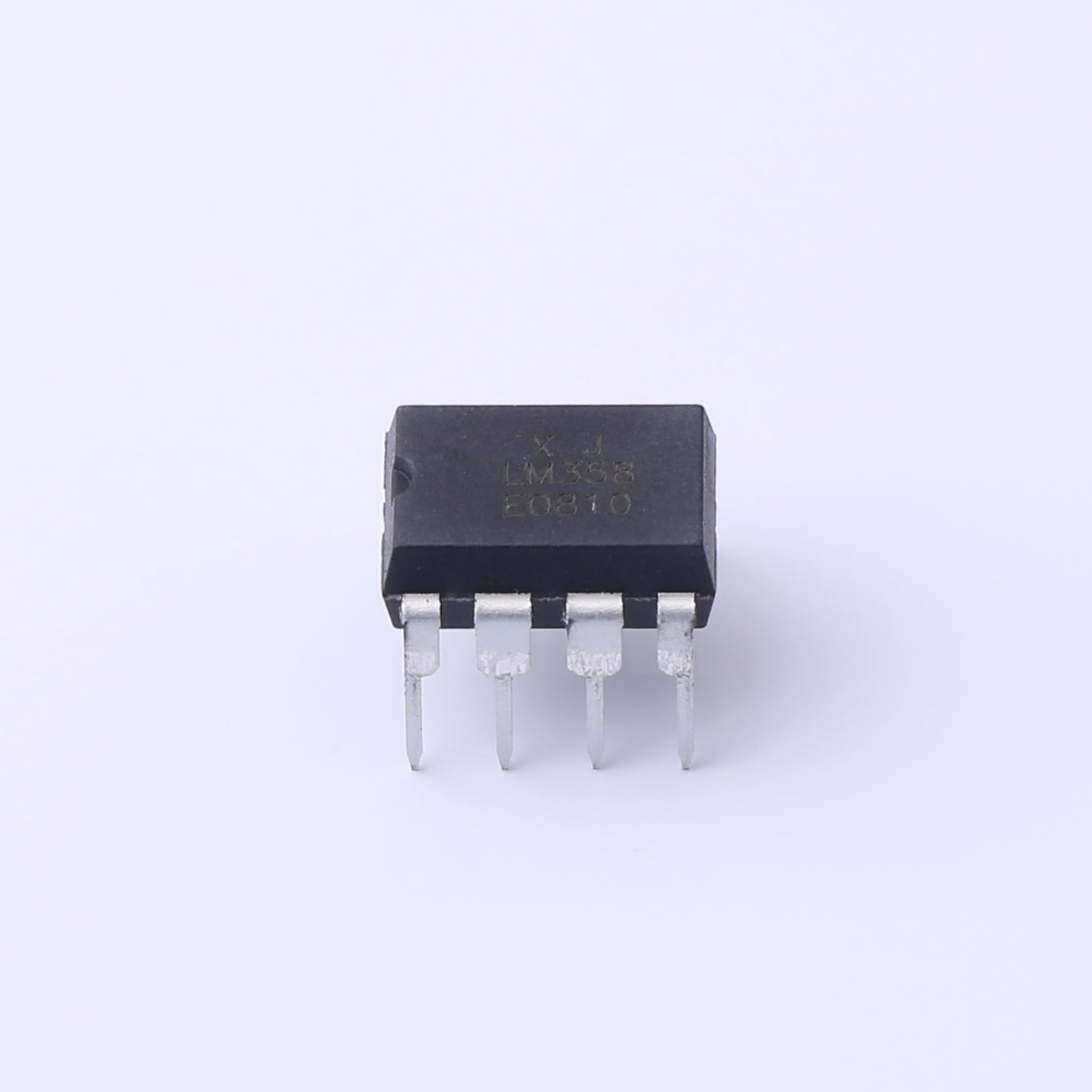

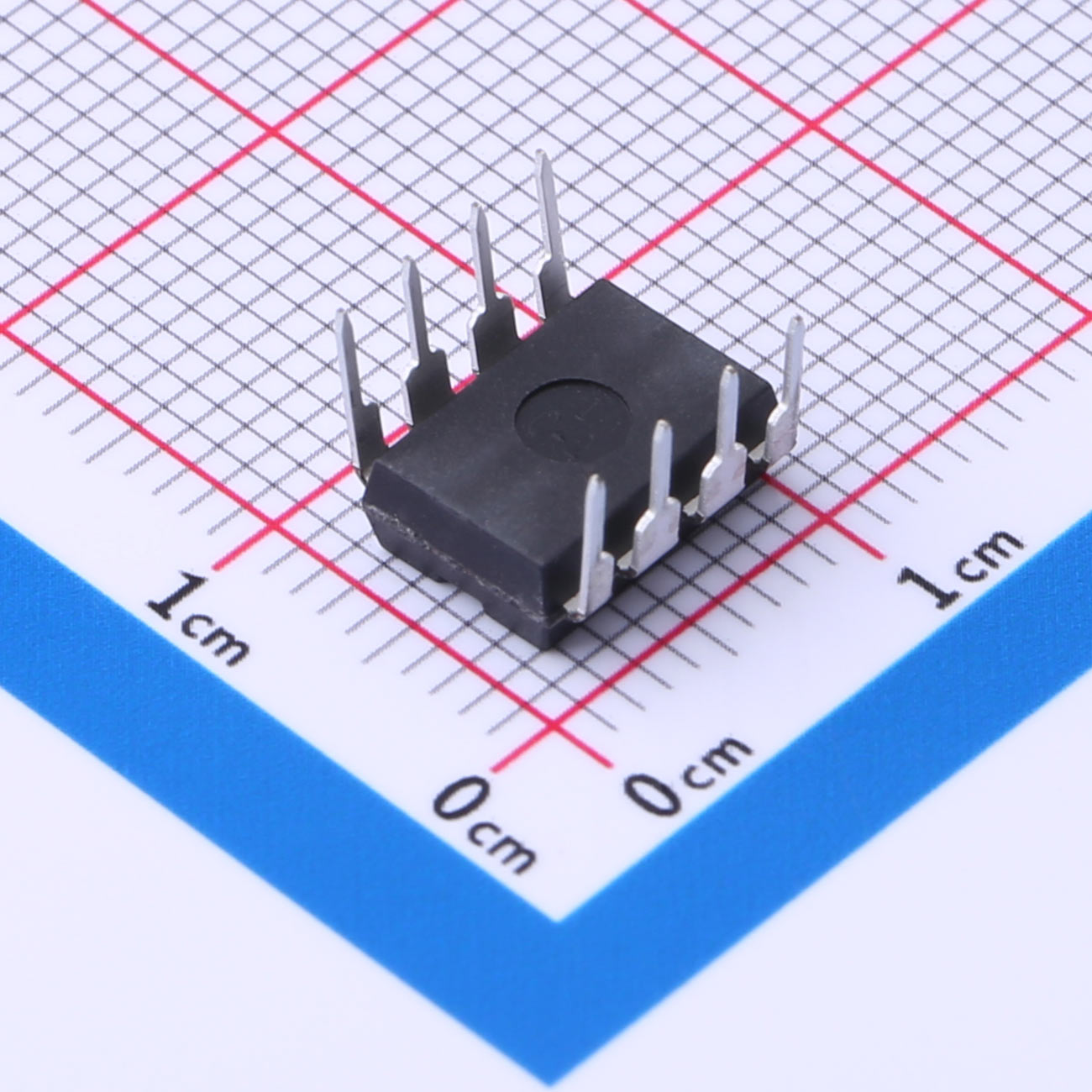

High Reliability LM358P General Op-amp DIP-8
30nA|1MHz|-|-65~150℃|DIP-8|5mV|Products|-,-,-,-,-,-|Product display|
The LM358 consists of two independent, high-gain, internally frequency-compensated operational amplifiers. It is suitable for single-supply operation over a wide range of supply voltages and can also operate in dual-supply mode.
Under recommended operating conditions, the supply current is independent of supply voltage. Its applications include sensor amplifiers, DC gain blocks, audio amplifiers, industrial control, DC gain stages, and any other application where operational amplifiers are used with single-supply power.
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The LM358 consists of two independent, high-gain, internally frequency-compensated operational amplifiers. It is suitable for single-supply operation over a wide range of supply voltages and can also operate in dual-supply mode.
Under recommended operating conditions, the supply current is independent of supply voltage. Its applications include sensor amplifiers, DC gain blocks, audio amplifiers, industrial control, DC gain stages, and any other application where operational amplifiers are used with single-supply power.
Features
● Internal frequency compensation circuit
● High DC voltage gain (approximately 100dB) with unity gain bandwidth (approximately 1MHz)
● Wide supply voltage range:
Single supply (3~36V)
Dual supply (±1.5~±18V)
● Low power consumption: 0.5mA, suitable for battery-powered applications
● Low input bias current: 45nA
● Low input offset voltage: 2mV
● Wide common-mode input voltage range, close to ground
● Wide differential input voltage range, equal to the supply voltage range
● Large output voltage swing (0 to Vcc-1.5V)
● Package form: DIP8, SOP8
Applications
● Sensor Amplifier
● DC gain module
● Audio Amplifier
Name
Title
Description

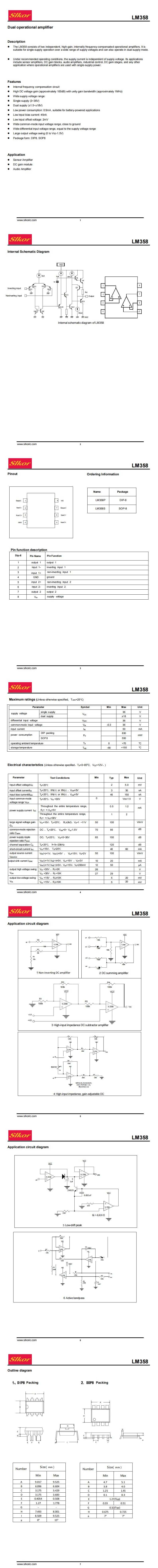

Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
