Description

The DW03 series product is a high integration solution for lithium-lion/polymer battery protection.DW03 contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits. DW03 is put into an ultra-small SOT23-5 package and only one external component makes it an ideal solution in limited space of battery pack. dw03 has all the protection functions required in the battery application including overcharging, overdischarging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging.The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring long-term battery life.

Features

● Integrate advanced power MOSFET with Equivalent of 65m? RDS(ON);

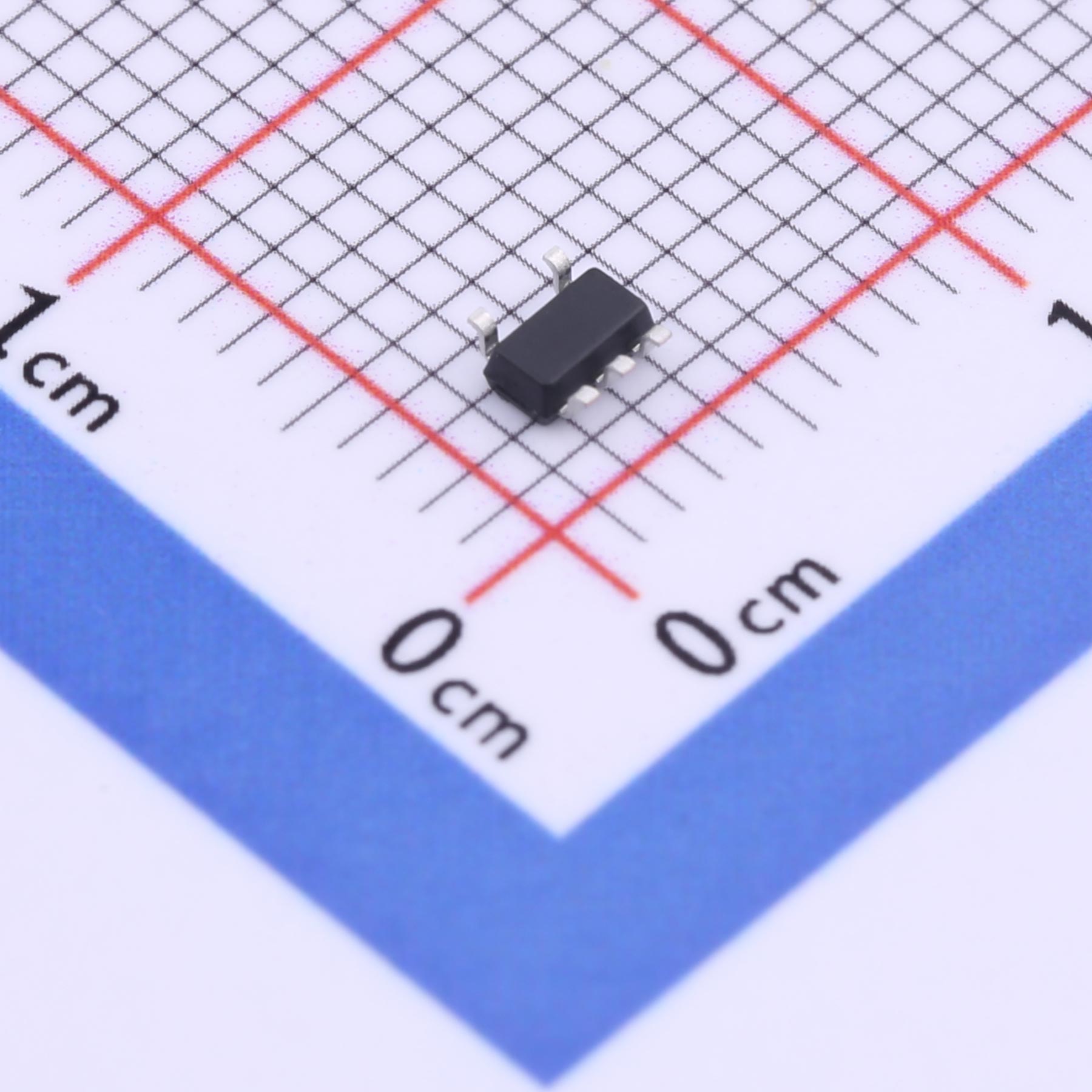

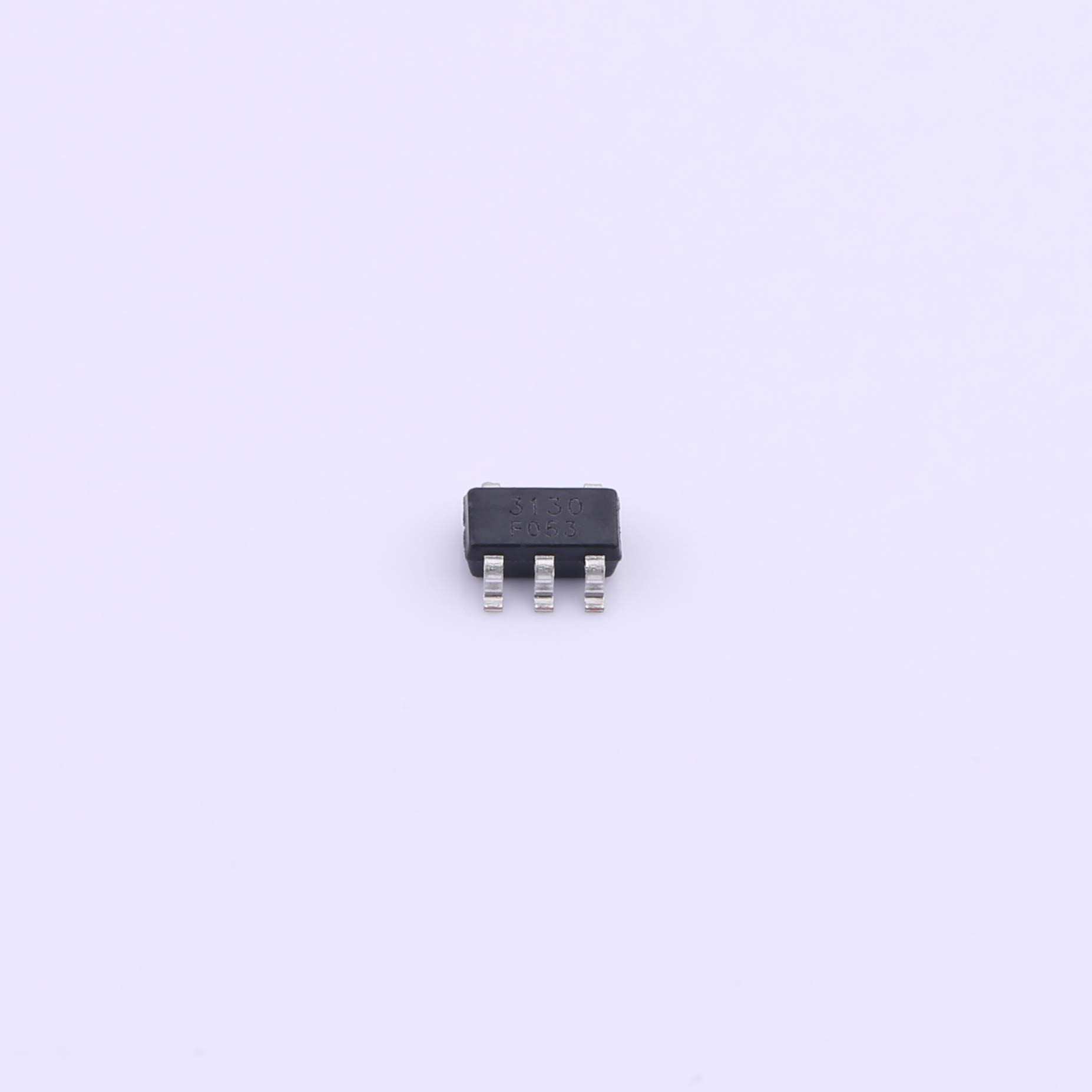

● Ultra-small SOT23-5 package;

● Over-temperature Protection; Overcharge Current Protection; Two-step Overcurrent Detection: Over discharge Current; Load Short Circuiting.

● Charger detection function ; 0V battery charging function; delay times are generated inside; High-accuracy voltage detection.

● Low Current Consumption; Operation Mode: 2.8μA typ; Power-down Mode:1.5μA typ; RoHS Compliant and Lead(Pb) Free.

Applications

One-Cell lithium-ion battery pack; Lithium-Polymer battery pack.
