Alternative equivalent for Infineon TLE42754G | Slkor SL4275-G Low dropout Voltage Regulator
5V|800mA|0.3V|TO-263-5|42V|LDO|Products|-,-,-,-,-,-|Product display|

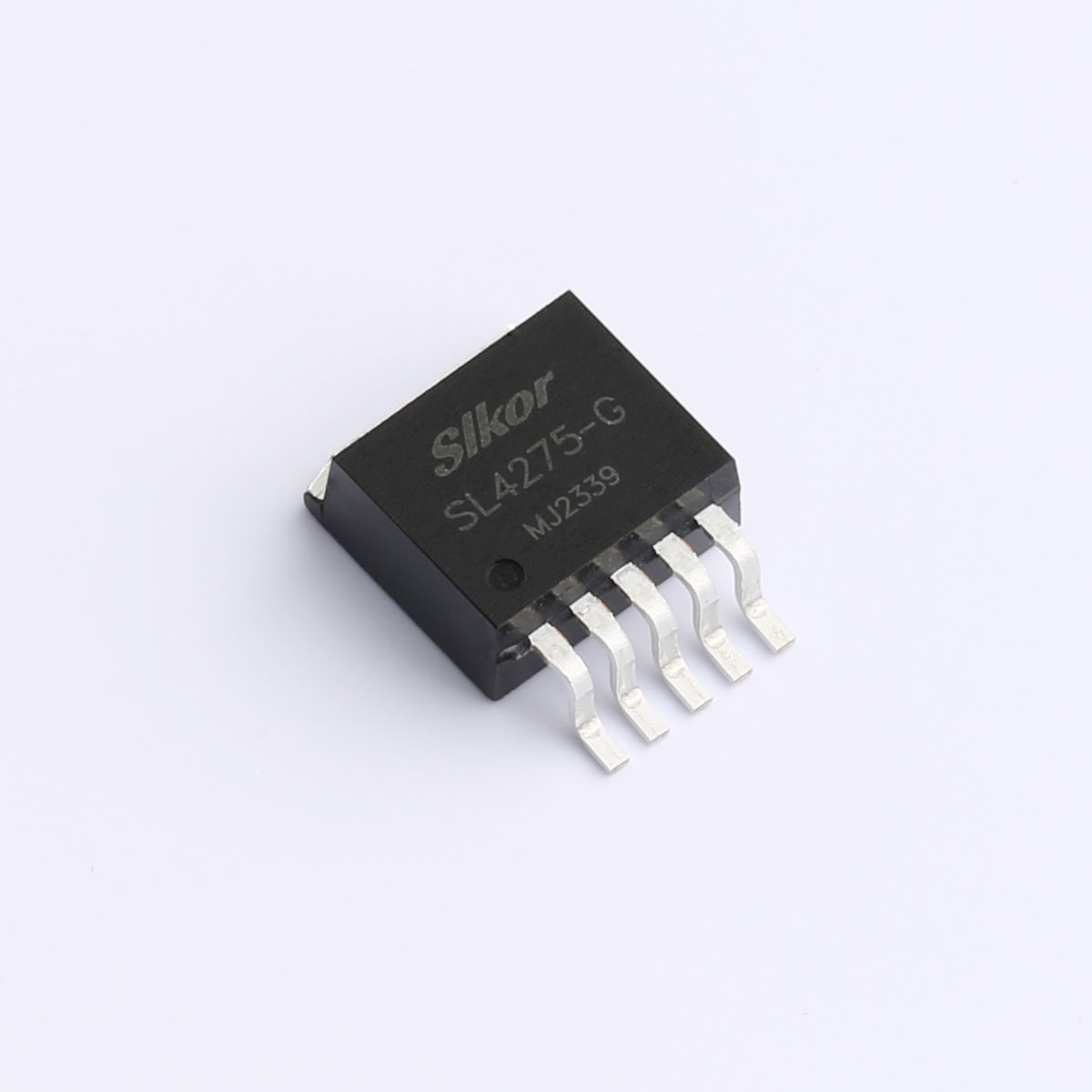

The SL4275-G is a 5-pin TO packaged single-chip integrated low dropout voltage regulator. It regulates input voltages as high as 42V down to a 5.0V output voltage, VQ. This chip can drive loads up to 450mA and includes short-circuit and over-temperature protection features. When the typical output voltage VQ drops below 4.65V, the RQ pin of the chip generates a low-level reset signal, with the reset delay time adjustable via the capacitor connected to the D pin.
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Slkor alternative equivalents to Infineon.
| Infineon | Slkor Replacements | ||
| Part Number | Part Number | Product Category | Package |
| IRF640NPBF | IRF640 | MOSFET | TO-220 |
| IRFR5305TRPBF | IRFR5305 | MOSFET | TO-252 |
| TLE4275 | SL4275 | LDO | TO-252 |
| TLE4284 | SL4284 | LDO | TO-252 |
| TLF4949 | SL4949 | LDO | SOP-8 |
| TLE42754G | SL4275-G | LDO | TO-263-5 |
| TLE4264 | SL4264-2 | LDO | SOT-223 |
| TLE42744 | SL42744D | LDO | TO-252-3 |
| TLE42764 | SL42764 | LDO | TO-252-5 |
| BCR401 | SL401 | Gate Driver IC | SOT-23 |
| BTS3405G | SL3405S | Smart Power Switches | SOP-8 |
| TLE4264 | SL4264-2 | Zener Diode | SOT-223 |
| TLE8366 | SL8366 | DC-DC Regulator | ESOP-8 |
| IR21814/IRS21814 | SL21814 | Gate Driver IC | SOP-14 |
| IR2110S | SL2110 | Gate Driver IC | SOP-16W |
| IRS2003S | SL2003 | Gate Driver IC | SOP-8 |
| IRS2004 | SL2004 | Gate Driver IC | SOP-8 |
| IR2103S | SL2103 | Gate Driver IC | SOP-8 |
Description
The SL4275-G is a 5-pin TO packaged single-chip integrated low dropout voltage regulator. It regulates input voltages as high as 42V down to a 5.0V output voltage, VQ. This chip can drive loads up to 450mA and includes short-circuit and over-temperature protection features. When the typical output voltage VQ drops below 4.65V, the RQ pin of the chip generates a low-level reset signal, with the reset delay time adjustable via the capacitor connected to the D pin.
Features
● Operating voltage range: 5.5V to 42V
● Extremely low static current in standby mode: 80uA
● High precision standby output voltage: 5V ±1%
● Typical output current: 100mA
● dropout voltage less than 0.4V
● Supports Reset output with adjustable reset delay time
● Features Sense voltage monitoring
● Over-temperature and short-circuit current limit protections
● RoHS compliant
Application
● Automotive electronics
● Personal computers
● White goods appliances
● Industrial control products, electronic medical devices
