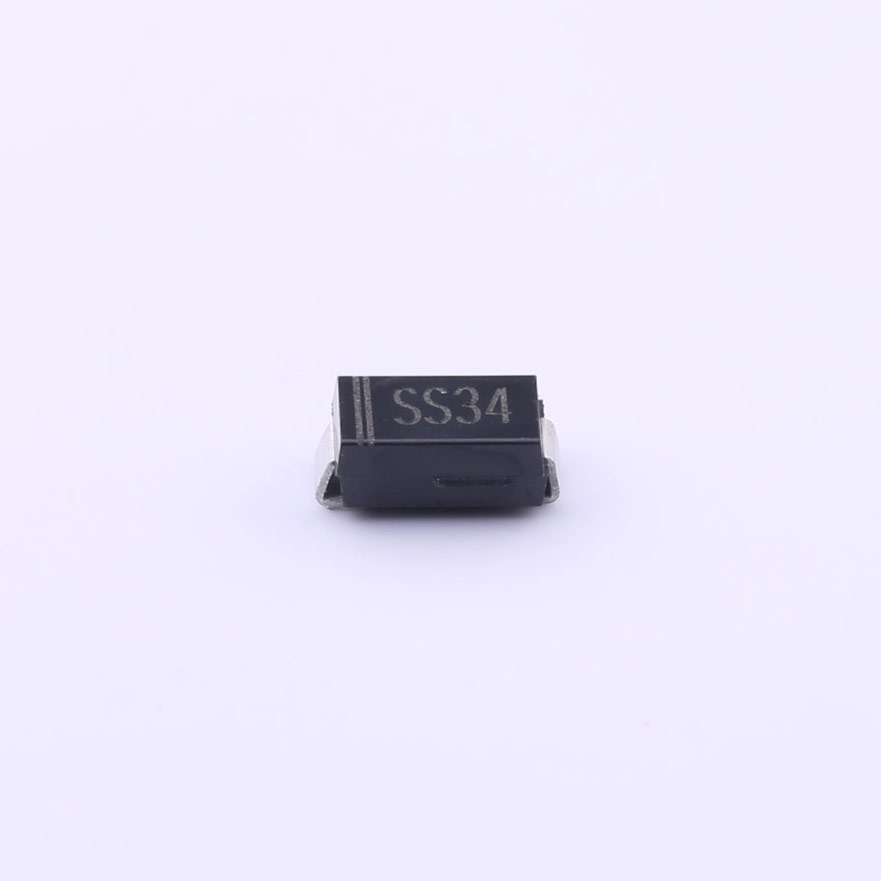

SS34 3.0 A Schottky Barrier Rectifiers SMA Factory Direct
40V|0.5V|0.5mA|SMA|3.0A|Schottky Diode|Schottky Diode|IO,VR(V),VF(V),IR,Package|Schottky Diode|
The SS series is a high efficiency, low power loss general propose Schottky rectifier. The clip bonded leg structure provides high thermal performance and low electrical resistance. this rectifier is exclusively suits for free wheeling, secondary rectification and reverse polarity protection applications.
Description:
The SS series is a high efficiency, low power loss general propose Schottky rectifier. The clip bonded leg structure provides high thermal performance and low electrical resistance. this rectifier is exclusively suits for free wheeling, secondary rectification and reverse polarity protection applications.
Features:
● For surface mounted application
● Easy pick and place
● Metal to slicon rectifer majority carrier conduction
● Low power loss, high efficiency
● Hgh currert capabity low VF
● Hgh surge current capabilty
● Plastic material used carriers Underwriters
● Laboratory Clas sification 94V-0
● Epitaxal construction
● High temperature soldering: 260C /10 seconds at terminals
● Metal to Silicon Rectifiers, Majority Carrier Conduction
● Low-Forward Voltage drop
Applications:
● This product is general usage and suitable for many different applications.
Mechanical Data:
● Case: JEDEC DO-214AC Molded plastic
● Terminals: Pure tin plated,lead free
● Polarity: Indicated by cathode band
● Packaging: 16mm tape per EIA STD RS-481
Quick reference data:
| Symbol | Parameter | Conditions | Max | Unit |
| VRRM | Recurrert Peak Reverse Voltage | 40 | V | |
| VF | Insta rtaneous Forward Voltage | Tamb = 25 °C | 0.5 | V |
| IO |
Average Forward Rectified Current |
3 | A | |
| IR | DC Reverse Current | Tamb = 25 °C | 0.5 | mA |
| IFSM | Peak Forward Surge Current | 100 |
A |
Name
Title
Description

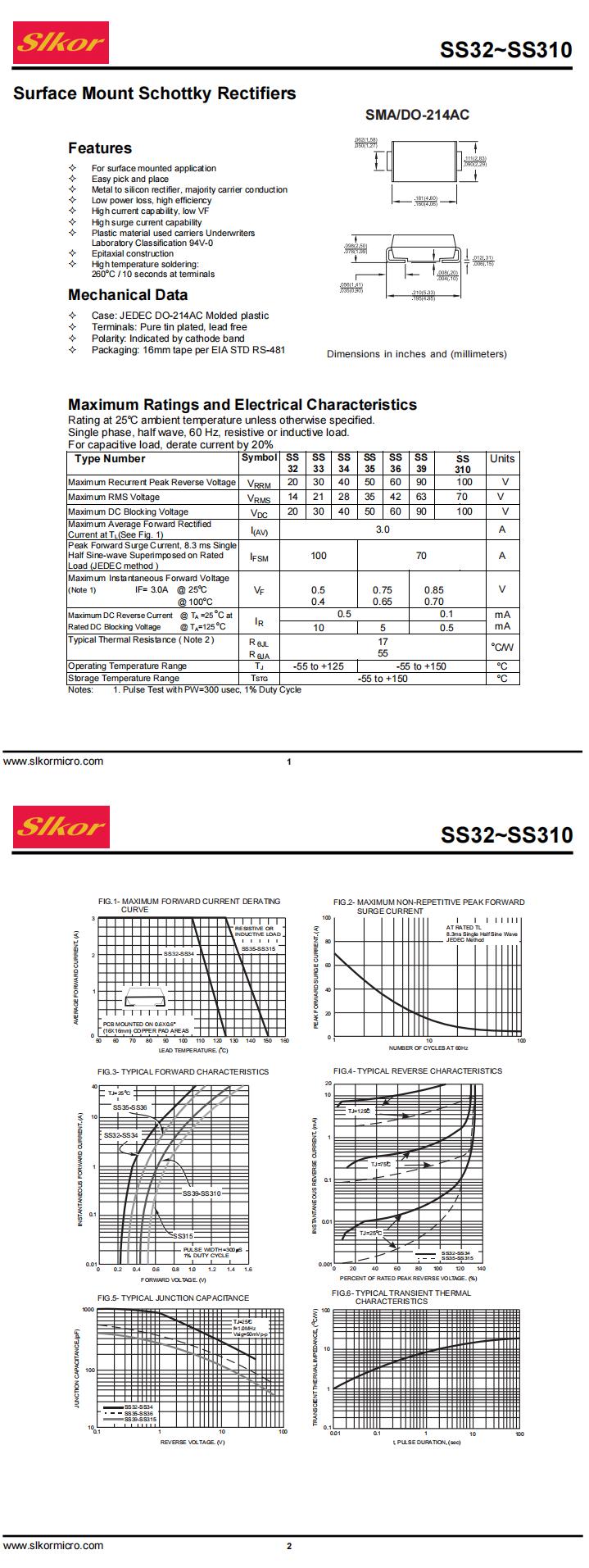

Datasheet
