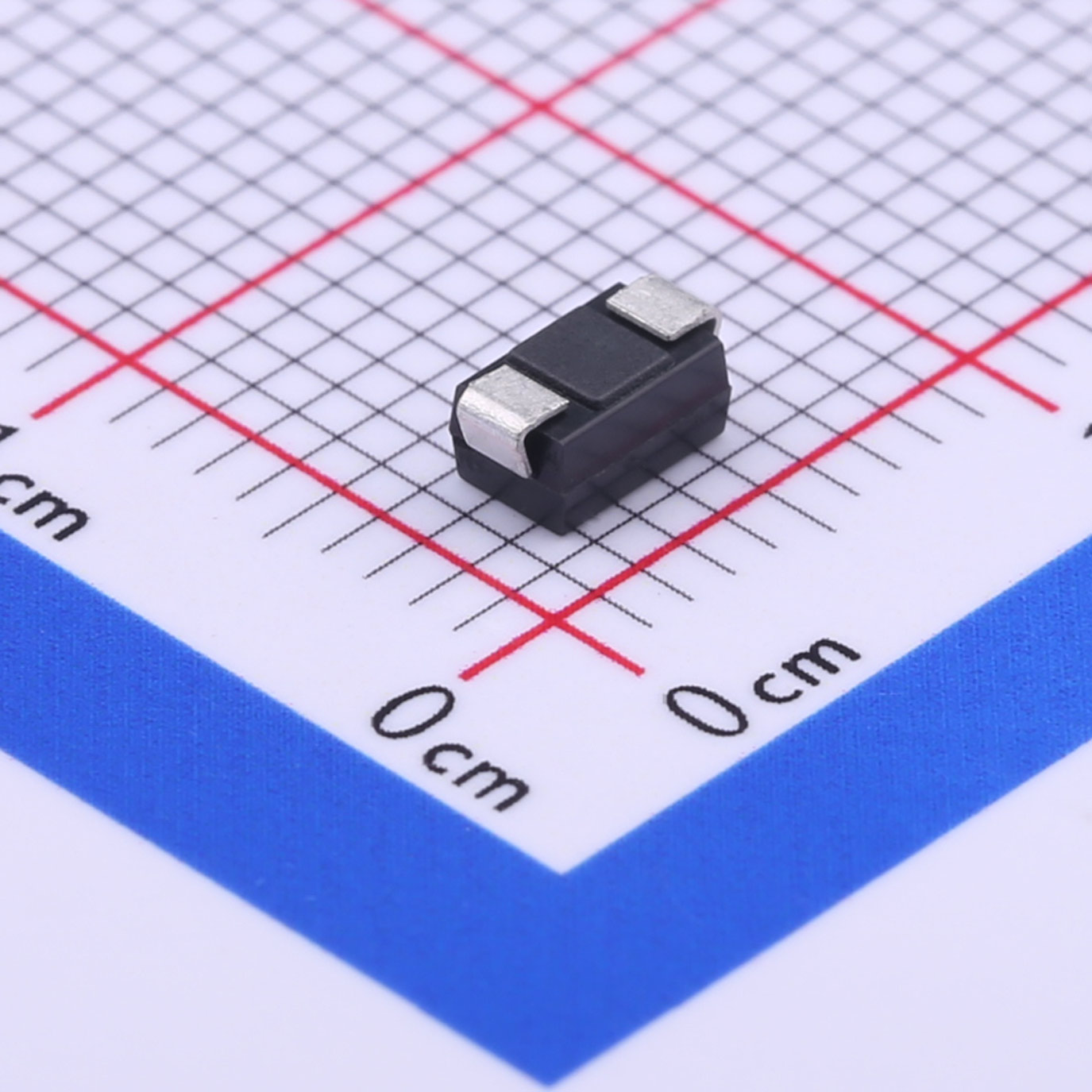

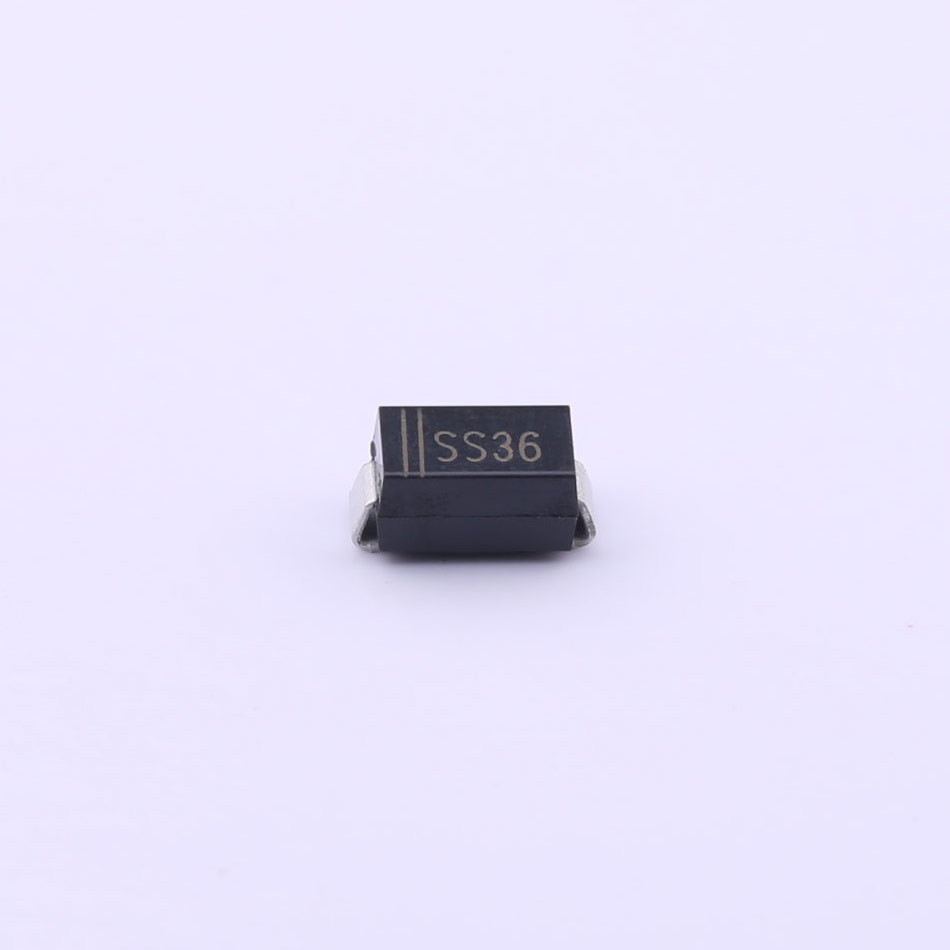

Cost-effective SS36 3.0A Schottky Barrier Rectifiers SMA Manufacturer
60V|0.75V|0.5mA|SMA|3.0A|Schottky Diode|Schottky Diode|IO,VR(V),VF(V),IR,Package|Schottky Diode|
The SS series is a high efficiency, low power loss general propose Schottky rectifier. The clip bonded leg structure provides high thermal performance and low electrical resistance. this rectifier is exclusively suits for free wheeling, secondary rectification and reverse polarity protection applications.
Description
The SS series is a high efficiency, low power loss general propose Schottky rectifier. The clip bonded leg structure provides high thermal performance and low electrical resistance. this rectifier is exclusively suits for free wheeling, secondary rectification and reverse polarity protection applications.
Features
● Metal to Silicon Rectifiers, Majority Carrier Conduction
● Low-Forward Voltage drop
● Easy Pick and Place
● High-Surge Current Capability
● For surface mounted application
● Low power loss, high efficiency
● Hgh cumrent capabilty.low VF
● Plastic material used camriers Underwriters Laboratory Classification 94V-0
● Eptaxial construction
● Hgh temperature soldering: 260C /10 seconds at temminals
Mechanical Data
● Case: JEDEC DO-214AC Molded plastic
● Terminals: Pure tin plated,lead free
● Polarity: Indicated by cathode band
● Packaging: 16mm tape per EIA STD RS-481
Applications
This product is general usage and suitable for many different applications.
Quick reference data
| Symbol | Parameter | Conditions | Max | Unit |
| VRRM | Recurrert Peak Reverse Voltage | 60 | V | |
| VF | Insta rtaneous Forward Voltage | Tamb = 25 °C | 0.75 | V |
| IO |
Average Forward Rectified Current |
3 | A | |
| IRM | DC Reverse Current | Tamb = 25 °C | 0.5 | mA |
| IFSM | Peak Forward Surge Current | 70 |
A |
