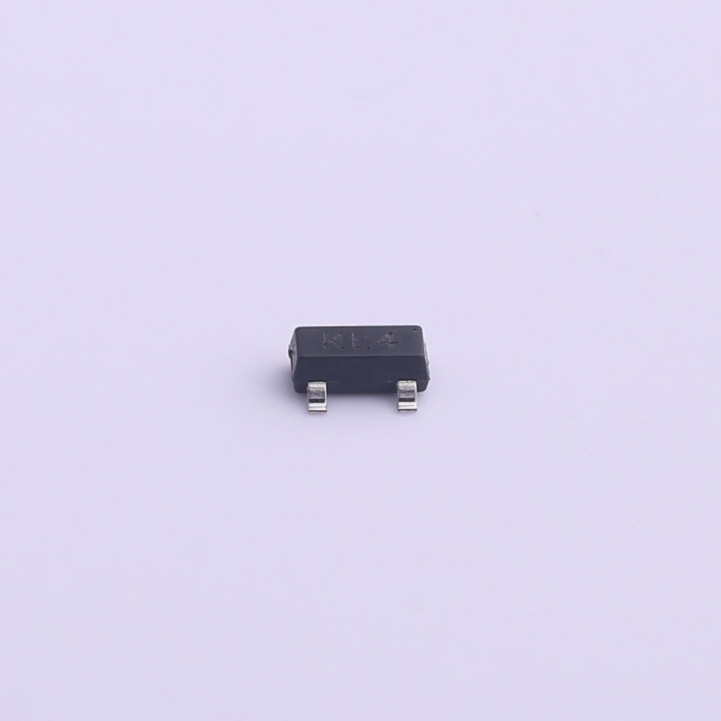

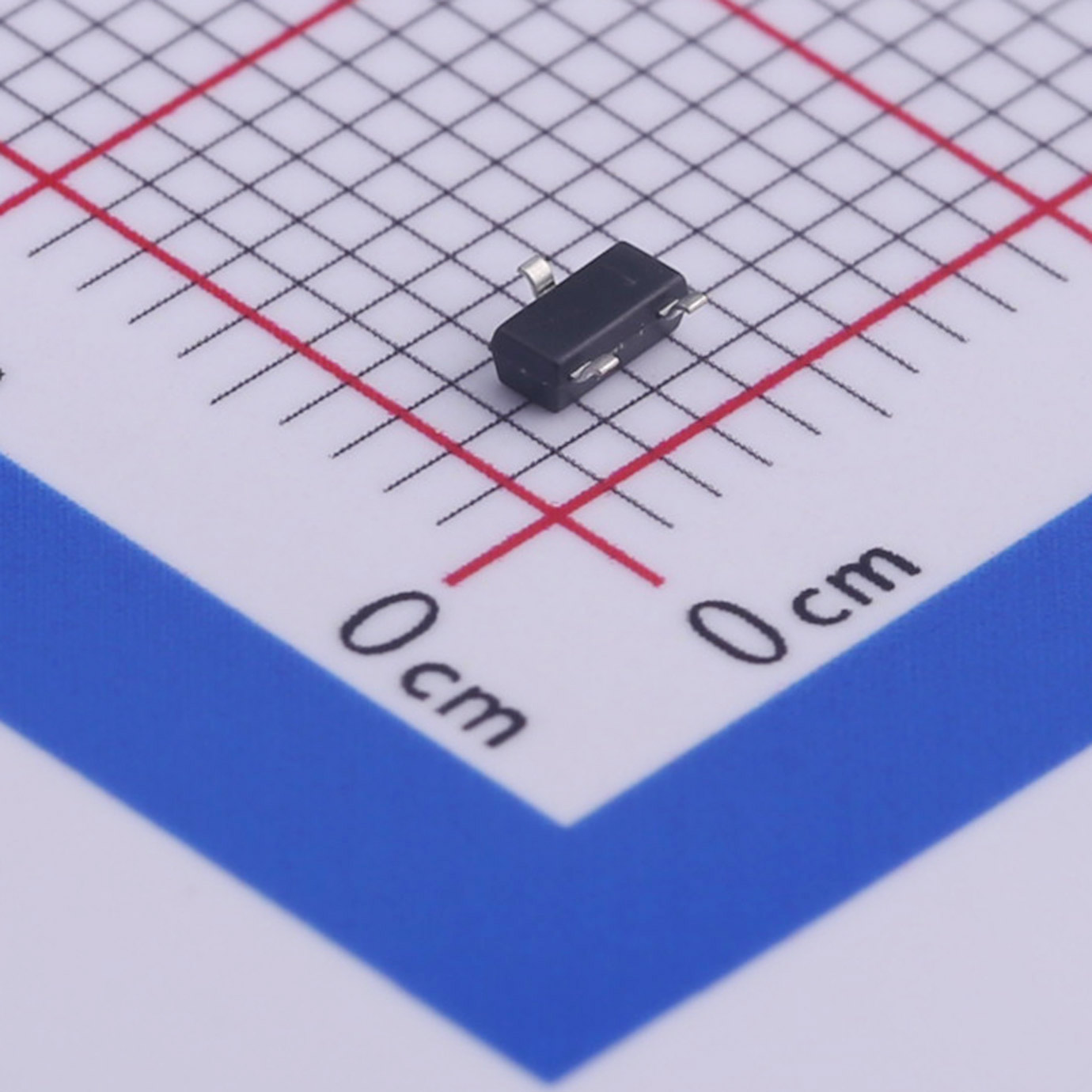

Cost-effective BAT54S Schottky Barrier Diodes SOT-23 Reliable Factory
30V|1V@100mA|2μA|SOT-23|200mA|Schottky Diode|Schottky Diode|IO,VR(V),VF(V),IR,Package|Schottky Diode|
Planar Schottky barrier diodes with an integrated guard ring for stress protection, encapsulated in a small SOT23 Surface-Mounted Device (SMD) plastic package.
Description:
Planar Schottky barrier diodes with an integrated guard ring for stress protection, encapsulated in a
small SOT23 Surface-Mounted Device (SMD) plastic package.
Features:
● Low forward voltage
● Low capacitance
Applications:
● Ultra high-speed switching
● Line termination
● Voltage clamping
● Reverse polarity protection
Quick reference data
| Symbol | Parameter | Conditions | Max | Unit |
| VR | reverse voltage | 30 | V | |
| VF | forward voltage |
IF = 100 mA; tp ≤ 300 μs; δ ≤ 0.02; pulsed; Tamb = 25 °C |
1000 | mV |
| IR | reverse current | VR = 25 V; tp ≤ 300 μs; δ ≤ 0.02; pulsed; Tamb = 25 °C | 2 | μA |
Name
Title
Description

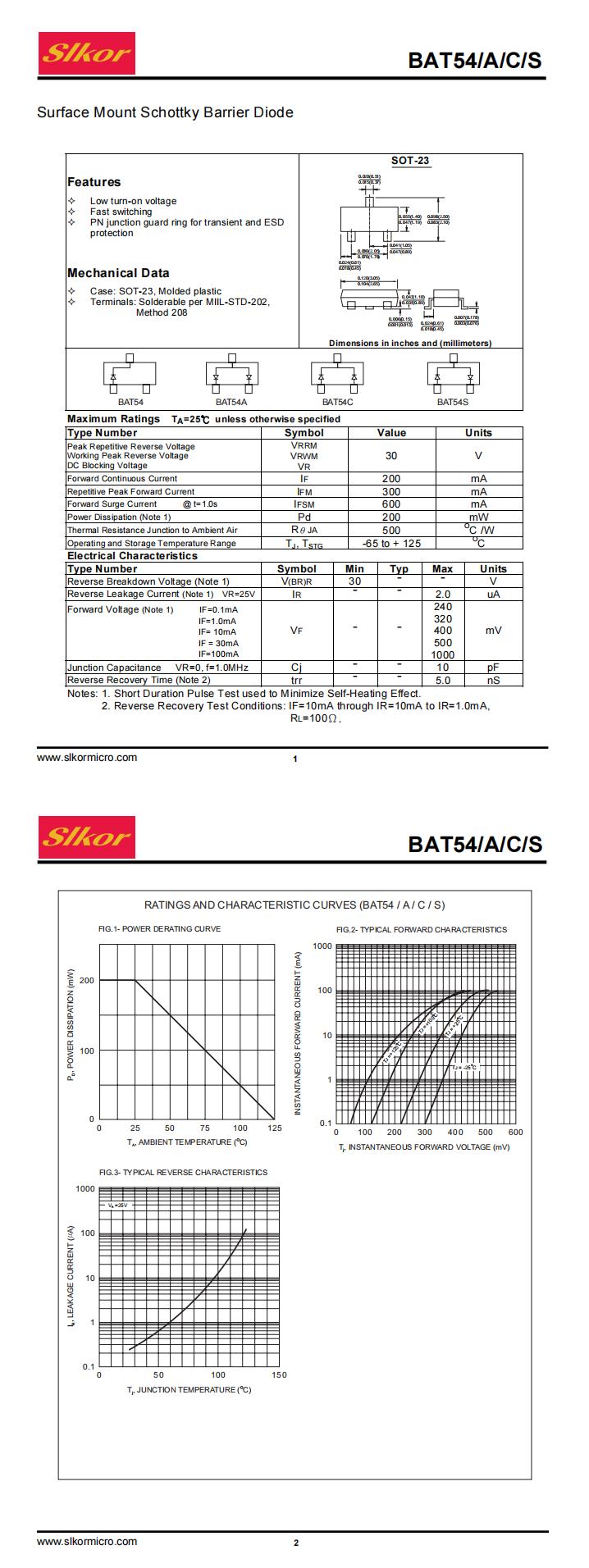

Datasheet
