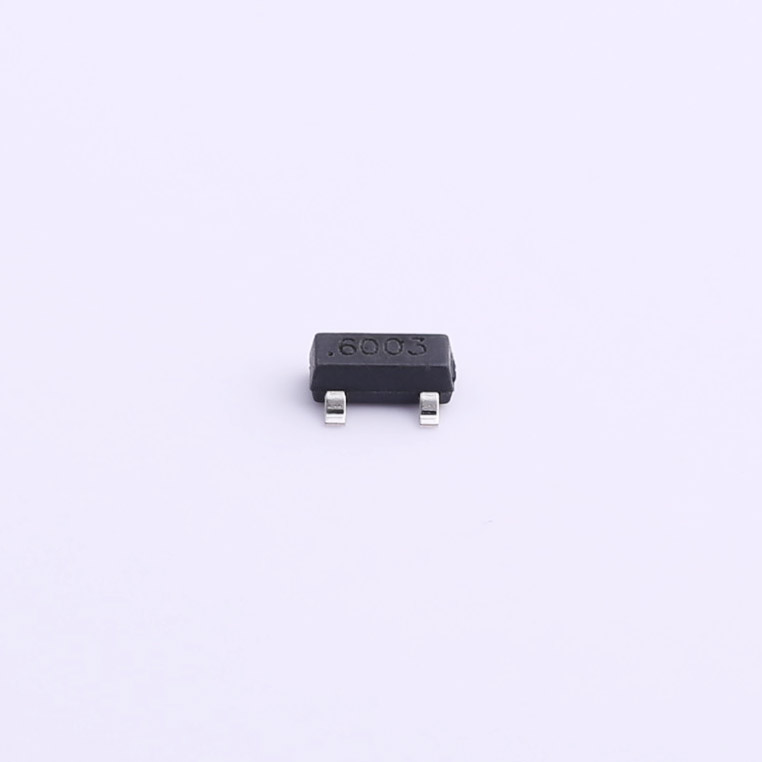

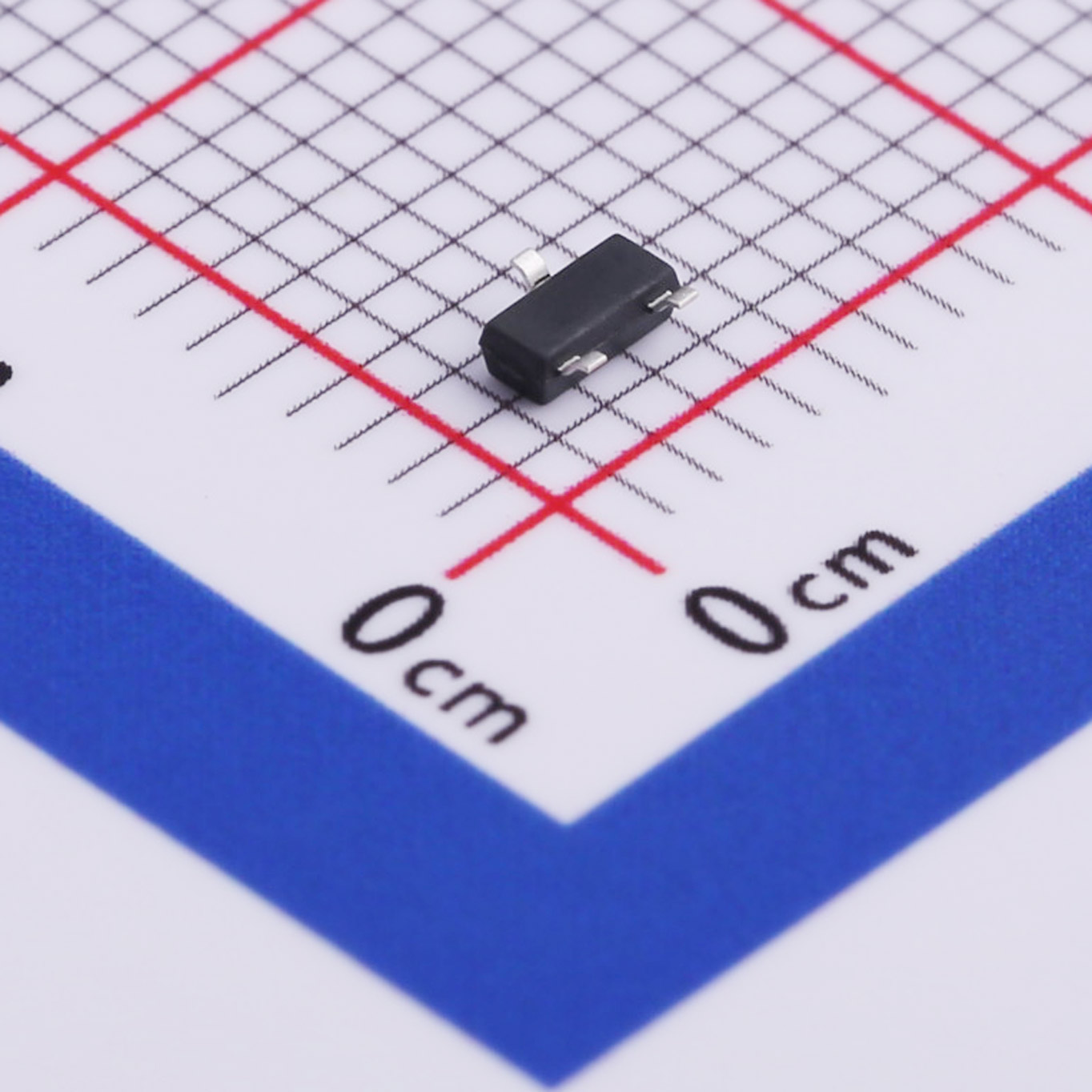

High Reliability SL3N06 N-Channel Power MOSFET SOT-23 Manufacturer
N-Channel MOSFET in SOT-23 package, featuring 60V Vdss, 3A Id, 90mΩ RDS(on), and a 3V gate threshold voltage. Ideal for high-efficiency power switching applications.
● High Current Handling
● Low On-Resistance
● Reliable Switching
MAXIMUM RATINGS
| Characteristic | Symbol | Max | Unit |
| Drain-SourceVoltage | BVDSS | 60 | V |
| Gate-SourceVoltage | VGS | 20 | V |
| DrainCurrent-continuous | IDR | 3 | A |
| DrainCurrent-pulsed | IDRM | 10 | A |
THERMAL CHARACTERISTICS
| Characteristic | Symbol | Max | Unit |
| Total Device Dissipation | PD | 1380 | mW/℃ |
| TA=25℃ | |||
| Derate above25℃ | 3.8 | mW/℃ | |
| Thermal Resistance Junction to Ambient | RΘJA | 90 | ℃/W |
| Junction andStorage Temperature | TJ,Tstg | 150℃,-55to+150℃ | |
