Surface Mount General Purpose Silicon Rectifiers

Our adventage

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description

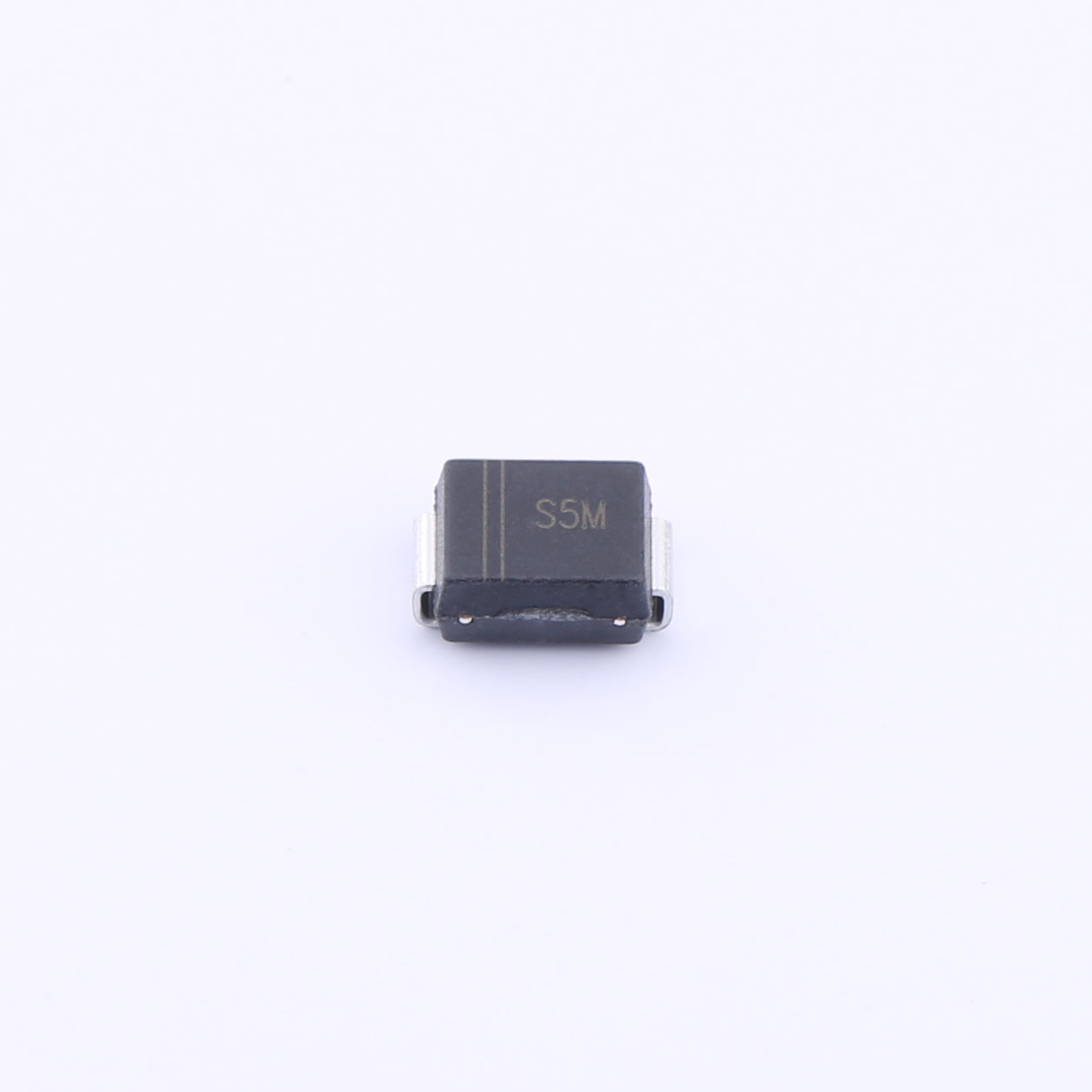

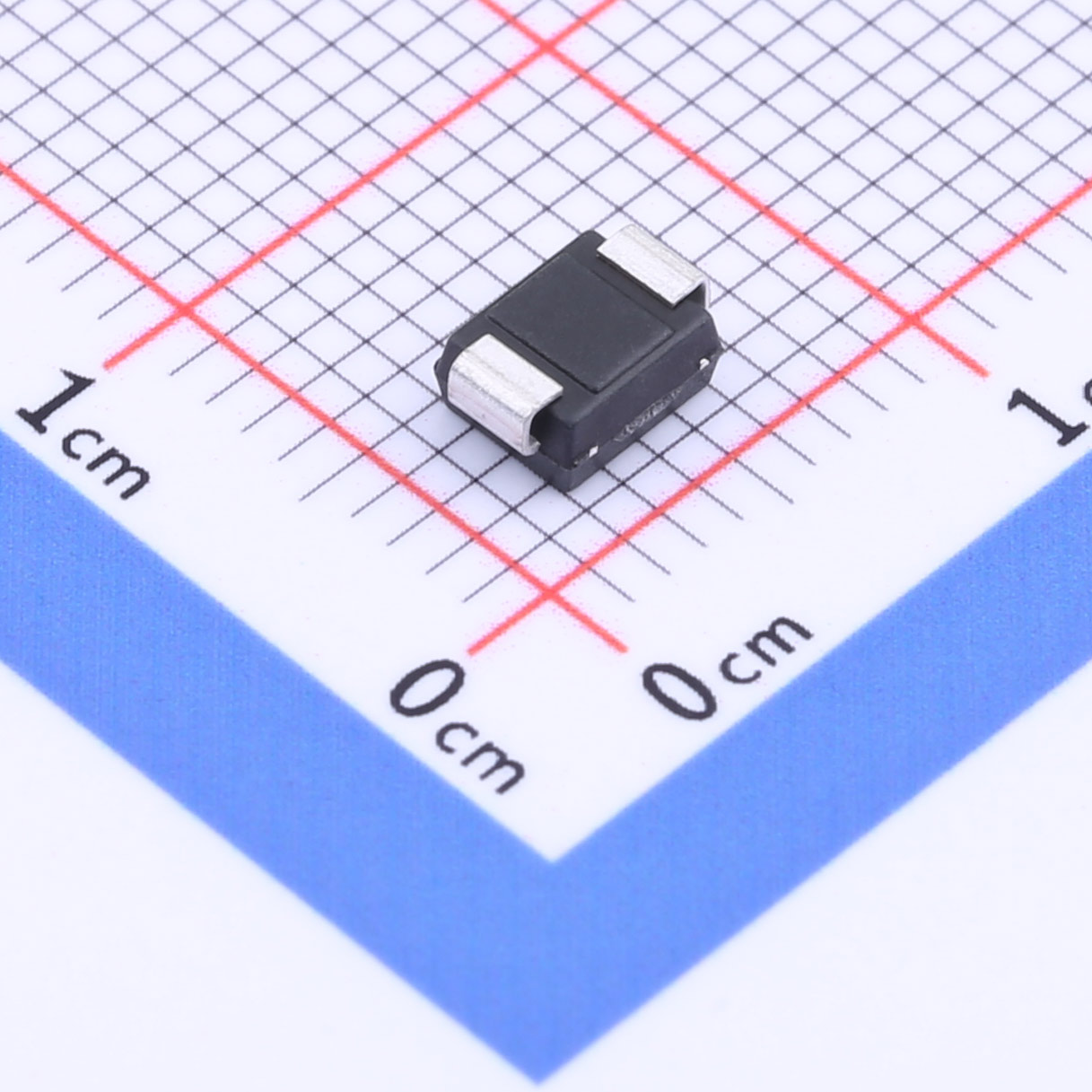

The General-purpose Diode S5MB is a high-performance rectifier diode designed to provide efficient rectification and robust performance in various electronic circuits. With a maximum reverse voltage (Vr) of 1000V and a forward current (Io) rating of 5A, the S5MB diode ensures reliable operation in demanding applications. It features a low forward voltage drop (Vf) of 1.1V at 5A, minimizing power loss and heat generation during operation. The diode also exhibits a low reverse current (Ir) of 10μA at 1000V, ensuring excellent performance and reliability in diverse circuit designs.

Features

● For surface mounted applications

● Low profile package

● Glass Passivated Chip JunctionEasy to pick and place

● Lead free in comply with EU RoHS 2011/65/EU directives


Applications

● Power Supplies: Efficiently converts alternating current (AC) to direct current (DC) in power supply units for industrial equipment, consumer electronics, and renewable energy systems.

● Rectification: Essential for rectifier circuits in various electronic devices, ensuring smooth and reliable DC voltage conversion.

● Voltage Regulation: Used in voltage regulator modules and circuits requiring precise voltage control and protection against voltage spikes.

● Power Factor Correction (PFC): Integrated into PFC circuits to improve the power factor and efficiency of AC-powered equipment, reducing energy consumption.

● Industrial Controls: Applied in motor drives, automation systems, and industrial controls where reliable rectification and voltage regulation are critical.
