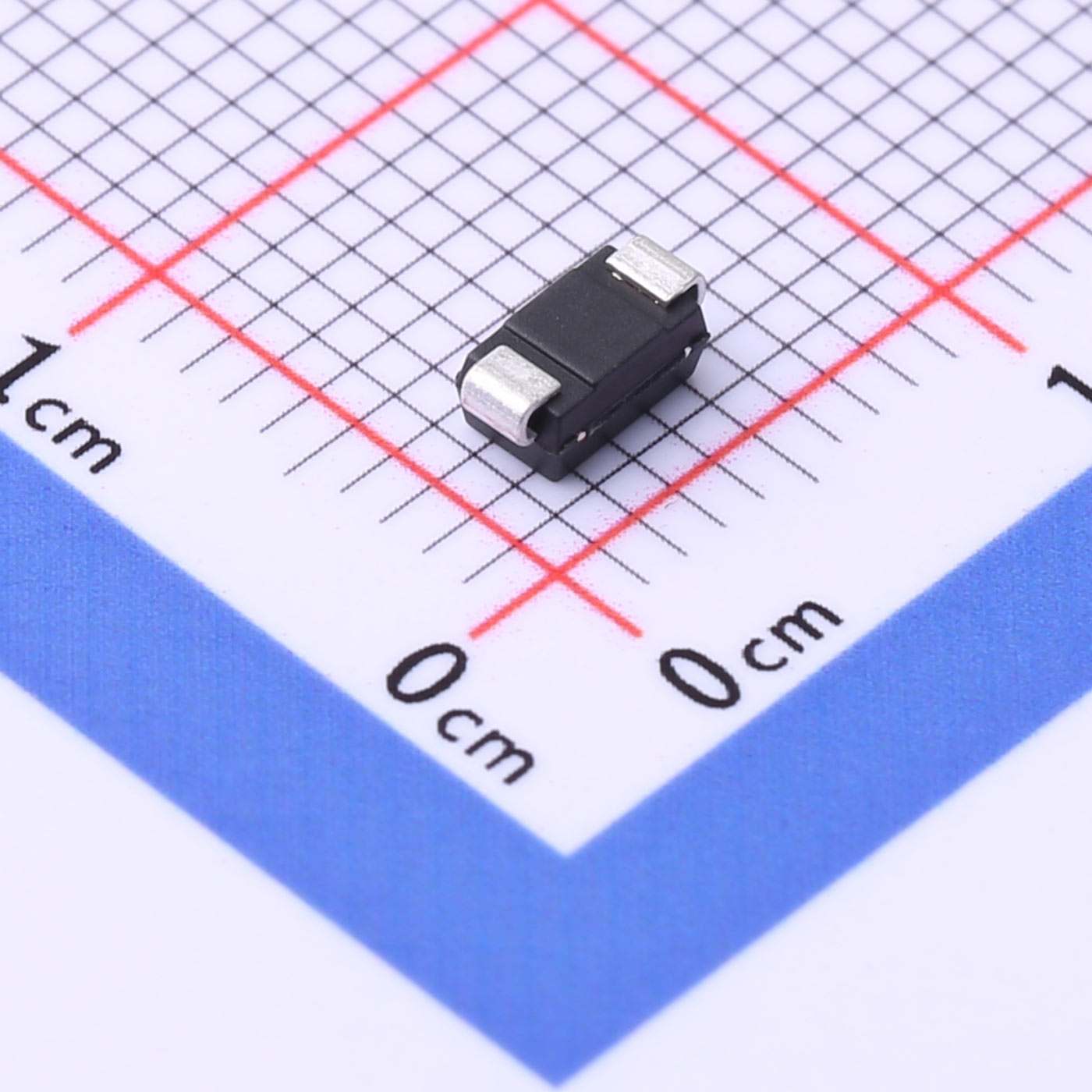

Surface Mount General Purpose Silicon Rectifiers

Our adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description

The General-purpose Diode S2M is designed to provide robust performance and efficient rectification in a wide array of electronic applications. Featuring a maximum reverse voltage (Vr) of 1000V and a forward current (Io) rating of 2A, the S2M diode boasts a low forward voltage drop (Vf) of 1.1V at 2A, minimizing power dissipation during operation. With a low reverse current (Ir) of 5μA at 1000V, it ensures reliable performance and high efficiency in diverse circuit designs.

Features
● For surface mounted applications
● Low profile package
● Glass Passivated Chip JunctionEasy to pick and place
● Lead free in comply with EU RoHS 2011/65/EU directives

Applications

● Power Supplies: Efficiently converts alternating current (AC) to direct current (DC) in power supply units for consumer electronics and industrial equipment, ensuring stable and reliable operation.

● Rectification: Essential for rectifier circuits to convert AC voltage to DC voltage, providing consistent power delivery for electronic devices and systems.

● Voltage Regulation: Used in circuits requiring precise voltage regulation and protection against voltage spikes and transients, safeguarding sensitive components from electrical fluctuations.

● Signal Demodulation: Integrated into signal demodulation circuits to extract baseband signals from modulated carrier waves, maintaining signal integrity in communication systems.
